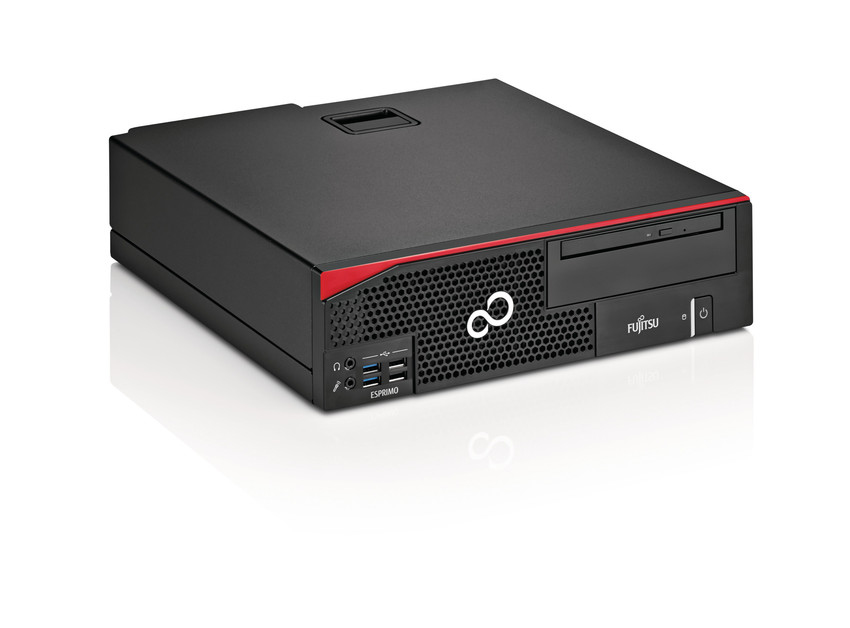

3x D556 + L27T-1
Model 3x D556 + L27T-1Part no. VFY:D0556P75AONLB1
179 specifications
- Display68.6 cm (27")
- Resolution1920 x 1080 pixels
- ProcessorIntel® Core™ i5
- Memory4 GB
- Storage500 GB
- GraphicsNot available
Overview
- Display
- 68.6 cm (27")
- Resolution
- 1920 x 1080 pixels
- Processor
- Intel® Core™ i5
- Memory
- 4 GB
- Storage
- 500 GB
- Graphics
- Not available
- Brand
- Fujitsu
- Category
- PCs/Workstations
- Model
- 3x D556 + L27T-1
- Part number
- VFY:D0556P75AONLB1
- Also known as
- Fujitsu ESPRIMO 3x D556 + L27T-1 Intel® Core™ i5 i5-6400 4 GB DDR3L-SDRAM 500 GB Hybrid-HDD Windows 10 Pro SFF PC Black
Specifications
179 specifications in 21 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel® Core™ i5 |
| Processor generation | 6th gen Intel® Core™ i5 |
| Processor model | i5-6400 |
| Processor cores | 4 |
| Processor threads | 4 |
| Processor boost frequency | 3.3 GHz |
| Processor frequency | 2.7 GHz |
| Processor cache | 6 MB |
| Processor cache type | Smart Cache |
| Bus type | DMI3 |
| FSB Parity | No |
| System bus rate | 8 GT/s |
| Processor lithography | 14 nm |
| Processor operating modes | 64-bit |
| Processor series | Intel Core i5-6400 Desktop series |
| Processor codename | Skylake |
| Thermal Design Power (TDP) | 65 W |
| Tcase | 71 °C |
| Maximum number of PCI Express lanes | 16 |
| PCI Express configurations | 1x16, 2x8, 1x8+2x4 |
| PCI Express slots version | 3.0 |
| Number of processors installed | 1 |
| Processor socket | LGA 1151 (Socket H4) |
| Stepping | R0 |
| Maximum internal memory supported by processor | 64 GB |
| Memory types supported by processor | DDR3L-SDRAM, DDR4-SDRAM |
| Memory clock speeds supported by processor | 2133,1333,1600,1866 MHz |
| Memory bandwidth supported by processor (max) | 34.1 GB/s |
| ECC supported by processor | No |
| Memory voltage supported by processor | 1.35 V |
Memory
| Specification | Value |
|---|---|
| Internal memory | 4 GB |
| Maximum internal memory | 32 GB |
| Internal memory type | DDR3L-SDRAM |
| Memory layout (slots x size) | 1 x 4 GB |
| Memory slots | 2x DIMM |
| Memory clock speed | 2133 MHz |
| Memory channels | Dual-channel |
| Non-ECC | Yes |
Storage
| Specification | Value |
|---|---|
| Total storage capacity | 500 GB |
| Optical drive type | DVD Super Multi |
| Storage media | Hybrid-HDD |
| Number of storage drives installed | 1 |
| Number of storage drives supported | 1 |
| Hybrid-HDD cache type | Flash |
| Hybrid-HDD capacity | 500 GB |
| Hybrid-HDD cache memory | 8 GB |
| HDD interface | SATA III |
| HDD speed | 7200 RPM |
| HDD size | 3.5" |
Graphics
| Specification | Value |
|---|---|
| On-board graphics card | Yes |
| Discrete graphics card model | Not available |
| On-board graphics card family | Intel® HD Graphics |
| On-board graphics card model | Intel® HD Graphics 530 |
| Maximum on-board graphics card memory | 64 GB |
| Number of displays supported (on-board graphics) | 3 |
| On-board graphics card base frequency | 350 MHz |
| On-board graphics card dynamic frequency (max) | 950 MHz |
| On-board graphics card DirectX version | 12.0 |
| On-board graphics card ID | 1912 |
| On-board graphics card OpenGL version | 4.4 |
| Graphics card Open GL support | Yes |
Performance
| Specification | Value |
|---|---|
| Product type | PC |
| Motherboard chipset | Intel® H110 |
| Password protection | Yes |
| Password protection type | BIOS, HDD, Supervisor, User |
| BIOS type | UEFI AMI |
| Audio output channels | 5.1 channels |
Optical drive
| Specification | Value |
|---|---|
| Optical drives quantity | 1 |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Cabling technology | 10/100/1000Base-T(X) |
Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 0 |
| DisplayPorts quantity | 1 |
| HDMI ports quantity | 0 |
| Ethernet LAN (RJ-45) ports | 1 |
| Headphone outputs | 1 |
| Line-out | Yes |
| Line-in | Yes |
| Microphone in | Yes |
| VGA (D-Sub) ports quantity | 0 |
| DVI port | Yes |
| PS/2 ports quantity | 2 |
Expansion slots
| Specification | Value |
|---|---|
| Number of 3.5" bays | 2 |
| PCI Express x1 slots | 1 |
| PCI Express x4 (Gen 2.x) slots | 1 |
| PCI Express x16 (Gen 3.x) slots | 1 |
Power
| Specification | Value |
|---|---|
| Power supply | 280 W |
| Power supply input voltage | 100 - 240 V |
| Power supply input frequency | 50 - 60 Hz |
Design
| Specification | Value |
|---|---|
| Chassis type | SFF |
| Placement supported | Horizontal/Vertical |
| Number of 5.25" bays | 1 |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| Product colour | Black |
Software
| Specification | Value |
|---|---|
| Operating system installed | Windows 10 Pro |
| Operating system architecture | 64-bit |
| Drivers included | Yes |
Display
| Specification | Value |
|---|---|
| Display included | Yes |
| Display diagonal | 68.6 cm (27") |
| Display type | LED |
| Full HD | Yes |
| Display resolution | 1920 x 1080 pixels |
| Native aspect ratio | 16:9 |
| Contrast ratio (typical) | 3000:1 |
| Display number of colours | 16.78 million colours |
| Touchscreen | No |
| Display brightness | 300 cd/m² |
| Viewing angle, horizontal | 178° |
| Viewing angle, vertical | 178° |
Processor special features
| Specification | Value |
|---|---|
| CPU configuration (max) | 1 |
| Embedded options available | No |
| Enhanced Intel SpeedStep Technology | Yes |
| Execute Disable Bit | Yes |
| Graphics & IMC lithography | 14 nm |
| Idle States | Yes |
| Intel 64 | Yes |
| Intel Clear Video Technology | Yes |
| Intel Demand Based Switching | No |
| Intel Dual Display Capable Technology | No |
| Intel Enhanced Halt State | Yes |
| Intel FDI Technology | No |
| Intel Fast Memory Access | No |
| Intel Flex Memory Access | No |
| Intel HD Graphics | Yes |
| Intel Identity Protection Technology version | 1.00 |
| Intel Rapid Storage Technology | No |
| Intel Secure Key Technology version | 1.00 |
| Intel Small Business Advantage (SBA) version | 1.00 |
| Intel Software Guard Extensions (Intel SGX) | Yes |
| Intel Stable Image Platform Program (SIPP) | No |
| Intel Stable Image Platform Program (SIPP) version | 0.00 |
| Intel TSX-NI | No |
| Intel TSX-NI version | 0.00 |
| Intel Trusted Execution Technology | No |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Intel® Built-in Visuals Technology | Yes |
| Intel® Clear Video HD Technology (Intel® CVT HD) | Yes |
| Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID) | Yes |
| Intel® InTru™ 3D Technology | Yes |
| Intel® Insider™ | Yes |
| Intel® OS Guard | Yes |
| Intel® Secure Key | Yes |
| Intel® Small Business Advantage (Intel® SBA) | Yes |
| Intel® Smart Cache | Yes |
| Intel® Wireless Display (Intel® WiDi) | Yes |
| Processor ARK ID | 88185 |
| Processor code | SR2BY |
| Processor package size | 37.5 x 37.5 mm |
| Scalability | 1S |
| Supported instruction sets | SSE4.2, AVX 2.0, SSE4.1 |
| Thermal Monitoring Technologies | Yes |
| Thermal solution specification | PCG 2015C |
| Intel® Turbo Boost Technology | 2.0 |
| Intel® Hyper Threading Technology (Intel® HT Technology) | No |
| Intel® Quick Sync Video Technology | Yes |
| Intel® My WiFi Technology (Intel® MWT) | No |
| Intel® Identity Protection Technology (Intel® IPT) | Yes |
| Intel® Anti-Theft Technology (Intel® AT) | No |
| Conflict-Free processor | Yes |
Audio
| Specification | Value |
|---|---|
| Audio system | High Definition Audio |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 10 - 35 °C |
| Operating relative humidity (H-H) | 5 - 85% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 332 mm |
| Depth | 338 mm |
| Height | 89 mm |
| Weight | 8 kg |
Packaging content
| Specification | Value |
|---|---|
| Keyboard included | Yes |
| Manual | Yes |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
| Certification | WEEE, HCT, WHQL, CCC, TUV GS, FCC B, cCSAus |
Sustainability
| Specification | Value |
|---|---|
| Sustainability certificates | Blue Angel, EPEAT Gold, ENERGY STAR |
Other features
| Specification | Value |
|---|---|
| Intel segment tagging | Home office, Small Business |
