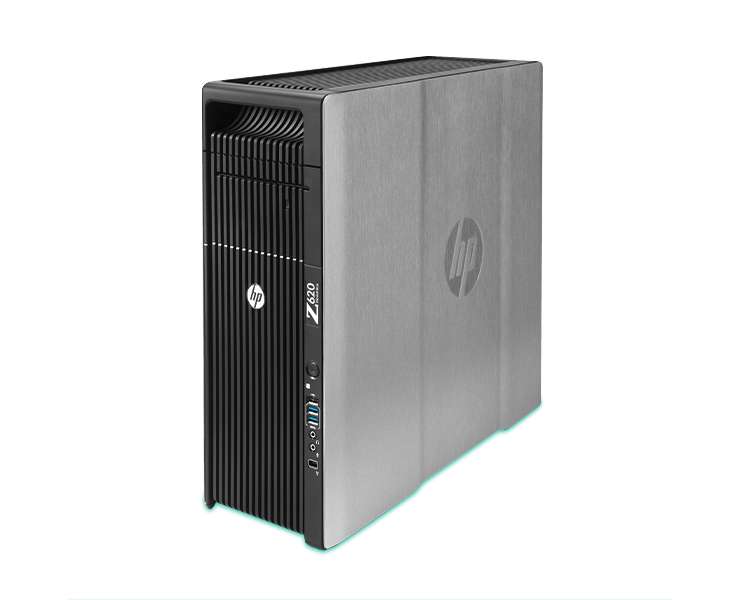

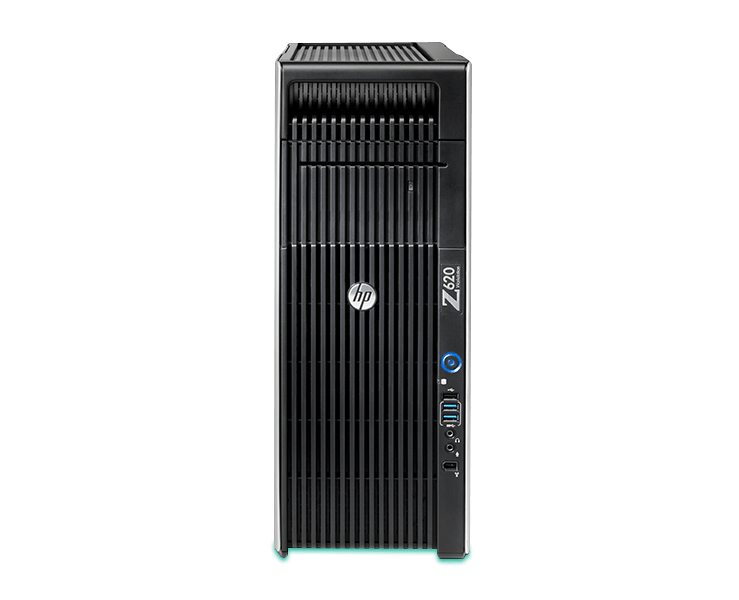

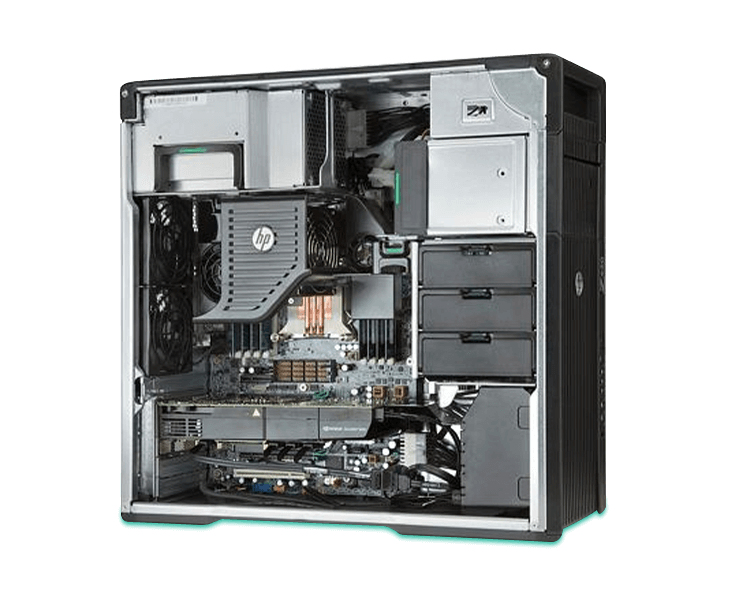

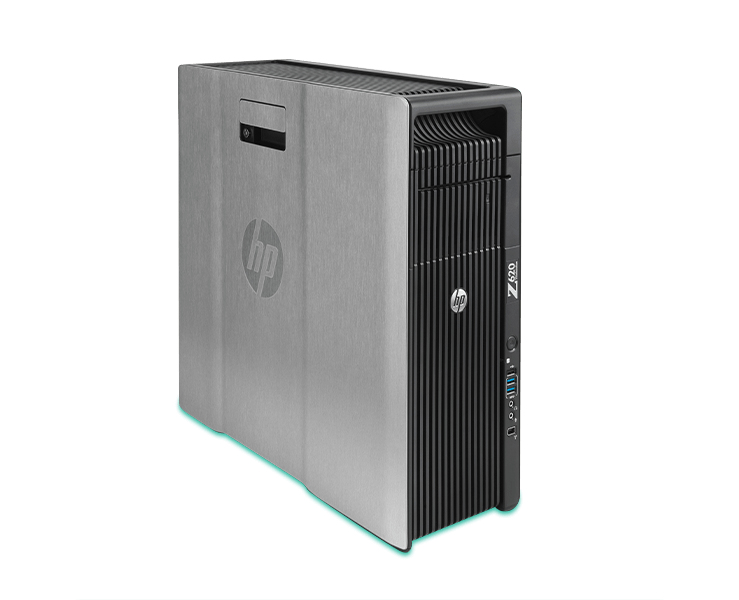

HP Z620 Workstation (Refurbished)
Model HP Z620 Workstation (Refurbished)Part no. LJ450AV-SB273-R4
62 specifications
- ProcessorIntel® Xeon® E5 Family
- Memory16 GB
- Storage256 GB
- GraphicsNVIDIA® NVS™ 510
- TypeWorkstation
- OSNo
Overview
- Processor
- Intel® Xeon® E5 Family
- Memory
- 16 GB
- Storage
- 256 GB
- Graphics
- NVIDIA® NVS™ 510
- Type
- Workstation
- OS
- No
- Brand
- Flex IT
- Category
- PCs/Workstations
- Model
- HP Z620 Workstation (Refurbished)
- Part number
- LJ450AV-SB273-R4
- Also known as
- HP Z620 Workstation (Refurbished) Intel® Xeon® E5 Family E5-2620 16 GB DDR3-SDRAM 256 GB SSD NVIDIA® NVS™ 510
Specifications
62 specifications in 8 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel® Xeon® E5 Family |
| Processor model | E5-2620 |
| Processor cores | 6 |
| Processor threads | 12 |
| Processor boost frequency | 2.5 GHz |
| Processor frequency | 2 GHz |
| Processor cache | 15 MB |
| Processor cache type | Smart Cache |
| Bus type | QPI |
| System bus rate | 7.2 GT/s |
| Processor lithography | 32 nm |
| Processor operating modes | 64-bit |
| Thermal Design Power (TDP) | 95 W |
| Tcase | 77.4 °C |
| Maximum number of PCI Express lanes | 40 |
| PCI Express slots version | 3.0 |
| Number of QPI links | 2 |
| Number of processors installed | 2 |
| Processor socket | LGA 2011 (Socket R) |
| CPU multiplier (bus/core ratio) | 25 |
| Stepping | C2 |
| Maximum internal memory supported by processor | 750 GB |
| Memory types supported by processor | DDR3-SDRAM |
| Memory clock speeds supported by processor | 800,1066,1333 MHz |
| Memory bandwidth supported by processor (max) | 42.6 GB/s |
Memory
| Specification | Value |
|---|---|
| Internal memory | 16 GB |
| Internal memory type | DDR3-SDRAM |
Storage
| Specification | Value |
|---|---|
| Total storage capacity | 256 GB |
| Optical drive type | DVD-ROM |
| Storage media | SSD |
| SSD capacity | 256 GB |
Graphics
| Specification | Value |
|---|---|
| Discrete graphics card | Yes |
| Discrete graphics card model | NVIDIA® NVS™ 510 |
Performance
| Specification | Value |
|---|---|
| Product type | Workstation |
Software
| Specification | Value |
|---|---|
| Operating system installed | No |
Display
| Specification | Value |
|---|---|
| Display included | No |
Processor special features
| Specification | Value |
|---|---|
| CPU configuration (max) | 2 |
| Embedded options available | Yes |
| Enhanced Intel SpeedStep Technology | Yes |
| Execute Disable Bit | Yes |
| Graphics & IMC lithography | 32 nm |
| Idle States | Yes |
| Intel 64 | Yes |
| Intel Demand Based Switching | Yes |
| Intel Enhanced Halt State | Yes |
| Intel Flex Memory Access | No |
| Intel Identity Protection Technology version | 0.00 |
| Intel Trusted Execution Technology | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Processor ARK ID | 64594 |
| Processor package size | 52.5 x 45.0 mm |
| Scalability | 2S |
| Supported instruction sets | AVX |
| Thermal Monitoring Technologies | Yes |
| Intel® Turbo Boost Technology | 1.0 |
| Intel® Hyper Threading Technology (Intel® HT Technology) | Yes |
| Intel® Identity Protection Technology (Intel® IPT) | No |
| Conflict-Free processor | No |
