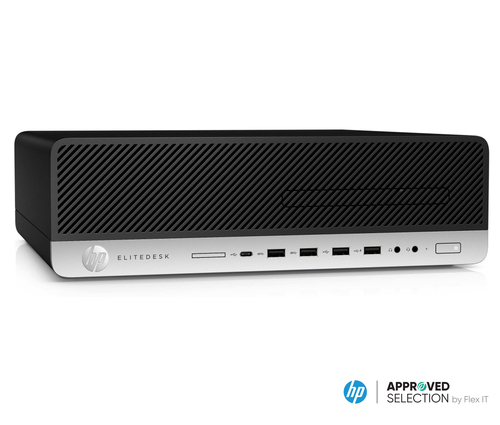

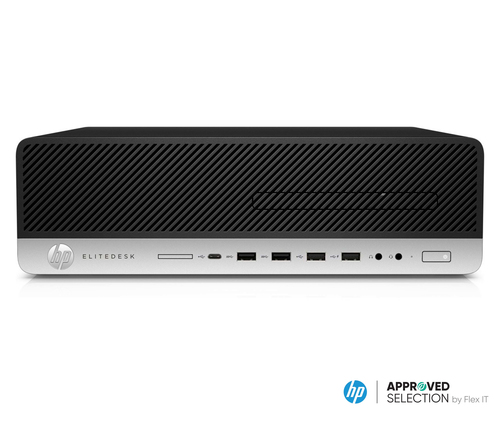

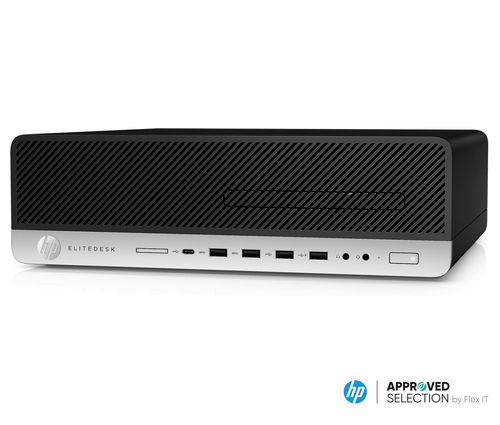

HP EliteDesk 800 G3 SFF
Model HP EliteDesk 800 G3 SFFPart no. Y2Z63AV-SB52-A1
97 specifications
- ProcessorIntel® Core™ i5
- Memory8 GB
- Storage256 GB
- GraphicsNot available
- TypeSmall form factor
- OSWindows 10 Pro
Overview
- Processor
- Intel® Core™ i5
- Memory
- 8 GB
- Storage
- 256 GB
- Graphics
- Not available
- Type
- Small form factor
- OS
- Windows 10 Pro
- Brand
- Flex IT
- Category
- PCs/Workstations
- Model
- HP EliteDesk 800 G3 SFF
- Part number
- Y2Z63AV-SB52-A1
- Also known as
- HP Approved Selection by HP EliteDesk 800 G3 SFF Intel® Core™ i5 i5-6500 8 GB 256 GB SSD Windows 10 Pro
Specifications
97 specifications in 19 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel® Core™ i5 |
| Processor generation | 6th gen Intel® Core™ i5 |
| Processor model | i5-6500 |
| Processor cores | 4 |
| Processor threads | 4 |
| Processor boost frequency | 3.6 GHz |
| Processor frequency | 3.2 GHz |
| Processor cache | 6 MB |
| Processor cache type | Smart Cache |
| Bus type | DMI3 |
| Number of processors installed | 1 |
| Chipset | Intel® Q270 |
Memory
| Specification | Value |
|---|---|
| Internal memory | 8 GB |
| Memory slots | 4x DIMM |
| Memory clock speed | 2400 MHz |
Storage
| Specification | Value |
|---|---|
| Total storage capacity | 256 GB |
| Optical drive type | DVD±RW |
| Storage media | SSD |
| Total SSDs capacity | 256 GB |
| Card reader integrated | Yes |
Graphics
| Specification | Value |
|---|---|
| Discrete graphics card | No |
| On-board graphics card | Yes |
| Discrete graphics card model | Not available |
| On-board GPU manufacturer | Intel |
| On-board graphics card family | Intel® HD Graphics |
| On-board graphics card model | Intel® HD Graphics 630 |
Performance
| Specification | Value |
|---|---|
| Motherboard chipset | Intel® Q270 |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| LAN controller | Intel® I219-LM |
Ports & interfaces
| Specification | Value |
|---|---|
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 |
| DisplayPorts quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| Combo headphone/mic port | Yes |
| Line-out | Yes |
| Line-in | Yes |
| VGA (D-Sub) ports quantity | 1 |

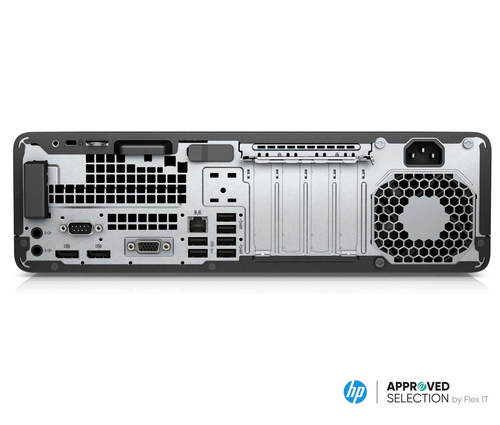

| I/O ports | 1 HDMI, 1 audio line in, 1 RJ-45, 1 power connector, 1 audio out, 2 DisplayPortTM, 2 USB 2.0, 4 USB 3.1 Gen 1, 3 optional ports, 1 SD 4 card reader (optional), 1 USB Type-CTM, 2 USB 3.1 Gen 1, 1 USB 2.0, 1 USB 2.0 (fast charging), 1 Headphone connector, Universal audio jack with CTIA headset support |
Expansion slots
| Specification | Value |
|---|---|
| Number of 3.5" bays | 1 |
| Expansion slots | 1 M.2 2230 for optional wireless NIC, 1 M.2 2280 for optional SSD drive, 2 low-profile PCIe (x1), 2 low-profile PCIe x16, PCI Express x16 (v3.0)(wired as a x4) 6.35 cm (2.5") low profile, 16.76 cm (6.6") length, 35 W max power |
Power
| Specification | Value |
|---|---|
| Power supply | 180 W |
Design
| Specification | Value |
|---|---|
| Chassis type | SFF |
| Number of 2.5" bays | 1 |
| External drive bays | One 9.5 mm slim |
| Form factor | Small form factor |
| Internal drive bays | One 6.35 cm (2.5"), One 8.9 cm (3.5") |
Software
| Specification | Value |
|---|---|
| Operating system installed | Windows 10 Pro |
Processor special features
| Specification | Value |
|---|---|
| CPU configuration (max) | 1 |
| Embedded options available | Yes |
| Enhanced Intel SpeedStep Technology | Yes |
| Execute Disable Bit | Yes |
| Graphics & IMC lithography | 14 nm |
| Idle States | Yes |
| Intel 64 | Yes |
| Intel Clear Video Technology | Yes |
| Intel Enhanced Halt State | Yes |
| Intel Identity Protection Technology version | 1.00 |
| Intel Secure Key Technology version | 1.00 |
| Intel Small Business Advantage (SBA) version | 1.00 |
| Intel Software Guard Extensions (Intel SGX) | Yes |
| Intel Stable Image Platform Program (SIPP) | Yes |
| Intel Stable Image Platform Program (SIPP) version | 1.00 |
| Intel TSX-NI | Yes |
| Intel TSX-NI version | 1.00 |
| Intel Trusted Execution Technology | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Processor ARK ID | 88184 |
| Conflict-Free processor | Yes |
Audio
| Specification | Value |
|---|---|
| Audio chip | Realtek ALC221 |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 10 mm |
| Depth | 33.8 mm |
| Height | 3.08 mm |
| Weight | 5.31 kg |
Certificates
| Specification | Value |
|---|---|
| Low halogen | Yes |
Sustainability
| Specification | Value |
|---|---|
| Sustainability certificates | ENERGY STAR |
| Product lifetime | 5 |
Carbon footprint
| Specification | Value |
|---|---|
| Climate change total (kg CO2 eq.) Full life New | 452.9 kg |
| Resource use (fossils) (MJ) 3 years New | 4253.73 MJ |
| Total carbon footprint (kg of CO2e) | 452.9000000000000000000 |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 8471500000 |
Other features
| Specification | Value |
|---|---|
| Particulate matter (disease incidence) 3 years New | 0.0000112276353485349 |
| Particulate matter (disease incidence) 3 years Refurb | 0.0000113676068712445 |
| Particulate matter (disease incidence) Difference absolute 3 years New - Refurb | -0.00000139971522709554 |
| Particulate matter (disease incidence) Difference percentage 3 years New - Refurb | 0.01% |
| Particulate matter (disease incidence) Full life New | 0.0000187127255808916 |
| Resource use (fossils) (MJ) 3 years Refurb | 3212.07 MJ |
| Resource use (fossils) (MJ) Difference absolute 3 years New - Refurb | -1041.66 MJ |
| Resource use (fossils) (MJ) Difference percentage 3 years New - Refurb | -0.24% |
| Resource use (fossils) (MJ) Full life New | 7089.55 MJ |
| Resource use minerals and metals (kg Sb eq.) 3 years New | 0.06 kg |
| Resource use minerals and metals (kg Sb eq.) 3 years Refurb | 0.02 kg |
| Resource use minerals and metals (kg Sb eq.) Difference absolute 3 years New - Refurb | -0.05 kg |
| Resource use minerals and metals (kg Sb eq.) Difference percentage 3 years New - Refurb | -0.7% |
| Resource use minerals and metals (kg Sb eq.) Full life New | 0.11 kg |
| UNSPSC-code | 43211507 |
