WT7 PC/workstation 265
16 GB DDR5-SDRAM NVIDIA GeForce RTX 4060 Windows 11 Pro Black
Model WT7EAN 5715063731963
86 specifications
- Processor265
- Memory16 GB
- GraphicsNVIDIA GeForce RTX 4060
- TypeWorkstation
- OSWindows 11 Pro
- Weight10 kg
Overview
- Processor
- 265
- Memory
- 16 GB
- Graphics
- NVIDIA GeForce RTX 4060
- Type
- Workstation
- OS
- Windows 11 Pro
- Weight
- 10 kg
- Brand
- Ernitec
- Category
- PCs/Workstations
- Model
- WT7
- Part number
- WT7
- EAN / UPC
- 5715063731963
- Also known as
- Ernitec WT7 PC/workstation 265 16 GB DDR5-SDRAM NVIDIA GeForce RTX 4060 Windows 11 Pro Black
Specifications
86 specifications in 17 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor model | 265 |
| Processor cores | 20 |
| Processor threads | 20 |
| Processor frequency | 5.3 GHz |
| Performance cores | 8 |
| Efficient cores | 12 |
| Performance-core Max Turbo Frequency | 5.3 GHz |
| Efficient-core Max Turbo Frequency | 4.6 GHz |
| Performance-core base frequency | 2.4 GHz |
| Efficient-core base frequency | 2.4 GHz |
| Processor cache | 30 MB |
| Processor cache type | Smart Cache |
| Processor socket | LGA 1851 (Socket V1) |
| Processor base power | 65 W |
Memory
| Specification | Value |
|---|---|
| Internal memory | 16 GB |
| Maximum internal memory | 256 GB |
| Internal memory type | DDR5-SDRAM |
| Memory layout (slots x size) | 2 x 8 GB |
| Memory clock speed | 5600 MHz |
| Memory channels | Dual-channel |
| Supported memory types | DDR5-SDRAM |
| Number of free internal memory expansion slots | 2 |
Storage
| Specification | Value |
|---|---|
| Total SSDs capacity | 1 TB |
| Number of SSDs installed | 1 |
| NVMe | Yes |
| SSD interface | PCI Express |
| SSD form factor | M.2 |
Graphics
| Specification | Value |
|---|---|
| Discrete graphics card | Yes |
| Discrete GPU manufacturer | NVIDIA |
| Discrete graphics card model | NVIDIA GeForce RTX 4060 |
| Discrete graphics card memory | 8 GB |
| Discrete graphics memory type | GDDR6 |
| Number of discrete graphics cards | 1 |
| On-board GPU manufacturer | Intel |
| On-board graphics card family | Intel Arc Graphics |
| On-board graphics card model | Intel Arc Graphics |
| On-board graphics card 6K support | Yes |
| On-board graphics card 4K support | Yes |

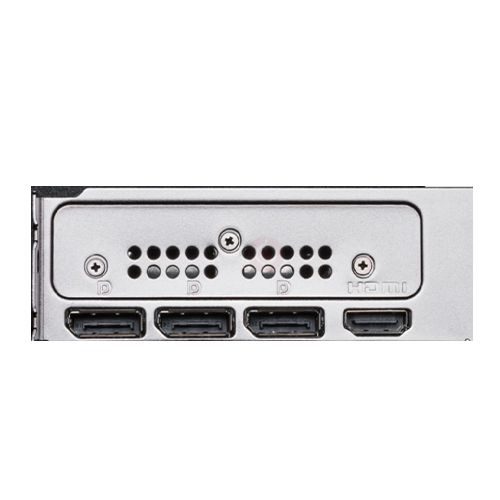

| Graphics card DisplayPorts quantity | 3 |
| Graphics card HDMI ports quantity | 1 |
Performance
| Specification | Value |
|---|---|
| Product type | Workstation |
| Motherboard chipset | Intel B860 |
| Motherboard form factor | ATX |
| BIOS memory size | 256 Mbit |
| BIOS type | UEFI AMI |
| Audio output channels | 7.1 channels |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 2500 Mbit/s |
| LAN controller | Dragon RTL8125BG |
| Wake-on-LAN ready | Yes |
| Ethernet interface type | 2.5 Gigabit Ethernet |

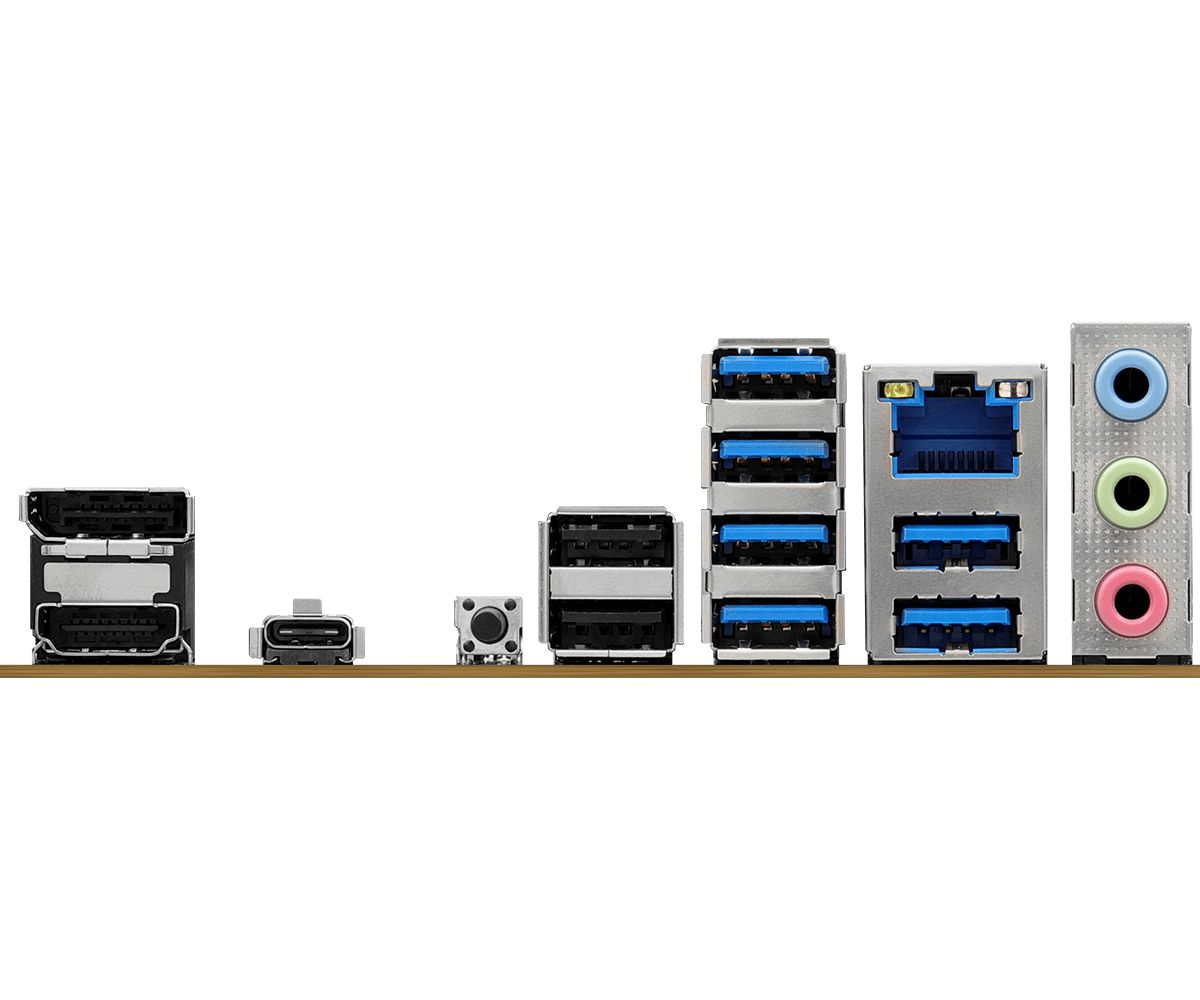

Ports & interfaces
| Specification | Value |
|---|---|
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 2 |
| DisplayPorts quantity | 4 |
| DisplayPort version | 1.4 |
| HDMI ports quantity | 2 |
| HDMI version | 2.1 |
| Internal USB 2.0 ports quantity | 4 |
| Internal USB 3.2 Gen 1 (3.1 Gen 1) ports quantity | 2 |
| Number of SATA connectors | 4 |
| Number of front USB ports | 5 |
| Number of rear USB ports | 9 |
Expansion slots
| Specification | Value |
|---|---|
| Number of 3.5" bays | 2 |
| PCI Express x4 (Gen 3.x) slots | 1 |
Power
| Specification | Value |
|---|---|
| Power supply | 750 W |
| 80 PLUS certification | 80 PLUS Gold |
Design
| Specification | Value |
|---|---|
| Number of 5.25" bays | 0 |
| Number of 2.5" bays | 2 |
| Product colour | Black |

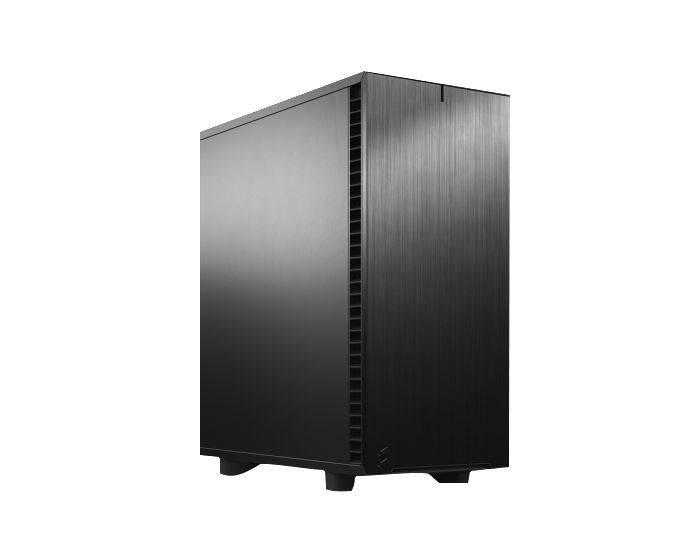

| Form factor | Midi Tower |
Software
| Specification | Value |
|---|---|
| Operating system installed | Windows 11 Pro |
| Operating system language | Multilingual |
| Compatible operating systems | Windows 11 |
Display
| Specification | Value |
|---|---|
| Number of displays supported | 6 |
Processor special features
| Specification | Value |
|---|---|
| Processor ARK ID | 241068 |
| Intel® Quick Sync Video Technology | Yes |
Audio
| Specification | Value |
|---|---|
| Audio chip | Realtek ALC897 |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 310 mm |
| Depth | 540 mm |
| Height | 530 mm |
| Weight | 10 kg |
Packaging data
| Specification | Value |
|---|---|
| Package width | 310 mm |
| Package depth | 540 mm |
| Package height | 530 mm |
| Package weight | 12 kg |
Packaging content
| Specification | Value |
|---|---|
| Power cord included | Yes |
