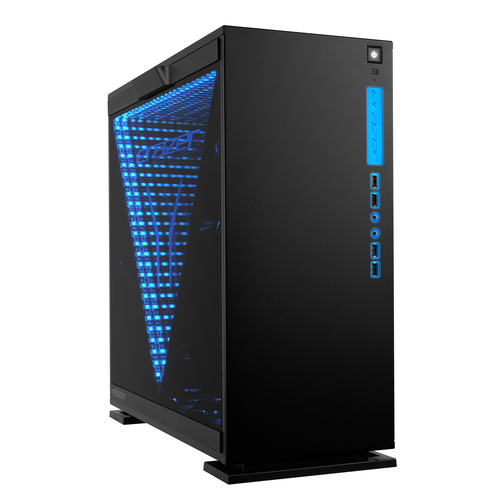

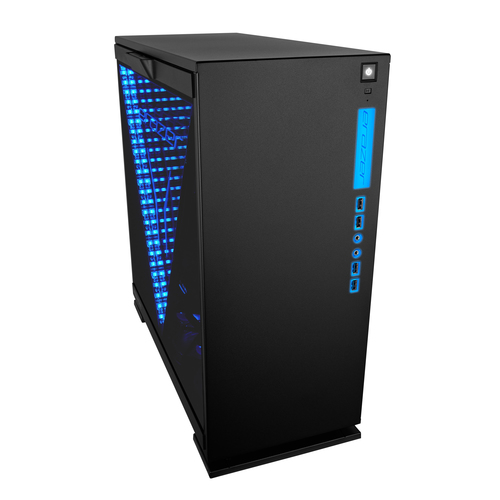

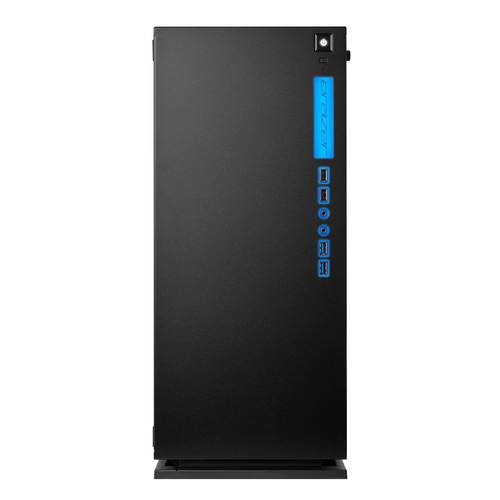

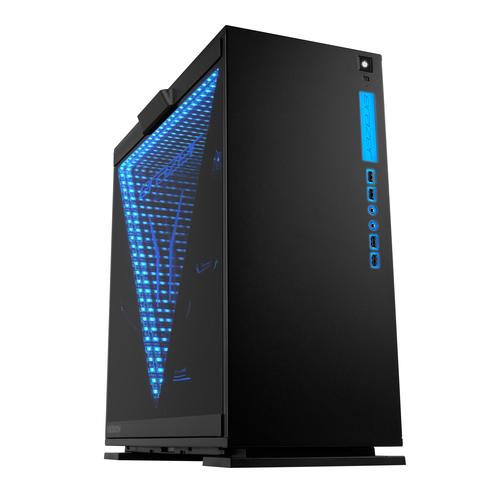

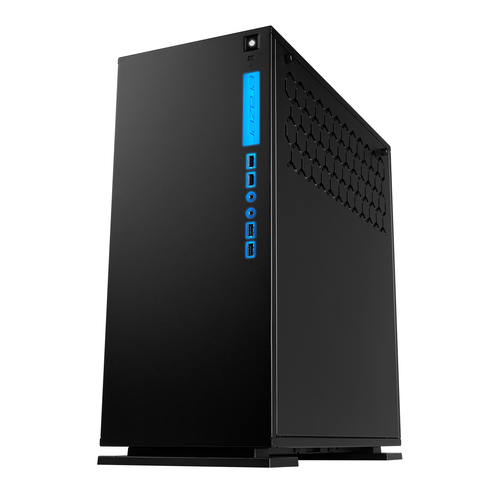

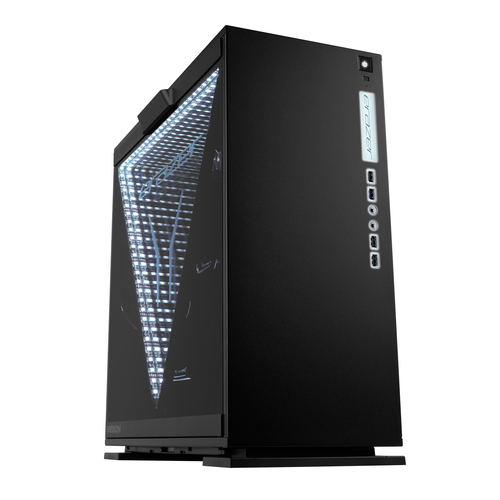

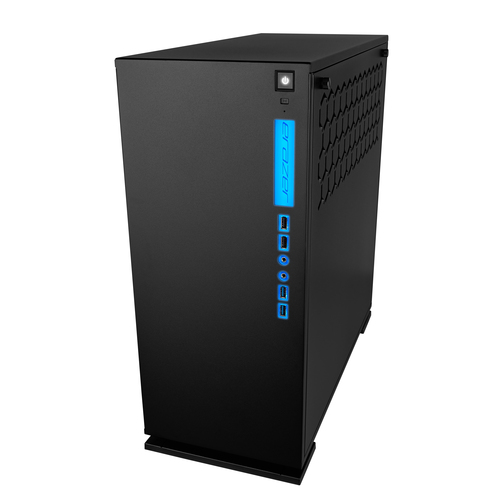

Vanguard X10
Model Vanguard X10Part no. 210023886EAN 4061275154122
87 specifications
- ProcessorIntel® Core™ i9
- Memory32 GB
- Storage6 TB
- GraphicsNVIDIA GeForce RTX 3090
- SpeedWi-Fi 6 (802.11ax)
- TypePC
Overview
- Processor
- Intel® Core™ i9
- Memory
- 32 GB
- Storage
- 6 TB
- Graphics
- NVIDIA GeForce RTX 3090
- Speed
- Wi-Fi 6 (802.11ax)
- Type
- PC
- Brand
- ERAZER
- Category
- PCs/Workstations
- Model
- Vanguard X10
- Part number
- 210023886
- EAN / UPC
- 4061275154122
- Also known as
- ERAZER Vanguard X10 Intel® Core™ i9 i9-10900K 32 GB DDR4-SDRAM 6 TB HDD+SSD NVIDIA GeForce RTX 3090 Windows 10 Home PC Liquid cooling system Black
Specifications
87 specifications in 13 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel® Core™ i9 |
| Processor generation | 10th gen Intel® Core™ i9 |
| Processor model | i9-10900K |
| Processor cores | 10 |
| Processor boost frequency | 5.3 GHz |
| Processor frequency | 3.7 GHz |
| Processor cache | 20 MB |
| Processor cache type | Smart Cache |
| Configurable TDP-down | 95 W |
| Configurable TDP-down frequency | 3.3 GHz |
Memory
| Specification | Value |
|---|---|
| Internal memory | 32 GB |
| Maximum internal memory | 128 GB |
| Internal memory type | DDR4-SDRAM |
| Memory layout (slots x size) | 2 x 16 GB |
| Memory slots | 4x DIMM |
| Memory clock speed | 3200 MHz |
| Internal memory manufacturer | HyperX |
Storage
| Specification | Value |
|---|---|
| Total storage capacity | 6 TB |
| Optical drive type | No |
| Storage media | HDD+SSD |
| Total HDDs capacity | 4 TB |
| HDD interface | SATA III |
| HDD speed | 7200 RPM |
| Total SSDs capacity | 2 TB |
| SSD interface | PCI Express |
| Card reader integrated | No |
Graphics
| Specification | Value |
|---|---|
| Discrete graphics card | Yes |
| On-board graphics card | Yes |
| Discrete graphics card model | NVIDIA GeForce RTX 3090 |
| Discrete graphics card memory | 24 GB |
| Discrete graphics memory type | GDDR6X |
| Number of discrete graphics cards | 1 |
| On-board graphics card model | Intel® UHD Graphics 630 |
| Graphics card DisplayPorts quantity | 3 |
| Graphics card HDMI ports quantity | 1 |
Performance
| Specification | Value |
|---|---|
| Product type | PC |
| Motherboard chipset | Intel Z490 |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100,1000,2500 Mbit/s |
| LAN controller | Realtek RTL8125B |
| Wi-Fi | Yes |
| Top Wi-Fi standard | Wi-Fi 6 (802.11ax) |
| WLAN controller manufacturer | Intel |
| Wi-Fi standards | Wi-Fi 6 (802.11ax) |
| WLAN controller model | Intel Wi-Fi 6 AX201 |
| Antenna type | 2x2 |
| Bluetooth | Yes |
| Bluetooth version | 5.1 |
Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 6 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 0 |
| USB4 Gen 2x2 ports quantity | 1 |
| Thunderbolt 3 ports quantity | 0 |
| Ethernet LAN (RJ-45) ports | 1 |
| Headphone outputs | 1 |
| Line-out | Yes |
| Microphone in | Yes |
| DVI port | No |
| PS/2 ports quantity | 1 |
| S/PDIF out port | Yes |
Power
| Specification | Value |
|---|---|
| Power supply | 750 W |
| 80 PLUS certification | 80 PLUS Gold |
Design
| Specification | Value |
|---|---|
| Liquid cooling system | Yes |
| Product colour | Black |
Software
| Specification | Value |
|---|---|
| Operating system installed | Windows 10 Home |
| Operating system architecture | 64-bit |
Display
| Specification | Value |
|---|---|
| Display included | No |
Processor special features
| Specification | Value |
|---|---|
| CPU configuration (max) | 1 |
| Embedded options available | No |
| Enhanced Intel SpeedStep Technology | Yes |
| Execute Disable Bit | Yes |
| Idle States | Yes |
| Intel 64 | Yes |
| Intel Clear Video Technology | Yes |
| Intel Software Guard Extensions (Intel SGX) | Yes |
| Intel Stable Image Platform Program (SIPP) | Yes |
| Intel Trusted Execution Technology | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 238 mm |
| Depth | 490 mm |
| Height | 501 mm |
| Weight | 17 kg |
