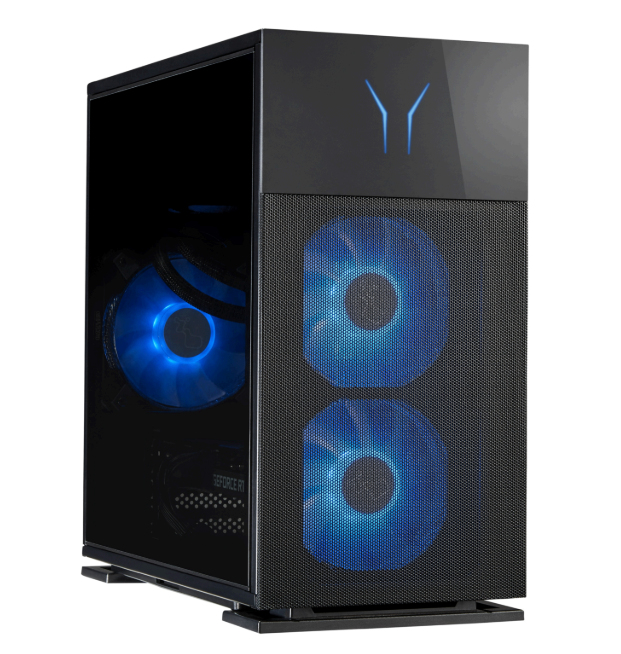

Engineer X30
Model Engineer X30Part no. 10025339EAN 4061275225730
81 specifications
- ProcessorIntel® Core™ i7
- Memory32 GB
- Storage2 TB
- GraphicsNVIDIA GeForce RTX 4070
- SpeedWi-Fi 6 (802.11ax)
- TypePC
Overview
- Processor
- Intel® Core™ i7
- Memory
- 32 GB
- Storage
- 2 TB
- Graphics
- NVIDIA GeForce RTX 4070
- Speed
- Wi-Fi 6 (802.11ax)
- Type
- PC
- Brand
- ERAZER
- Category
- PCs/Workstations
- Model
- Engineer X30
- Part numbers
- 10025339, 10025557
- EAN / UPC
- 4061275225730, 4061275233292
- Also known as
- ERAZER Engineer X30 Intel® Core™ i7 i7-14700F 32 GB DDR5-SDRAM 2 TB SSD NVIDIA GeForce RTX 4070 Windows 11 Home Mini Tower PC Liquid cooling system Black
Specifications
81 specifications in 14 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel® Core™ i7 |
| Processor generation | Intel® Core™ i7 (14th gen) |
| Processor model | i7-14700F |
| Processor cores | 20 |
| Processor threads | 28 |
| Processor boost frequency | 5.4 GHz |
| Performance cores | 8 |
| Efficient cores | 12 |
| Performance-core Max Turbo Frequency | 5.3 GHz |
| Efficient-core Max Turbo Frequency | 4.2 GHz |
| Performance-core base frequency | 2.1 GHz |
| Efficient-core base frequency | 1.5 GHz |
| Processor cache | 33 MB |
| Processor cache type | Smart Cache |
| Maximum turbo power | 219 W |
| Processor base power | 65 W |
Memory
| Specification | Value |
|---|---|
| Internal memory | 32 GB |
| Maximum internal memory | 192 GB |
| Internal memory type | DDR5-SDRAM |
| Memory clock speed | 6000 MHz |
| Internal memory manufacturer | Kingston |
Storage
| Specification | Value |
|---|---|
| Total storage capacity | 2 TB |
| Optical drive type | No |
| Storage media | SSD |
| Number of storage drives installed | 1 |
| Total SSDs capacity | 2 TB |
| Number of SSDs installed | 1 |
| SSD capacity | 2 TB |
| NVMe | Yes |
| SSD interface | PCI Express |
Graphics
| Specification | Value |
|---|---|
| Discrete graphics card | Yes |
| On-board graphics card | No |
| Discrete GPU manufacturer | NVIDIA |
| Discrete graphics card model | NVIDIA GeForce RTX 4070 |
| Discrete graphics card memory | 12 GB |
| Discrete graphics memory type | GDDR6X |
| On-board graphics card model | Not available |
| Graphics card DisplayPorts quantity | 3 |
| Graphics card HDMI ports quantity | 1 |
Performance
| Specification | Value |
|---|---|
| Product type | PC |
| Market positioning | Gaming |
| Audio output channels | 5.1 channels |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 100,1000,2500 Mbit/s |
| Wi-Fi | Yes |
| Top Wi-Fi standard | Wi-Fi 6 (802.11ax) |
| Wi-Fi standards | Wi-Fi 6 (802.11ax) |
| Bluetooth | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 5 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| USB 3.2 Gen 2x2 Type-C ports quantity | 1 |
| Thunderbolt 3 ports quantity | 0 |
| DisplayPorts quantity | 3 |
| DisplayPort version | 1.4a |
| HDMI ports quantity | 1 |
| HDMI version | 2.1a |
| Ethernet LAN (RJ-45) ports | 1 |
| Headphone outputs | 2 |
| Line-out | Yes |
| Microphone in | Yes |
| S/PDIF out port | Yes |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x16 (Gen 4.x) slots | 2 |
Power
| Specification | Value |
|---|---|
| Power supply | 850 W |
Design
| Specification | Value |
|---|---|
| Chassis type | Mini Tower |
| Placement supported | Vertical |
| Liquid cooling system | Yes |
| Product colour | Black |
| Housing material | Metal, Plastic |
Software
| Specification | Value |
|---|---|
| Operating system installed | Windows 11 Home |
Display
| Specification | Value |
|---|---|
| Display included | No |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 169 mm |
| Depth | 392 mm |
| Height | 381 mm |
| Weight | 12 kg |
Packaging content
| Specification | Value |
|---|---|
| Mouse connectivity | Wired |
| Mouse included | Yes |
| Cables included | AC |
