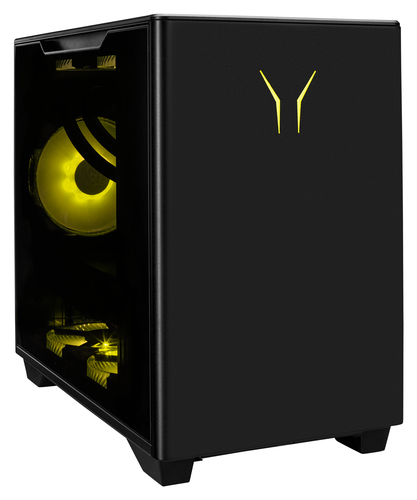

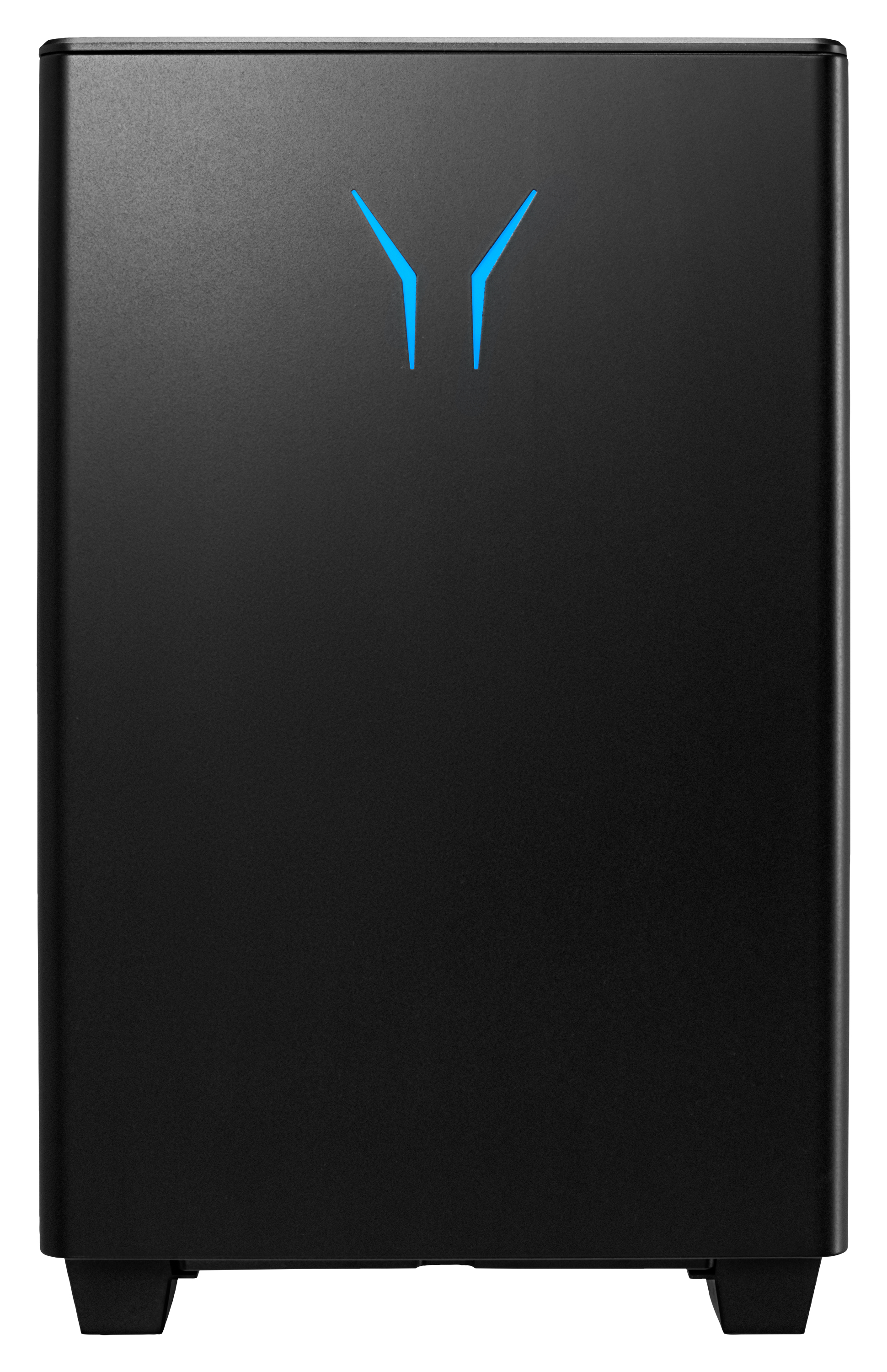

Bandit P20 (MD 35463) CH
Model Bandit P20 (MD 35463) CHPart no. 10025994
88 specifications
- ProcessorIntel Core Ultra 7
- Memory32 GB
- Storage2 TB
- GraphicsNVIDIA GeForce RTX 5070
- SpeedWi-Fi 6 (802.11ax)
- TypePC
Overview
- Processor
- Intel Core Ultra 7
- Memory
- 32 GB
- Storage
- 2 TB
- Graphics
- NVIDIA GeForce RTX 5070
- Speed
- Wi-Fi 6 (802.11ax)
- Type
- PC
- Brand
- ERAZER
- Category
- PCs/Workstations
- Model
- Bandit P20 (MD 35463) CH
- Part number
- 10025994
- Also known as
- ERAZER Bandit P20 (MD 35463) CH Intel Core Ultra 7 265 32 GB DDR5-SDRAM 2 TB SSD NVIDIA GeForce RTX 5070 Windows 11 Home Mini Tower PC Black
Specifications
88 specifications in 14 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel Core Ultra 7 |
| Processor generation | Intel Core Ultra (Series 2) |
| Processor model | 265 |
| Processor cores | 20 |
| Processor threads | 20 |
| Processor boost frequency | 5.3 GHz |
| Performance cores | 8 |
| Efficient cores | 12 |
| Performance-core Max Turbo Frequency | 5.2 GHz |
| Efficient-core Max Turbo Frequency | 4.6 GHz |
| Performance-core base frequency | 2.4 GHz |
| Efficient-core base frequency | 1.8 GHz |
| Processor cache | 30 MB |
| Processor cache type | Smart Cache |
| Processor socket | LGA 1851 (Socket V1) |
| Maximum turbo power | 182 W |
| Processor base power | 65 W |
Neural processor unit (NPU)
| Specification | Value |
|---|---|
| Neural processor unit (NPU) | Intel AI Boost |
| Total processor performance up to | 33 TOPs |
| NPU performance up to | 13 TOPs |
| GPU performance up to | 8 TOPs |
Memory
| Specification | Value |
|---|---|
| Internal memory | 32 GB |
| Maximum internal memory | 64 GB |
| Internal memory type | DDR5-SDRAM |
| Memory layout (slots x size) | 2 x 16 GB |
| Memory clock speed | 5600 MHz |
| Memory channels | Dual-channel |
Storage
| Specification | Value |
|---|---|
| Total storage capacity | 2 TB |
| Optical drive type | No |
| Storage media | SSD |
| Total SSDs capacity | 2 TB |
| Number of SSDs installed | 1 |
| SSD capacity | 2 TB |
| SSD interface | PCI Express 4.0 |
| SSD form factor | M.2 |
Graphics
| Specification | Value |
|---|---|
| Discrete graphics card | Yes |
| On-board graphics card | Yes |
| Discrete GPU manufacturer | NVIDIA |
| Discrete graphics card model | NVIDIA GeForce RTX 5070 |
| Discrete graphics card memory | 12 GB |
| Discrete graphics memory type | GDDR7 |
| On-board GPU manufacturer | Intel |
| On-board graphics card family | Intel® Graphics |
| On-board graphics card model | Intel® Graphics |
| Graphics card DisplayPorts quantity | 3 |
| Graphics card HDMI ports quantity | 1 |
Performance
| Specification | Value |
|---|---|
| Product type | PC |
| Market positioning | Gaming |
| Motherboard chipset | Intel B860 |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Wi-Fi | Yes |
| Top Wi-Fi standard | Wi-Fi 6 (802.11ax) |
| Wi-Fi standards | Wi-Fi 6 (802.11ax) |
| Antenna type | 2x2 |
| Bluetooth | Yes |
| Bluetooth version | 5.2 |
Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 3 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| USB 3.2 Gen 2x2 Type-C ports quantity | 1 |
| Thunderbolt 3 ports quantity | 0 |
| DisplayPorts quantity | 3 |
| DisplayPort version | 2.1b |
| HDMI ports quantity | 1 |
| HDMI version | 2.1b |
| Ethernet LAN (RJ-45) ports | 1 |
| Combo headphone/mic port | Yes |
| Line-out | Yes |
| Line-in | Yes |
| Microphone in | Yes |
Power
| Specification | Value |
|---|---|
| Power supply | 750 W |
| Power supply input voltage | 200 - 240 V |
| Power supply input frequency | 50 - 60 Hz |
Design
| Specification | Value |
|---|---|
| Chassis type | Mini Tower |
| Product colour | Black |
Software
| Specification | Value |
|---|---|
| Operating system installed | Windows 11 Home |
Display
| Specification | Value |
|---|---|
| Display included | No |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 215 mm |
| Depth | 401 mm |
| Height | 347 mm |
| Weight | 7.5 kg |
Packaging data
| Specification | Value |
|---|---|
| Package width | 490 mm |
| Package depth | 293 mm |
| Package height | 507 mm |
| Package weight | 11.8 kg |
