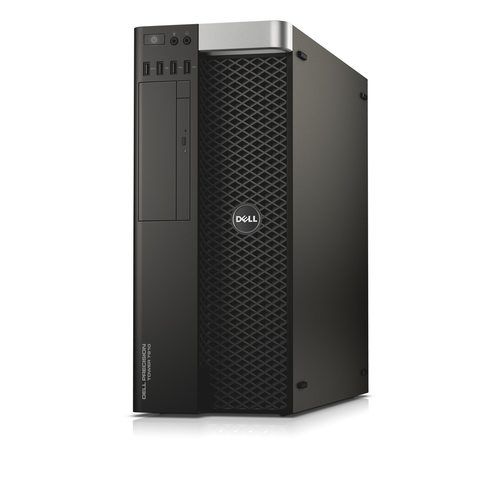

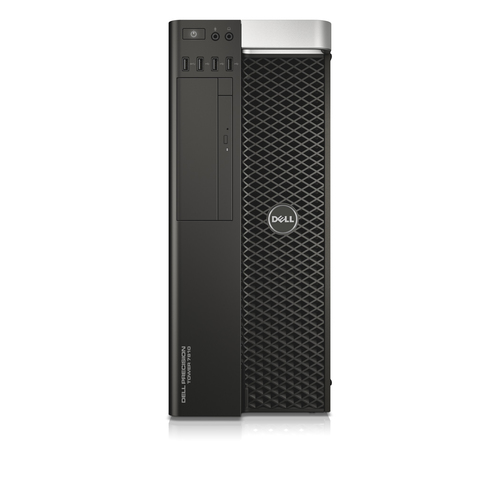

Precision T7810 Intel Xeon E5 v3 E5-2630V3
32 GB DDR4-SDRAM 1 TB HDD AMD FirePro W5100 Windows 7 Professional Tower Workstation Black
Model T7810Part no. 61202168EAN 5397063680986
154 specifications
- ProcessorIntel Xeon E5 v3
- Memory32 GB
- Storage1 TB
- GraphicsAMD FirePro W5100
- TypeWorkstation
- OSWindows 7 Professional
Overview
- Processor
- Intel Xeon E5 v3
- Memory
- 32 GB
- Storage
- 1 TB
- Graphics
- AMD FirePro W5100
- Type
- Workstation
- OS
- Windows 7 Professional
- Brand
- Dell
- Category
- PCs/Workstations
- Model
- T7810
- Part numbers
- 61202168, CAP001T78102WAU, 7810-6866, 7810-6873, 7810-0048, 7810-0017 +34 more
- EAN / UPC
- 5397063680986, 5397063671281, 5397063676866, 5397063676873 +20 more
- Also known as
- DELL Precision T7810 Intel Xeon E5 v3 E5-2630V3 32 GB DDR4-SDRAM 1 TB HDD AMD FirePro W5100 Windows 7 Professional Tower Workstation Black
Specifications
154 specifications in 17 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel Xeon E5 v3 |
| Processor model | E5-2630V3 |
| Processor cores | 8 |
| Processor threads | 16 |
| Processor boost frequency | 3.2 GHz |
| Processor frequency | 2.4 GHz |
| Processor cache | 20 MB |
| Processor cache type | Smart Cache |
| Bus type | QPI |
| FSB Parity | No |
| System bus rate | 8 GT/s |
| Processor lithography | 22 nm |
| Processor operating modes | 64-bit |
| Processor series | Intel Xeon E5-2600 v3 |
| Processor codename | Haswell |
| Thermal Design Power (TDP) | 85 W |
| Tcase | 72.1 °C |
| Maximum number of PCI Express lanes | 40 |
| PCI Express configurations | x4, x8, x16 |
| PCI Express slots version | 3.0 |
| Number of QPI links | 2 |
| Number of processors installed | 1 |
| Processor socket | LGA 2011-v3 |
| Stepping | R2 |
| Maximum internal memory supported by processor | 768 GB |
| Memory types supported by processor | DDR4-SDRAM |
| Memory clock speeds supported by processor | 1600,1866 MHz |
| Memory bandwidth supported by processor (max) | 59 GB/s |
| ECC supported by processor | Yes |
Memory
| Specification | Value |
|---|---|
| Internal memory | 32 GB |
| Maximum internal memory | 128 GB |
| Internal memory type | DDR4-SDRAM |
| Memory layout (slots x size) | 4 x 8 GB |
| Memory slots | 8x DIMM |
| Memory clock speed | 2133 MHz |
| ECC | Yes |
| Memory channels | Quad-channel |
Storage
| Specification | Value |
|---|---|
| Total storage capacity | 1 TB |
| Optical drive type | DVD±RW |
| Storage media | HDD |
| Number of storage drives installed | 1 |
| Number of HDDs installed | 1 |
| HDD capacity | 1 TB |
| HDD interface | SATA |
| HDD speed | 7200 RPM |
| RAID support | Yes |
| RAID levels | 0, 1, 5, 10 |
Graphics
| Specification | Value |
|---|---|
| Discrete graphics card model | AMD FirePro W5100 |
| Discrete graphics card memory | 4 GB |
| Number of discrete graphics cards | 1 |
Performance
| Specification | Value |
|---|---|
| Product type | Workstation |
| Motherboard chipset | Intel® C612 |
| Password protection | Yes |
| Password protection type | BIOS |
Optical drive
| Specification | Value |
|---|---|
| Optical drives quantity | 1 |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 6 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| DisplayPorts quantity | 2 |
| HDMI ports quantity | 0 |
| Ethernet LAN (RJ-45) ports | 1 |
| Headphone outputs | 1 |
| Microphone in | Yes |
| VGA (D-Sub) ports quantity | 0 |
| DVI port | No |
| PS/2 ports quantity | 2 |
| Serial ports quantity | 1 |
Expansion slots
| Specification | Value |
|---|---|
| Number of 3.5" bays | 2 |
| PCI Express x1 (Gen 2.x) slots | 1 |
| PCI Express x4 (Gen 2.x) slots | 1 |
| PCI Express x16 (Gen 3.x) slots | 3 |
| PCI slots | 1 |
Power
| Specification | Value |
|---|---|
| Power supply | 685 W |
| Power supply input voltage | 100 - 240 V |
| Power supply input frequency | 50 - 60 Hz |
Design
| Specification | Value |
|---|---|
| Chassis type | Tower |
| Placement supported | Vertical |
| Number of 5.25" bays | 1 |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| Liquid cooling system | No |
| Product colour | Black |
Software
| Specification | Value |
|---|---|
| Operating system installed | Windows 7 Professional |
| Operating system architecture | 64-bit |
| Operating system language | Multilingual |
| Recovery operating system | Windows 8.1 |
| Trial software | Microsoft Office |
Display
| Specification | Value |
|---|---|
| Display included | No |
Processor special features
| Specification | Value |
|---|---|
| CPU configuration (max) | 2 |
| Embedded options available | No |
| Enhanced Intel SpeedStep Technology | Yes |
| Execute Disable Bit | Yes |
| Idle States | Yes |
| Intel 64 | Yes |
| Intel Clear Video Technology | No |
| Intel Demand Based Switching | Yes |
| Intel Dual Display Capable Technology | No |
| Intel Enhanced Halt State | Yes |
| Intel FDI Technology | No |
| Intel Fast Memory Access | No |
| Intel Flex Memory Access | No |
| Intel Identity Protection Technology version | 0.00 |
| Intel Rapid Storage Technology | No |
| Intel Secure Key Technology version | 1.00 |
| Intel TSX-NI | No |
| Intel TSX-NI version | 0.00 |
| Intel Trusted Execution Technology | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Intel® Clear Video HD Technology (Intel® CVT HD) | No |
| Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID) | No |
| Intel® InTru™ 3D Technology | No |
| Intel® Insider™ | No |
| Intel® OS Guard | Yes |
| Intel® Secure Key | Yes |
| Intel® Small Business Advantage (Intel® SBA) | Yes |
| Intel® Smart Cache | Yes |
| Intel® Virtualization Technology (Intel® VT) | VT-d, VT-x |
| Intel® Wireless Display (Intel® WiDi) | No |
| Physical Address Extension (PAE) | 46 bit |
| Physical Address Extension (PAE) | Yes |
| Processor ARK ID | 83356 |
| Processor code | SR206 |
| Processor package size | 52.5 x 45 mm |
| Scalability | 2S |
| Supported instruction sets | AVX |
| Thermal Monitoring Technologies | Yes |
| Intel® Smart Response Technology | No |
| Intel® Rapid Start Technology | No |
| Intel® Turbo Boost Technology | 2.0 |
| Intel Smart Connect Technology | No |
| Intel® Hyper Threading Technology (Intel® HT Technology) | Yes |
| Intel® Quick Sync Video Technology | No |
| Intel® My WiFi Technology (Intel® MWT) | No |
| Intel® Identity Protection Technology (Intel® IPT) | No |
| Intel® Anti-Theft Technology (Intel® AT) | No |
| Conflict-Free processor | No |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 10 - 35 °C |
| Storage temperature (T-T) | -40 - 65 °C |
| Operating relative humidity (H-H) | 20 - 80% |
| Operating altitude | -15.20 - 3048 m |
| Non-operating altitude | -15.20 - 10668 m |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 172.6 mm |
| Depth | 471 mm |
| Height | 416.9 mm |
| Weight | 12.4 kg |
Packaging content
| Specification | Value |
|---|---|
| Mouse included | Yes |
| Keyboard included | Yes |
| Cables included | AC |
| Manual | Yes |
