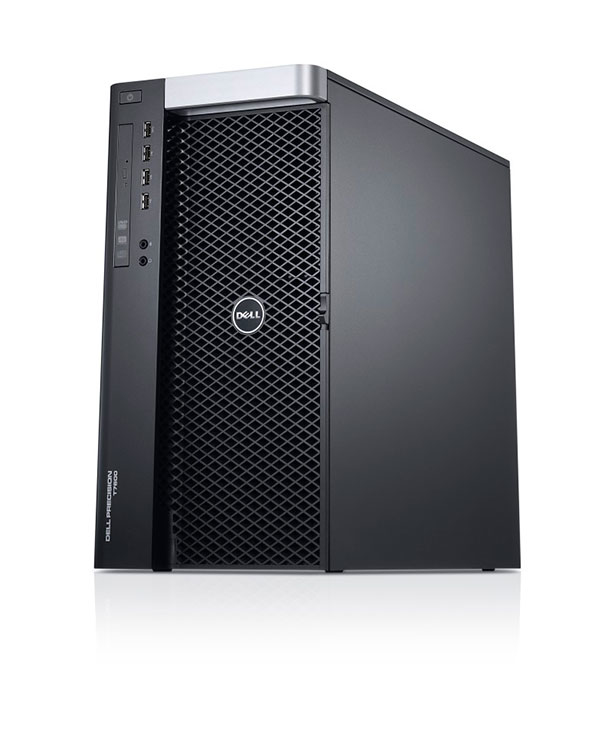

Precision T7600 Intel® Xeon® E5 Family E5-2620

8 GB DDR3-SDRAM Windows 7 Professional Workstation

Model T7600Part no. 7600-6252EAN 5397063400751

94 specifications

Overview

Brand: Dell
Category: PCs/Workstations
Model: T7600
Part numbers: 7600-6252, 7600-6269, 7600-6276, SVWT7602, SVWT7603, SVWT7601 +11 more
EAN / UPC: 5397063400751, 5397063400768, 5397063400775, 4260265864458 +4 more
Also known as: DELL Precision T7600 Intel® Xeon® E5 Family E5-2620 8 GB DDR3-SDRAM Windows 7 Professional Workstation

94 specifications in 11 groups

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Xeon® E5 Family
Processor model	E5-2620
Processor cores	6
Processor threads	12
Processor boost frequency	2.5 GHz
Processor frequency	2 GHz
Processor cache	15 MB
Processor cache type	Smart Cache
Bus type	QPI
FSB Parity	No
System bus rate	7.2 GT/s
Processor lithography	32 nm
Processor operating modes	64-bit
Processor series	Intel Xeon E5-2600
Processor codename	Sandy Bridge EP
Thermal Design Power (TDP)	95 W
Tcase	77.4 °C
Maximum number of PCI Express lanes	40
PCI Express configurations	x4, x8, x16
PCI Express slots version	3.0
Number of QPI links	2
Number of processors installed	1
Processor socket	LGA 2011 (Socket R)
CPU multiplier (bus/core ratio)	25
Stepping	C2
Maximum internal memory supported by processor	750 GB
Memory types supported by processor	DDR3-SDRAM
Memory clock speeds supported by processor	800,1066,1333 MHz
Memory bandwidth supported by processor (max)	42.6 GB/s
ECC supported by processor	Yes

Specification	Value
Maximum graphics card memory	2.048 GB
Graphics card	FirePro V5900
Graphics card family	AMD

Specification	Value
Product type	Workstation

Specification	Value
Ethernet LAN (RJ-45) ports	1
Headphone outputs	1

Specification	Value
Operating system installed	Windows 7 Professional
Operating system architecture	64-bit
Bundled software	Trend Micro Worry Free Business Security 3.5

Specification	Value
Display included	No

Specification	Value
CPU configuration (max)	2
Embedded options available	Yes
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Graphics & IMC lithography	32 nm
Idle States	Yes
Intel 64	Yes
Intel Clear Video Technology	No
Intel Demand Based Switching	Yes
Intel Dual Display Capable Technology	No
Intel Enhanced Halt State	Yes
Intel FDI Technology	No
Intel Fast Memory Access	No
Intel Flex Memory Access	No
Intel Identity Protection Technology version	0.00
Intel Rapid Storage Technology	No
Intel Secure Key Technology version	1.00
Intel TSX-NI version	0.00
Intel Trusted Execution Technology	Yes
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Intel® AES New Instructions (Intel® AES-NI)	Yes
Intel® Clear Video HD Technology (Intel® CVT HD)	No
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)	No
Intel® InTru™ 3D Technology	No
Intel® Insider™	No
Intel® Secure Key	Yes
Intel® Wireless Display (Intel® WiDi)	No
Physical Address Extension (PAE)	46 bit
Processor ARK ID	64594
Processor package size	52.5 x 45.0 mm
Scalability	2S
Supported instruction sets	AVX
Thermal Monitoring Technologies	Yes
Intel® Turbo Boost Technology	1.0
Intel® Hyper Threading Technology (Intel® HT Technology)	Yes
Intel® Quick Sync Video Technology	No
Intel® My WiFi Technology (Intel® MWT)	No
Intel® Identity Protection Technology (Intel® IPT)	No
Intel® Anti-Theft Technology (Intel® AT)	No
Conflict-Free processor	No
