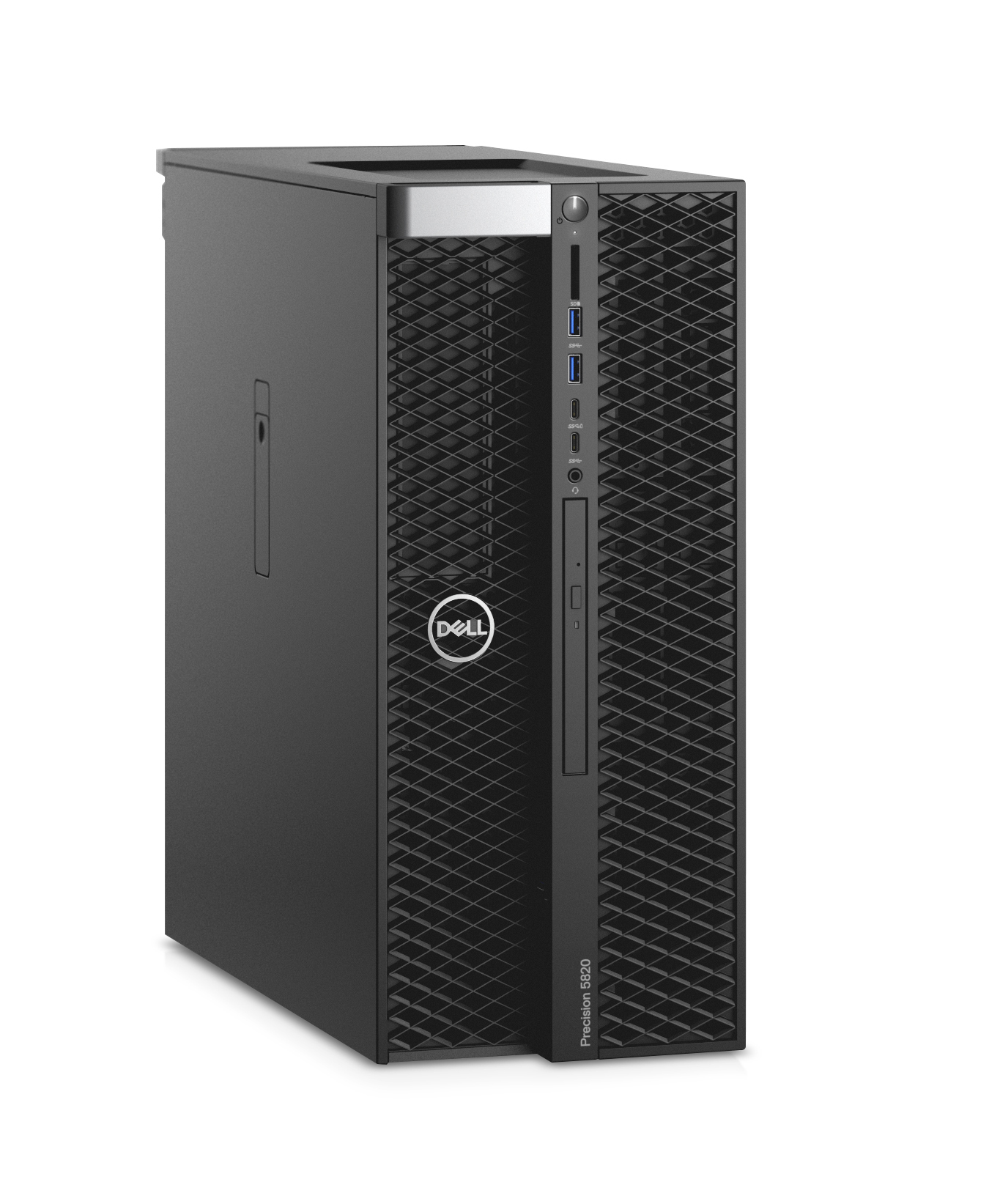

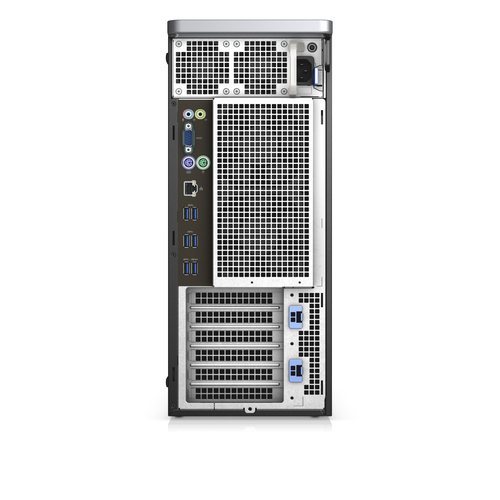

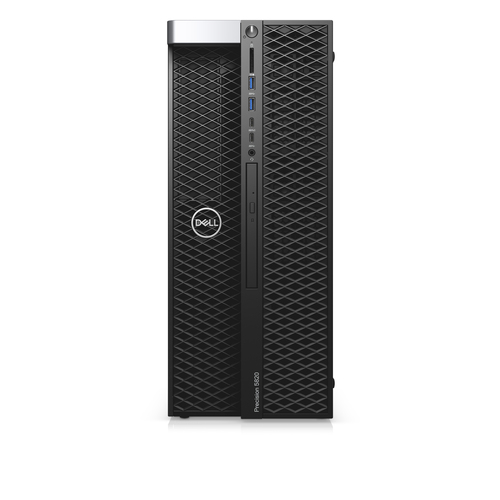

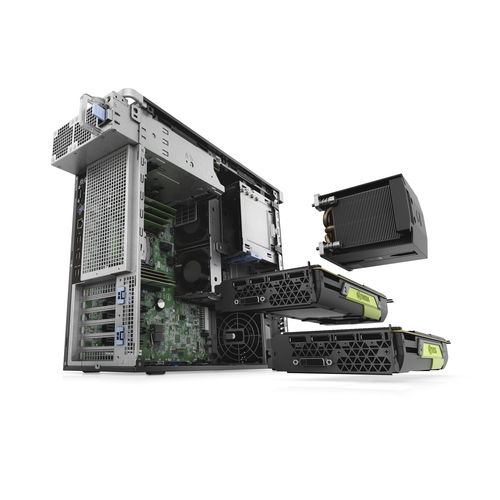

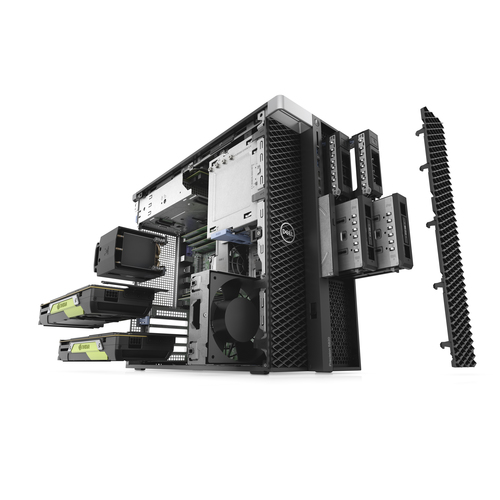

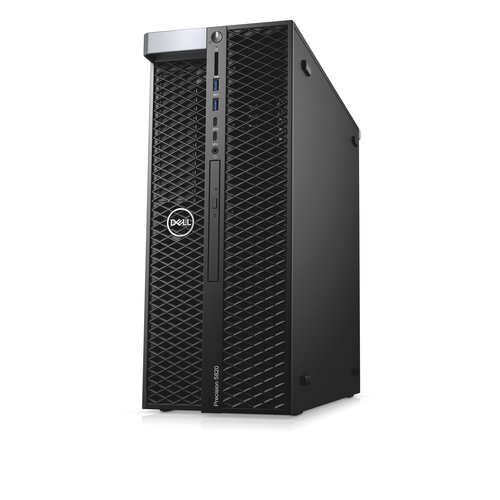

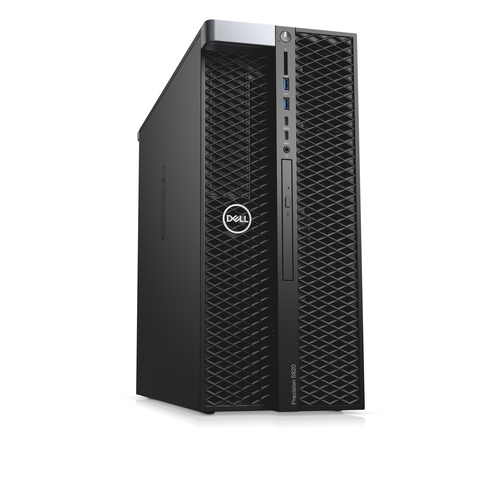

Precision T5820 Intel® Xeon® W-2145
64 GB DDR4-SDRAM 4.51 TB HDD+SSD NVIDIA® Quadro® P2000 Ubuntu Linux Tower Workstation Black
Model T5820Part no. T02DKEAN 5397184679180
134 specifications
- ProcessorIntel® Xeon®
- Memory64 GB
- Storage4.51 TB
- GraphicsNVIDIA® Quadro® P2000
- TypeWorkstation
- OSUbuntu Linux
Overview
- Processor
- Intel® Xeon®
- Memory
- 64 GB
- Storage
- 4.51 TB
- Graphics
- NVIDIA® Quadro® P2000
- Type
- Workstation
- OS
- Ubuntu Linux
- Brand
- Dell
- Category
- PCs/Workstations
- Model
- T5820
- Part numbers
- T02DK, G8HW6, Y4PW0, 1087X, H496X, WTKN1 +16 more
- EAN / UPC
- 5397184679180, 5397184679173, 5397184679302, 5397184679265 +12 more
- Also known as
- DELL Precision T5820 Intel® Xeon® W-2145 64 GB DDR4-SDRAM 4.51 TB HDD+SSD NVIDIA® Quadro® P2000 Ubuntu Linux Tower Workstation Black
Specifications
134 specifications in 15 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel® Xeon® |
| Processor model | W-2145 |
| Processor cores | 8 |
| Processor threads | 16 |
| Processor boost frequency | 4.5 GHz |
| Processor frequency | 3.7 GHz |
| Processor cache | 11 MB |
| Bus type | QPI |
| System bus rate | 0 GT/s |
| Processor lithography | 14 nm |
| Processor operating modes | 64-bit |
| Processor codename | Skylake |
| Thermal Design Power (TDP) | 140 W |
| Tcase | 70 °C |
| Maximum number of PCI Express lanes | 48 |
| PCI Express configurations | 1x16, 1x4, 1x8 |
| PCI Express slots version | 3.0 |
| Number of processors installed | 1 |
| Processor socket | LGA 2066 (Socket R4) |
| Stepping | U0 |
| Maximum internal memory supported by processor | 512 GB |
| Memory types supported by processor | DDR4-SDRAM |
| Memory clock speeds supported by processor | 1600,1866,2133,2400,2666 MHz |
| Memory bandwidth supported by processor (max) | 85.3 GB/s |
Memory
| Specification | Value |
|---|---|
| Internal memory | 64 GB |
| Maximum internal memory | 256 GB |
| Internal memory type | DDR4-SDRAM |
| Memory layout (slots x size) | 8 x 8 GB |
| Memory slots | 8x DIMM |
| Memory clock speed | 2666 MHz |
| Memory channels | Quad-channel |
Storage
| Specification | Value |
|---|---|
| Total storage capacity | 4.51 TB |
| Optical drive type | DVD±RW |
| Storage media | HDD+SSD |
| Number of storage drives installed | 2 |
| Total HDDs capacity | 4 TB |
| Number of HDDs installed | 1 |
| HDD capacity | 4 TB |
| HDD interface | SATA |
| HDD speed | 7200 RPM |
| Total SSDs capacity | 512 GB |
| Number of SSDs installed | 1 |
| SSD capacity | 512 GB |
| SSD interface | SATA |
Graphics
| Specification | Value |
|---|---|
| Discrete graphics card | Yes |
| On-board graphics card | No |
| Discrete graphics card model | NVIDIA® Quadro® P2000 |
| Discrete graphics card memory | 5 GB |
| Discrete graphics memory type | GDDR5 |
| On-board graphics card model | Not available |
| Graphics card DisplayPorts quantity | 4 |
Performance
| Specification | Value |
|---|---|
| Product type | Workstation |
| Market positioning | Business |
| Motherboard chipset | Intel® C422 |
| Compatible processor series | Intel® Xeon® |
| Password protection | Yes |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Cabling technology | 10/100/1000Base-T(X) |
| Wi-Fi | No |
Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 0 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 8 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 0 |
| Thunderbolt 3 ports quantity | 0 |
| HDMI ports quantity | 0 |
| Ethernet LAN (RJ-45) ports | 1 |
| Headphone outputs | 1 |
| Line-out | Yes |
| Line-in | Yes |
| Microphone in | Yes |
| VGA (D-Sub) ports quantity | 0 |
| DVI port | No |
| PS/2 ports quantity | 2 |
| Serial ports quantity | 1 |
| On/off button | Yes |
Power
| Specification | Value |
|---|---|
| Power supply input voltage | 100 - 240 V |
| Power supply input frequency | 50 - 60 Hz |
Design
| Specification | Value |
|---|---|
| Chassis type | Tower |
| Placement supported | Vertical |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| Product colour | Black |
Software
| Specification | Value |
|---|---|
| Operating system installed | Ubuntu Linux |
| Operating system architecture | 64-bit |
Display
| Specification | Value |
|---|---|
| Display included | No |
Processor special features
| Specification | Value |
|---|---|
| CPU configuration (max) | 1 |
| Embedded options available | No |
| Enhanced Intel SpeedStep Technology | Yes |
| Execute Disable Bit | Yes |
| Idle States | Yes |
| Intel 64 | Yes |
| Intel Demand Based Switching | Yes |
| Intel Enhanced Halt State | Yes |
| Intel Flex Memory Access | No |
| Intel Identity Protection Technology version | 1.00 |
| Intel Secure Key Technology version | 1.00 |
| Intel Software Guard Extensions (Intel SGX) | No |
| Intel TSX-NI | Yes |
| Intel TSX-NI version | 1.00 |
| Intel Trusted Execution Technology | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Intel® OS Guard | Yes |
| Intel® Secure Key | Yes |
| Physical Address Extension (PAE) | 46 bit |
| Physical Address Extension (PAE) | Yes |
| Processor ARK ID | 126707 |
| Processor code | SR3LQ |
| Processor package size | 45 x 52.5 mm |
| Scalability | 1S |
| Supported instruction sets | AVX, AVX 2.0, AVX-512, SSE4.2 |
| Thermal Monitoring Technologies | Yes |
| Intel® Turbo Boost Technology | 2.0 |
| Intel® Hyper Threading Technology (Intel® HT Technology) | Yes |
| Intel® Identity Protection Technology (Intel® IPT) | Yes |
| Conflict-Free processor | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 5 - 35 °C |
| Storage temperature (T-T) | -40 - 65 °C |
| Operating relative humidity (H-H) | 8 - 85% |
| Storage relative humidity (H-H) | 5 - 95% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 176.5 mm |
| Depth | 518.3 mm |
| Height | 417.9 mm |
| Weight | 15.4 kg |
Packaging content
| Specification | Value |
|---|---|
| Mouse included on selected markets only | Yes |
| Keyboard included on selected markets only | Yes |
| Cables included | AC |
| Manual | Yes |
| Power cord included | Yes |
