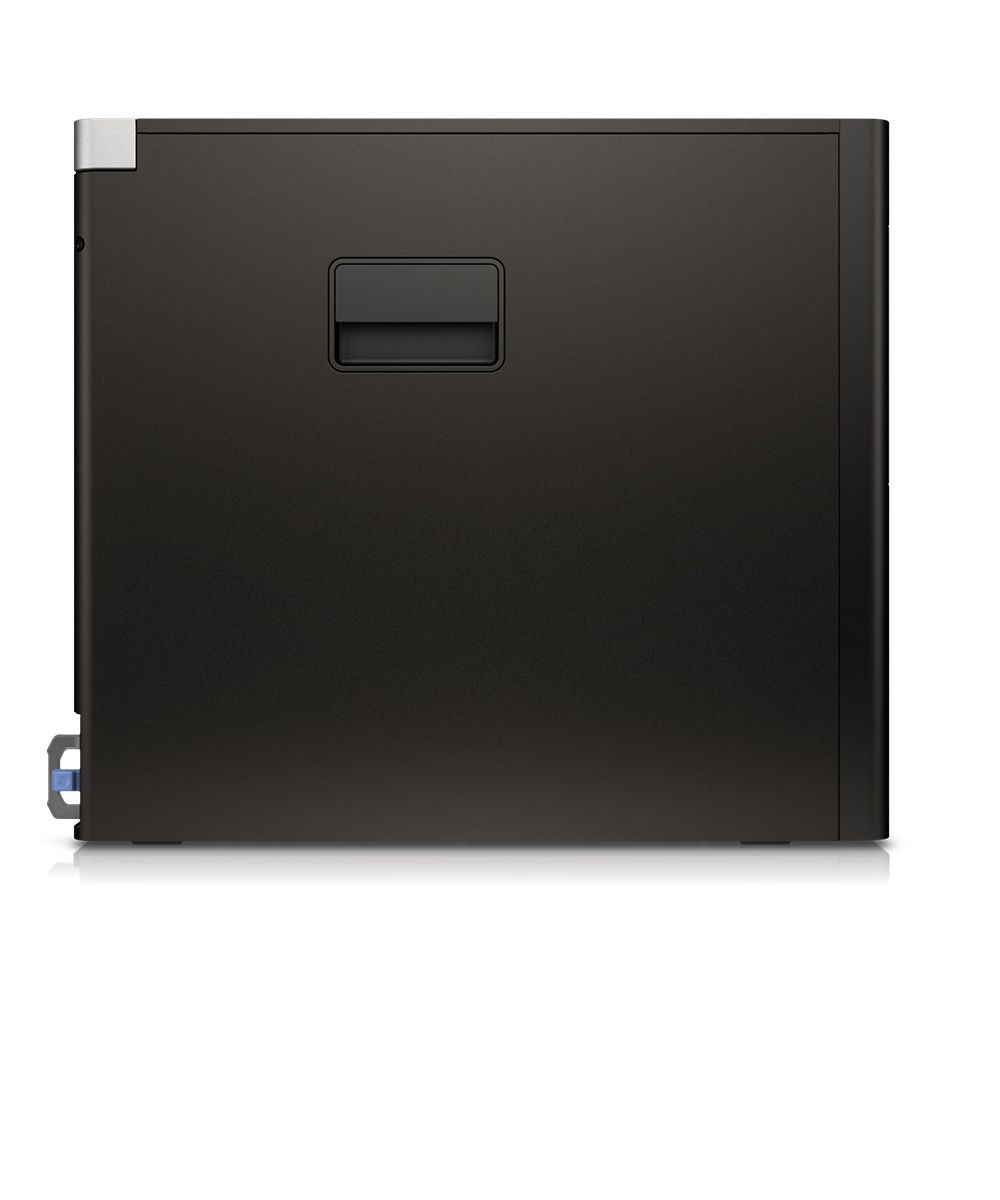

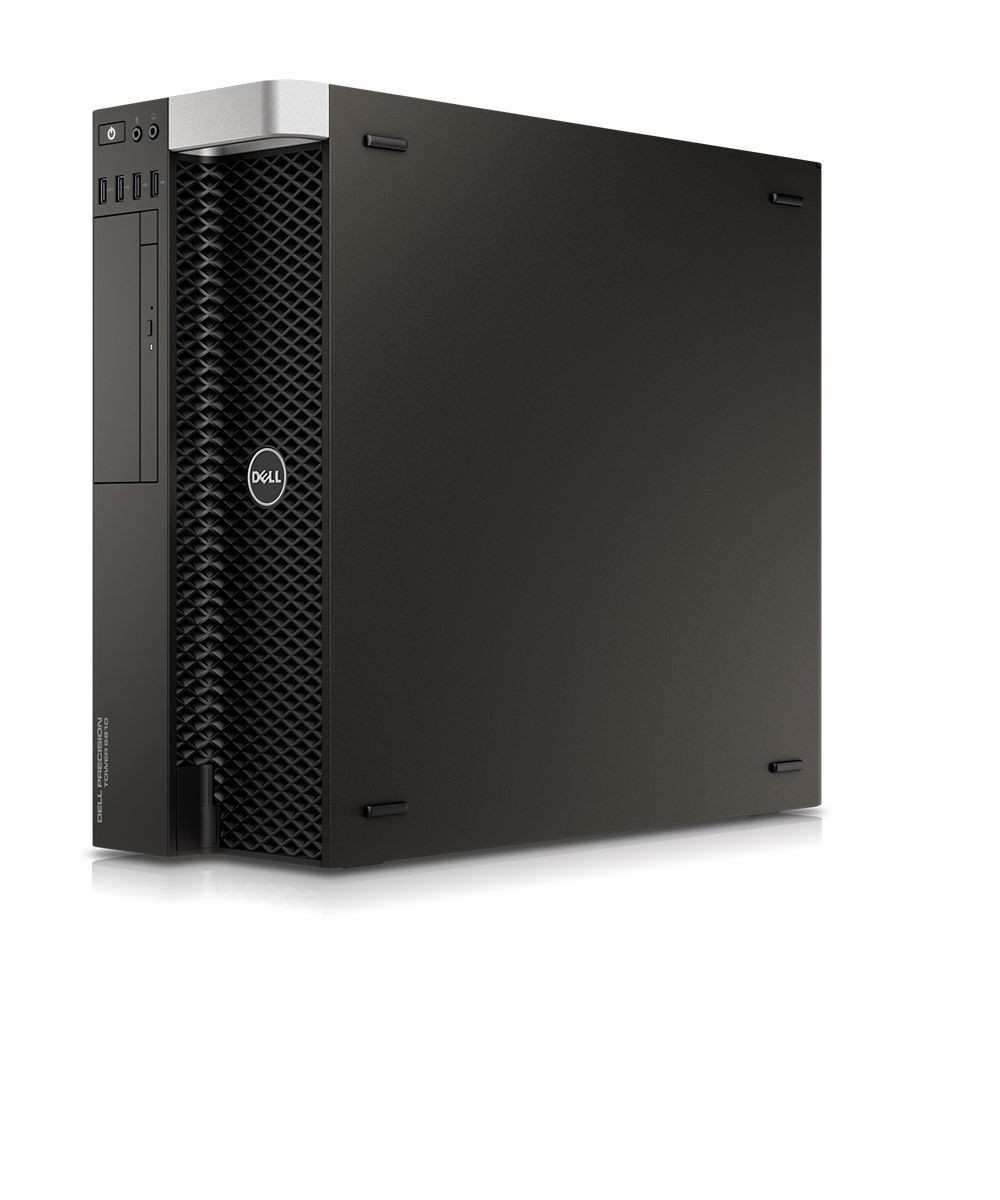

Dell T5810 + P2314H
Model T5810 + P2314HPart no. 5810-5103+859-BBCO
136 specifications
- Display58.4 cm (23")
- Resolution1920 x 1080 pixels
- ProcessorIntel Xeon E5 v3
- Memory16 GB
- Storage500 GB
- TypeWorkstation
Overview
- Display
- 58.4 cm (23")
- Resolution
- 1920 x 1080 pixels
- Processor
- Intel Xeon E5 v3
- Memory
- 16 GB
- Storage
- 500 GB
- Type
- Workstation
- Brand
- Dell
- Category
- PCs/Workstations
- Model
- T5810 + P2314H
- Part number
- 5810-5103+859-BBCO
- Also known as
- DELL Precision T5810 + P2314H Intel Xeon E5 v3 E5-1620V3 16 GB DDR4-SDRAM 500 GB HDD Windows 7 Professional Tower Workstation Black
Specifications
136 specifications in 16 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel Xeon E5 v3 |
| Processor model | E5-1620V3 |
| Processor cores | 4 |
| Processor threads | 8 |
| Processor boost frequency | 3.6 GHz |
| Processor frequency | 3.5 GHz |
| Processor cache | 10 MB |
| Processor cache type | Smart Cache |
| Bus type | QPI |
| System bus rate | 0 GT/s |
| Processor lithography | 22 nm |
| Processor operating modes | 64-bit |
| Processor series | Intel Xeon E5-1600 v3 |
| Processor codename | Haswell |
| Thermal Design Power (TDP) | 140 W |
| Tcase | 66.2 °C |
| Maximum number of PCI Express lanes | 40 |
| PCI Express configurations | 1x4, 1x8, 1x16 |
| PCI Express slots version | 3.0 |
| Number of QPI links | 0 |
| Number of processors installed | 1 |
| Processor socket | LGA 2011-v3 |
| Stepping | R2 |
| Maximum internal memory supported by processor | 768 GB |
| Memory types supported by processor | DDR4-SDRAM |
| Memory clock speeds supported by processor | 1333,1600,1866,2133 MHz |
| Memory bandwidth supported by processor (max) | 68 GB/s |
| ECC supported by processor | Yes |
Memory
| Specification | Value |
|---|---|
| Internal memory | 16 GB |
| Maximum internal memory | 256 GB |
| Internal memory type | DDR4-SDRAM |
| Memory layout (slots x size) | 4 x 4 GB |
| Memory slots | 8x DIMM |
| Memory clock speed | 2133 MHz |
| ECC | Yes |
| Memory channels | Quad-channel |
Storage
| Specification | Value |
|---|---|
| Total storage capacity | 500 GB |
| Optical drive type | DVD±RW |
| Storage media | HDD |
| Number of storage drives installed | 1 |
| Number of HDDs installed | 1 |
| HDD capacity | 500 GB |
| HDD interface | SATA III |
| HDD speed | 7200 RPM |
| HDD size | 3.5" |
| Card reader integrated | Yes |
| RAID support | Yes |
| RAID levels | 0, 1, 5, 10 |
Graphics
| Specification | Value |
|---|---|
| On-board graphics card | No |
| On-board graphics card model | Not available |
Performance
| Specification | Value |
|---|---|
| Product type | Workstation |
| Motherboard chipset | Intel® C612 |
Optical drive
| Specification | Value |
|---|---|
| Optical drives quantity | 1 |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Cabling technology | 10/100/1000Base-T(X) |
| Wi-Fi | No |
Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 6 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 0 |
| Thunderbolt 3 ports quantity | 0 |
| HDMI ports quantity | 0 |
| Ethernet LAN (RJ-45) ports | 1 |
| Headphone outputs | 1 |
| Line-out | Yes |
| Line-in | Yes |
| Microphone in | Yes |
| VGA (D-Sub) ports quantity | 0 |
| DVI port | No |
| PS/2 ports quantity | 2 |
| Serial ports quantity | 1 |
Expansion slots
| Specification | Value |
|---|---|
| Number of 3.5" bays | 2 |
| PCI Express x1 (Gen 2.x) slots | 1 |
| PCI Express x4 (Gen 2.x) slots | 1 |
| PCI Express x16 (Gen 3.x) slots | 2 |
| PCI slots | 1 |
Power
| Specification | Value |
|---|---|
| Power supply | 685 W |
Design
| Specification | Value |
|---|---|
| Chassis type | Tower |
| Number of 5.25" bays | 1 |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| Product colour | Black |
Software
| Specification | Value |
|---|---|
| Operating system installed | Windows 7 Professional |
| Operating system architecture | 64-bit |
| Recovery operating system | Windows 8.1 Pro |
| Trial software | Microsoft Office |
Display
| Specification | Value |
|---|---|
| Display included | Yes |
| Display diagonal | 58.4 cm (23") |
| Display type | LED |
| Full HD | Yes |
| Display resolution | 1920 x 1080 pixels |
| Native aspect ratio | 16:9 |
| Contrast ratio (typical) | 1000:1 |
| Display brightness | 250 cd/m² |
| Viewing angle, horizontal | 178° |
| Viewing angle, vertical | 178° |
Processor special features
| Specification | Value |
|---|---|
| CPU configuration (max) | 1 |
| Embedded options available | No |
| Enhanced Intel SpeedStep Technology | Yes |
| Execute Disable Bit | Yes |
| Idle States | Yes |
| Intel 64 | Yes |
| Intel Demand Based Switching | Yes |
| Intel Enhanced Halt State | Yes |
| Intel Flex Memory Access | No |
| Intel Identity Protection Technology version | 1.00 |
| Intel Secure Key Technology version | 1.00 |
| Intel TSX-NI | No |
| Intel TSX-NI version | 0.00 |
| Intel Trusted Execution Technology | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Intel® OS Guard | Yes |
| Intel® Secure Key | Yes |
| Intel® Smart Cache | Yes |
| Physical Address Extension (PAE) | 46 bit |
| Physical Address Extension (PAE) | Yes |
| Processor ARK ID | 82763 |
| Processor code | SR20P |
| Processor package size | 52.5 x 45.0 mm |
| Scalability | 1S |
| Supported instruction sets | AVX 2.0 |
| Thermal Monitoring Technologies | Yes |
| Intel® Turbo Boost Technology | 2.0 |
| Intel® Hyper Threading Technology (Intel® HT Technology) | Yes |
| Intel® Identity Protection Technology (Intel® IPT) | Yes |
| Conflict-Free processor | No |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 172.6 mm |
| Depth | 471 mm |
| Height | 414 mm |
Sustainability
| Specification | Value |
|---|---|
| Sustainability certificates | ENERGY STAR |
