T5810 + Microsoft Office Home & Business 2016

Model T5810 + Microsoft Office Home & Business 2016Part no. 29GK7+630-ABDD

152 specifications

Overview

Brand: Dell
Category: PCs/Workstations
Model: T5810 + Microsoft Office Home & Business 2016
Part numbers: 29GK7+630-ABDD, 43CX2+630-ABDD, TFFVV+630-ABDD, 65V63+630-ABDD, H4JH0+630-ABDD
Also known as: DELL Precision T5810 + Microsoft Office Home & Business 2016 Intel Xeon E5 v3 E5-1650V3 16 GB DDR4-SDRAM 1.25 TB HDD+SSD NVIDIA® Quadro® M4000 Windows 7 Profess

152 specifications in 18 groups

Specification	Value
Processor manufacturer	Intel
Processor family	Intel Xeon E5 v3
Processor model	E5-1650V3
Processor cores	6
Processor threads	12
Processor boost frequency	3.8 GHz
Processor frequency	3.5 GHz
Processor cache	15 MB
Processor cache type	Smart Cache
Bus type	QPI
System bus rate	0 GT/s
Processor lithography	22 nm
Processor operating modes	32-bit, 64-bit
Processor series	Intel Xeon E5-1600 v3
Processor codename	Haswell
Thermal Design Power (TDP)	140 W
Tcase	66.7 °C
Maximum number of PCI Express lanes	40
PCI Express configurations	1x4, 1x8, 1x16
PCI Express slots version	3.0
Number of processors installed	1
Processor socket	LGA 2011-v3
Stepping	R2
Maximum internal memory supported by processor	768 GB
Memory types supported by processor	DDR4-SDRAM
Memory clock speeds supported by processor	1333,1600,1866,2133 MHz
Memory bandwidth supported by processor (max)	68 GB/s
ECC supported by processor	Yes

Specification	Value
Total storage capacity	1.25 TB
Optical drive type	DVD±RW
Storage media	HDD+SSD
Number of storage drives installed	2
Number of HDDs installed	1
HDD capacity	1 TB
HDD interface	SATA III
HDD speed	7200 RPM
HDD size	3.5"
Number of SSDs installed	1
SSD capacity	256 GB
Card reader integrated	No
RAID support	Yes
RAID levels	0, 1, 5, 10

Specification	Value
On-board graphics card	No
Discrete graphics card model	NVIDIA® Quadro® M4000
Discrete graphics card memory	8 GB
Discrete graphics memory type	GDDR5
Number of discrete graphics cards	1
On-board graphics card model	Not available

Specification	Value
Product type	Workstation
Motherboard chipset	Intel® C612
Compatible processor series	Intel® Xeon®
Password protection	Yes
Password protection type	BIOS
BIOS type	EEPROM

Specification	Value
Optical drives quantity	1

Specification	Value
USB 2.0 ports quantity	6
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	4
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	0
Thunderbolt 3 ports quantity	0
HDMI ports quantity	0
Ethernet LAN (RJ-45) ports	1
Headphone outputs	1
Line-out	Yes
Line-in	Yes
Microphone in	Yes
VGA (D-Sub) ports quantity	0
DVI port	No
PS/2 ports quantity	2
Serial ports quantity	1

Specification	Value
Power supply	685 W
Power supply input voltage	100 - 240 V
Power supply input frequency	50 - 60 Hz

Specification	Value
Operating system installed	Windows 7 Professional
Operating system architecture	64-bit
Operating system language	Multilingual
Recovery operating system	Windows 10 Pro
Trial software	Microsoft Office, McAfee

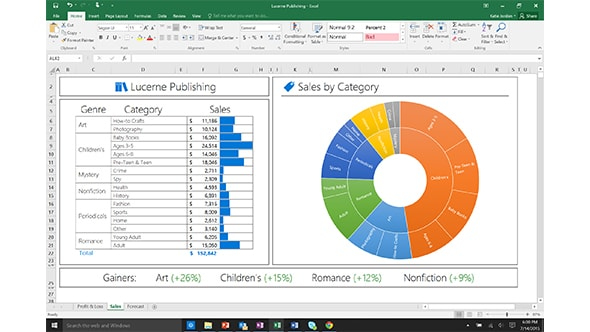

Bundled software	Microsoft Office Home & Business 2016

Specification	Value
Display included	No

Specification	Value
CPU configuration (max)	1
Embedded options available	No
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Graphics & IMC lithography	22 nm
Idle States	Yes
Intel 64	Yes
Intel Demand Based Switching	Yes
Intel Enhanced Halt State	Yes
Intel Flex Memory Access	No
Intel Identity Protection Technology version	1.00
Intel Secure Key Technology version	1.00
Intel TSX-NI	No
Intel TSX-NI version	0.00
Intel Trusted Execution Technology	Yes
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Intel® AES New Instructions (Intel® AES-NI)	Yes
Intel® OS Guard	Yes
Intel® Secure Key	Yes
Intel® Smart Cache	Yes
Physical Address Extension (PAE)	46 bit
Physical Address Extension (PAE)	Yes
Processor ARK ID	82765
Processor code	SR20J
Processor package size	52.5 x 45.0 mm
Scalability	1S
Supported instruction sets	AVX 2.0
Thermal Monitoring Technologies	Yes
Intel® Turbo Boost Technology	2.0
Intel® Hyper Threading Technology (Intel® HT Technology)	Yes
Intel® Identity Protection Technology (Intel® IPT)	Yes
Conflict-Free processor	No

Specification	Value
Audio chip	Realtek ALC3220

Specification	Value
Operating temperature (T-T)	10 - 35 °C
Storage temperature (T-T)	-40 - 65 °C
Operating relative humidity (H-H)	20 - 80%
Operating altitude	-15.2 - 3048 m
Non-operating altitude	-15.2 - 10668 m
