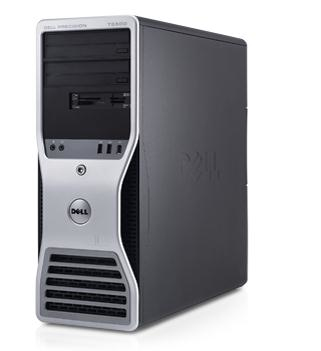

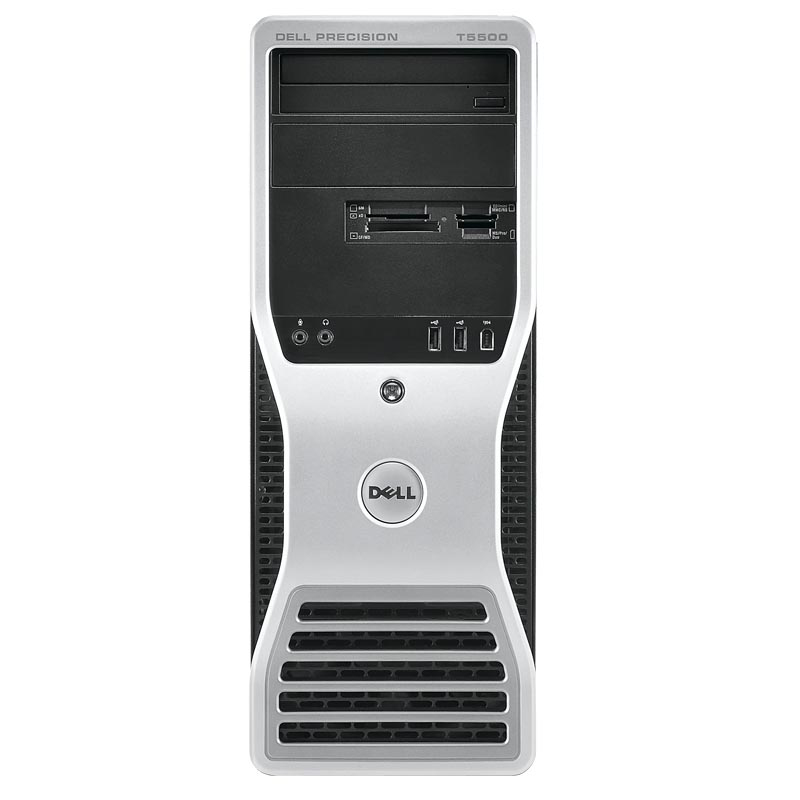

Precision T5500 Intel® Xeon® 5000 Sequence E5603

6 GB DDR3-SDRAM Windows 7 Professional Tower Workstation

Model T5500Part no. W08T5501

86 specifications

Overview

Brand: Dell
Category: PCs/Workstations
Model: T5500
Part numbers: W08T5501, W08T5502, W08T5503
Also known as: DELL Precision T5500 Intel® Xeon® 5000 Sequence E5603 6 GB DDR3-SDRAM Windows 7 Professional Tower Workstation

86 specifications in 13 groups

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Xeon® 5000 Sequence
Processor model	E5603
Processor cores	4
Processor threads	4
Processor frequency	1.6 GHz
Processor cache	4 MB
Processor cache type	Smart Cache
Bus type	QPI
FSB Parity	No
System bus rate	4.8 GT/s
Processor lithography	32 nm
Processor operating modes	64-bit
Processor series	Intel Xeon 5600 Series
Processor codename	Westmere EP
Thermal Design Power (TDP)	80 W
Number of QPI links	2
Number of processors installed	1
Processor socket	Socket B (LGA 1366)
CPU multiplier (bus/core ratio)	12
Stepping	B1
Maximum internal memory supported by processor	288 GB
Memory types supported by processor	DDR3-SDRAM
Memory clock speeds supported by processor	800,1066 MHz
Memory bandwidth supported by processor (max)	25.6 GB/s
ECC supported by processor	Yes

Specification	Value
Maximum graphics card memory	0.256 GB
Graphics card	FireMV 2260
Graphics card family	ATI

Specification	Value
Product type	Workstation

Specification	Value
PCI Express x16 slots	2

Specification	Value
Chassis type	Tower

Specification	Value
Operating system installed	Windows 7 Professional
Operating system architecture	64-bit
Bundled software	Trend Micro Worry Free Business Security 3.5

Specification	Value
Display included	No

Specification	Value
CPU configuration (max)	2
Embedded options available	No
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Idle States	Yes
Intel 64	Yes
Intel Clear Video Technology	No
Intel Demand Based Switching	Yes
Intel Dual Display Capable Technology	No
Intel Enhanced Halt State	Yes
Intel FDI Technology	No
Intel Fast Memory Access	No
Intel Flex Memory Access	No
Intel Rapid Storage Technology	No
Intel Trusted Execution Technology	Yes
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Intel® AES New Instructions (Intel® AES-NI)	Yes
Intel® Clear Video HD Technology (Intel® CVT HD)	No
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)	No
Intel® InTru™ 3D Technology	No
Intel® Insider™	No
Intel® Wireless Display (Intel® WiDi)	No
Physical Address Extension (PAE)	40 bit
Processor ARK ID	52584
Processor code	SLC2F
Processor package size	42.5 X 45 mm
Supported instruction sets	SSE4.2
Thermal Monitoring Technologies	No
Intel® Turbo Boost Technology	No
Intel® Hyper Threading Technology (Intel® HT Technology)	No
Intel® Quick Sync Video Technology	No
Intel® My WiFi Technology (Intel® MWT)	No
Intel® Anti-Theft Technology (Intel® AT)	No
Conflict-Free processor	No
