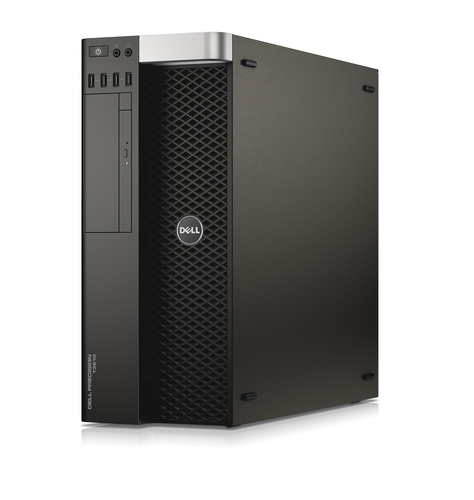

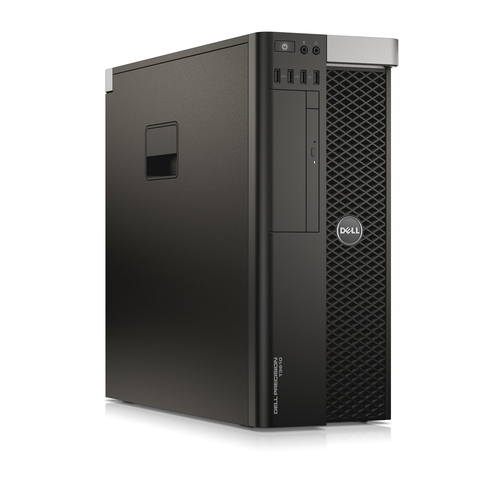

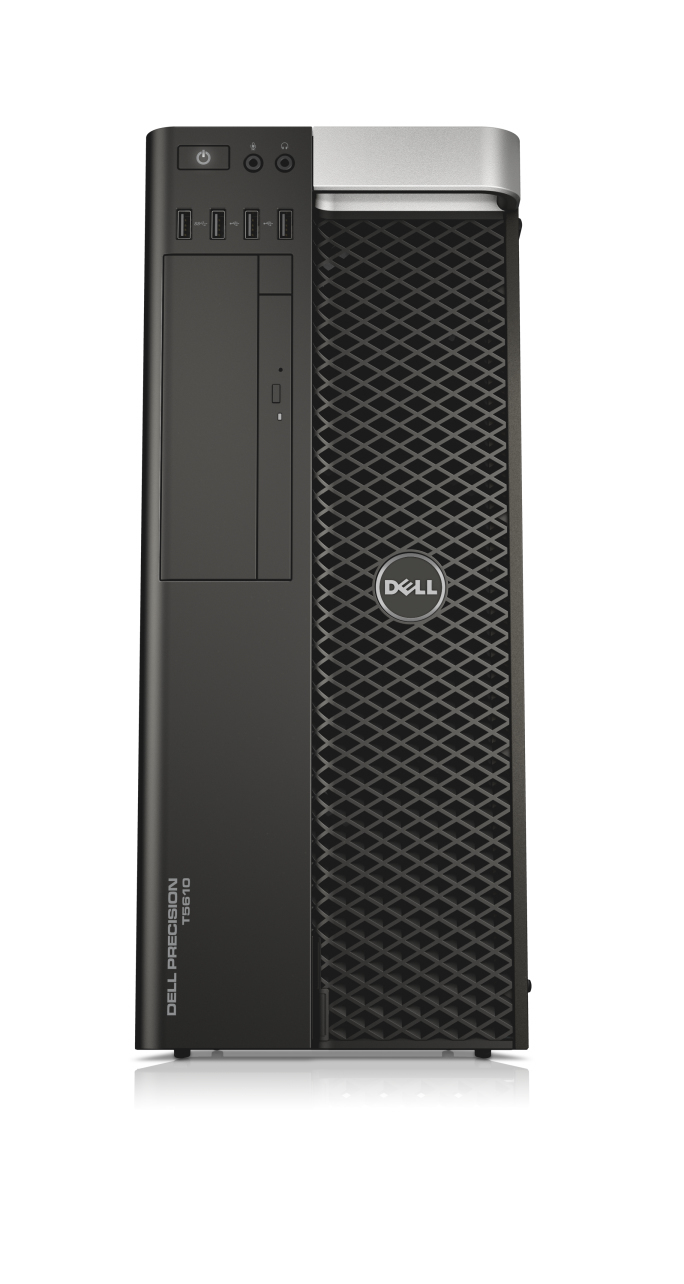

Precision T3610 Intel® Xeon® E5 Family E5-1607

8 GB DDR3-SDRAM 500 GB HDD NVIDIA® Quadro® K600 Windows 7 Professional Midi Tower Workstation Black

Model T3610Part no. 3610-2112EAN 5397063420780

125 specifications

Overview

Brand: Dell
Category: PCs/Workstations
Model: T3610
Part numbers: 3610-2112, 3610-4252, 3610-4238, 3610-4245, 3610-9791, 3610-3554 +34 more
EAN / UPC: 5397063420780, 5397063424252, 5397063424238, 5397063424245 +56 more
Also known as: DELL Precision T3610 Intel® Xeon® E5 Family E5-1607 8 GB DDR3-SDRAM 500 GB HDD NVIDIA® Quadro® K600 Windows 7 Professional Midi Tower Workstation Black

125 specifications in 17 groups

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Xeon® E5 Family
Processor model	E5-1607
Processor cores	4
Processor threads	4
Processor boost frequency	0 GHz
Processor frequency	3 GHz
Processor cache	10 MB
Processor cache type	L3
Bus type	QPI
FSB Parity	No
System bus rate	0 GT/s
Processor lithography	32 nm
Processor operating modes	64-bit
Processor codename	Sandy Bridge EP
Thermal Design Power (TDP)	130 W
Tcase	64 °C
Maximum number of PCI Express lanes	40
PCI Express slots version	3.0
Number of processors installed	1
Processor socket	LGA 2011 (Socket R)
CPU multiplier (bus/core ratio)	30
Stepping	M1
Maximum internal memory supported by processor	375 GB
Memory types supported by processor	DDR3-SDRAM
Memory clock speeds supported by processor	800,1066 MHz
Memory bandwidth supported by processor (max)	34.1 GB/s
ECC supported by processor	Yes

Specification	Value
On-board graphics card	No
Discrete graphics card model	NVIDIA® Quadro® K600
Discrete graphics card memory	1 GB
On-board graphics card model	Not available

Specification	Value
Product type	Workstation
Motherboard chipset	Intel® C602

Specification	Value
Optical drives quantity	1

Specification	Value
USB 2.0 ports quantity	6
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	4
DisplayPorts quantity	1
HDMI ports quantity	0
Ethernet LAN (RJ-45) ports	1
Headphone outputs	1
Microphone in	Yes
VGA (D-Sub) ports quantity	0
DVI port	Yes
PS/2 ports quantity	2
DC-in jack	Yes
Serial ports quantity	1

Specification	Value
Power supply	685 W

Specification	Value
Operating system installed	Windows 7 Professional
Operating system architecture	64-bit
Drivers included	Yes

Specification	Value
Display included	No

Specification	Value
CPU configuration (max)	1
Embedded options available	No
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Idle States	Yes
Intel 64	Yes
Intel Clear Video Technology	No
Intel Demand Based Switching	Yes
Intel Dual Display Capable Technology	No
Intel Enhanced Halt State	Yes
Intel FDI Technology	No
Intel Fast Memory Access	No
Intel Flex Memory Access	Yes
Intel Rapid Storage Technology	No
Intel Trusted Execution Technology	Yes
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Intel® AES New Instructions (Intel® AES-NI)	Yes
Intel® Clear Video HD Technology (Intel® CVT HD)	No
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)	No
Intel® InTru™ 3D Technology	No
Intel® Insider™	No
Intel® Small Business Advantage (Intel® SBA)	No
Intel® Smart Cache	Yes
Intel® Wireless Display (Intel® WiDi)	No
Processor ARK ID	64619
Processor code	SR0L8
Processor package size	52.5 x 45.0 mm
Supported instruction sets	AVX
Thermal Monitoring Technologies	Yes
Intel® Smart Response Technology	No
Intel® Rapid Start Technology	No
Intel® Turbo Boost Technology	No
Intel Smart Connect Technology	No
Intel® Hyper Threading Technology (Intel® HT Technology)	No
Intel® Quick Sync Video Technology	No
Intel® My WiFi Technology (Intel® MWT)	No
Intel® Identity Protection Technology (Intel® IPT)	No
Intel® Anti-Theft Technology (Intel® AT)	No
Conflict-Free processor	No
