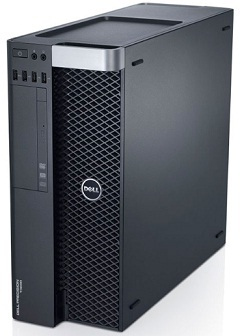

Dell Precision T3600 Intel® Xeon® E5 Family E5-1603

4 GB DDR3-SDRAM Windows 7 Professional Workstation

Model T3600Part no. 3600-8060EAN 5397063536900

86 specifications

Overview

Brand: Dell
Category: PCs/Workstations
Model: T3600
Part numbers: 3600-8060, 3600-8077, 3600-0690, 3600-0706, 3600-0713, 28035131 +33 more
EAN / UPC: 5397063536900, 4260265864526, 5397063293711, 5397063418060 +6 more
Also known as: DELL Precision T3600 Intel® Xeon® E5 Family E5-1603 4 GB DDR3-SDRAM Windows 7 Professional Workstation

86 specifications in 12 groups

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Xeon® E5 Family
Processor model	E5-1603
Processor cores	4
Processor threads	4
Processor frequency	2.8 GHz
Processor cache	10 MB
Processor cache type	L3
Bus type	QPI
FSB Parity	No
System bus rate	0 GT/s
Processor lithography	32 nm
Processor operating modes	64-bit
Processor codename	Sandy Bridge EP
Thermal Design Power (TDP)	130 W
Tcase	64 °C
Maximum number of PCI Express lanes	40
PCI Express slots version	3.0
Number of processors installed	1
Processor socket	LGA 2011 (Socket R)
CPU multiplier (bus/core ratio)	28
Stepping	M1
Maximum internal memory supported by processor	375 GB
Memory types supported by processor	DDR3-SDRAM
Memory clock speeds supported by processor	800,1066 MHz
Memory bandwidth supported by processor (max)	31.4 GB/s
ECC supported by processor	Yes

Specification	Value
Maximum graphics card memory	0.5 GB
Graphics card	FirePro 2270
Graphics card family	AMD

Specification	Value
Product type	Workstation

Specification	Value
Form factor	Desktop

Specification	Value
Operating system installed	Windows 7 Professional
Operating system architecture	64-bit
Bundled software	Trend Micro Worry Free Business Security 3.5

Specification	Value
Display included	No

Specification	Value
CPU configuration (max)	1
Embedded options available	No
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Idle States	Yes
Intel 64	Yes
Intel Clear Video Technology	No
Intel Demand Based Switching	Yes
Intel Dual Display Capable Technology	No
Intel Enhanced Halt State	Yes
Intel FDI Technology	No
Intel Fast Memory Access	No
Intel Flex Memory Access	Yes
Intel Rapid Storage Technology	No
Intel Trusted Execution Technology	Yes
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Intel® AES New Instructions (Intel® AES-NI)	Yes
Intel® Clear Video HD Technology (Intel® CVT HD)	No
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)	No
Intel® InTru™ 3D Technology	No
Intel® Insider™	No
Intel® Smart Cache	Yes
Intel® Wireless Display (Intel® WiDi)	No
Processor ARK ID	64600
Processor code	SR0L9
Processor package size	52.5 x 45.0 mm
Supported instruction sets	AVX
Thermal Monitoring Technologies	Yes
Intel® Turbo Boost Technology	No
Intel® Hyper Threading Technology (Intel® HT Technology)	No
Intel® Quick Sync Video Technology	No
Intel® My WiFi Technology (Intel® MWT)	No
Intel® Anti-Theft Technology (Intel® AT)	No
Conflict-Free processor	No

Specification	Value
Audio system	HD

Specification	Value
Sustainability certificates	ENERGY STAR
