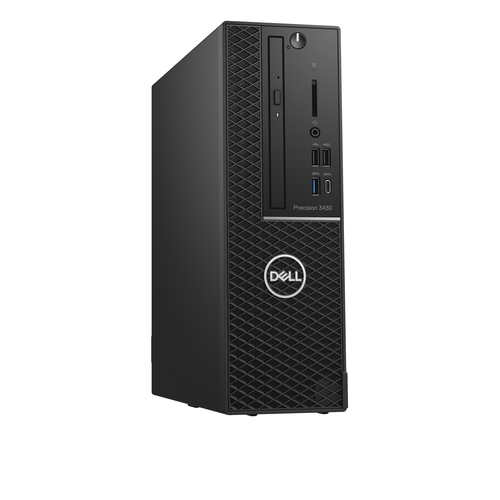

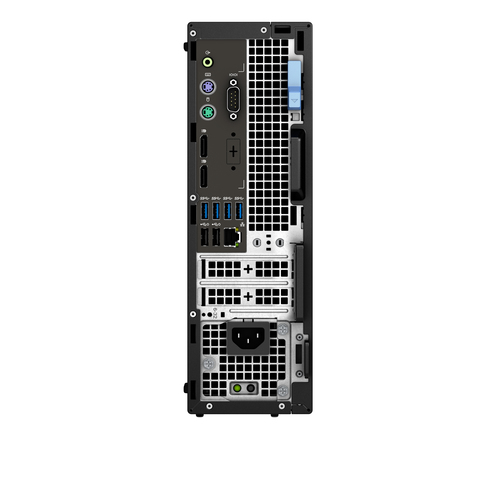

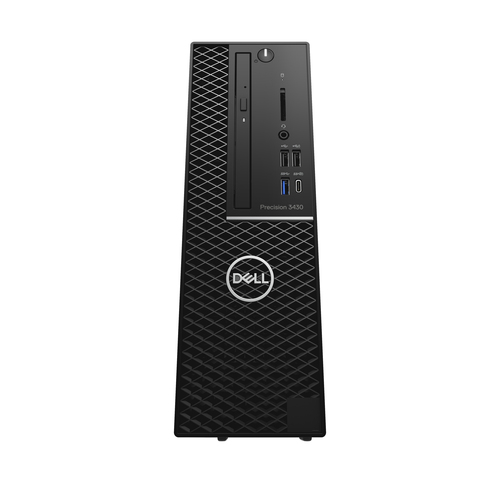

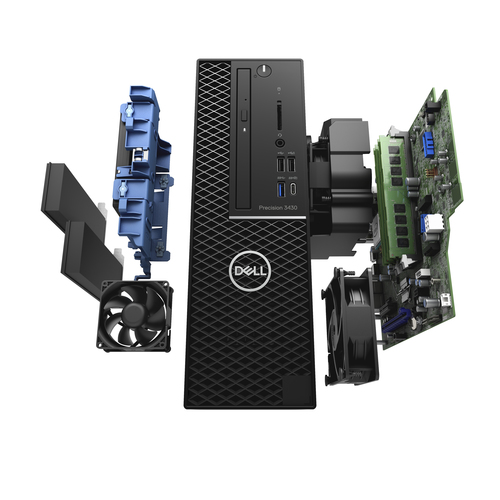

Dell Precision T3430 Intel® Core™ i5 i5-8500

8 GB DDR4-SDRAM 2 TB HDD NVIDIA® Quadro® P400 Windows 10 Home SFF Workstation Black

Model T3430Part no. N01T3430I58500NWCN-OPTANE

145 specifications

ProcessorIntel® Core™ i5
Memory8 GB
Storage2 TB
GraphicsNVIDIA® Quadro® P400
TypeWorkstation
OSWindows 10 Home

See all specifications

Overview

Processor: Intel® Core™ i5
Memory: 8 GB
Storage: 2 TB
Graphics: NVIDIA® Quadro® P400
Type: Workstation
OS: Windows 10 Home

Brand: Dell
Category: PCs/Workstations
Model: T3430
Part numbers: N01T3430I58500NWCN-OPTANE, N01T3430I78700NWCN-OPTANE, N01T343E-2124NWCN-OPTANE
Also known as: DELL Precision T3430 Intel® Core™ i5 i5-8500 8 GB DDR4-SDRAM 2 TB HDD NVIDIA® Quadro® P400 Windows 10 Home SFF Workstation Black

Specifications

145 specifications in 17 groups

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Core™ i5
Processor generation	8th gen Intel® Core™ i5
Processor model	i5-8500
Processor cores	6
Processor threads	6
Processor boost frequency	4.1 GHz
Processor frequency	3 GHz
Processor cache	9 MB
Bus type	DMI3
System bus rate	8 GT/s
Processor lithography	14 nm
Processor operating modes	64-bit
Processor codename	Coffee Lake
Thermal Design Power (TDP)	65 W
Tjunction	100 °C
Maximum number of PCI Express lanes	16
PCI Express configurations	1x16, 1x8+2x4, 2x8
PCI Express slots version	3.0
Number of processors installed	1
Processor socket	LGA 1151 (Socket H4)
Maximum internal memory supported by processor	64 GB
Memory types supported by processor	DDR4-SDRAM
Memory clock speeds supported by processor	2666 MHz
Memory bandwidth supported by processor (max)	41.6 GB/s
ECC supported by processor	No

Memory

Specification	Value
Internal memory	8 GB
Maximum internal memory	64 GB
Internal memory type	DDR4-SDRAM
Memory layout (slots x size)	1 x 8 GB
Memory slots	4x DIMM
Memory clock speed	2666 MHz
Memory channels	Dual-channel
Non-ECC	Yes

Storage

Specification	Value
Total storage capacity	2 TB
Optical drive type	DVD±RW
Storage media	HDD
Number of storage drives installed	1
Number of HDDs installed	1
HDD capacity	2 TB
Intel® Optane™ Memory module installed	Yes
Intel® Optane™ Memory module capacity	32 GB

Graphics

Specification	Value
Discrete graphics card	Yes
On-board graphics card	Yes
Discrete graphics card model	NVIDIA® Quadro® P400
Discrete graphics card memory	2 GB
Discrete graphics memory type	GDDR5
Number of discrete graphics cards	1
On-board graphics card family	Intel® UHD Graphics
On-board graphics card model	Intel® UHD Graphics 630
Maximum on-board graphics card memory	64 GB
Number of displays supported (on-board graphics)	3
On-board graphics card base frequency	350 MHz
On-board graphics card dynamic frequency (max)	1100 MHz
On-board graphics card DirectX version	12.0
On-board graphics card ID	0x3E92
On-board graphics card OpenGL version	4.5
CUDA	Yes
Graphics card Mini DisplayPort ports quantity	3

Performance

Specification	Value
Product type	Workstation
Motherboard chipset	Intel C246
Trusted Platform Module (TPM)	Yes

Optical drive

Specification	Value
Optical drives quantity	1

Network

Specification	Value
Ethernet LAN	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Cabling technology	10/100/1000Base-T(X)
Wi-Fi	No

Ports & interfaces

Specification	Value
USB 2.0 ports quantity	4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	5
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	1
Number of USB ports with PowerShare support	2
PowerShare	Yes
Thunderbolt 3 ports quantity	0
Ethernet LAN (RJ-45) ports	1
Combo headphone/mic port	Yes
Headphone outputs	1
Line-out	Yes
Microphone in	No
DVI port	No
PS/2 ports quantity	2
On/off button	Yes

Power

Specification	Value
Power supply	200 W
Power supply input voltage	100 - 240 V
Power supply input frequency	50 - 60 Hz
80 PLUS certification	80 PLUS Bronze

Design

Specification	Value
Chassis type	SFF
Placement supported	Horizontal/Vertical
Cable lock slot	Yes
Cable lock slot type	Noble
Product colour	Black

Software

Specification	Value
Operating system installed	Windows 10 Home
Operating system architecture	64-bit
Drivers included	Yes

Display

Specification	Value
Display included	No

Processor special features

Specification	Value
CPU configuration (max)	1
Embedded options available	Yes
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Idle States	Yes
Intel 64	Yes
Intel Clear Video Technology	Yes
Intel Enhanced Halt State	Yes
Intel Identity Protection Technology version	1.00
Intel Secure Key Technology version	1.00
Intel Software Guard Extensions (Intel SGX)	Yes
Intel Stable Image Platform Program (SIPP)	Yes
Intel Stable Image Platform Program (SIPP) version	1.00
Intel TSX-NI	Yes
Intel TSX-NI version	1.00
Intel Trusted Execution Technology	Yes
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Intel® AES New Instructions (Intel® AES-NI)	Yes
Intel® Clear Video HD Technology (Intel® CVT HD)	Yes
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)	Yes
Intel® InTru™ 3D Technology	Yes
Intel® OS Guard	Yes
Intel® Optane™ Memory Ready	Yes
Intel® Secure Key	Yes
Processor ARK ID	129939
Processor package size	37.5 x 37.5 mm
Scalability	1S
Supported instruction sets	AVX 2.0, SSE4.1, SSE4.2
Thermal Monitoring Technologies	Yes
Thermal solution specification	PCG 2015C
Intel® Turbo Boost Technology	2.0
Intel® Hyper Threading Technology (Intel® HT Technology)	No
Intel® Quick Sync Video Technology	Yes
Intel® Identity Protection Technology (Intel® IPT)	Yes
Conflict-Free processor	Yes

Audio

Specification	Value
Audio chip	Realtek ALC3234
Audio system	High Definition Audio

Weight & dimensions

Specification	Value
Width	92.6 mm
Depth	292 mm
Height	290 mm
Weight	5.12 kg

Packaging content

Specification	Value
Mouse included	Yes
Keyboard included	Yes
Cables included	AC
Manual	Yes
Power cord included	Yes

Sustainability

Specification	Value
Sustainability certificates	ENERGY STAR
