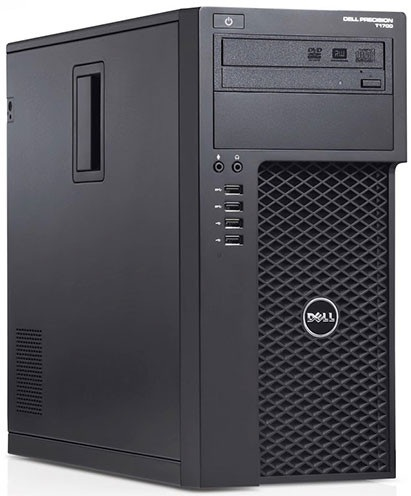

Precision T1700 Intel® Xeon® E3 V3 Family E3-1240V3

8 GB DDR3-SDRAM 500 GB HDD NVIDIA® Quadro® K600 Windows 7 Professional Mini Tower Workstation Black

Model T1700Part no. 1700-5976EAN 5397063431069

143 specifications

ProcessorIntel® Xeon® E3 V3 Family
Memory8 GB
Storage500 GB
GraphicsNVIDIA® Quadro® K600
TypeWorkstation
OSWindows 7 Professional

See all specifications

Overview

Processor: Intel® Xeon® E3 V3 Family
Memory: 8 GB
Storage: 500 GB
Graphics: NVIDIA® Quadro® K600
Type: Workstation
OS: Windows 7 Professional

Brand: Dell
Category: PCs/Workstations
Model: T1700
Part numbers: 1700-5976, 1700-7082, WT1700MTBTO105, WT1700MTFGA154, WT1700SFFFGA525, 1700-5952 +34 more
EAN / UPC: 5397063431069, 5397063419036, 5397063419043, 884116138211 +56 more
Also known as: DELL Precision T1700 Intel® Xeon® E3 V3 Family E3-1240V3 8 GB DDR3-SDRAM 500 GB HDD NVIDIA® Quadro® K600 Windows 7 Professional Mini Tower Workstation Black

Specifications

143 specifications in 19 groups

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Xeon® E3 V3 Family
Processor model	E3-1240V3
Processor cores	4
Processor threads	8
Processor boost frequency	3.8 GHz
Processor frequency	3.4 GHz
Processor cache	8 MB
Processor cache type	Smart Cache
Bus type	QPI
FSB Parity	No
Processor lithography	22 nm
Processor operating modes	64-bit
Processor series	Intel Xeon E3-1200 v3
Processor codename	Haswell
Thermal Design Power (TDP)	80 W
Maximum number of PCI Express lanes	16
PCI Express configurations	1x16, 2x8, 1x8+2x4
PCI Express slots version	3.0
Number of QPI links	1
Number of processors installed	1
Processor socket	LGA 1150 (Socket H3)
Stepping	C0
Maximum internal memory supported by processor	32 GB
Memory types supported by processor	DDR3-SDRAM
Memory clock speeds supported by processor	1333,1600 MHz
Memory bandwidth supported by processor (max)	25.6 GB/s
ECC supported by processor	Yes

Memory

Specification	Value
Internal memory	8 GB
Maximum internal memory	16 GB
Internal memory type	DDR3-SDRAM
Memory layout (slots x size)	2 x 4 GB
Memory slots	2x DIMM
Memory clock speed	1600 MHz
Memory channels	Dual-channel
Non-ECC	Yes

Storage

Specification	Value
Total storage capacity	500 GB
Optical drive type	DVD±RW
Storage media	HDD
Number of HDDs installed	1
HDD capacity	500 GB
HDD interface	SATA
HDD speed	7200 RPM
HDD size	3.5"
Card reader integrated	No

Graphics

Specification	Value
On-board graphics card	No
Discrete graphics card model	NVIDIA® Quadro® K600
Discrete graphics card memory	1 GB
Number of discrete graphics cards	1
On-board graphics card model	Not available

Performance

Specification	Value
Product type	Workstation
Motherboard chipset	Intel® C226
Password protection type	BIOS

Optical drive

Specification	Value
Optical drives quantity	1

Network

Specification	Value
Ethernet LAN	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Cabling technology	10/100/1000Base-T(X)
Wi-Fi	No
Bluetooth	No

Ports & interfaces

Specification	Value
USB 2.0 ports quantity	6
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	4
DisplayPorts quantity	1
HDMI ports quantity	0
Ethernet LAN (RJ-45) ports	1
Headphone outputs	1
Line-out	Yes
Line-in	Yes
Microphone in	Yes
VGA (D-Sub) ports quantity	0
DVI port	Yes
PS/2 ports quantity	2
Serial ports quantity	1

Expansion slots

Specification	Value
Number of 3.5" bays	2
PCI Express x16 slots	2

Power

Specification	Value
Power supply	290 W

Design

Specification	Value
Chassis type	Mini Tower
Number of 5.25" bays	2
Cable lock slot	Yes
Cable lock slot type	Kensington
Product colour	Black
Cooling type	Active

Software

Specification	Value
Operating system installed	Windows 7 Professional
Operating system architecture	64-bit

Display

Specification	Value
Display included	No

Processor special features

Specification	Value
CPU configuration (max)	1
Embedded options available	No
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Graphics & IMC lithography	22 nm
Idle States	Yes
Intel 64	Yes
Intel Clear Video Technology	No
Intel Demand Based Switching	No
Intel Dual Display Capable Technology	No
Intel Enhanced Halt State	Yes
Intel FDI Technology	No
Intel Fast Memory Access	Yes
Intel Flex Memory Access	Yes
Intel Identity Protection Technology version	1.00
Intel Rapid Storage Technology	No
Intel Secure Key Technology version	1.00
Intel Stable Image Platform Program (SIPP)	Yes
Intel Stable Image Platform Program (SIPP) version	1.00
Intel TSX-NI	Yes
Intel TSX-NI version	1.00
Intel Trusted Execution Technology	Yes
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Intel® AES New Instructions (Intel® AES-NI)	Yes
Intel® Clear Video HD Technology (Intel® CVT HD)	No
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)	No
Intel® InTru™ 3D Technology	No
Intel® Insider™	No
Intel® OS Guard	Yes
Intel® Secure Key	Yes
Intel® Smart Cache	Yes
Intel® Wireless Display (Intel® WiDi)	No
Processor ARK ID	75055
Processor code	SR152
Processor package size	37.5 x 37.5 mm
Scalability	1S
Supported instruction sets	AVX 2.0, SSE4.1, SSE4.2
Thermal Monitoring Technologies	Yes
Thermal solution specification	PCG 2013D
Intel® Smart Response Technology	No
Intel® Rapid Start Technology	No
Intel® Turbo Boost Technology	2.0
Intel Smart Connect Technology	No
Intel® Hyper Threading Technology (Intel® HT Technology)	Yes
Intel® Quick Sync Video Technology	No
Intel® My WiFi Technology (Intel® MWT)	No
Intel® Identity Protection Technology (Intel® IPT)	Yes
Intel® Anti-Theft Technology (Intel® AT)	Yes
Conflict-Free processor	No
