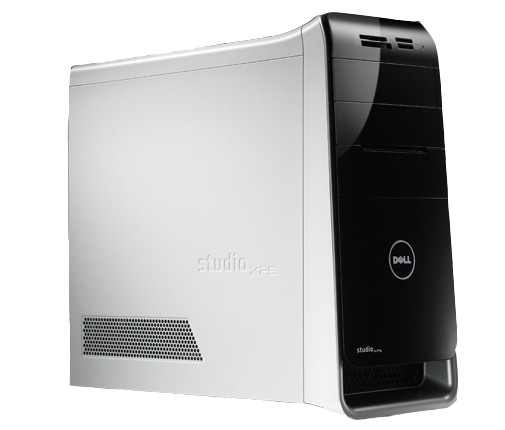

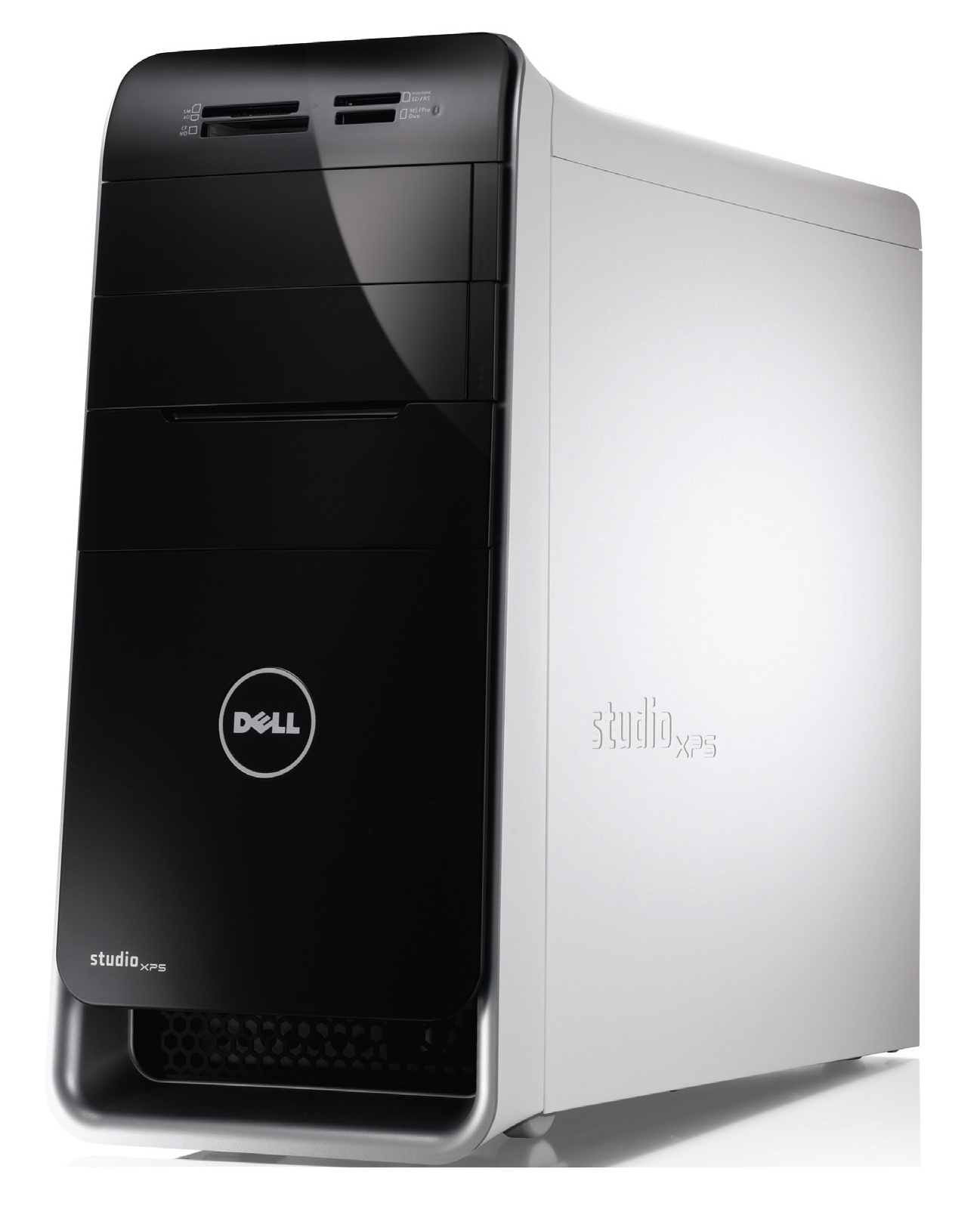

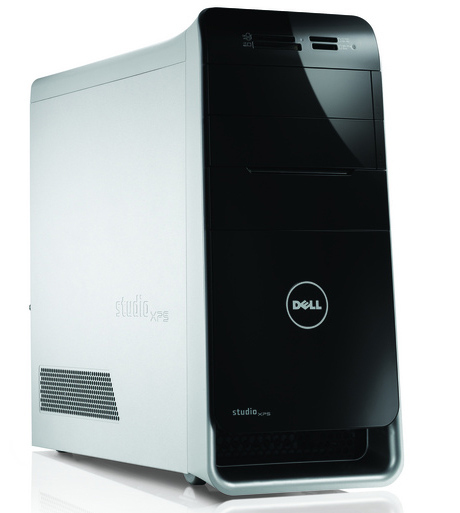

Dell Studio XPS 8100

Model Studio XPS 8100Part no. STX8100-Q211NLEAN 5391519470039

120 specifications

Overview

Brand: Dell
Category: PCs/Workstations
Model: Studio XPS 8100
Part numbers: STX8100-Q211NL, STX8100-M211NL, STX8100-M311NL, 8100-6694, 8100-6700, 8100-8832 +3 more
EAN / UPC: 5391519470039
Also known as: DELL Studio XPS 8100 Intel® Core™ i7 i7-860 6 GB DDR3-SDRAM 1 TB NVIDIA® GeForce® GTX 260 Windows 7 Home Premium Micro Tower PC Black, White

120 specifications in 16 groups

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Core™ i7
Processor generation	Intel® Core™ i7
Processor model	i7-860
Processor cores	4
Processor threads	8
Processor boost frequency	3.46 GHz
Processor frequency	2.8 GHz
Processor cache	8 MB
Processor cache type	Smart Cache
Processor front side bus	1333 MHz
Bus type	DMI
FSB Parity	No
System bus rate	2.5 GT/s
Processor lithography	45 nm
Processor operating modes	64-bit
Processor series	Intel Core i7-800 Desktop Series
Processor codename	Lynnfield
Thermal Design Power (TDP)	95 W
Tcase	72.7 °C
Maximum number of PCI Express lanes	16
PCI Express configurations	1x16, 2x8
PCI Express slots version	2.0
Number of processors installed	1
Processor socket	LGA 1156 (Socket H)
Number of Processing Die Transistors	774 M
Processing Die size	296 mm²
CPU multiplier (bus/core ratio)	21
Maximum internal memory supported by processor	16 GB
Memory types supported by processor	DDR3-SDRAM
Memory clock speeds supported by processor	1066,1333 MHz
Memory bandwidth supported by processor (max)	21 GB/s
ECC supported by processor	No

Specification	Value
On-board graphics card	No
Discrete graphics card model	NVIDIA® GeForce® GTX 260
Discrete graphics card memory	1.8 GB
Discrete graphics memory type	GDDR3
Graphics card family	NVIDIA

Specification	Value
Product type	PC

Specification	Value
USB 2.0 ports quantity	8
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	0
HDMI ports quantity	1
Ethernet LAN (RJ-45) ports	1
Headphone outputs	7
Line-in	Yes
Microphone in	Yes
VGA (D-Sub) ports quantity	1
DVI port	No
PS/2 ports quantity	0
Firewire (IEEE 1394) ports	1
eSATA ports quantity	1
S/PDIF out port	Yes
Serial ports quantity	0
Parallel ports quantity	0

Specification	Value
Power supply	350 W

Specification	Value
Chassis type	Micro Tower
Product colour	Black, White

Specification	Value
Operating system installed	Windows 7 Home Premium

Specification	Value
Display included	No

Specification	Value
CPU configuration (max)	1
Embedded options available	Yes
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Idle States	Yes
Intel 64	Yes
Intel Clear Video Technology	No
Intel Demand Based Switching	No
Intel Dual Display Capable Technology	No
Intel Enhanced Halt State	Yes
Intel FDI Technology	No
Intel Fast Memory Access	No
Intel Flex Memory Access	No
Intel Rapid Storage Technology	No
Intel Trusted Execution Technology	Yes
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Intel® AES New Instructions (Intel® AES-NI)	No
Intel® Clear Video HD Technology (Intel® CVT HD)	No
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)	No
Intel® InTru™ 3D Technology	No
Intel® Insider™	No
Intel® Wireless Display (Intel® WiDi)	No
Physical Address Extension (PAE)	36 bit
Processor ARK ID	41316
Processor package size	37.5 x 37.5 mm
Supported instruction sets	SSE4.2
Thermal Monitoring Technologies	No
Intel® Turbo Boost Technology	1.0
Intel® Hyper Threading Technology (Intel® HT Technology)	Yes
Intel® Quick Sync Video Technology	No
Intel® My WiFi Technology (Intel® MWT)	No
Intel® Anti-Theft Technology (Intel® AT)	No
Conflict-Free processor	No

Specification	Value
TV tuner integrated	No
Drive bays	2x 5.25", 3x 3.5"
