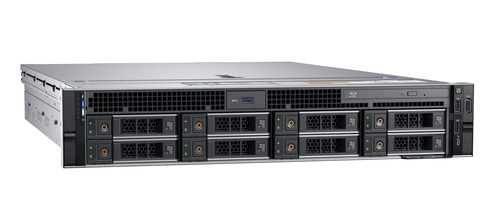

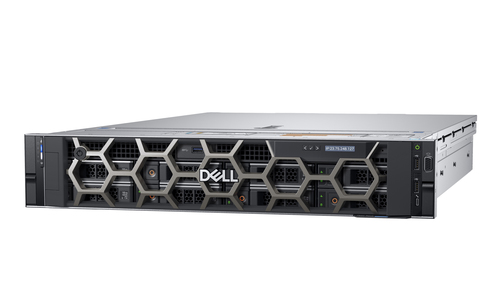

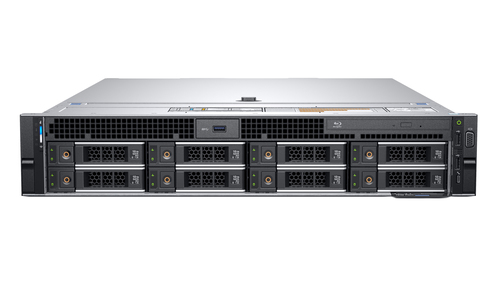

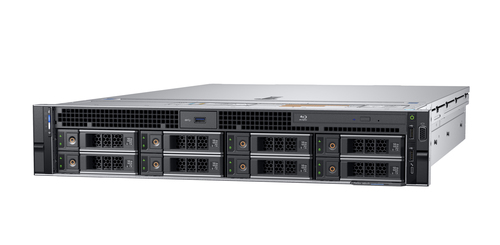

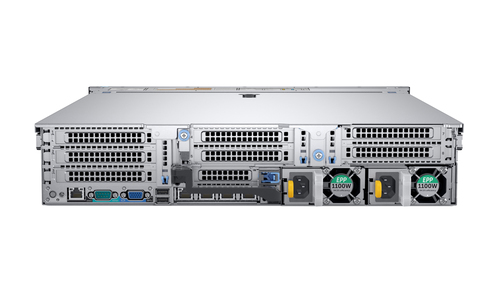

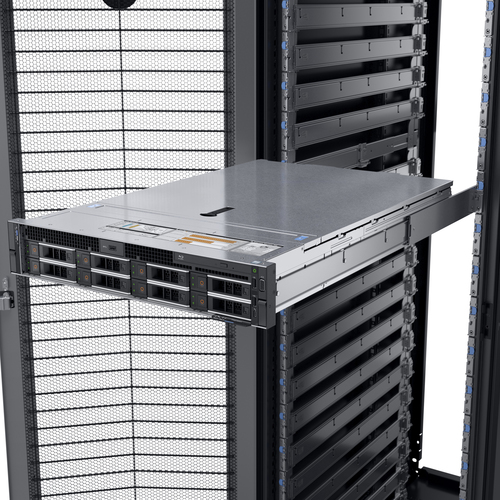

Precision R7920 Intel® Xeon® 3104
16 GB DDR4-SDRAM 500 GB HDD NVIDIA® NVS™ 310 Windows 10 Pro for Workstations Rack-mounted chassis Workstation Black, Grey
Model R7920Part no. XCTOPR7920DSWSEMEA
101 specifications
- ProcessorIntel® Xeon®
- Memory16 GB
- Storage500 GB
- GraphicsNVIDIA® NVS™ 310
- TypeWorkstation
- OSWindows 10 Pro for Workstations
Overview
- Processor
- Intel® Xeon®
- Memory
- 16 GB
- Storage
- 500 GB
- Graphics
- NVIDIA® NVS™ 310
- Type
- Workstation
- OS
- Windows 10 Pro for Workstations
- Brand
- Dell
- Category
- PCs/Workstations
- Model
- R7920
- Part numbers
- XCTOPR7920DSWSEMEA, XCTOPR7920US, XCTOPR7920W10BR, XCTOPR7920EMEA, XCTOPR7920US_4, XCTOPR7920US_3 +4 more
- Also known as
- DELL Precision R7920 Intel® Xeon® 3104 16 GB DDR4-SDRAM 500 GB HDD NVIDIA® NVS™ 310 Windows 10 Pro for Workstations Rack-mounted chassis Workstation Black, Grey
Specifications
101 specifications in 15 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel® Xeon® |
| Processor generation | 1st Generation Intel® Xeon® Scalable |
| Processor model | 3104 |
| Processor cores | 6 |
| Processor threads | 6 |
| Processor frequency | 1.7 GHz |
| Processor cache | 8.25 MB |
| Processor cache type | L3 |
| Processor lithography | 14 nm |
| Processor operating modes | 64-bit |
| Processor codename | Skylake |
| Thermal Design Power (TDP) | 85 W |
| Tcase | 78 °C |
| Maximum number of PCI Express lanes | 48 |
| PCI Express slots version | 3.0 |
| Number of processors installed | 1 |
| Processor socket | LGA 3647 (Socket P) |
| Stepping | U0 |
| Maximum internal memory supported by processor | 768 GB |
| Memory types supported by processor | DDR4-SDRAM |
| Memory clock speeds supported by processor | 2133 MHz |
| ECC supported by processor | Yes |
Memory
| Specification | Value |
|---|---|
| Internal memory | 16 GB |
| Internal memory type | DDR4-SDRAM |
| Memory layout (slots x size) | 2 x 8 GB |
| Memory clock speed | 2666 MHz |
| ECC | Yes |
| Memory channels | Hexa-channel |
Storage
| Specification | Value |
|---|---|
| Total storage capacity | 500 GB |
| Optical drive type | No |
| Storage media | HDD |
| Number of storage drives installed | 1 |
| Number of HDDs installed | 1 |
| HDD capacity | 500 GB |
| HDD speed | 7200 RPM |
| HDD size | 2.5" |
| RAID support | Yes |
Graphics
| Specification | Value |
|---|---|
| Discrete graphics card | Yes |
| On-board graphics card | No |
| Discrete graphics card model | NVIDIA® NVS™ 310 |
| Discrete graphics card memory | 1 GB |
| Number of discrete graphics cards | 1 |
| On-board graphics card model | Not available |
| Graphics card DisplayPorts quantity | 2 |
Performance
| Specification | Value |
|---|---|
| Product type | Workstation |
| Motherboard chipset | Intel® C621 |
| Compatible processor series | Intel® Xeon® |
| Trusted Platform Module (TPM) | Yes |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Cabling technology | 10/100/1000Base-T(X) |
| Wi-Fi | No |
Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 3 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 0 |
| Thunderbolt 3 ports quantity | 0 |
| HDMI ports quantity | 0 |
| Ethernet LAN (RJ-45) ports | 5 |
| Headphone outputs | 0 |
| Microphone in | No |
| VGA (D-Sub) ports quantity | 2 |
| DVI port | No |
| Serial ports quantity | 1 |
Expansion slots
| Specification | Value |
|---|---|
| Number of 3.5" bays | 8 |
Power
| Specification | Value |
|---|---|
| Power supply | 1100 W |
| 80 PLUS certification | 80 PLUS Gold |
Design
| Specification | Value |
|---|---|
| Chassis type | Rack-mounted chassis |
| Rack capacity | 2U |
| Product colour | Black, Grey |
Software
| Specification | Value |
|---|---|
| Operating system installed | Windows 10 Pro for Workstations |
| Trial software | Microsoft Office 30 Day |
Display
| Specification | Value |
|---|---|
| Display included | No |
Processor special features
| Specification | Value |
|---|---|
| Embedded options available | No |
| Enhanced Intel SpeedStep Technology | Yes |
| Execute Disable Bit | Yes |
| Intel 64 | Yes |
| Intel TSX-NI | Yes |
| Intel TSX-NI version | 1.00 |
| Intel Trusted Execution Technology | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Processor ARK ID | 123546 |
| Processor code | SR3GM |
| Processor package size | 76.0 x 56.5 mm |
| Scalability | 2S |
| Supported instruction sets | AVX, AVX 2.0, AVX-512, SSE4.2 |
| Intel® Turbo Boost Technology | No |
| Intel® Hyper Threading Technology (Intel® HT Technology) | No |
| Conflict-Free processor | Yes |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 482 mm |
| Depth | 715.5 mm |
| Height | 86.8 mm |
Packaging content
| Specification | Value |
|---|---|
| Mouse included | No |
| Keyboard included | No |
| Cables included | AC |
| Manual | Yes |
