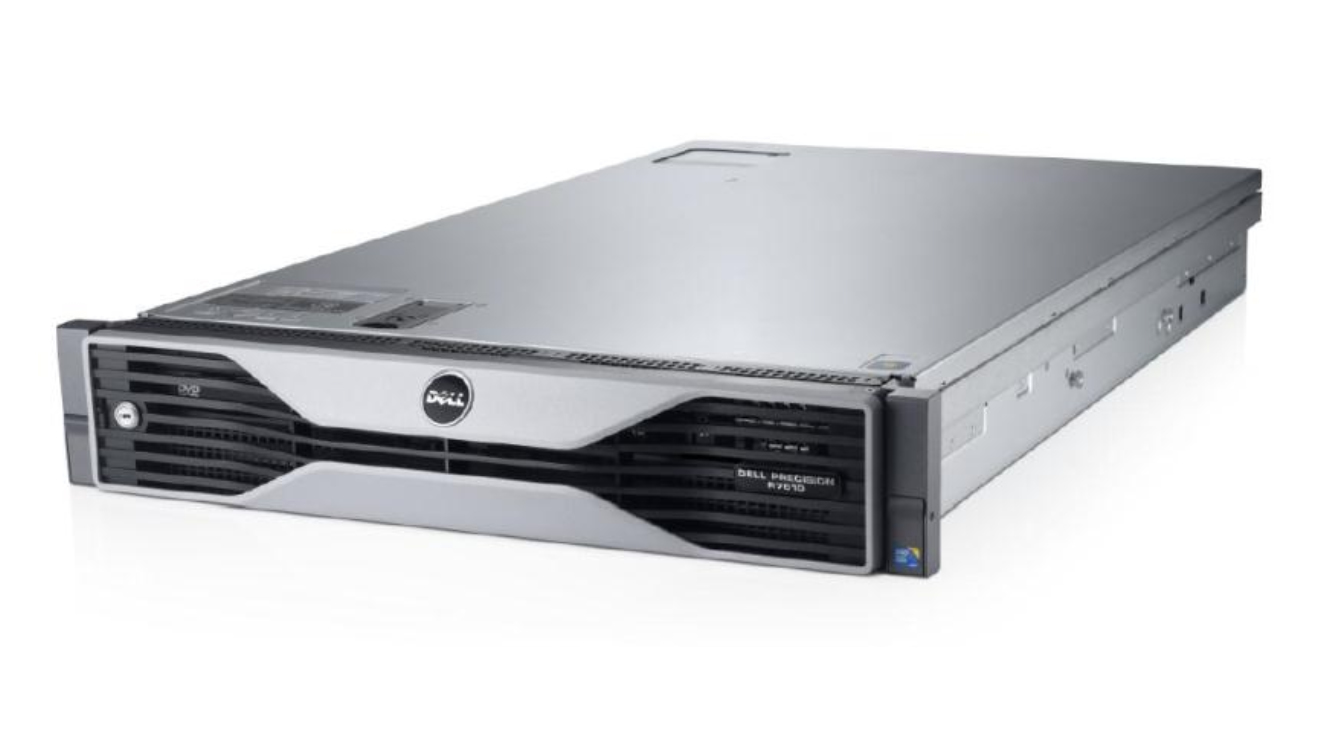

Precision R7910 Intel® Xeon® E5 v4 E5-2603V4
8 GB DDR4-SDRAM 500 GB HDD NVIDIA® Quadro® NVS 310 Windows 10 Pro for Workstations Rack-mounted chassis Workst
Model R7910Part no. CUPR7910W7P_4
131 specifications
- ProcessorIntel® Xeon® E5 v4
- Memory8 GB
- Storage500 GB
- GraphicsNVIDIA® Quadro® NVS 310
- TypeWorkstation
- OSWindows 10 Pro for Workstations
Overview
- Processor
- Intel® Xeon® E5 v4
- Memory
- 8 GB
- Storage
- 500 GB
- Graphics
- NVIDIA® Quadro® NVS 310
- Type
- Workstation
- OS
- Windows 10 Pro for Workstations
- Brand
- Dell
- Category
- PCs/Workstations
- Model
- R7910
- Part numbers
- CUPR7910W7P_4, CUPR7910W7P, CUPR7910W7PBR, CU000PR7910MUFWS, AWR7910, CUPR7910W7P_2 +2 more
- Also known as
- DELL Precision R7910 Intel® Xeon® E5 v4 E5-2603V4 8 GB DDR4-SDRAM 500 GB HDD NVIDIA® Quadro® NVS 310 Windows 10 Pro for Workstations Rack-mounted chassis Workst
Specifications
131 specifications in 19 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel® Xeon® E5 v4 |
| Processor model | E5-2603V4 |
| Processor cores | 6 |
| Processor threads | 6 |
| Processor frequency | 1.7 GHz |
| Processor cache | 15 MB |
| Processor cache type | Smart Cache |
| Bus type | QPI |
| System bus rate | 6.4 GT/s |
| Processor lithography | 14 nm |
| Processor operating modes | 64-bit |
| Processor series | Intel Xeon E5-2600 v4 |
| Processor codename | Broadwell |
| Thermal Design Power (TDP) | 85 W |
| Tcase | 73 °C |
| Maximum number of PCI Express lanes | 40 |
| PCI Express slots version | 3.0 |
| Number of QPI links | 2 |
| Number of processors installed | 1 |
| Processor socket | LGA 2011-v3 |
| Stepping | R0 |
| Maximum internal memory supported by processor | 1.53 TB |
| Memory types supported by processor | DDR4-SDRAM |
| Memory clock speeds supported by processor | 1600,1866 MHz |
| Memory bandwidth supported by processor (max) | 59.7 GB/s |
| ECC supported by processor | Yes |
Memory
| Specification | Value |
|---|---|
| Internal memory | 8 GB |
| Internal memory type | DDR4-SDRAM |
| Memory layout (slots x size) | 2 x 4 GB |
| Memory clock speed | 2400 MHz |
| ECC | Yes |
| Memory channels | Quad-channel |
Storage
| Specification | Value |
|---|---|
| Total storage capacity | 500 GB |
| Optical drive type | DVD-ROM |
| Storage media | HDD |
| Number of storage drives installed | 1 |
| Number of storage drives supported | 8 |
| Number of HDDs installed | 1 |
| HDD capacity | 500 GB |
| HDD speed | 7200 RPM |
| HDD size | 2.5" |
| Card reader integrated | No |
| RAID support | Yes |
Graphics
| Specification | Value |
|---|---|
| Discrete graphics card | Yes |
| On-board graphics card | No |
| Discrete graphics card model | NVIDIA® Quadro® NVS 310 |
| Discrete graphics card memory | 1 GB |
| Number of discrete graphics cards | 1 |
| On-board graphics card model | Not available |
| Graphics card DisplayPorts quantity | 2 |
Performance
| Specification | Value |
|---|---|
| Product type | Workstation |
| Motherboard chipset | Intel® C612 |
| Password protection | Yes |
| Password protection type | BIOS |
| Trusted Platform Module (TPM) | Yes |
Optical drive
| Specification | Value |
|---|---|
| Optical drives quantity | 1 |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Cabling technology | 10/100/1000Base-T(X) |
| Wi-Fi | No |
Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 0 |
| Thunderbolt 3 ports quantity | 0 |
| HDMI ports quantity | 0 |
| Ethernet LAN (RJ-45) ports | 5 |
| VGA (D-Sub) ports quantity | 2 |
| DVI port | No |
| Serial ports quantity | 1 |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x16 slots | 7 |
Power
| Specification | Value |
|---|---|
| Power supply | 1100 W |
Design
| Specification | Value |
|---|---|
| Chassis type | Rack-mounted chassis |
| Rack capacity | 2U |
| Number of 5.25" bays | 1 |
| Number of 2.5" bays | 8 |
| Liquid cooling system | No |
| Product colour | Black, Silver |
Software
| Specification | Value |
|---|---|
| Operating system installed | Windows 10 Pro for Workstations |
| Trial software | Microsoft Office 30 Day |
Display
| Specification | Value |
|---|---|
| Display included | No |
Processor special features
| Specification | Value |
|---|---|
| CPU configuration (max) | 2 |
| Embedded options available | No |
| Enhanced Intel SpeedStep Technology | Yes |
| Execute Disable Bit | Yes |
| Idle States | Yes |
| Intel 64 | Yes |
| Intel Demand Based Switching | Yes |
| Intel Enhanced Halt State | Yes |
| Intel Flex Memory Access | No |
| Intel Identity Protection Technology version | 0.00 |
| Intel Secure Key Technology version | 1.00 |
| Intel TSX-NI | Yes |
| Intel TSX-NI version | 1.00 |
| Intel Trusted Execution Technology | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Intel® OS Guard | Yes |
| Intel® Secure Key | Yes |
| Intel® Virtualization Technology (Intel® VT) | VT-d, VT-x |
| Physical Address Extension (PAE) | 46 bit |
| Physical Address Extension (PAE) | Yes |
| Processor ARK ID | 92993 |
| Processor code | SR2P0 |
| Processor package size | 45 x 52.5 mm |
| Scalability | 2S |
| Supported instruction sets | AVX 2.0 |
| Thermal Monitoring Technologies | Yes |
| Intel® Turbo Boost Technology | No |
| Intel® Hyper Threading Technology (Intel® HT Technology) | No |
| Intel® Identity Protection Technology (Intel® IPT) | No |
| Conflict-Free processor | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 10 - 35 °C |
| Storage temperature (T-T) | -40 - 65 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Storage relative humidity (H-H) | 10 - 80% |
| Operating altitude | 0 - 3048 m |
| Non-operating altitude | 0 - 12000 m |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 431.8 mm |
| Depth | 756.4 mm |
| Height | 86.6 mm |
Packaging content
| Specification | Value |
|---|---|
| Mouse included | Yes |
| Keyboard included | Yes |
| Cables included | AC |
| Manual | Yes |
Certificates
| Specification | Value |
|---|---|
| Certification | BFR/PVC |
Keyboard
| Specification | Value |
|---|---|
| Windows keys | Yes |
