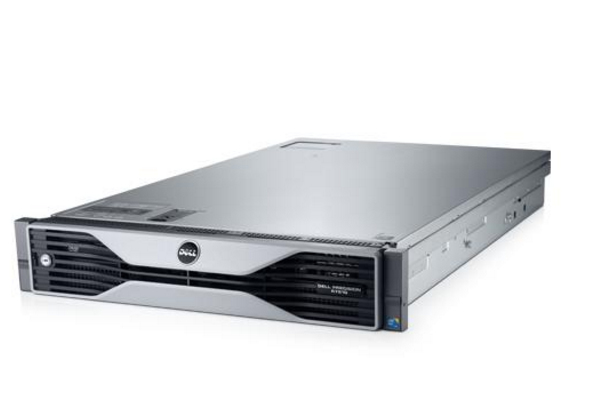

Dell Precision R7610 Intel® Xeon® E5 V2 Family E5-2697V2

32 GB DDR3-SDRAM 500 GB HDD NVIDIA® Quadro® NVS 310 Windows 7 Professional Rack-mounted chassis Worksta

Model R7610Part no. 210-AAPM

121 specifications

ProcessorIntel® Xeon® E5 V2 Family
Memory32 GB
Storage500 GB
GraphicsNVIDIA® Quadro® NVS 310
TypeWorkstation
OSWindows 7 Professional

See all specifications

Overview

Processor: Intel® Xeon® E5 V2 Family
Memory: 32 GB
Storage: 500 GB
Graphics: NVIDIA® Quadro® NVS 310
Type: Workstation
OS: Windows 7 Professional

Brand: Dell
Category: PCs/Workstations
Model: R7610
Part numbers: 210-AAPM, SWCTR76B, PR7610LPCTO
Also known as: DELL Precision R7610 Intel® Xeon® E5 V2 Family E5-2697V2 32 GB DDR3-SDRAM 500 GB HDD NVIDIA® Quadro® NVS 310 Windows 7 Professional Rack-mounted chassis Worksta

Specifications

121 specifications in 16 groups

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Xeon® E5 V2 Family
Processor model	E5-2697V2
Processor cores	12
Processor threads	24
Processor boost frequency	3.5 GHz
Processor frequency	2.7 GHz
Processor cache	30 MB
Processor cache type	Smart Cache
Bus type	QPI
FSB Parity	No
System bus rate	8 GT/s
Processor lithography	22 nm
Processor operating modes	64-bit
Processor series	Intel Xeon E5-2600 v2
Processor codename	Ivy Bridge EP
Thermal Design Power (TDP)	130 W
Tcase	86 °C
Maximum number of PCI Express lanes	40
PCI Express configurations	x4, x8, x16
PCI Express slots version	3.0
Number of QPI links	2
Number of processors installed	1
Processor socket	LGA 2011 (Socket R)
Maximum internal memory supported by processor	768 GB
Memory types supported by processor	DDR3-SDRAM
Memory clock speeds supported by processor	800,1066,1333,1600,1866 MHz
Memory bandwidth supported by processor (max)	59.7 GB/s
ECC supported by processor	Yes

Memory

Specification	Value
Internal memory	32 GB
Maximum internal memory	128 GB
Internal memory type	DDR3-SDRAM
Memory slots	8x DIMM
Memory clock speed	1600 MHz
ECC	Yes
Memory channels	Quad-channel

Storage

Specification	Value
Total storage capacity	500 GB
Storage media	HDD
Card reader integrated	No

Graphics

Specification	Value
On-board graphics card	No
Discrete graphics card model	NVIDIA® Quadro® NVS 310
On-board graphics card model	Not available

Performance

Specification	Value
Product type	Workstation
Motherboard chipset	Intel® C602
Password protection	Yes
Password protection type	BIOS

Network

Specification	Value
Ethernet LAN	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Cabling technology	10/100/1000Base-T(X)
Wi-Fi	No

Ports & interfaces

Specification	Value
USB 2.0 ports quantity	6
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	0
DisplayPorts quantity	2
HDMI ports quantity	0
Ethernet LAN (RJ-45) ports	2
Headphone outputs	0
Line-out	Yes
Line-in	Yes
Microphone in	Yes
VGA (D-Sub) ports quantity	0
DVI port	No
Serial ports quantity	1

Expansion slots

Specification	Value
PCI Express x16 slots	4

Design

Specification	Value
Chassis type	Rack-mounted chassis
Rack capacity	2U
Placement supported	Horizontal
Liquid cooling system	No
Product colour	Black, Silver

Software

Specification	Value
Operating system installed	Windows 7 Professional
Operating system architecture	64-bit

Display

Specification	Value
Display included	No

Processor special features

Specification	Value
CPU configuration (max)	2
Embedded options available	No
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Idle States	Yes
Intel 64	Yes
Intel Clear Video Technology	No
Intel Demand Based Switching	Yes
Intel Dual Display Capable Technology	No
Intel Enhanced Halt State	Yes
Intel FDI Technology	No
Intel Fast Memory Access	No
Intel Flex Memory Access	No
Intel Identity Protection Technology version	0.00
Intel Rapid Storage Technology	No
Intel Secure Key Technology version	1.00
Intel TSX-NI	No
Intel TSX-NI version	0.00
Intel Trusted Execution Technology	Yes
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Intel® AES New Instructions (Intel® AES-NI)	Yes
Intel® Clear Video HD Technology (Intel® CVT HD)	No
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)	No
Intel® InTru™ 3D Technology	No
Intel® Insider™	No
Intel® OS Guard	Yes
Intel® Secure Key	Yes
Intel® Wireless Display (Intel® WiDi)	No
Physical Address Extension (PAE)	46 bit
Processor ARK ID	75283
Processor package size	52.5 x 51 mm
Scalability	2S
Supported instruction sets	AVX
Thermal Monitoring Technologies	Yes
Intel® Turbo Boost Technology	2.0
Intel® Hyper Threading Technology (Intel® HT Technology)	Yes
Intel® Quick Sync Video Technology	No
Intel® My WiFi Technology (Intel® MWT)	No
Intel® Identity Protection Technology (Intel® IPT)	No
Intel® Anti-Theft Technology (Intel® AT)	No
Conflict-Free processor	No

Audio

Specification	Value
Audio system	HD

Weight & dimensions

Specification	Value
Width	440.6 mm
Depth	753.6 mm
Height	86.3 mm

Packaging content

Specification	Value
Manual	Yes

Certificates

Specification	Value
Compliance certificates	RoHS
Certification	WEEE
