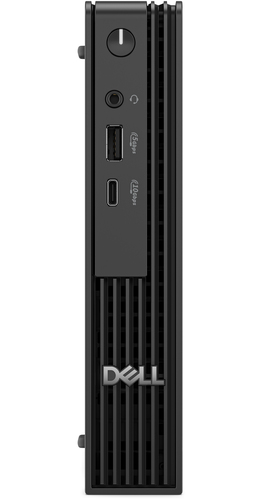

Dell PRO ESS DESKTOP, SLIM (SFF), i5-14500, 16GB, 512GB, WL, W11P, 1YOS

Model PRO ESS DESKTOP, SLIM (SFF), i5-14500, 16GB, 512GB, WL, W11P, 1YOSPart no. BTOR004B_QVS1260_AU

86 specifications

Overview

Brand: Dell
Category: PCs/Workstations
Model: PRO ESS DESKTOP, SLIM (SFF), i5-14500, 16GB, 512GB, WL, W11P, 1YOS
Part number: BTOR004B_QVS1260_AU
Also known as: DELL PRO ESS DESKTOP, SLIM (SFF), i5-14500, 16GB, 512GB, WL, W11P, 1YOS Intel® Core™ i5 DDR5-SDRAM SSD Windows 11 Pro Slim PC PC Black

86 specifications in 16 groups

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Core™ i5
Processor generation	Intel® Core™ i5 (14th gen)
Processor model	i5-14500
Processor cores	14
Processor threads	20
Processor boost frequency	5 GHz
Performance cores	6
Efficient cores	8
Efficient-core Max Turbo Frequency	3.7 GHz
Processor cache	24 MB
Processor cache type	Smart Cache
Number of processors installed	1
Processor socket	LGA 1700
Maximum turbo power	154 W
Processor base power	65 W

Specification	Value
Discrete graphics card	No
On-board graphics card	Yes
Discrete graphics card model	Not available
On-board GPU manufacturer	Intel
On-board graphics card family	Intel® UHD Graphics
On-board graphics card model	Intel UHD Graphics 770

Specification	Value
Product type	PC
Motherboard chipset	Intel Q670
Trusted Platform Module (TPM)	Yes
Trusted Platform Module (TPM) version	2.0

Specification	Value
USB 2.0 ports quantity	4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	3
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	0
Thunderbolt 3 ports quantity	0
DisplayPorts quantity	1
DisplayPort version	1.4a
HDMI ports quantity	1
HDMI version	2.1
Ethernet LAN (RJ-45) ports	1
Combo headphone/mic port	Yes
Number of SATA III connectors	1

Specification	Value
PCI Express x1 slots	3
PCI Express x16 slots	1

Specification	Value
Power supply	180 W
Power supply input voltage	90 - 264 V
Power supply input frequency	47 - 63 Hz
80 PLUS certification	80 PLUS Bronze

Specification	Value
Operating system installed	Windows 11 Pro
Operating system architecture	64-bit

Specification	Value
Display included	No

Specification	Value
Audio chip	Realtek ALC3204
Audio system	High Definition Audio

Specification	Value
Operating temperature (T-T)	10 - 35 °C
Storage temperature (T-T)	-40 - 65 °C
Operating relative humidity (H-H)	20 - 80%
Storage relative humidity (H-H)	5 - 95%
Operating altitude	-15.2 - 3048 m
Non-operating altitude	-15.2 - 10668 m
Operating vibration	0.26 G
Non-operating vibration	1.37 G
Operating shock	40 G
Non-operating shock	105 G

Specification	Value
Cables included	AC
