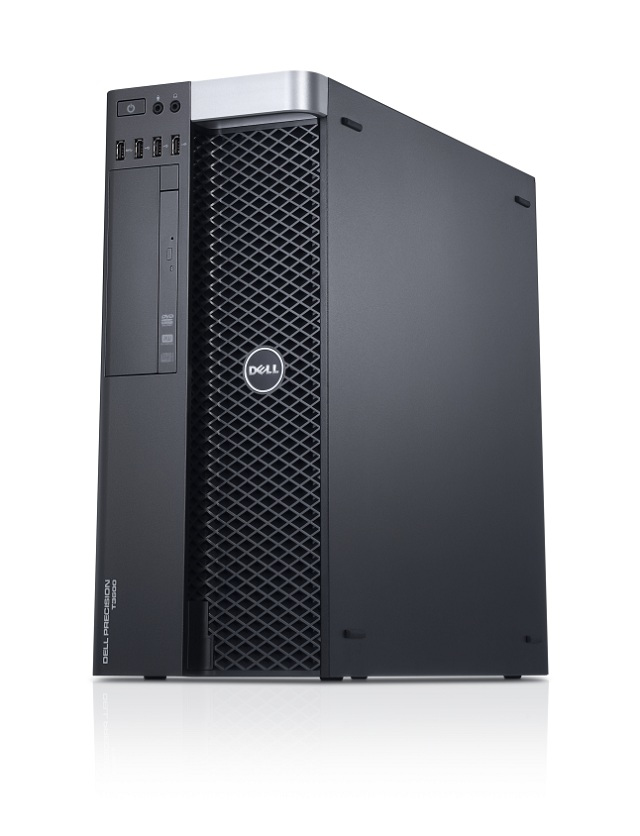

Dell Precision T3600

Model Precision T3600Part no. 3600-4117EAN 5397063264117

117 specifications

ProcessorIntel® Xeon® E5 Family
Memory4 GB
Storage250 GB
TypeWorkstation
OSWindows 7 Professional
ColourBlack

See all specifications

Overview

Processor: Intel® Xeon® E5 Family
Memory: 4 GB
Storage: 250 GB
Type: Workstation
OS: Windows 7 Professional
Colour: Black

Brand: Dell
Category: PCs/Workstations
Model: Precision T3600
Part numbers: 3600-4117, 3600-4124
EAN / UPC: 5397063264117, 5397063264124
Also known as: DELL Precision T3600 Intel® Xeon® E5 Family E5-1603 4 GB DDR3-SDRAM Windows 7 Professional Tower Workstation Black

Specifications

117 specifications in 19 groups

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Xeon® E5 Family
Processor model	E5-1603
Processor cores	4
Processor threads	4
Processor frequency	2.8 GHz
Processor cache	10 MB
Processor cache type	L3
Bus type	QPI
FSB Parity	No
System bus rate	0 GT/s
Processor lithography	32 nm
Processor operating modes	64-bit
Processor codename	Sandy Bridge EP
Thermal Design Power (TDP)	130 W
Tcase	64 °C
Maximum number of PCI Express lanes	40
PCI Express slots version	3.0
Number of processors installed	1
Processor socket	LGA 2011 (Socket R)
CPU multiplier (bus/core ratio)	28
Stepping	M1
Maximum internal memory supported by processor	375 GB
Memory types supported by processor	DDR3-SDRAM
Memory clock speeds supported by processor	800,1066 MHz
Memory bandwidth supported by processor (max)	31.4 GB/s
ECC supported by processor	Yes

Memory

Specification	Value
Internal memory	4 GB
Maximum internal memory	64 GB
Internal memory type	DDR3-SDRAM
Memory layout (slots x size)	2 x 2 GB
Memory slots	4x DIMM
Memory clock speed	1600 MHz
Memory channels	Quad-channel

Storage

Specification	Value
Optical drive type	DVD-ROM
Number of HDDs installed	1
HDD capacity	250 GB
HDD interface	SATA, SATA II
HDD speed	7200 RPM
Maximum storage capacity	2 TB
RAID support	Yes
RAID levels	0, 1, 5, 10

Graphics

Specification	Value
Graphics card	Quadro 2000
Graphics card family	NVIDIA

Performance

Specification	Value
Product type	Workstation
Password protection type	BIOS
Trusted Platform Module (TPM)	Yes

Optical drive

Specification	Value
CD read speed	8x
CD write speed	8x

Network

Specification	Value
Networking features	Gigabit Ethernet (10/100/1000)

Ports & interfaces

Specification	Value
USB 2.0 ports quantity	11
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
Ethernet LAN (RJ-45) ports	1
Headphone outputs	1
Microphone in	Yes
PS/2 ports quantity	2
Serial ports quantity	1

Expansion slots

Specification	Value
Number of 3.5" bays	2
PCI Express x1 slots	1
PCI Express x4 slots	1
PCI Express x16 slots	3
PCI slots	1

Power

Specification	Value
Power supply	635 W

Design

Specification	Value
Chassis type	Tower
Number of 5.25" bays	1
Cable lock slot	Yes
Cable lock slot type	Kensington
Product colour	Black
External drive bays	2
Internal drive bays	2

Software

Specification	Value
Operating system installed	Windows 7 Professional
Operating system architecture	64-bit

Display

Specification	Value
Display included	No

Processor special features

Specification	Value
CPU configuration (max)	1
Embedded options available	No
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Idle States	Yes
Intel 64	Yes
Intel Clear Video Technology	No
Intel Demand Based Switching	Yes
Intel Dual Display Capable Technology	No
Intel Enhanced Halt State	Yes
Intel FDI Technology	No
Intel Fast Memory Access	No
Intel Flex Memory Access	Yes
Intel Rapid Storage Technology	No
Intel Trusted Execution Technology	Yes
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Intel® AES New Instructions (Intel® AES-NI)	Yes
Intel® Clear Video HD Technology (Intel® CVT HD)	No
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)	No
Intel® InTru™ 3D Technology	No
Intel® Insider™	No
Intel® Smart Cache	Yes
Intel® Wireless Display (Intel® WiDi)	No
Processor ARK ID	64600
Processor code	SR0L9
Processor package size	52.5 x 45.0 mm
Supported instruction sets	AVX
Thermal Monitoring Technologies	Yes
Intel® Turbo Boost Technology	No
Intel® Hyper Threading Technology (Intel® HT Technology)	No
Intel® Quick Sync Video Technology	No
Intel® My WiFi Technology (Intel® MWT)	No
Intel® Anti-Theft Technology (Intel® AT)	No
Conflict-Free processor	No

Audio

Specification	Value
Audio system	Realtek ALC269Q HD

Weight & dimensions

Specification	Value
Width	172.6 mm
Depth	471 mm
Height	414 mm

Packaging content

Specification	Value
Mouse included	No
Keyboard included	No

Sustainability

Specification	Value
Sustainability certificates	ENERGY STAR

Certificates

Specification	Value
Certification	CECP
