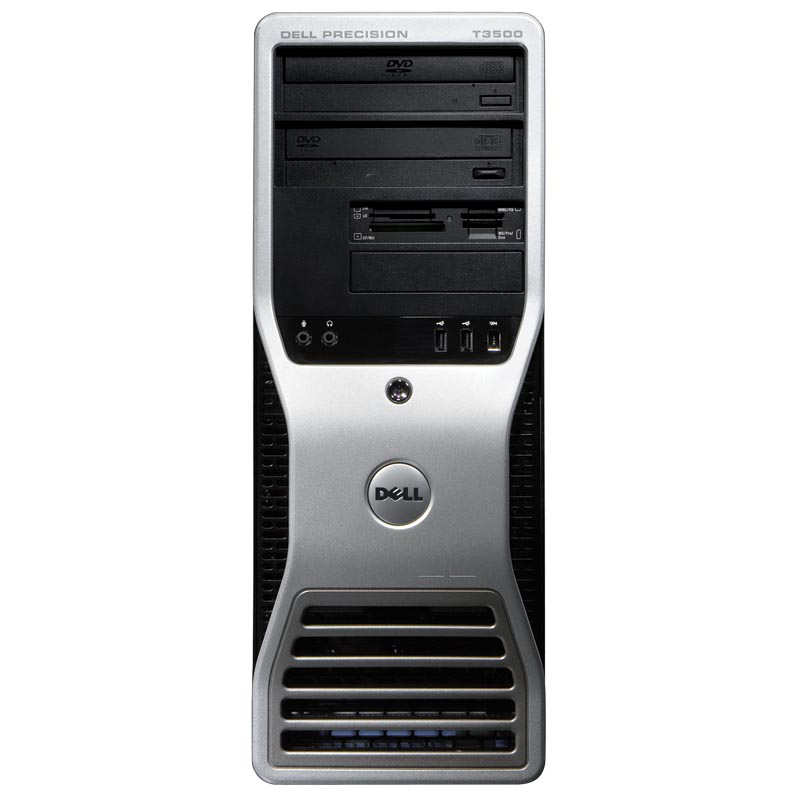

Dell Precision T3500

Model Precision T3500Part no. T620201IN8

126 specifications

Overview

Brand: Dell
Category: PCs/Workstations
Model: Precision T3500
Part numbers: T620201IN8, T620803IN8
Also known as: DELL Precision T3500 Intel® Xeon® 3000 Sequence W3550 6 GB DDR3-SDRAM Windows 7 Professional Tower Workstation Black, Silver

126 specifications in 16 groups

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Xeon® 3000 Sequence
Processor model	W3550
Processor cores	4
Processor threads	8
Processor boost frequency	3.33 GHz
Processor frequency	3.06 GHz
Processor cache	8 MB
Processor cache type	Smart Cache
Bus type	QPI
FSB Parity	No
System bus rate	4.8 GT/s
Processor lithography	45 nm
Processor operating modes	64-bit
Processor series	Intel Xeon 3500 Series
Processor codename	Bloomfield
Thermal Design Power (TDP)	130 W
Tcase	67.9 °C
PCI Express slots version	2.0
Number of QPI links	1
Number of processors installed	1
Processor socket	Socket B (LGA 1366)
Number of Processing Die Transistors	731 M
Processing Die size	263 mm²
CPU multiplier (bus/core ratio)	23
Maximum number of SMP processors	1
Processor core voltage (AC)	1.225 V
Stepping	D0
Maximum internal memory supported by processor	24 GB
Memory types supported by processor	DDR3-SDRAM
Memory clock speeds supported by processor	800,1066 MHz
Memory bandwidth supported by processor (max)	25.6 GB/s
ECC supported by processor	Yes

Specification	Value
Maximum graphics card memory	2.048 GB
Graphics card	Quadro 4000
Graphics card family	NVIDIA
Graphics card manufacturer	Nvidia

Specification	Value
Product type	Workstation
Motherboard chipset	Intel® X58 Express

Specification	Value
Networking features	Gigabit Ethernet (10/100/1000)

Specification	Value
USB 2.0 ports quantity	11
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	0
Ethernet LAN (RJ-45) ports	1
Headphone outputs	1
Line-in	Yes
Microphone in	Yes
VGA (D-Sub) ports quantity	0
PS/2 ports quantity	2
eSATA ports quantity	1
Serial ports quantity	1
Parallel ports quantity	1

Specification	Value
Power supply	525 W

Specification	Value
Operating system installed	Windows 7 Professional
Operating system architecture	64-bit
Compatible operating systems	Windows 7

Specification	Value
CPU configuration (max)	1
Embedded options available	No
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Idle States	Yes
Intel 64	Yes
Intel Clear Video Technology	No
Intel Demand Based Switching	Yes
Intel Dual Display Capable Technology	No
Intel Enhanced Halt State	Yes
Intel FDI Technology	No
Intel Fast Memory Access	No
Intel Flex Memory Access	No
Intel Rapid Storage Technology	No
Intel Trusted Execution Technology	No
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	No
Intel® AES New Instructions (Intel® AES-NI)	No
Intel® Clear Video HD Technology (Intel® CVT HD)	No
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)	No
Intel® InTru™ 3D Technology	No
Intel® Insider™	No
Intel® Wireless Display (Intel® WiDi)	No
Physical Address Extension (PAE)	36 bit
Physical Address Extension (PAE)	Yes
Processor ARK ID	39720
Processor package size	42.5 x 45.0 mm
Supported instruction sets	SSE4.2
Thermal Monitoring Technologies	No
Intel® Turbo Boost Technology	1.0
Intel® Hyper Threading Technology (Intel® HT Technology)	Yes
Intel® Quick Sync Video Technology	No
Intel® My WiFi Technology (Intel® MWT)	No
Intel® Anti-Theft Technology (Intel® AT)	No
Conflict-Free processor	No

Specification	Value
Audio system	HD

Specification	Value
Mouse included	Yes
