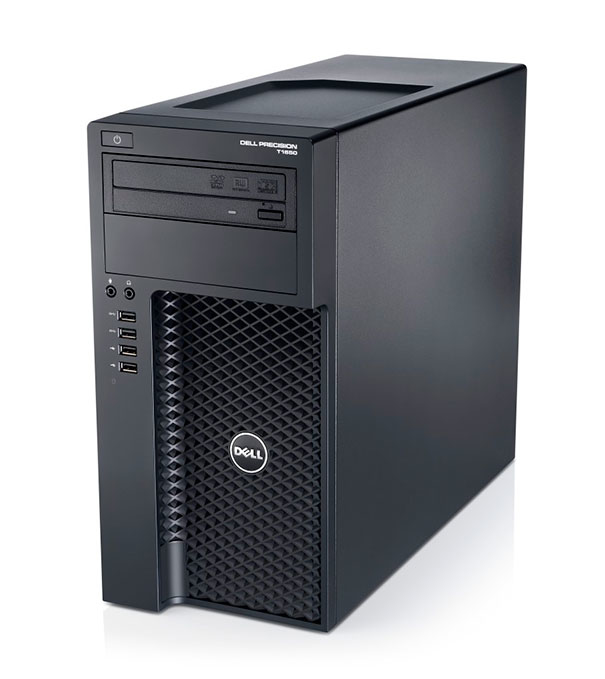

Dell Precision T1650

Model Precision T1650Part no. 1650-4100EAN 5397063264100

121 specifications

ProcessorIntel® Xeon® E3 Family
Memory8 GB
Storage500 GB
TypeWorkstation
OSWindows 7 Professional
ColourBlack

See all specifications

Overview

Processor: Intel® Xeon® E3 Family
Memory: 8 GB
Storage: 500 GB
Type: Workstation
OS: Windows 7 Professional
Colour: Black

Brand: Dell
Category: PCs/Workstations
Model: Precision T1650
Part numbers: 1650-4100, 1650-4917, 210-38745
EAN / UPC: 5397063264100, 5397063354917
Also known as: DELL Precision T1650 Intel® Xeon® E3 Family E3-1220 8 GB DDR3-SDRAM Windows 7 Professional Tower Workstation Black

Specifications

121 specifications in 18 groups

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Xeon® E3 Family
Processor model	E3-1220
Processor cores	4
Processor threads	4
Processor boost frequency	3.4 GHz
Processor frequency	3.1 GHz
Processor cache	8 MB
Processor cache type	Smart Cache
Bus type	DMI
FSB Parity	No
System bus rate	5 GT/s
Processor lithography	32 nm
Processor operating modes	64-bit
Processor series	Intel Xeon E3-1200
Processor codename	Sandy Bridge
Thermal Design Power (TDP)	80 W
Tcase	69.1 °C
Maximum number of PCI Express lanes	20
PCI Express slots version	2.0
Number of processors installed	1
Processor socket	LGA 1155 (Socket H2)
CPU multiplier (bus/core ratio)	31
Maximum internal memory supported by processor	32 GB
Memory types supported by processor	DDR3-SDRAM
Memory clock speeds supported by processor	1066,1333 MHz
Memory bandwidth supported by processor (max)	21 GB/s
ECC supported by processor	Yes

Memory

Specification	Value
Internal memory	8 GB
Maximum internal memory	32 GB
Internal memory type	DDR3-SDRAM
Memory layout (slots x size)	2 x 4 GB
Memory slots	4x DIMM
Memory clock speed	1600 MHz
Memory channels	Dual-channel

Storage

Specification	Value
Optical drive type	DVD+/-RW
Number of HDDs installed	1
HDD capacity	500 GB
HDD interface	SATA
HDD speed	7200 RPM
RAID support	Yes
RAID levels	0, 1, 5, 10

Graphics

Specification	Value
Graphics card	Quadro 600
Graphics card family	NVIDIA
Graphics card manufacturer	NVIDIA

Performance

Specification	Value
Product type	Workstation
Motherboard chipset	Intel® C216
Password protection type	BIOS
Trusted Platform Module (TPM)	Yes

Optical drive

Specification	Value
Built-in optical drive	Yes

Network

Specification	Value
Networking features	Gigabit Ethernet (10/100/1000)

Ports & interfaces

Specification	Value
USB 2.0 ports quantity	7
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	4
DisplayPorts quantity	2
Ethernet LAN (RJ-45) ports	1
Headphone outputs	1
Line-in	Yes
Microphone in	Yes
VGA (D-Sub) ports quantity	1
PS/2 ports quantity	2
Serial ports quantity	1
Parallel ports quantity	0

Expansion slots

Specification	Value
Number of 3.5" bays	2
PCI Express x1 slots	1
PCI Express x16 slots	2
PCI slots	1

Design

Specification	Value
Chassis type	Tower
Number of 5.25" bays	2
Cable lock slot	Yes
Cable lock slot type	Kensington
Product colour	Black
External drive bays	2
Internal drive bays	2

Software

Specification	Value
Operating system installed	Windows 7 Professional
Operating system architecture	64-bit

Display

Specification	Value
Display included	No

Processor special features

Specification	Value
CPU configuration (max)	1
Embedded options available	No
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Idle States	Yes
Intel 64	Yes
Intel Clear Video Technology	No
Intel Demand Based Switching	Yes
Intel Dual Display Capable Technology	No
Intel Enhanced Halt State	Yes
Intel FDI Technology	No
Intel Fast Memory Access	Yes
Intel Flex Memory Access	Yes
Intel Identity Protection Technology version	1.00
Intel Rapid Storage Technology	No
Intel Trusted Execution Technology	Yes
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Intel® AES New Instructions (Intel® AES-NI)	Yes
Intel® Clear Video HD Technology (Intel® CVT HD)	No
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)	No
Intel® InTru™ 3D Technology	No
Intel® Insider™	No
Intel® Smart Cache	Yes
Intel® Wireless Display (Intel® WiDi)	No
Processor ARK ID	52269
Processor package size	37.5 x 37.5 mm
Supported instruction sets	AVX
Thermal Monitoring Technologies	Yes
Intel® Turbo Boost Technology	2.0
Intel® Hyper Threading Technology (Intel® HT Technology)	No
Intel® Quick Sync Video Technology	No
Intel® My WiFi Technology (Intel® MWT)	No
Intel® Identity Protection Technology (Intel® IPT)	Yes
Intel® Anti-Theft Technology (Intel® AT)	No
Conflict-Free processor	No

Audio

Specification	Value
Audio system	Realtek ALC269Q HD

Weight & dimensions

Specification	Value
Width	175 mm
Depth	435 mm
Height	360 mm

Packaging content

Specification	Value
Mouse included	No
Keyboard included	No

Sustainability

Specification	Value
Sustainability certificates	ENERGY STAR

Certificates

Specification	Value
Certification	CECP, GS
