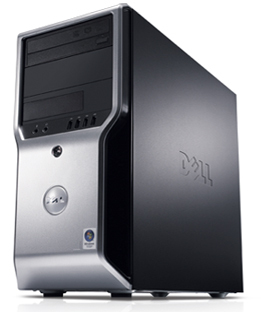

Dell Precision T1500-E222

Model Precision T1500-E222Part no. T1500-E222

127 specifications

ProcessorIntel® Core™ i5
Memory4 GB
Storage320 GB
TypeWorkstation
OSWindows 7 Professional
ColourBlack, Silver

See all specifications

Overview

Processor: Intel® Core™ i5
Memory: 4 GB
Storage: 320 GB
Type: Workstation
OS: Windows 7 Professional
Colour: Black, Silver

Brand: Dell
Category: PCs/Workstations
Model: Precision T1500-E222
Part number: T1500-E222
Also known as: DELL Precision T1500-E222 Intel® Core™ i5 i5-680 4 GB DDR3-SDRAM Windows 7 Professional Minitower Workstation Black, Silver

Specifications

127 specifications in 18 groups

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Core™ i5
Processor generation	Intel® Core™ i5
Processor model	i5-680
Processor cores	2
Processor threads	4
Processor boost frequency	3.86 GHz
Processor frequency	3.6 GHz
Processor cache	4 MB
Processor cache type	Smart Cache
Bus type	DMI
FSB Parity	No
System bus rate	2.5 GT/s
Processor lithography	32 nm
Processor operating modes	64-bit
Processor series	Intel Core i5-600 Desktop Series
Processor codename	Clarkdale
Thermal Design Power (TDP)	73 W
Tcase	72.6 °C
Maximum number of PCI Express lanes	16
PCI Express configurations	1x16, 2x8
PCI Express slots version	2.0
Number of processors installed	1
Processor socket	LGA 1156 (Socket H)
Number of Processing Die Transistors	382 M
Processing Die size	81 mm²
CPU multiplier (bus/core ratio)	27
Stepping	K0
Maximum internal memory supported by processor	16 GB
Memory types supported by processor	DDR3-SDRAM
Memory clock speeds supported by processor	1066,1333 MHz
Memory bandwidth supported by processor (max)	21 GB/s
ECC supported by processor	No

Memory

Specification	Value
Internal memory	4 GB
Maximum internal memory	16 GB
Internal memory type	DDR3-SDRAM
Memory layout (slots x size)	2 x 2 GB
Memory slots	4x DIMM
Memory clock speed	1333 MHz
Memory channels	Dual-channel
Non-ECC	Yes

Storage

Specification	Value
Optical drive type	DVD-RW
Number of HDDs installed	1
HDD capacity	320 GB
HDD interface	SATA
HDD speed	7200 RPM
Card reader integrated	No
RAID support	Yes
RAID levels	0, 1

Graphics

Specification	Value
On-board graphics card	Yes
On-board graphics card family	Intel® HD Graphics
On-board graphics card model	Intel® HD Graphics
Number of displays supported (on-board graphics)	2
On-board graphics card base frequency	733 MHz
Maximum graphics card memory	0.256 GB
Graphics card	FireMV 2260
Graphics card family	AMD

Performance

Specification	Value
Product type	Workstation
Motherboard chipset	Intel® H57 Express
Password protection type	BIOS

Network

Specification	Value
Networking features	Gigabit Ethernet (10/100/1000)

Ports & interfaces

Specification	Value
USB 2.0 ports quantity	12
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	0
DisplayPorts quantity	2
Ethernet LAN (RJ-45) ports	1
Headphone outputs	1
Microphone in	Yes
VGA (D-Sub) ports quantity	0
PS/2 ports quantity	2
Serial ports quantity	1
Parallel ports quantity	0

Expansion slots

Specification	Value
PCI Express x1 slots	1
PCI Express x16 slots	1
PCI slots	2

Power

Specification	Value
Power supply	350 W

Design

Specification	Value
Chassis type	Minitower
Cable lock slot	Yes
Cable lock slot type	Kensington
Product colour	Black, Silver
External drive bays	2x 5.25", 1x 3.5"
Internal drive bays	2x 3.5"

Software

Specification	Value
Operating system installed	Windows 7 Professional
Operating system architecture	64-bit

Display

Specification	Value
Display included	No

Processor special features

Specification	Value
CPU configuration (max)	1
Embedded options available	No
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Graphics & IMC lithography	45 nm
Idle States	Yes
Intel 64	Yes
Intel Clear Video Technology	No
Intel Demand Based Switching	No
Intel Dual Display Capable Technology	Yes
Intel Enhanced Halt State	Yes
Intel FDI Technology	Yes
Intel Fast Memory Access	No
Intel Flex Memory Access	No
Intel Rapid Storage Technology	No
Intel Trusted Execution Technology	Yes
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Intel® AES New Instructions (Intel® AES-NI)	Yes
Intel® Clear Video HD Technology (Intel® CVT HD)	Yes
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)	No
Intel® InTru™ 3D Technology	No
Intel® Insider™	No
Intel® Wireless Display (Intel® WiDi)	No
Physical Address Extension (PAE)	36 bit
Processor ARK ID	48504
Processor package size	37.5 x 37.5 mm
Supported instruction sets	SSE4.2
Thermal Monitoring Technologies	No
Intel® Turbo Boost Technology	1.0
Intel® Hyper Threading Technology (Intel® HT Technology)	Yes
Intel® Quick Sync Video Technology	No
Intel® My WiFi Technology (Intel® MWT)	No
Intel® Anti-Theft Technology (Intel® AT)	No
Conflict-Free processor	No

Audio

Specification	Value
Audio system	HDA

Weight & dimensions

Specification	Value
Width	170 mm
Depth	433.8 mm
Height	370.4 mm

Packaging content

Specification	Value
Mouse included	No

Certificates

Specification	Value
Compliance industry standards	IEEE 802.3, IEEE 802.3u, IEEE 802.3ab

Other features

Specification	Value
HDD user password	Yes
