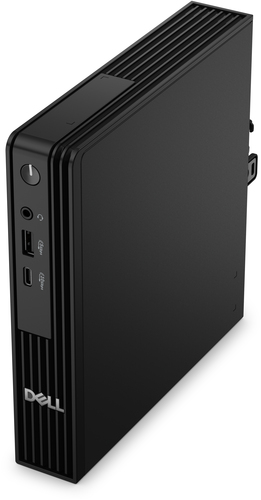

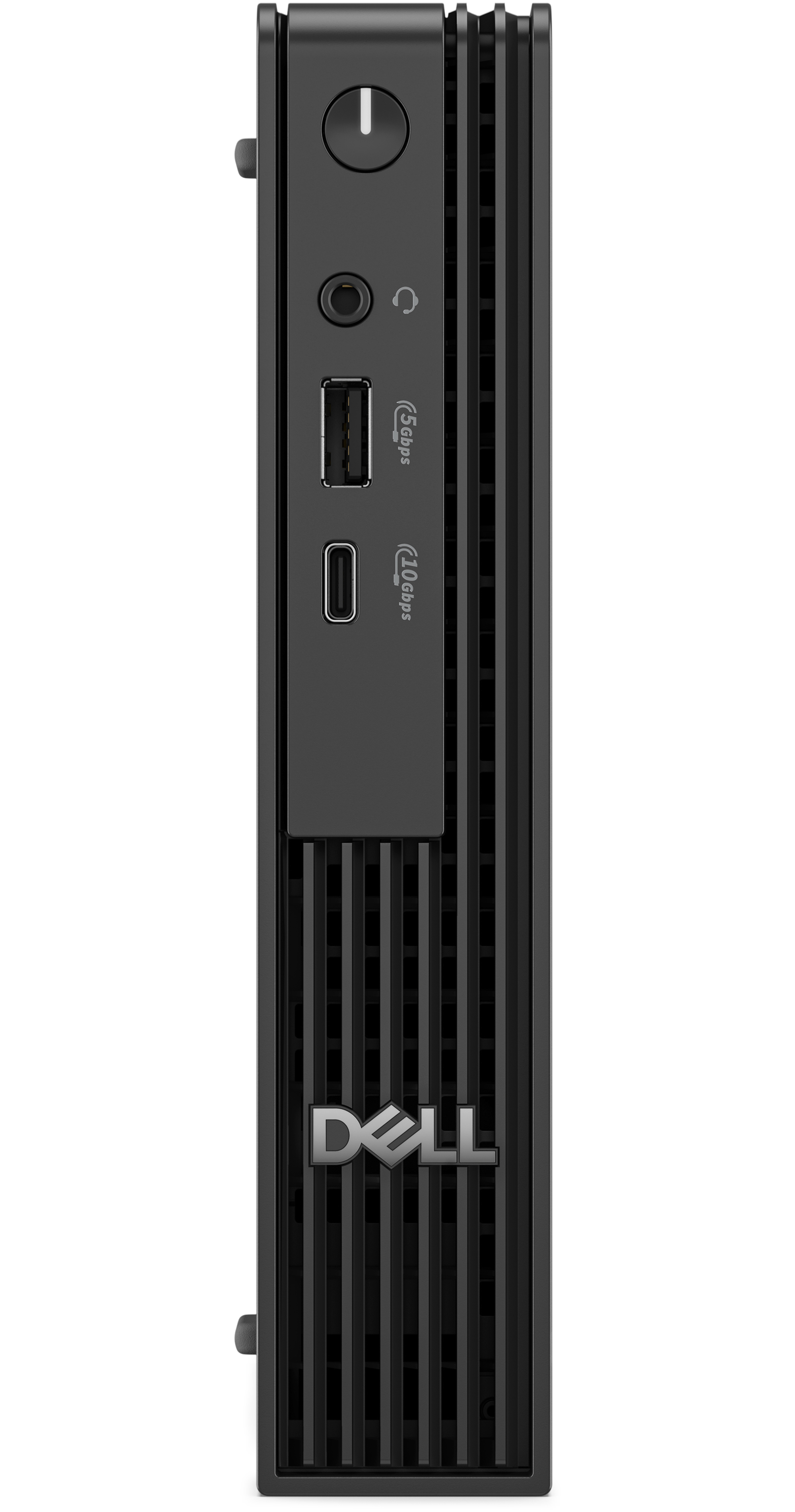

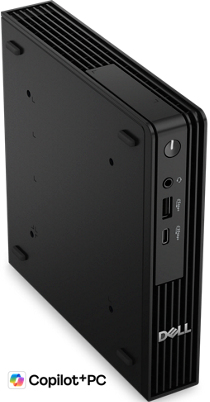

Pro 5 P5M1260 Copilot+ PC Intel Core Ultra 5 335
16 GB DDR5-SDRAM 512 GB SSD Windows 11 Pro Mini PC Black
Model P5M1260Part no. CTO003_P5M1260_AUEAN 884116696377
92 specifications
- ProcessorIntel Core Ultra 5
- Memory16 GB
- Storage512 GB
- GraphicsNot available
- SpeedWi-Fi 7 (802.11be)
- TypeMini PC
Overview
- Processor
- Intel Core Ultra 5
- Memory
- 16 GB
- Storage
- 512 GB
- Graphics
- Not available
- Speed
- Wi-Fi 7 (802.11be)
- Type
- Mini PC
- Brand
- Dell
- Category
- PCs/Workstations
- Model
- P5M1260
- Part numbers
- CTO003_P5M1260_AU, HJ7X4, T1JC2, XCTO_P5M1260_EMEA, XCTO_P5M1260_USR, XCTO_P5M1260_CAX +1 more
- EAN / UPC
- 884116696377, 884116696384
- Also known as
- DELL Pro 5 P5M1260 Copilot+ PC Intel Core Ultra 5 335 16 GB DDR5-SDRAM 512 GB SSD Windows 11 Pro Mini PC Black
Specifications
92 specifications in 16 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel Core Ultra 5 |
| Processor generation | Intel® Core™ Ultra (Series 3) |
| Processor model | 335 |
| Processor cores | 8 |
| Processor threads | 8 |
| Processor boost frequency | 4.6 GHz |
| Performance cores | 4 |
| Efficient cores | 0 |
| Processor cache | 12 MB |
| Processor cache type | Smart Cache |
| Number of processors installed | 1 |
| Processor socket | FCBGA2540 |
| Maximum turbo power | 55 W |
| Processor base power | 25 W |
Neural processor unit (NPU)
| Specification | Value |
|---|---|
| Copilot+ PC | Yes |
| Neural processor unit (NPU) | Intel AI Boost |
| NPU performance up to | 47 TOPs |
| GPU performance up to | 40 TOPs |
Memory
| Specification | Value |
|---|---|
| Internal memory | 16 GB |
| Maximum internal memory | 64 GB |
| Internal memory type | DDR5-SDRAM |
| Memory layout (slots x size) | 2 x 8 GB |
| Memory slots | 2x SO-DIMM |
| Memory data transfer rate | 5600 MT/s |
| Non-ECC | Yes |
Storage
| Specification | Value |
|---|---|
| Total storage capacity | 512 GB |
| Optical drive type | No |
| Storage media | SSD |
| Total SSDs capacity | 512 GB |
| Number of SSDs installed | 1 |
| SSD capacity | 512 GB |
Graphics
| Specification | Value |
|---|---|
| Discrete graphics card | No |
| On-board graphics card | Yes |
| Discrete graphics card model | Not available |
| On-board GPU manufacturer | Intel |
| On-board graphics card family | Intel® Graphics |
| On-board graphics card model | Intel® Graphics |
Performance
| Specification | Value |
|---|---|
| Product type | Mini PC |
| Trusted Platform Module (TPM) | Yes |
| Trusted Platform Module (TPM) version | 2.0 |
| Audio output channels | 4.0 channels |
| Built-in speaker(s) | Yes |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| LAN controller | Intel® I219-LM |
| Wi-Fi | Yes |
| Top Wi-Fi standard | Wi-Fi 7 (802.11be) |
| WLAN controller manufacturer | Intel |
| Wi-Fi standards | 802.11a, 802.11b, Wi-Fi 4 (802.11n), 802.11g, Wi-Fi 5 (802.11ac), Wi-Fi 6E (802.11ax), Wi-Fi 7 (802.11be) |
| WLAN controller model | Intel Wi-Fi 7 BE211 |
| Antenna type | 2x2 |
| Bluetooth | Yes |

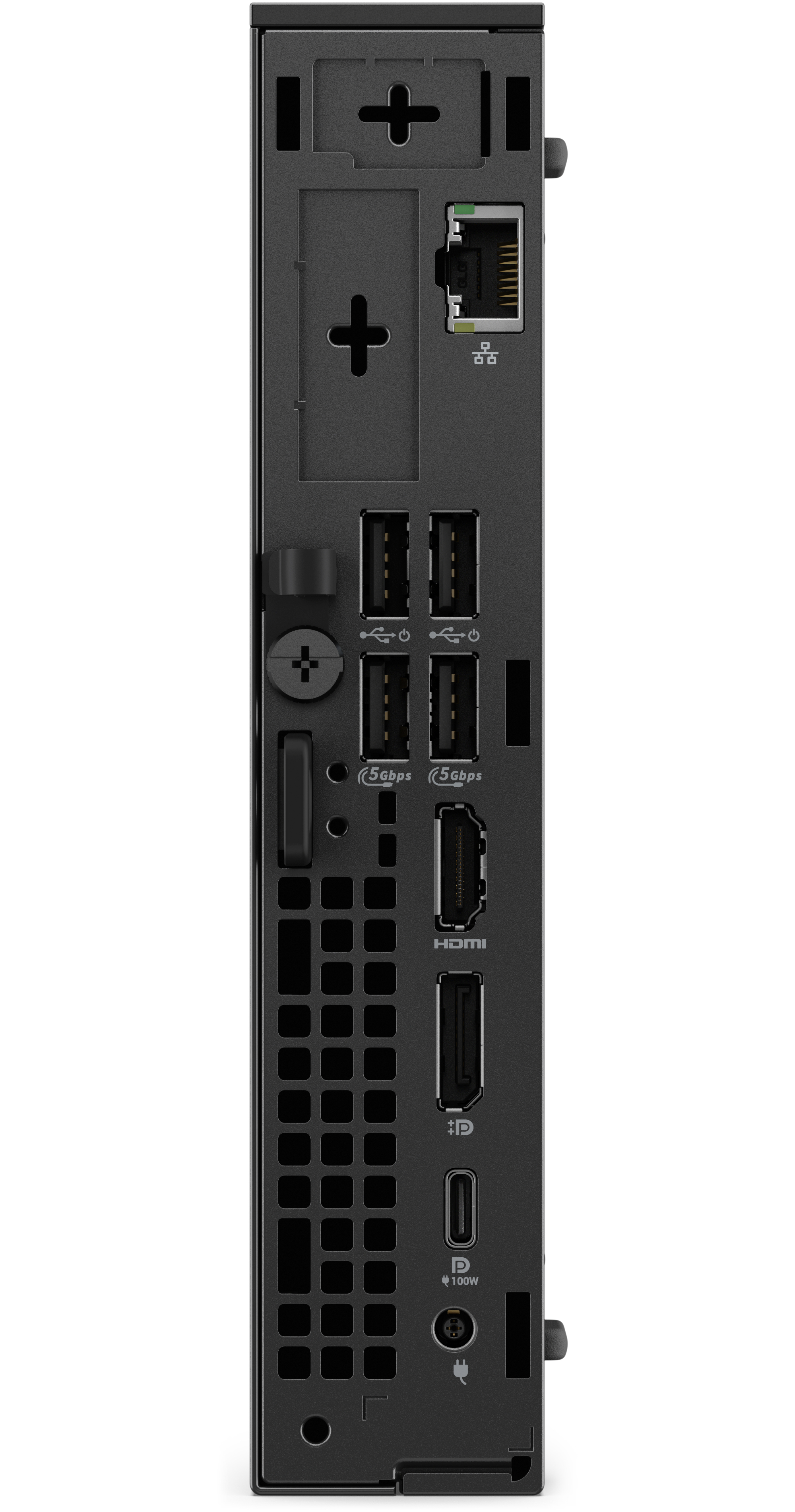

Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 3 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 2 |
| USB 3.2 Gen 2x2 Type-C ports quantity | 1 |
| USB Type-C DisplayPort Alternate Mode | Yes |
| Thunderbolt 3 ports quantity | 0 |
| DisplayPorts quantity | 1 |
| DisplayPort version | 1.4a |
| HDMI ports quantity | 1 |
| HDMI version | 2.1 |
| Ethernet LAN (RJ-45) ports | 1 |
| Combo headphone/mic port | Yes |
Power
| Specification | Value |
|---|---|
| Power supply input voltage | 100 - 240 V |
| Power supply input frequency | 50 / 60 Hz |
Design
| Specification | Value |
|---|---|
| Chassis type | Mini PC |
| Placement supported | Horizontal/Vertical |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| Product colour | Black |
Software
| Specification | Value |
|---|---|
| Operating system installed | Windows 11 Pro |
| Operating system architecture | 64-bit |
Display
| Specification | Value |
|---|---|
| Display included | No |
Audio
| Specification | Value |
|---|---|
| Audio chip | Realtek ALC3204 |
| Audio system | High Definition Audio |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 35 °C |
| Storage temperature (T-T) | -40 - 65 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 0 - 95% |
| Operating altitude | -15.2 - 3048 m |
| Non-operating altitude | -15.2 - 10668 m |
| Operating vibration | 0.66 G |
| Non-operating vibration | 1.3 G |
| Operating shock | 110 G |
| Non-operating shock | 160 G |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 36 mm |
| Depth | 178 mm |
| Height | 182 mm |
Packaging content
| Specification | Value |
|---|---|
| Mouse included | Yes |
| Keyboard included | Yes |
