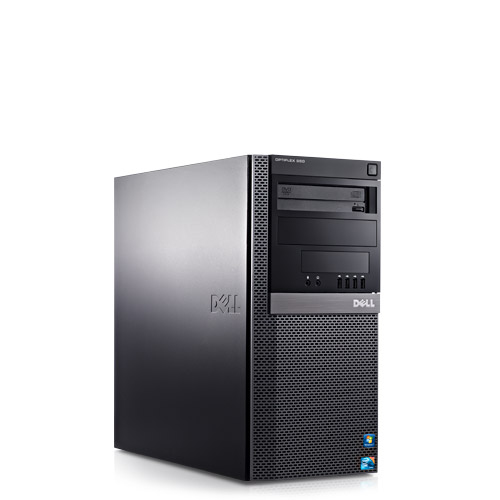

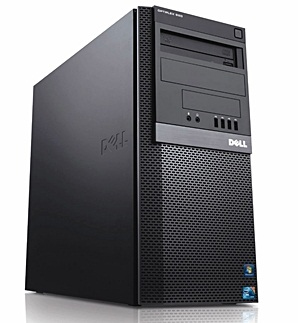

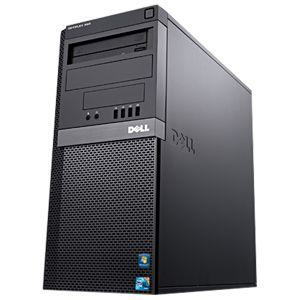

Dell OptiPlex 980MT

Model OptiPlex 980MTPart no. OP980MT-X311

127 specifications

ProcessorIntel® Core™ i7
Memory4 GB
Storage500 GB
GraphicsAMD Radeon HD 3450
TypePC
OSWindows 7 Professional

See all specifications

Overview

Processor: Intel® Core™ i7
Memory: 4 GB
Storage: 500 GB
Graphics: AMD Radeon HD 3450
Type: PC
OS: Windows 7 Professional

Brand: Dell
Category: PCs/Workstations
Model: OptiPlex 980MT
Part number: OP980MT-X311
Also known as: DELL OptiPlex 980MT Intel® Core™ i7 i7-860 4 GB DDR3-SDRAM 500 GB AMD Radeon HD 3450 Windows 7 Professional Mini Tower PC Black

Specifications

127 specifications in 18 groups

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Core™ i7
Processor generation	Intel® Core™ i7
Processor model	i7-860
Processor cores	4
Processor threads	8
Processor boost frequency	3.46 GHz
Processor frequency	2.8 GHz
Processor cache	8 MB
Processor cache type	Smart Cache
Processor front side bus	1333 MHz
Bus type	DMI
FSB Parity	No
System bus rate	2.5 GT/s
Processor lithography	45 nm
Processor operating modes	64-bit
Processor series	Intel Core i7-800 Desktop Series
Processor codename	Lynnfield
Thermal Design Power (TDP)	95 W
Tcase	72.7 °C
Maximum number of PCI Express lanes	16
PCI Express configurations	1x16, 2x8
PCI Express slots version	2.0
Number of processors installed	1
Processor socket	LGA 1156 (Socket H)
Number of Processing Die Transistors	774 M
Processing Die size	296 mm²
CPU multiplier (bus/core ratio)	21
Platform	PC
Maximum internal memory supported by processor	16 GB
Memory types supported by processor	DDR3-SDRAM
Memory clock speeds supported by processor	1066,1333 MHz
Memory bandwidth supported by processor (max)	21 GB/s
ECC supported by processor	No

Memory

Specification	Value
Internal memory	4 GB
Maximum internal memory	16 GB
Internal memory type	DDR3-SDRAM
Memory layout (slots x size)	2 x 2 GB
Memory slots	4x DIMM
Memory clock speed	1333 MHz
Memory channels	Dual-channel

Storage

Specification	Value
Total storage capacity	500 GB
Optical drive type	DVD-RW
Drive device, buffer size	16 MB
HDD interface	SATA II
HDD speed	7200 RPM
Card reader integrated	No
Floppy drive installed	No

Graphics

Specification	Value
On-board graphics card	No
Discrete graphics card model	AMD Radeon HD 3450
Discrete graphics card memory	0.256 GB
Graphics card family	AMD

Performance

Specification	Value
Product type	PC

Optical drive

Specification	Value
CD read speed	16x

Network

Specification	Value
Ethernet LAN	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Cabling technology	10/100/1000Base-T(X)
Wi-Fi	No
Networking features	Gigabit Ethernet

Ports & interfaces

Specification	Value
USB 2.0 ports quantity	10
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	0
DisplayPorts quantity	1
HDMI ports quantity	0
Ethernet LAN (RJ-45) ports	1
Headphone outputs	2
Microphone in	Yes
VGA (D-Sub) ports quantity	1
DVI port	No
PS/2 ports quantity	0
Firewire (IEEE 1394) ports	0
eSATA ports quantity	1
Serial ports quantity	1
Parallel ports quantity	1

Expansion slots

Specification	Value
PCI Express x16 slots	2
PCI slots	2

Power

Specification	Value
Power supply type	AC
Power requirements	100-240V
Power supply	305 W

Design

Specification	Value
Chassis type	Mini Tower
Product colour	Black

Software

Specification	Value
Operating system installed	Windows 7 Professional
Mac compatibility	No
Bundled software	Windows Live Roxio Creator 10.3 Software

Display

Specification	Value
Display included	No

Processor special features

Specification	Value
CPU configuration (max)	1
Embedded options available	Yes
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Idle States	Yes
Intel 64	Yes
Intel Clear Video Technology	No
Intel Demand Based Switching	No
Intel Dual Display Capable Technology	No
Intel Enhanced Halt State	Yes
Intel FDI Technology	No
Intel Fast Memory Access	No
Intel Flex Memory Access	No
Intel Rapid Storage Technology	No
Intel Trusted Execution Technology	Yes
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Intel® AES New Instructions (Intel® AES-NI)	No
Intel® Clear Video HD Technology (Intel® CVT HD)	No
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)	No
Intel® InTru™ 3D Technology	No
Intel® Insider™	No
Intel® Wireless Display (Intel® WiDi)	No
Physical Address Extension (PAE)	36 bit
Processor ARK ID	41316
Processor package size	37.5 x 37.5 mm
Supported instruction sets	SSE4.2
Thermal Monitoring Technologies	No
Intel® Turbo Boost Technology	1.0
Intel® Hyper Threading Technology (Intel® HT Technology)	Yes
Intel® Quick Sync Video Technology	No
Intel® My WiFi Technology (Intel® MWT)	No
Intel® Anti-Theft Technology (Intel® AT)	No
Conflict-Free processor	No

Weight & dimensions

Specification	Value
Width	187 mm
Depth	437.9 mm
Height	401 mm
Weight	11.4 kg

Packaging content

Specification	Value
Remote control included	No

Certificates

Specification	Value
Certification	ENERGY STAR 5.0, EPEAT Gold, CECP, TCO 05, WEEE, CES, Japan Green PC, FEMP, South Korea Eco-label, EU RoHS, China RoHS

Other features

Specification	Value
TV tuner integrated	No
Drive bays	3x 3.5", 2x 5.25"
