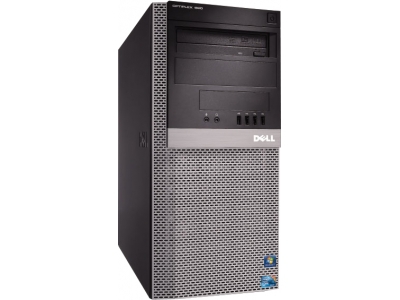

Dell Optiplex 980
Model Optiplex 980Part no. OPTIPLEX_980_1
125 specifications
- ProcessorIntel® Core™ i7
- Memory8 GB
- Storage500 GB
- GraphicsNVIDIA® GeForce® GT 330
- TypePC
- OSWindows 7 Professional
Overview
- Processor
- Intel® Core™ i7
- Memory
- 8 GB
- Storage
- 500 GB
- Graphics
- NVIDIA® GeForce® GT 330
- Type
- PC
- OS
- Windows 7 Professional
- Brand
- Dell
- Category
- PCs/Workstations
- Model
- Optiplex 980
- Part numbers
- OPTIPLEX_980_1, OPTIPLEX_980_2
- Also known as
- DELL Optiplex 980 Intel® Core™ i7 i7-870 8 GB DDR3-SDRAM 500 GB NVIDIA® GeForce® GT 330 Windows 7 Professional Mini Tower PC Black, Grey
Specifications
125 specifications in 15 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel® Core™ i7 |
| Processor generation | Intel® Core™ i7 |
| Processor model | i7-870 |
| Processor cores | 4 |
| Processor threads | 8 |
| Processor boost frequency | 3.6 GHz |
| Processor frequency | 2.93 GHz |
| Processor cache | 8 MB |
| Processor cache type | Smart Cache |
| Bus type | DMI |
| FSB Parity | No |
| System bus rate | 2.5 GT/s |
| Processor lithography | 45 nm |
| Processor operating modes | 64-bit |
| Processor series | Intel Core i7-800 Desktop Series |
| Processor codename | Lynnfield |
| Thermal Design Power (TDP) | 95 W |
| Tcase | 72.7 °C |
| Maximum number of PCI Express lanes | 16 |
| PCI Express configurations | 1x16, 2x8 |
| PCI Express slots version | 2.0 |
| Number of processors installed | 1 |
| Processor socket | LGA 1156 (Socket H) |
| Number of Processing Die Transistors | 774 M |
| Processing Die size | 296 mm² |
| CPU multiplier (bus/core ratio) | 22 |
| Stepping | B1 |
| Maximum internal memory supported by processor | 16 GB |
| Memory types supported by processor | DDR3 1066/1333 |
| Memory clock speeds supported by processor | 1066,1333 MHz |
| Memory bandwidth supported by processor (max) | 21 GB/s |
| ECC supported by processor | No |
Memory
| Specification | Value |
|---|---|
| Internal memory | 8 GB |
| Maximum internal memory | 32 GB |
| Internal memory type | DDR3-SDRAM |
| Memory slots | 4x DIMM |
| Memory clock speed | 1333 MHz |
| Memory channels | Dual-channel |
Storage
| Specification | Value |
|---|---|
| Total storage capacity | 500 GB |
| Optical drive type | DVD-RW |
| Number of HDDs installed | 1 |
| HDD capacity | 500 GB |
| HDD interface | SATA, SATA II |
| HDD speed | 7200 RPM |
| Card reader integrated | Yes |
Graphics
| Specification | Value |
|---|---|
| On-board graphics card | No |
| Discrete graphics card model | NVIDIA® GeForce® GT 330 |
| On-board graphics card model | Not available |
| Graphics card family | NVIDIA |
Performance
| Specification | Value |
|---|---|
| Product type | PC |
| Motherboard chipset | Intel® Q57 |
Optical drive
| Specification | Value |
|---|---|
| CD read speed | 16x |
| CD write speed | 16x |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Cabling technology | 10/100/1000Base-T(X) |
| Networking features | Gigabit Ethernet |
Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 10 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 0 |
| HDMI ports quantity | 0 |
| Ethernet LAN (RJ-45) ports | 1 |
| Headphone outputs | 2 |
| Microphone in | Yes |
| VGA (D-Sub) ports quantity | 1 |
| DVI port | No |
| Firewire (IEEE 1394) ports | 0 |
| eSATA ports quantity | 1 |
| Serial ports quantity | 1 |
| Parallel ports quantity | 1 |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x1 slots | 1 |
| PCI Express x16 slots | 2 |
| PCI slots | 3 |
Power
| Specification | Value |
|---|---|
| Power supply type | AC |
| Power supply input voltage | 100 - 240 V |
| Power supply input frequency | 50 - 60 Hz |
Design
| Specification | Value |
|---|---|
| Chassis type | Mini Tower |
| Product colour | Black, Grey |
| External drive bays | 2 |
| Internal drive bays | 4 |
Software
| Specification | Value |
|---|---|
| Operating system installed | Windows 7 Professional |
| Operating system architecture | 64-bit |
| Mac compatibility | No |
Display
| Specification | Value |
|---|---|
| Display included | No |
Processor special features
| Specification | Value |
|---|---|
| CPU configuration (max) | 1 |
| Embedded options available | No |
| Enhanced Intel SpeedStep Technology | Yes |
| Execute Disable Bit | Yes |
| Idle States | Yes |
| Intel 64 | Yes |
| Intel Clear Video Technology | No |
| Intel Demand Based Switching | No |
| Intel Dual Display Capable Technology | No |
| Intel Enhanced Halt State | Yes |
| Intel FDI Technology | No |
| Intel Fast Memory Access | No |
| Intel Flex Memory Access | No |
| Intel Rapid Storage Technology | No |
| Intel Trusted Execution Technology | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel® AES New Instructions (Intel® AES-NI) | No |
| Intel® Clear Video HD Technology (Intel® CVT HD) | No |
| Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID) | No |
| Intel® InTru™ 3D Technology | No |
| Intel® Insider™ | No |
| Intel® Wireless Display (Intel® WiDi) | No |
| Physical Address Extension (PAE) | 36 bit |
| Physical Address Extension (PAE) | Yes |
| Processor ARK ID | 41315 |
| Processor code | SLBJG |
| Processor package size | 37.5 x 37.5 mm |
| Supported instruction sets | SSE4.2 |
| Thermal Monitoring Technologies | No |
| Intel® Turbo Boost Technology | 1.0 |
| Intel® Hyper Threading Technology (Intel® HT Technology) | Yes |
| Intel® Quick Sync Video Technology | No |
| Intel® My WiFi Technology (Intel® MWT) | No |
| Intel® Anti-Theft Technology (Intel® AT) | No |
| Conflict-Free processor | No |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 187 mm |
| Depth | 430.9 mm |
| Height | 408 mm |
| Weight | 11.4 kg |
