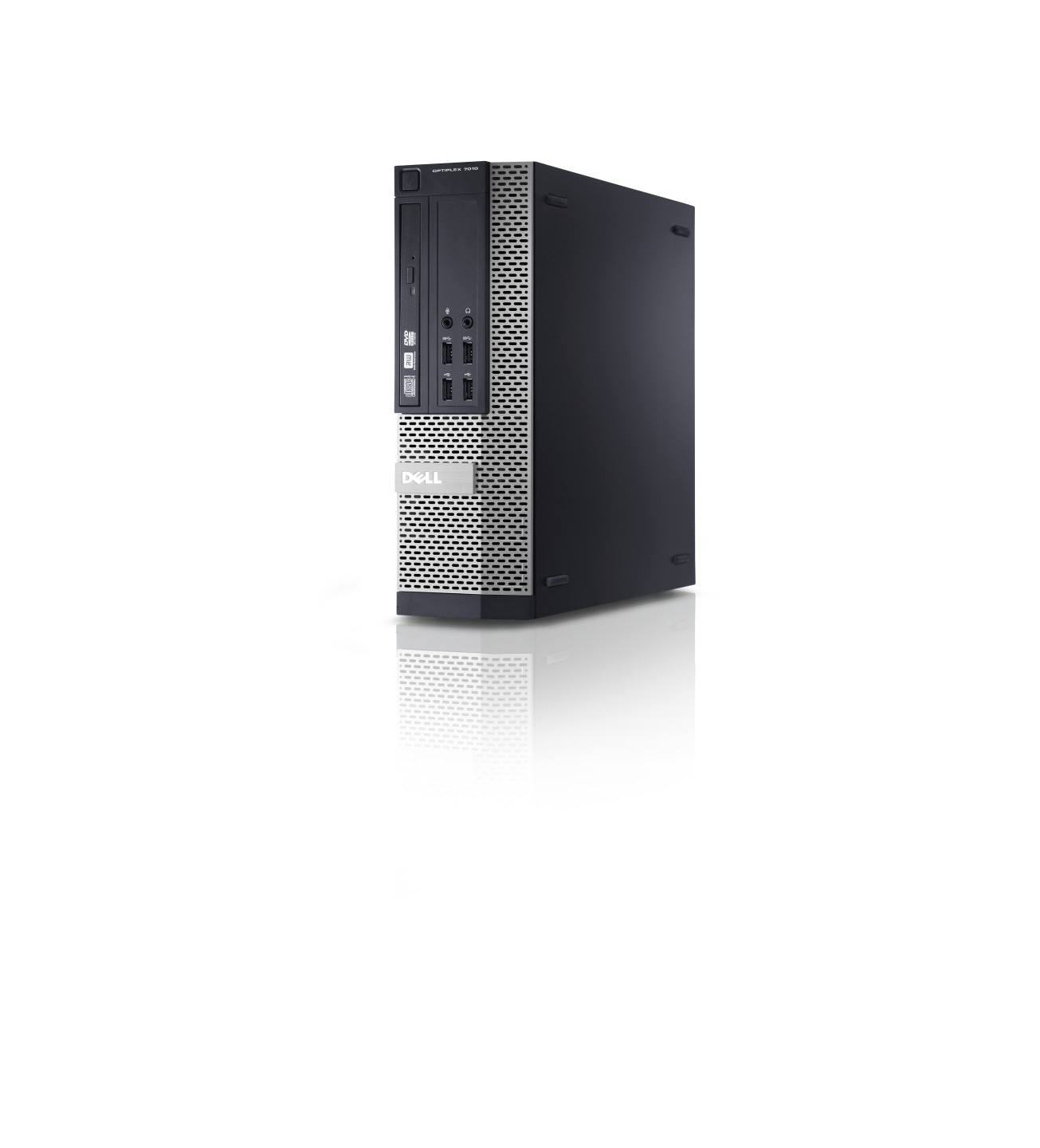

OptiPlex 7010SF

Model OptiPlex 7010SFPart no. 7010-4049EAN 5397063264049

134 specifications

ProcessorIntel® Core™ i7
Memory4 GB
Storage500 GB
GraphicsNot available
TypePC
OSWindows 7 Professional

See all specifications

Overview

Processor: Intel® Core™ i7
Memory: 4 GB
Storage: 500 GB
Graphics: Not available
Type: PC
OS: Windows 7 Professional

Brand: Dell
Category: PCs/Workstations
Model: OptiPlex 7010SF
Part number: 7010-4049
EAN / UPC: 5397063264049
Also known as: DELL OptiPlex 7010SF Intel® Core™ i7 i7-3770 4 GB DDR3-SDRAM 500 GB Windows 7 Professional SFF PC Aluminium, Black

Specifications

134 specifications in 17 groups

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Core™ i7
Processor generation	3rd gen Intel® Core™ i7
Processor model	i7-3770
Processor cores	4
Processor threads	8
Processor boost frequency	3.9 GHz
Processor frequency	3.4 GHz
Processor cache	8 MB
Processor cache type	Smart Cache
Bus type	DMI
FSB Parity	No
System bus rate	5 GT/s
Processor lithography	22 nm
Processor operating modes	64-bit
Processor series	Intel Core i7-3700 Desktop series
Processor codename	Ivy Bridge
Thermal Design Power (TDP)	77 W
Tcase	67.4 °C
Tjunction	105 °C
PCI Express configurations	1x8, 1x16, 2x4, 2x8
PCI Express slots version	3.0
Number of processors installed	1
Processor socket	LGA 1155 (Socket H2)
CPU multiplier (bus/core ratio)	34
Platform	PC
Stepping	E1
Maximum internal memory supported by processor	32 GB
Memory types supported by processor	DDR3-SDRAM
Memory clock speeds supported by processor	1333,1600 MHz
Memory bandwidth supported by processor (max)	25.6 GB/s
ECC supported by processor	No

Memory

Specification	Value
Internal memory	4 GB
Maximum internal memory	16 GB
Internal memory type	DDR3-SDRAM
Memory layout (slots x size)	1 x 4 GB
Memory slots	4x DIMM
Memory clock speed	1600 MHz
Memory channels	Dual-channel

Storage

Specification	Value
Total storage capacity	500 GB
Optical drive type	DVD±RW
Number of HDDs installed	1
HDD capacity	500 GB
HDD interface	SATA III
HDD speed	7200 RPM
HDD size	3.5"
Card reader integrated	No

Graphics

Specification	Value
On-board graphics card	Yes
Discrete graphics card model	Not available
On-board graphics card family	Intel® HD Graphics
On-board graphics card model	Intel® HD Graphics 4000
Number of displays supported (on-board graphics)	3
On-board graphics card base frequency	650 MHz
On-board graphics card dynamic frequency (max)	1150 MHz
On-board graphics card ID	0x162
Graphics card family	Intel

Performance

Specification	Value
Product type	PC
Motherboard chipset	Intel® Q77 Express

Network

Specification	Value
Ethernet LAN	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Cabling technology	10/100/1000Base-T(X)
Ethernet interface type	Gigabit Ethernet
Networking features	Gigabit Ethernet

Ports & interfaces

Specification	Value
USB 2.0 ports quantity	6
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	4
DisplayPorts quantity	2
Ethernet LAN (RJ-45) ports	1
Headphone outputs	1
Line-out	Yes
Line-in	Yes
Microphone in	Yes
VGA (D-Sub) ports quantity	1
DVI port	No
PS/2 ports quantity	2
Serial ports quantity	1

Expansion slots

Specification	Value
Number of 3.5" bays	1
PCI Express x16 slots	2

Power

Specification	Value
Power supply	240 W

Design

Specification	Value
Chassis type	SFF
Number of 5.25" bays	1
Product colour	Aluminium, Black

Software

Specification	Value
Operating system installed	Windows 7 Professional
Operating system architecture	64-bit

Display

Specification	Value
Display included	No

Processor special features

Specification	Value
CPU configuration (max)	1
Embedded options available	Yes
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Graphics & IMC lithography	22 nm
Idle States	Yes
Intel 64	Yes
Intel Clear Video Technology	No
Intel Demand Based Switching	No
Intel Dual Display Capable Technology	No
Intel Enhanced Halt State	Yes
Intel FDI Technology	Yes
Intel Fast Memory Access	Yes
Intel Flex Memory Access	Yes
Intel Identity Protection Technology version	1.00
Intel Rapid Storage Technology	No
Intel Secure Key Technology version	1.00
Intel TSX-NI	No
Intel TSX-NI version	0.00
Intel Trusted Execution Technology	Yes
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Intel® AES New Instructions (Intel® AES-NI)	Yes
Intel® Clear Video HD Technology (Intel® CVT HD)	Yes
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)	No
Intel® InTru™ 3D Technology	Yes
Intel® Insider™	Yes
Intel® Secure Key	Yes
Intel® Wireless Display (Intel® WiDi)	Yes
Processor ARK ID	65719
Processor package size	37.5 x 37.5 mm
Supported instruction sets	AVX, SSE4.1, SSE4.2
Thermal Monitoring Technologies	Yes
Thermal solution specification	PCG 2011D
Intel® Turbo Boost Technology	2.0
Intel® Hyper Threading Technology (Intel® HT Technology)	Yes
Intel® Quick Sync Video Technology	Yes
Intel® My WiFi Technology (Intel® MWT)	No
Intel® Identity Protection Technology (Intel® IPT)	Yes
Intel® Anti-Theft Technology (Intel® AT)	Yes
Conflict-Free processor	Yes
