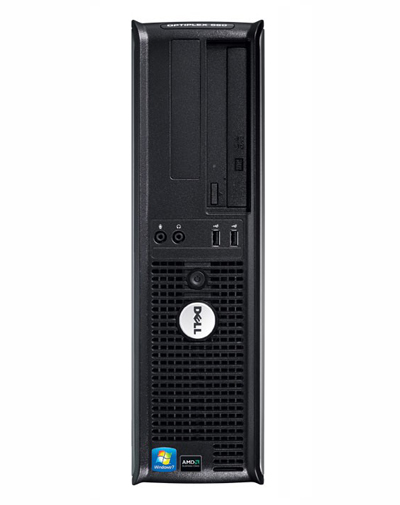

OptiPlex 580 DTV
Model OptiPlex 580 DTVPart no. T320804IN8
90 specifications

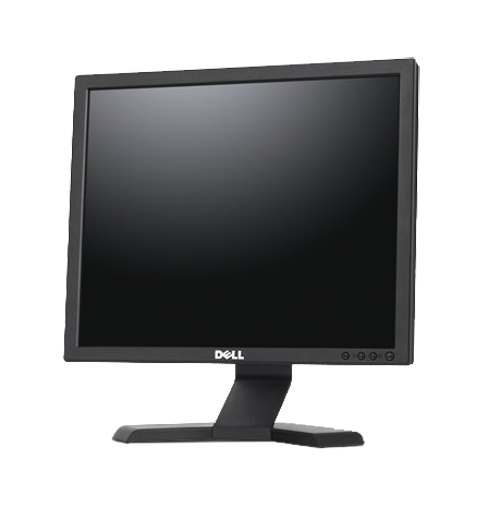

- Display43.2 cm (17")
- Resolution1280 x 1024 pixels
- ProcessorAMD Athlon II X2
- Memory2 GB
- Storage250 GB
- GraphicsNot available
Overview
- Display
- 43.2 cm (17")
- Resolution
- 1280 x 1024 pixels
- Processor
- AMD Athlon II X2
- Memory
- 2 GB
- Storage
- 250 GB
- Graphics
- Not available
- Brand
- Dell
- Category
- PCs/Workstations
- Model
- OptiPlex 580 DTV
- Part number
- T320804IN8
- Also known as
- DELL OptiPlex 580 DTV AMD Athlon II X2 B26 2 GB DDR3-SDRAM 250 GB Windows 7 Professional Desktop PC Black
Specifications
90 specifications in 17 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | AMD |
| Processor family | AMD Athlon II X2 |
| Processor model | B26 |
| Processor cores | 2 |
| Processor threads | 2 |
| Processor frequency | 3.2 GHz |
| Processor cache | 2 MB |
| Processor cache type | L2 |
| Number of processors installed | 1 |
| Processor socket | Socket AM3 |
| Maximum number of SMP processors | 1 |
| Platform | PC |
Memory
| Specification | Value |
|---|---|
| Internal memory | 2 GB |
| Maximum internal memory | 4 GB |
| Internal memory type | DDR3-SDRAM |
| Memory layout (slots x size) | 1 x 2 GB |
| Memory slots | 4x DIMM |
| Memory clock speed | 1333 MHz |
Storage
| Specification | Value |
|---|---|
| Total storage capacity | 250 GB |
| Optical drive type | DVD Super Multi DL |
| Number of HDDs installed | 1 |
| HDD capacity | 250 GB |
| HDD interface | SATA |
| HDD speed | 7200 RPM |
| HDD size | 3.5" |
Graphics
| Specification | Value |
|---|---|
| On-board graphics card | Yes |
| Discrete graphics card model | Not available |
| On-board graphics card family | AMD Radeon HD 4000 |
| On-board graphics card model | AMD Radeon HD 4200 |
| Graphics card family | ATI |
Performance
| Specification | Value |
|---|---|
| Product type | PC |
| Motherboard chipset | AMD 785G |
| Password protection type | BIOS |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Cabling technology | 10/100/1000Base-T(X) |
| Copper ethernet cabling technology | 1000BASE-T, 1000BASE-TX, 100BASE-T, 100BASE-TX, 10BASE-T |
| Ethernet interface type | Gigabit Ethernet |
| Networking features | Gigabit Ethernet |
Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 8 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 0 |
| DisplayPorts quantity | 1 |
| HDMI ports quantity | 0 |
| Ethernet LAN (RJ-45) ports | 1 |
| Headphone outputs | 1 |
| Line-out | Yes |
| Line-in | Yes |
| Microphone in | Yes |
| VGA (D-Sub) ports quantity | 1 |
| DVI port | No |
| PS/2 ports quantity | 0 |
| Firewire (IEEE 1394) ports | 0 |
| eSATA ports quantity | 1 |
| Serial ports quantity | 1 |
| Parallel ports quantity | 0 |
Expansion slots
| Specification | Value |
|---|---|
| Number of 3.5" bays | 2 |
| PCI Express x16 slots | 2 |
| PCI slots | 1 |
Power
| Specification | Value |
|---|---|
| Power supply | 255 W |
| Power supply input voltage | 100 - 240 V |
Design
| Specification | Value |
|---|---|
| Chassis type | Desktop |
| Number of 5.25" bays | 1 |
| Cable lock slot | Yes |
| Product colour | Black |
Software
| Specification | Value |
|---|---|
| Operating system installed | Windows 7 Professional |
| Operating system architecture | 32-bit |
| Compatible operating systems | Windows 7 |
| Mac compatibility | No |
Display
| Specification | Value |
|---|---|
| Display included | Yes |
| Display diagonal | 43.2 cm (17") |
| Display resolution | 1280 x 1024 pixels |
| Native aspect ratio | 5:4 |
| Contrast ratio (typical) | 800:1 |
| Display number of colours | 16.78 million colours |
| Touchscreen | No |
| Display brightness | 250 cd/m² |
| Viewing angle, horizontal | 160° |
| Viewing angle, vertical | 160° |
Audio
| Specification | Value |
|---|---|
| Audio system | HD |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 114 mm |
| Depth | 399 mm |
| Height | 353 mm |
| Weight | 8.26 kg |
| Dimensions (WxDxH) | 114 x 399 x 353 mm |
Packaging content
| Specification | Value |
|---|---|
| Mouse included | Yes |
| Keyboard included | Yes |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
| Compliance industry standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3ab |
| Certification | CECP, TCO 05, CES, FEMP |
Sustainability
| Specification | Value |
|---|---|
| Sustainability certificates | ENERGY STAR |
