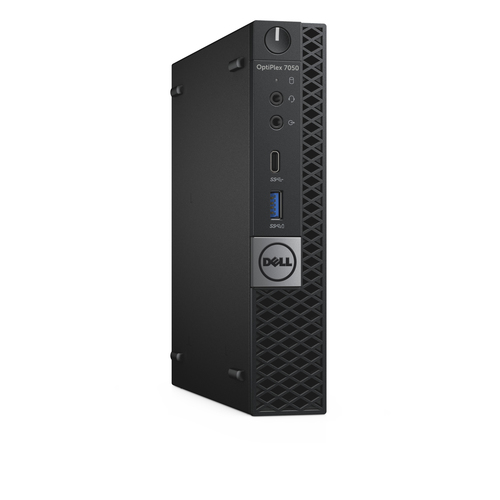

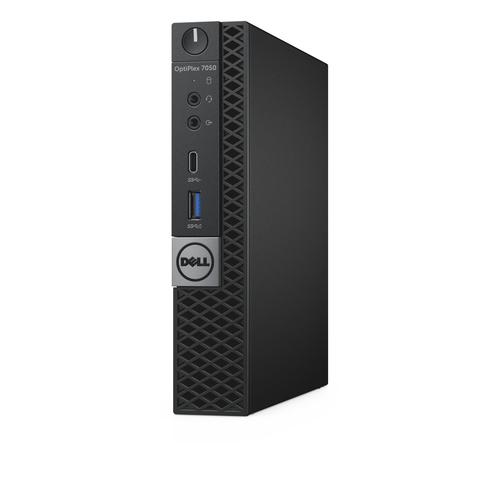

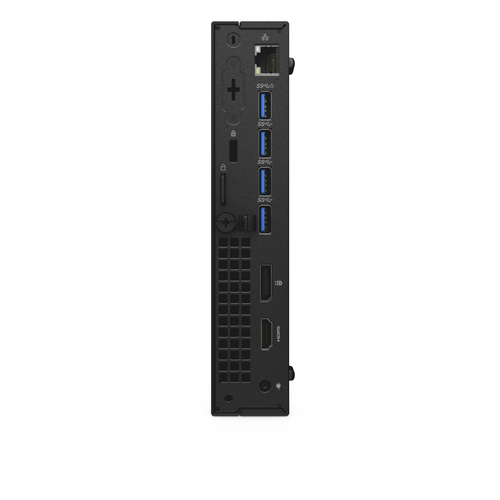

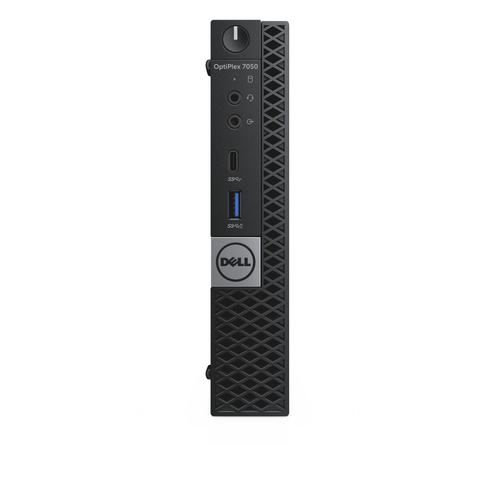

OptiPlex m7050 Intel® Core™ i7 i7-7700T

8 GB DDR4-SDRAM 500 GB HDD Windows 10 Pro Mini PC Black

Model m7050Part no. 7050-8350

139 specifications

Overview

Brand: Dell
Category: PCs/Workstations
Model: m7050
Part number: 7050-8350
Also known as: DELL OptiPlex m7050 Intel® Core™ i7 i7-7700T 8 GB DDR4-SDRAM 500 GB HDD Windows 10 Pro Mini PC Black

139 specifications in 16 groups

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Core™ i7
Processor generation	7th gen Intel® Core™ i7
Processor model	i7-7700T
Processor cores	4
Processor threads	8
Processor boost frequency	3.8 GHz
Processor frequency	2.9 GHz
Processor cache	8 MB
Processor cache type	Smart Cache
Bus type	DMI3
System bus rate	8 GT/s
Processor lithography	14 nm
Processor operating modes	64-bit
Processor series	Intel Core i7-7700 Desktop series
Processor codename	Kaby Lake
Thermal Design Power (TDP)	35 W
Configurable TDP-down	25 W
Configurable TDP-down frequency	1.9 GHz
Tjunction	80 °C
Maximum number of PCI Express lanes	16
PCI Express configurations	1x16, 1x8+2x4, 2x8
PCI Express slots version	3.0
Number of QPI links	0
Number of processors installed	1
Processor socket	LGA 1151 (Socket H4)
Stepping	B0
Maximum internal memory supported by processor	64 GB
Memory types supported by processor	DDR3L-SDRAM, DDR4-SDRAM
Memory clock speeds supported by processor	1333,1600,2133,2400 MHz
ECC supported by processor	No
Memory voltage supported by processor	1.35 V

Specification	Value
Total storage capacity	500 GB
Optical drive type	No
Storage media	HDD
Number of storage drives installed	1
Number of HDDs installed	1
HDD capacity	500 GB
Card reader integrated	Yes

Specification	Value
Discrete graphics card	No
On-board graphics card	Yes
Discrete graphics card model	Not available
On-board graphics card model	Intel® HD Graphics 630
Maximum on-board graphics card memory	64 GB
Number of displays supported (on-board graphics)	3
On-board graphics card base frequency	350 MHz
On-board graphics card dynamic frequency (max)	1150 MHz
On-board graphics card DirectX version	12.0
On-board graphics card ID	5912
On-board graphics card OpenGL version	4.4

Specification	Value
USB 2.0 ports quantity	0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	5
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	0
Thunderbolt 3 ports quantity	0
HDMI ports quantity	1
Ethernet LAN (RJ-45) ports	1
Headphone outputs	1
Microphone in	Yes
DVI port	No

Specification	Value
Power supply	65 W
Power supply input voltage	90 - 264 V
Power supply input frequency	47/63 Hz

Specification	Value
Operating system installed	Windows 10 Pro
Operating system architecture	64-bit
Drivers included	Yes

Specification	Value
Display included	No

Specification	Value
CPU configuration (max)	1
Embedded options available	Yes
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Idle States	Yes
Intel 64	Yes
Intel Clear Video Technology	Yes
Intel Enhanced Halt State	Yes
Intel Identity Protection Technology version	1.00
Intel Secure Key Technology version	1.00
Intel Software Guard Extensions (Intel SGX)	Yes
Intel Stable Image Platform Program (SIPP)	Yes
Intel Stable Image Platform Program (SIPP) version	1.00
Intel TSX-NI	Yes
Intel TSX-NI version	1.00
Intel Trusted Execution Technology	Yes
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Intel® AES New Instructions (Intel® AES-NI)	Yes
Intel® Clear Video HD Technology (Intel® CVT HD)	Yes
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)	Yes
Intel® InTru™ 3D Technology	Yes
Intel® OS Guard	Yes
Intel® Secure Key	Yes
Processor ARK ID	97122
Processor code	SR339
Processor package size	37.5 x 37.5 mm
Scalability	1S
Supported instruction sets	AVX 2.0, SSE4.1, SSE4.2
Thermal Monitoring Technologies	Yes
Thermal solution specification	PCG 2015A
Intel® Turbo Boost Technology	2.0
Intel® Hyper Threading Technology (Intel® HT Technology)	Yes
Intel® Quick Sync Video Technology	Yes
Intel® Identity Protection Technology (Intel® IPT)	Yes
Conflict-Free processor	Yes

Specification	Value
Audio chip	Realtek ALC3234

Specification	Value
Operating temperature (T-T)	0 - 35 °C
Storage temperature (T-T)	-40 - 65 °C
Operating relative humidity (H-H)	10 - 90%
Storage relative humidity (H-H)	5 - 95%
Operating altitude	-15.2 - 3048 m
Non-operating altitude	-15.2 - 10668 m
