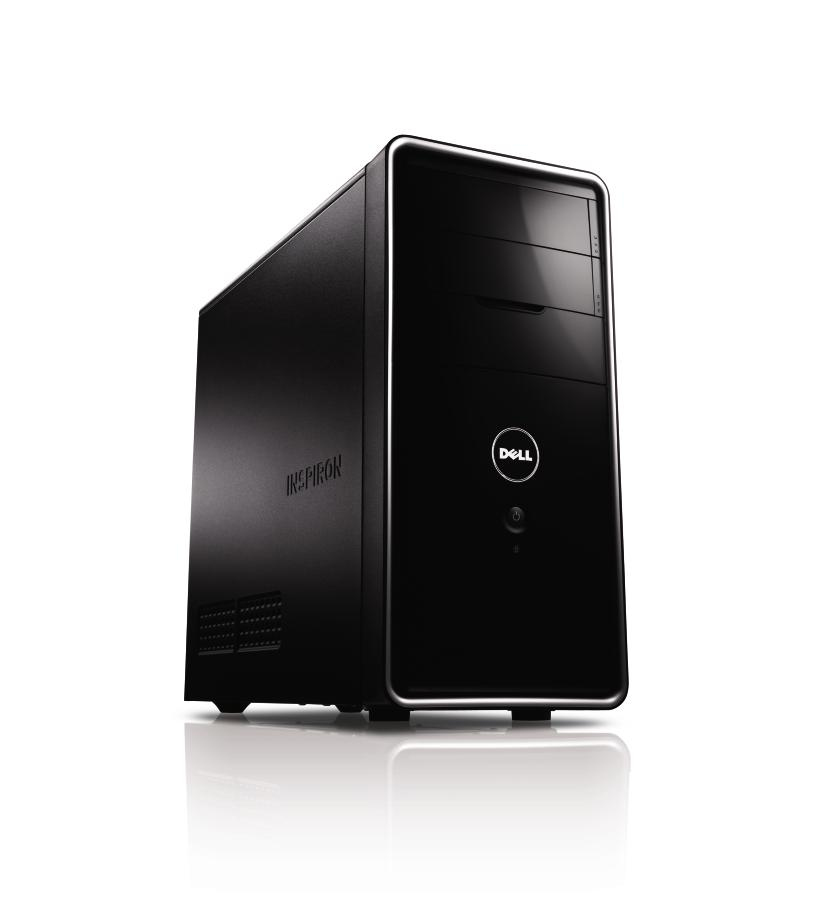

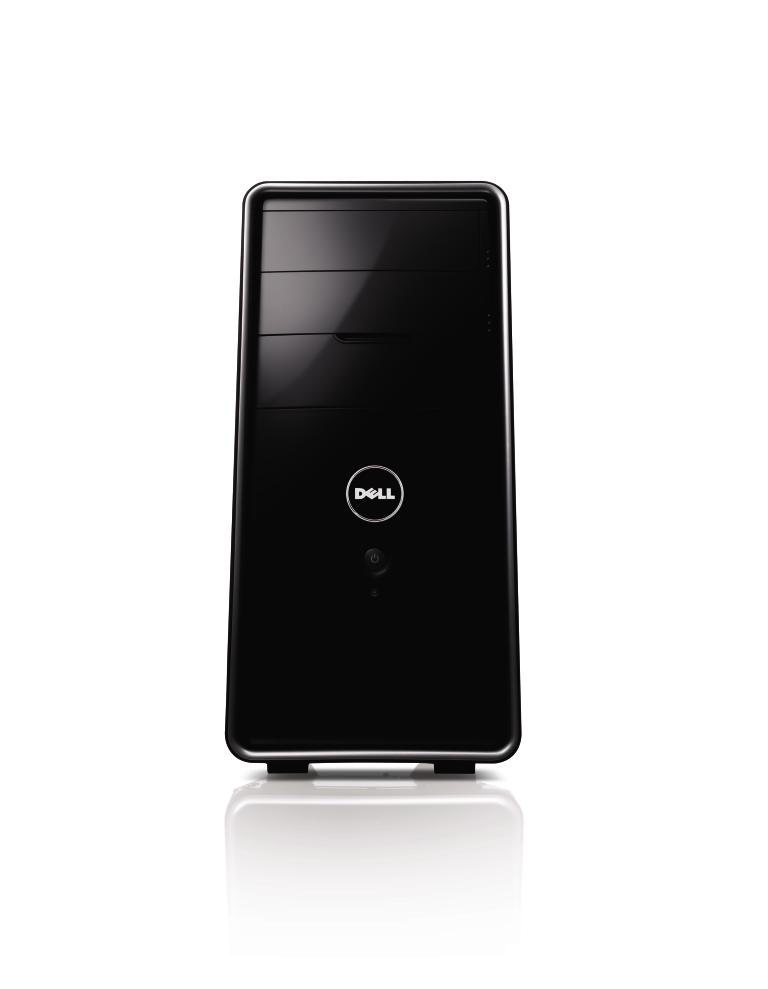

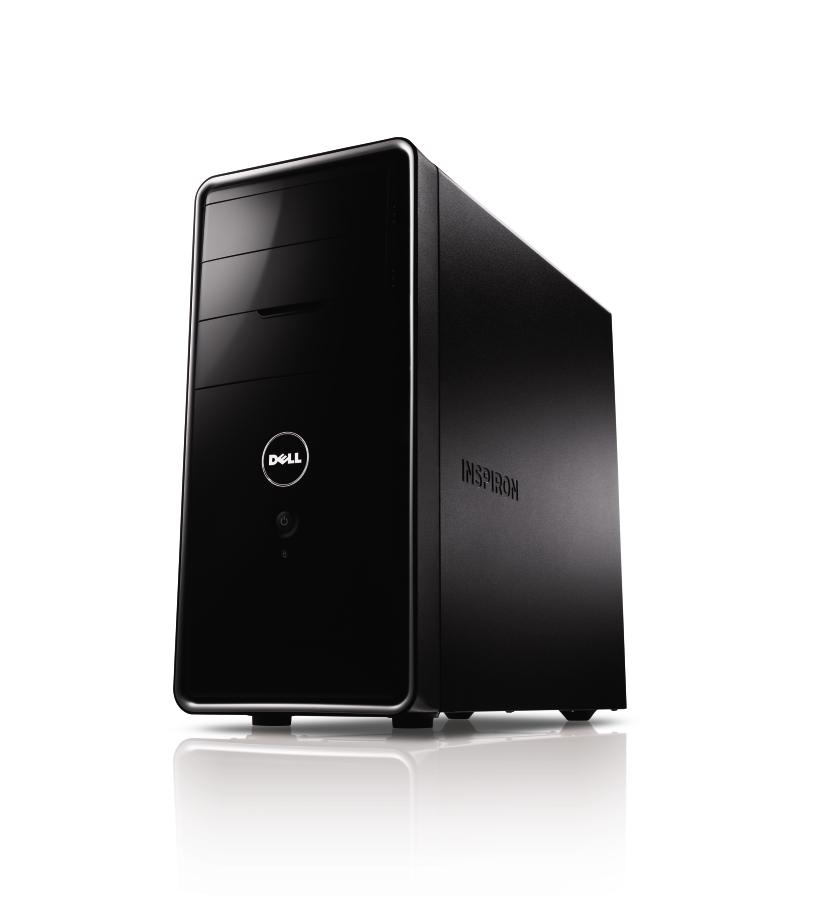

Dell Inspiron 560 MT

Model Inspiron 560 MTPart no. I560-M211NL

109 specifications

ProcessorIntel® Core™2 Quad
Memory4 GB
Storage640 GB
GraphicsIntel® GMA X4500
TypePC
OSWindows 7 Home Premium

See all specifications

Overview

Processor: Intel® Core™2 Quad
Memory: 4 GB
Storage: 640 GB
Graphics: Intel® GMA X4500
Type: PC
OS: Windows 7 Home Premium

Brand: Dell
Category: PCs/Workstations
Model: Inspiron 560 MT
Part numbers: I560-M211NL, I560-M311NL
Also known as: DELL Inspiron 560 MT Intel® Core™2 Quad Q8300 4 GB DDR3-SDRAM 640 GB Intel® GMA X4500 Windows 7 Home Premium Micro Tower PC Black

Specifications

109 specifications in 17 groups

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Core™2 Quad
Processor model	Q8300
Processor cores	4
Processor threads	4
Processor frequency	2.5 GHz
Processor cache	4 MB
Processor cache type	L2
Processor front side bus	1333 MHz
Bus type	FSB
FSB Parity	No
Processor lithography	45 nm
Processor operating modes	64-bit
Processor series	Intel Core 2 Quad Q8000 Series
Processor codename	Yorkfield
Thermal Design Power (TDP)	95 W
Tcase	71.4 °C
Number of processors installed	1
Processor socket	LGA 775 + AM2/2+
Number of Processing Die Transistors	456 M
Processing Die size	164 mm²
CPU multiplier (bus/core ratio)	7.5
Stepping	R0
ECC supported by processor	No

Memory

Specification	Value
Internal memory	4 GB
Maximum internal memory	8 GB
Internal memory type	DDR3-SDRAM
Memory layout (slots x size)	4 x 1 GB
Memory clock speed	1333 MHz

Storage

Specification	Value
Total storage capacity	640 GB
Optical drive type	DVD-RW
HDD interface	SATA
Card reader integrated	Yes
Floppy drive installed	No

Graphics

Specification	Value
On-board graphics card	Yes
Discrete graphics card model	Intel® GMA X4500
Graphics card family	Intel

Performance

Specification	Value
Product type	PC

Network

Specification	Value
Ethernet LAN	Yes
Wi-Fi	No
Networking features	Gigabit Ethernet

Ports & interfaces

Specification	Value
USB 2.0 ports quantity	6
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	0
HDMI ports quantity	1
Ethernet LAN (RJ-45) ports	1
Headphone outputs	7
Microphone in	Yes
VGA (D-Sub) ports quantity	1
DVI port	No
PS/2 ports quantity	0
Firewire (IEEE 1394) ports	0
Serial ports quantity	0
Parallel ports quantity	0

Expansion slots

Specification	Value
PCI Express x1 slots	2
PCI Express x16 slots	1
PCI slots	1

Power

Specification	Value
Power requirements	115-240V, 50/60Hz
Power supply	300 W

Design

Specification	Value
Chassis type	Micro Tower
Product colour	Black
External drive bays	2x 5.25", 1x 3.5"
Internal drive bays	2x 3.5"

Software

Specification	Value
Operating system installed	Windows 7 Home Premium

Display

Specification	Value
Display included	No

Processor special features

Specification	Value
Embedded options available	No
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Idle States	Yes
Intel 64	Yes
Intel Clear Video Technology	No
Intel Demand Based Switching	No
Intel Dual Display Capable Technology	No
Intel Enhanced Halt State	Yes
Intel FDI Technology	No
Intel Fast Memory Access	No
Intel Flex Memory Access	No
Intel Rapid Storage Technology	No
Intel Trusted Execution Technology	No
Intel VT-x with Extended Page Tables (EPT)	No
Intel Virtualization Technology (VT-x)	2
Intel Virtualization Technology for Directed I/O (VT-d)	No
Intel® AES New Instructions (Intel® AES-NI)	No
Intel® Clear Video HD Technology (Intel® CVT HD)	No
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)	No
Intel® InTru™ 3D Technology	No
Intel® Insider™	No
Intel® Wireless Display (Intel® WiDi)	No
Processor ARK ID	39107
Processor code	SLGUR
Processor package size	37.5 x 37.5 mm
Thermal Monitoring Technologies	Yes
Intel® Turbo Boost Technology	No
Intel® Hyper Threading Technology (Intel® HT Technology)	No
Intel® Quick Sync Video Technology	No
Intel® My WiFi Technology (Intel® MWT)	No
Intel® Anti-Theft Technology (Intel® AT)	No
Conflict-Free processor	No

Operational conditions

Specification	Value
Operating temperature (T-T)	10 - 35 °C
Storage temperature (T-T)	-40 - 65 °C
Operating relative humidity (H-H)	20 - 80%
Operating temperature (T-T)	50 - 95 °F

Weight & dimensions

Specification	Value
Width	176 mm
Depth	443 mm
Height	376 mm
Weight	7.9 kg

Packaging content

Specification	Value
Mouse included	Yes
Keyboard included	Yes
Remote control included	No

Other features

Specification	Value
TV tuner integrated	No
