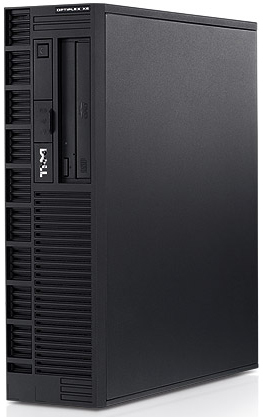

Dell OptiPlex Essentielle Intel® Pentium® E5300

2 GB DDR3-SDRAM 500 GB Windows 7 Professional Desktop PC Black

Model EssentiellePart no. X08XE01

119 specifications

ProcessorIntel® Pentium®
Memory2 GB
Storage500 GB
TypePC
OSWindows 7 Professional
Weight9.38 kg

See all specifications

Overview

Processor: Intel® Pentium®
Memory: 2 GB
Storage: 500 GB
Type: PC
OS: Windows 7 Professional
Weight: 9.38 kg

Brand: Dell
Category: PCs/Workstations
Model: Essentielle
Part number: X08XE01
Also known as: DELL OptiPlex Essentielle Intel® Pentium® E5300 2 GB DDR3-SDRAM 500 GB Windows 7 Professional Desktop PC Black

Specifications

119 specifications in 18 groups

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Pentium®
Processor model	E5300
Processor cores	2
Processor threads	2
Processor frequency	2.6 GHz
Processor cache	2 MB
Processor cache type	L2
Processor front side bus	800 MHz
Bus type	FSB
FSB Parity	No
Processor lithography	45 nm
Processor operating modes	64-bit
Processor series	Intel Pentium E5000 Series for Desktop
Processor codename	Wolfdale
Thermal Design Power (TDP)	65 W
Tcase	74.1 °C
Number of processors installed	1
Processor socket	LGA 775 (Socket T)
Number of Processing Die Transistors	228 M
Processing Die size	82 mm²
CPU multiplier (bus/core ratio)	13
Maximum number of SMP processors	1
Platform	PC
Stepping	R0
ECC supported by processor	No

Memory

Specification	Value
Internal memory	2 GB
Maximum internal memory	8 GB
Internal memory type	DDR3-SDRAM
Memory layout (slots x size)	1 x 2 GB
Memory slots	4x DIMM
Memory clock speed	1333 MHz

Storage

Specification	Value
Total storage capacity	500 GB
Optical drive type	No
Number of HDDs installed	1
HDD capacity	500 GB
HDD interface	SATA II
HDD speed	7200 RPM
Card reader integrated	No

Graphics

Specification	Value
On-board graphics card	No
On-board graphics card model	Not available

Performance

Specification	Value
Product type	PC
Motherboard chipset	Intel® Q45

Network

Specification	Value
Ethernet LAN	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Cabling technology	10/100/1000Base-T(X)
Wi-Fi	No
Ethernet interface type	Gigabit Ethernet
Networking features	Gigabit Ethernet

Ports & interfaces

Specification	Value
USB 2.0 ports quantity	6
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	0
DisplayPorts quantity	1
HDMI ports quantity	0
Ethernet LAN (RJ-45) ports	2
Headphone outputs	1
Microphone in	Yes
VGA (D-Sub) ports quantity	1
DVI port	No
PS/2 ports quantity	2
Firewire (IEEE 1394) ports	0
Serial ports quantity	2
Parallel ports quantity	0
Headphone connectivity	3.5 mm
Microphone connectivity	3.5 mm

Expansion slots

Specification	Value
Number of 3.5" bays	2
PCI Express x1 slots	1
PCI Express x16 slots	1
PCI slots	2

Power

Specification	Value
Power supply	300 W

Design

Specification	Value
Chassis type	Desktop
Number of 5.25" bays	1
Product colour	Black

Software

Specification	Value
Operating system installed	Windows 7 Professional
Operating system architecture	32-bit
Drivers included	Yes

Display

Specification	Value
Display included	No

Processor special features

Specification	Value
CPU configuration (max)	1
Embedded options available	Yes
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Idle States	Yes
Intel 64	Yes
Intel Clear Video Technology	No
Intel Demand Based Switching	No
Intel Dual Display Capable Technology	No
Intel Enhanced Halt State	Yes
Intel FDI Technology	No
Intel Fast Memory Access	No
Intel Flex Memory Access	No
Intel Rapid Storage Technology	No
Intel Trusted Execution Technology	No
Intel VT-x with Extended Page Tables (EPT)	No
Intel Virtualization Technology (VT-x)	2
Intel Virtualization Technology for Directed I/O (VT-d)	No
Intel® AES New Instructions (Intel® AES-NI)	No
Intel® Clear Video HD Technology (Intel® CVT HD)	No
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)	No
Intel® InTru™ 3D Technology	No
Intel® Insider™	No
Intel® Wireless Display (Intel® WiDi)	No
Processor ARK ID	35300
Processor code	SLB9U
Thermal Monitoring Technologies	Yes
Intel® Turbo Boost Technology	No
Intel® Hyper Threading Technology (Intel® HT Technology)	No
Intel® Quick Sync Video Technology	No
Intel® My WiFi Technology (Intel® MWT)	No
Intel® Anti-Theft Technology (Intel® AT)	No
Conflict-Free processor	No

Weight & dimensions

Specification	Value
Width	350 mm
Depth	400 mm
Height	110 mm
Weight	9.38 kg

Packaging content

Specification	Value
Keyboard included	Yes
Numeric keypad	Yes

Certificates

Specification	Value
Compliance certificates	RoHS
Certification	CECP, TCO 05, DEEE, CES, FEMP

Sustainability

Specification	Value
Sustainability certificates	EPEAT Gold, ENERGY STAR

Keyboard

Specification	Value
Windows keys	Yes
