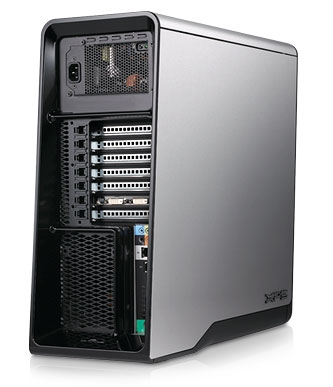

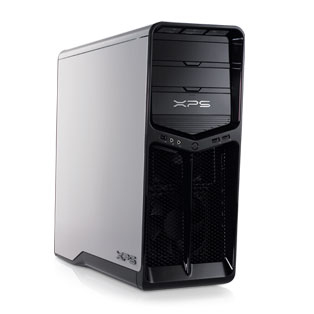

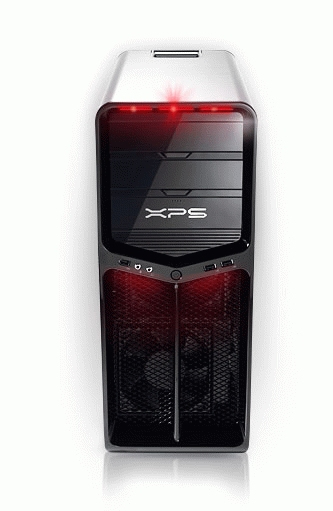

Dell Dimension XPS 630 Desktop

Model Dimension XPS 630 DesktopPart no. D06X601

98 specifications

ProcessorIntel® Core™2 Quad
Memory2 GB
Storage320 GB
GraphicsAMD Radeon HD 3870
TypePC
OSWindows Vista Home Premium

See all specifications

Overview

Processor: Intel® Core™2 Quad
Memory: 2 GB
Storage: 320 GB
Graphics: AMD Radeon HD 3870
Type: PC
OS: Windows Vista Home Premium

Brand: Dell
Category: PCs/Workstations
Model: Dimension XPS 630 Desktop
Part number: D06X601
Also known as: DELL Dimension XPS 630 Desktop Intel® Core™2 Quad Q6600 2 GB DDR2-SDRAM 320 GB AMD Radeon HD 3870 Windows Vista Home Premium Midi Tower PC

Specifications

98 specifications in 18 groups

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Core™2 Quad
Processor model	Q6600
Processor cores	4
Processor threads	4
Processor frequency	2.4 GHz
Processor cache	8 MB
Processor cache type	L2
Processor front side bus	1066 MHz
Bus type	FSB
FSB Parity	No
Processor lithography	65 nm
Processor operating modes	64-bit
Processor series	Intel Core 2 Quad Q6000 Series
Processor codename	Kentsfield
Thermal Design Power (TDP)	95, 105
Tcase	B3=62.2; G0=71
Processor socket	LGA 775 (Socket T)
Number of Processing Die Transistors	582 M
Processing Die size	286 mm²
CPU multiplier (bus/core ratio)	9
Processor core voltage (AC)	0.85 - 1.5 V
Stepping	G0
ECC supported by processor	No

Memory

Specification	Value
Internal memory	2 GB
Internal memory type	DDR2-SDRAM
Memory layout (slots x size)	2 x 1 GB
Memory clock speed	800 MHz

Storage

Specification	Value
Total storage capacity	320 GB
Optical drive type	DVD±RW
HDD interface	SATA
HDD speed	7200 RPM
Card reader integrated	Yes

Graphics

Specification	Value
Discrete graphics card model	AMD Radeon HD 3870
Maximum graphics card memory	0.5 GB

Performance

Specification	Value
Product type	PC
Audio output channels	7.1 channels

Optical drive

Specification	Value
LightScribe	Yes

Ports & interfaces

Specification	Value
USB 2.0 ports quantity	6
Ethernet LAN (RJ-45) ports	1
Headphone outputs	1
Line-out	Yes
Line-in	Yes
Microphone in	Yes
VGA (D-Sub) ports quantity	2
PS/2 ports quantity	2
Firewire (IEEE 1394) ports	2
S/PDIF out port	Yes
TV-out	Yes
TV-out type	S-Video
Serial ports quantity	0
Parallel ports quantity	0

Expansion slots

Specification	Value
Expansion slots	- 2 x PCIe X16 - 1 x PCIe X8 - 1 x PCIe X1 - 2 x PCI

Power

Specification	Value
Power supply	750 W

Design

Specification	Value
Chassis type	Midi Tower

Software

Specification	Value
Operating system installed	Windows Vista Home Premium
Bundled software	Microsoft Works 9.0 - Danish, McAfee Security Centre 9.0

Display

Specification	Value
Display included	No

Processor special features

Specification	Value
Embedded options available	No
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Idle States	Yes
Intel 64	Yes
Intel Clear Video Technology	No
Intel Demand Based Switching	No
Intel Dual Display Capable Technology	No
Intel Enhanced Halt State	Yes
Intel FDI Technology	No
Intel Fast Memory Access	No
Intel Flex Memory Access	No
Intel Rapid Storage Technology	No
Intel Trusted Execution Technology	No
Intel VT-x with Extended Page Tables (EPT)	No
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	No
Intel® AES New Instructions (Intel® AES-NI)	No
Intel® Clear Video HD Technology (Intel® CVT HD)	No
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)	No
Intel® InTru™ 3D Technology	No
Intel® Insider™	No
Intel® Wireless Display (Intel® WiDi)	No
Processor ARK ID	29765
Processor package size	37.5 x 37.5 mm
Thermal Monitoring Technologies	Yes
Intel® Turbo Boost Technology	No
Intel® Hyper Threading Technology (Intel® HT Technology)	No
Intel® Quick Sync Video Technology	No
Intel® My WiFi Technology (Intel® MWT)	No
Intel® Anti-Theft Technology (Intel® AT)	No
Conflict-Free processor	No

Audio

Specification	Value
Audio system	High Definition Audio

Weight & dimensions

Specification	Value
Width	199 mm
Depth	560 mm
Height	491 mm
Weight	17.7 kg

Packaging content

Specification	Value
Mouse included	Yes

Keyboard

Specification	Value
Keyboard special features	USB

Other features

Specification	Value
Model availability	DK
