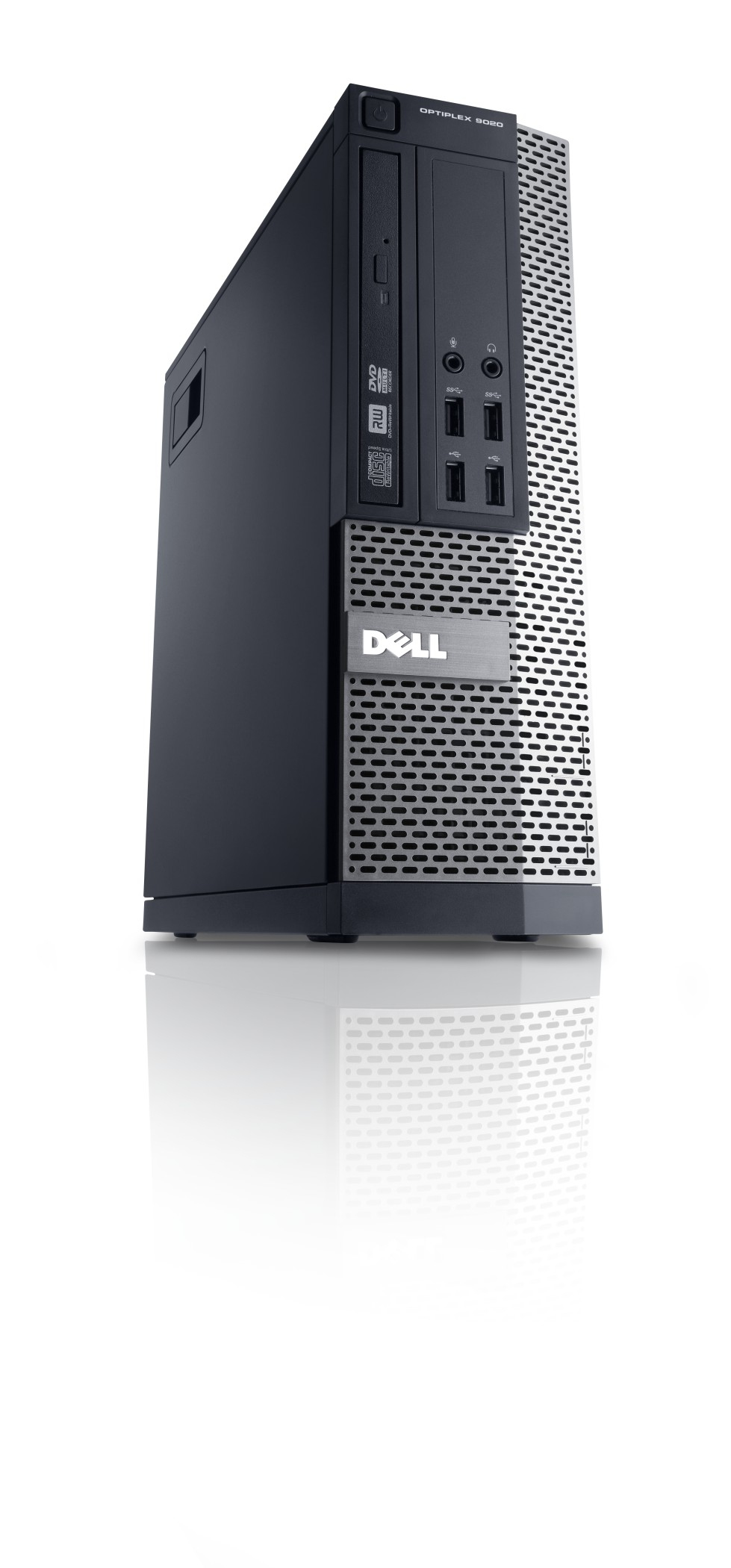

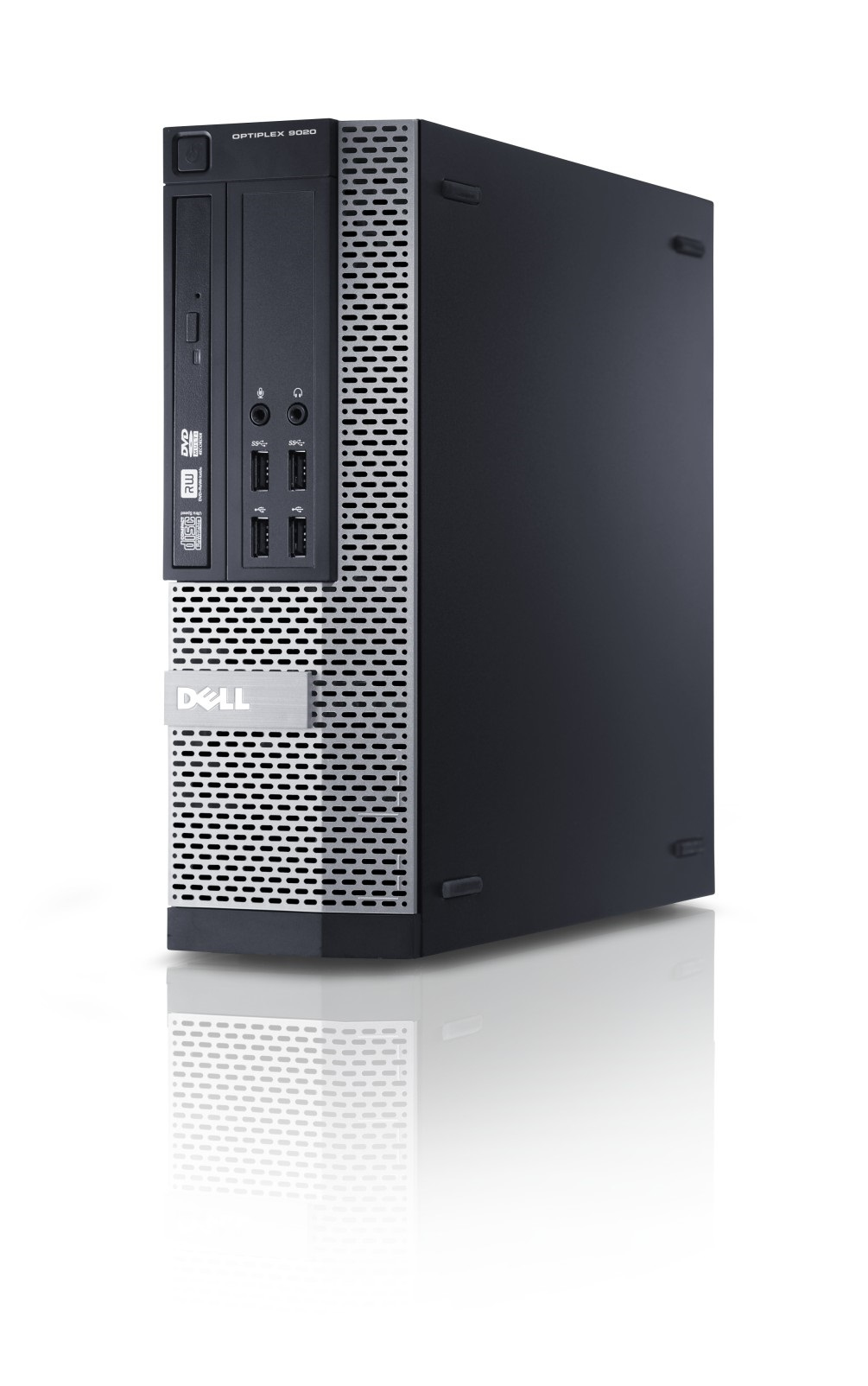

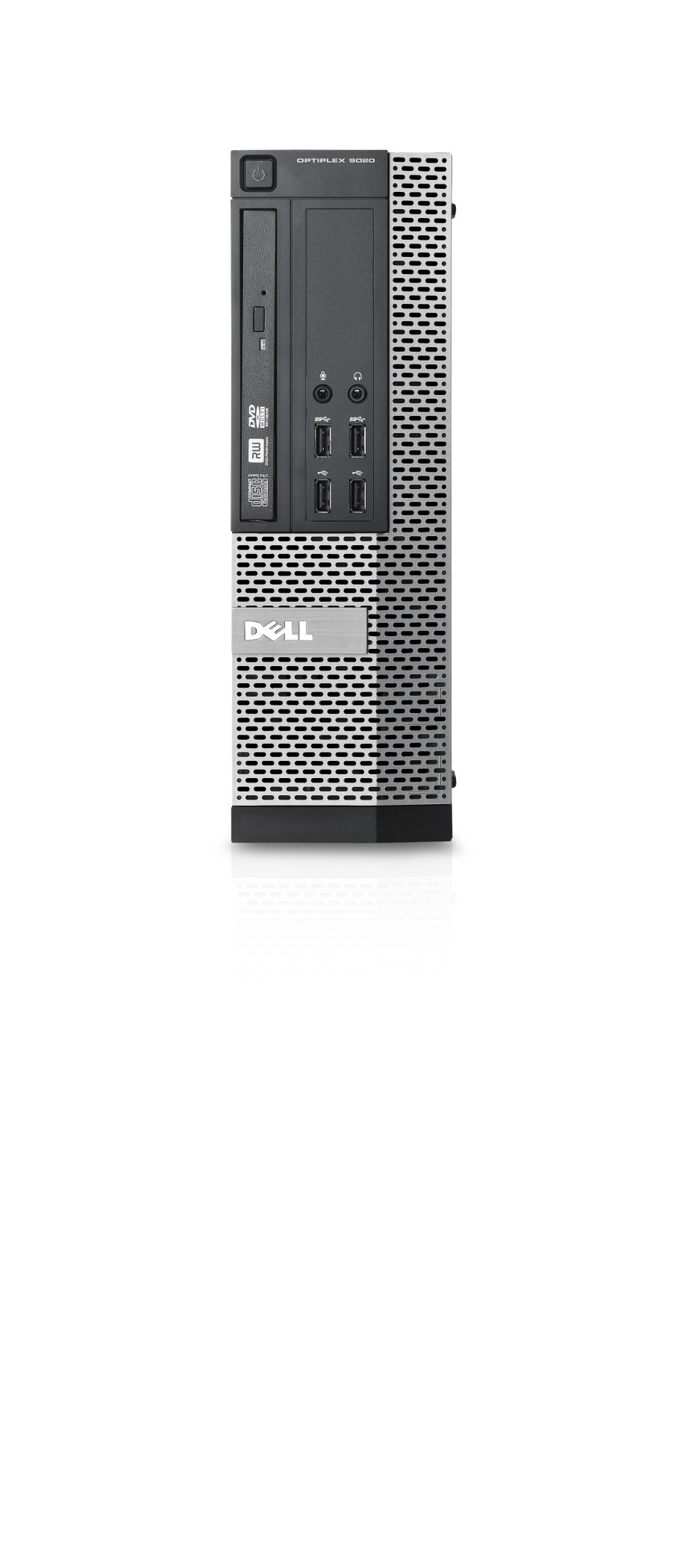

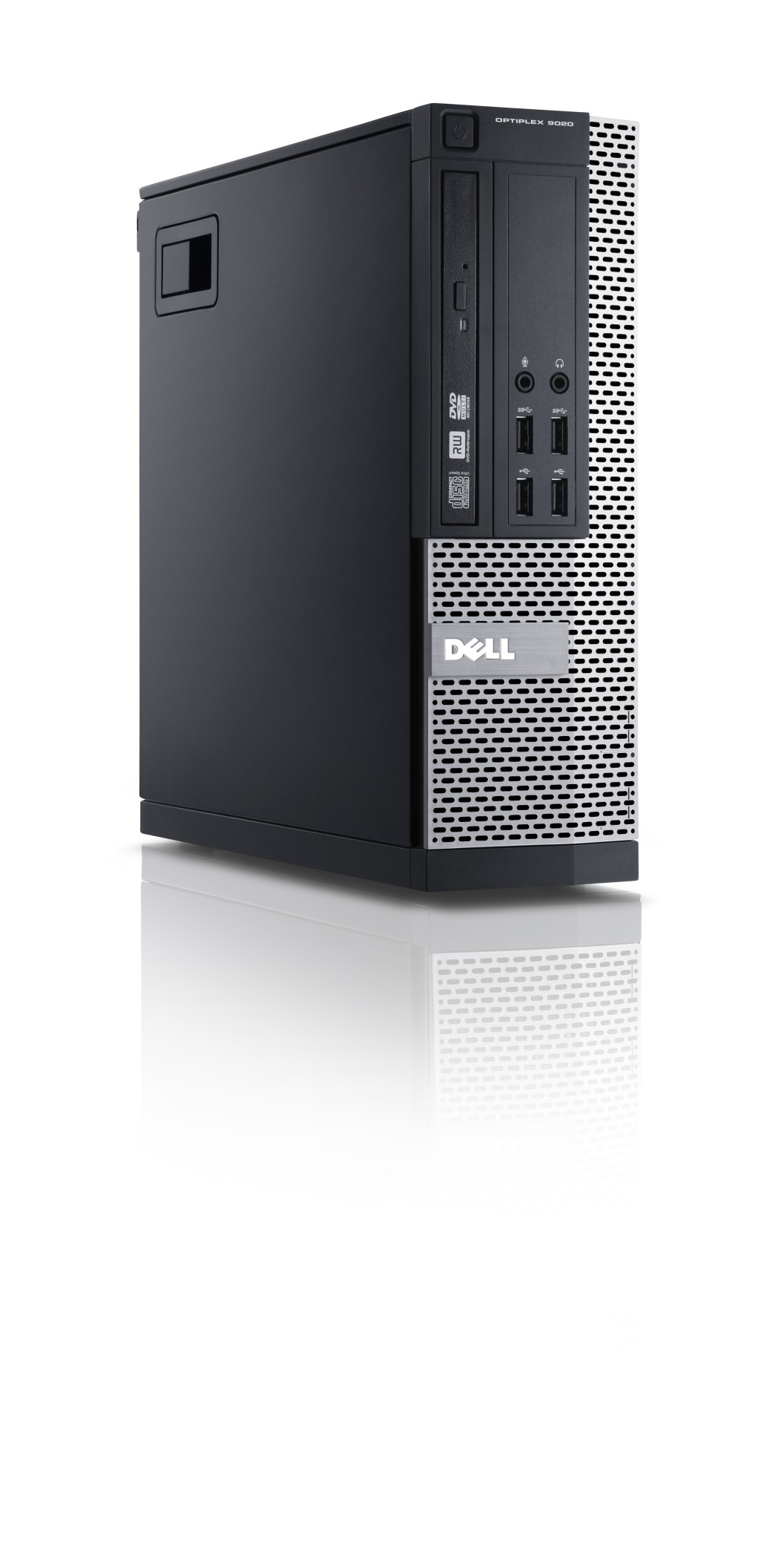

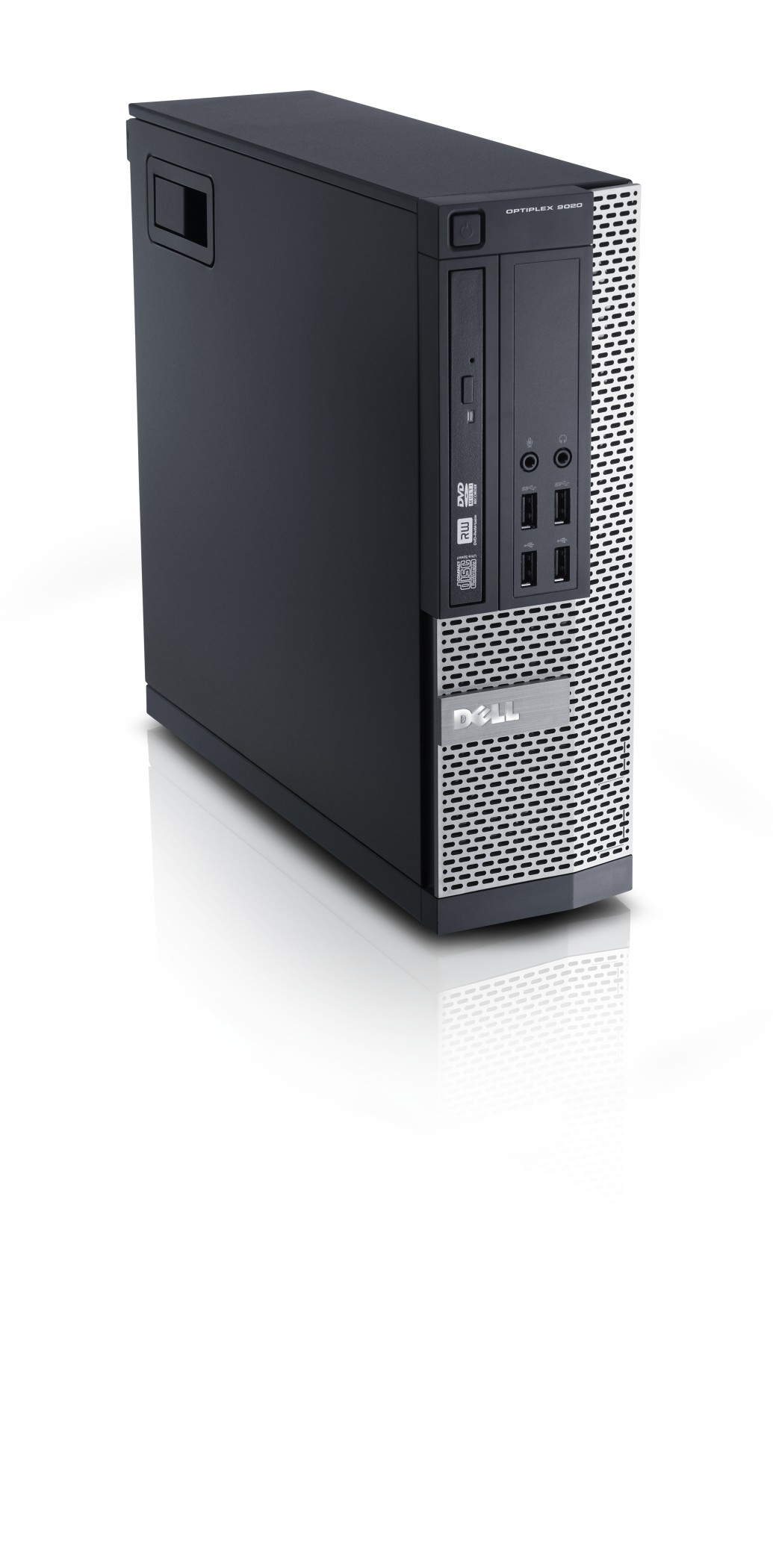

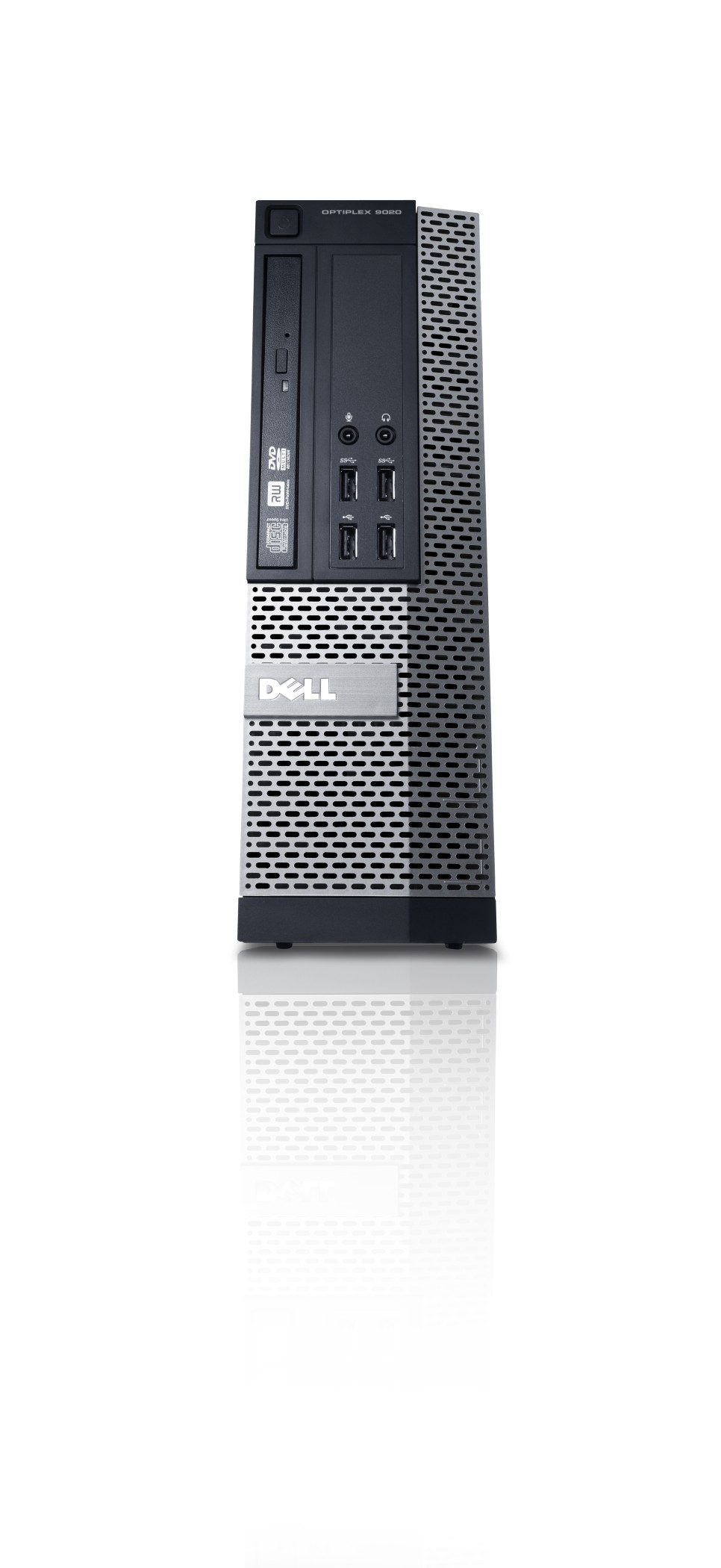

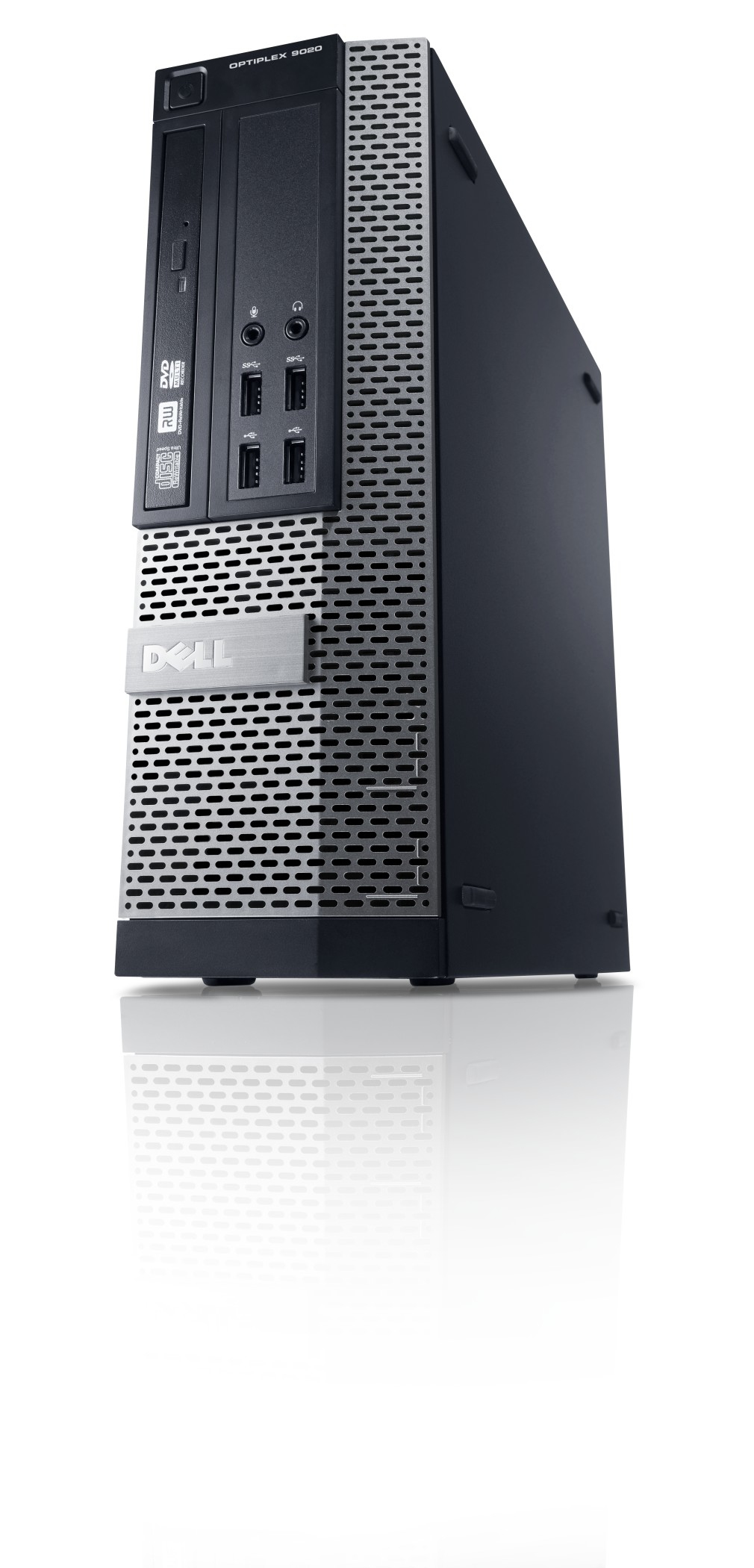

9020 + KB

Model 9020 + KBPart no. 9020-2059+KB

139 specifications

Overview

Brand: Dell
Category: PCs/Workstations
Model: 9020 + KB
Part number: 9020-2059+KB
Also known as: DELL OptiPlex 9020 + KB Intel® Core™ i3 i3-4160 8 GB DDR3-SDRAM 128 GB SSD Windows 7 Professional SFF PC Black

139 specifications in 19 groups

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Core™ i3
Processor generation	4th gen Intel® Core™ i3
Processor model	i3-4160
Processor cores	2
Processor threads	4
Processor frequency	3.6 GHz
Processor cache	3 MB
Processor cache type	Smart Cache
Bus type	DMI
System bus rate	5 GT/s
Processor lithography	22 nm
Processor operating modes	64-bit
Processor series	Intel Core i3-4100 Desktop series
Processor codename	Haswell
Thermal Design Power (TDP)	54 W
Tcase	72 °C
Maximum number of PCI Express lanes	16
PCI Express configurations	1x16, 2x8, 1x8+2x4
PCI Express slots version	3.0
Number of QPI links	0
Number of processors installed	1
Processor socket	LGA 1150 (Socket H3)
Stepping	C0
Maximum internal memory supported by processor	32 GB
Memory types supported by processor	DDR3-SDRAM
Memory clock speeds supported by processor	1333,1600 MHz
Memory bandwidth supported by processor (max)	25.6 GB/s
ECC supported by processor	Yes

Specification	Value
Total storage capacity	128 GB
Optical drive type	DVD±RW
Storage media	SSD
Number of storage drives installed	1
Number of SSDs installed	1
SSD capacity	128 GB

Specification	Value
On-board graphics card	Yes
Discrete graphics card model	Not available
On-board graphics card family	Intel® HD Graphics
On-board graphics card model	Intel® HD Graphics 4400
Maximum on-board graphics card memory	1.7 GB
Number of displays supported (on-board graphics)	3
On-board graphics card base frequency	350 MHz
On-board graphics card dynamic frequency (max)	1150 MHz
On-board graphics card DirectX version	11.1
On-board graphics card ID	0x41E

Specification	Value
Optical drives quantity	1

Specification	Value

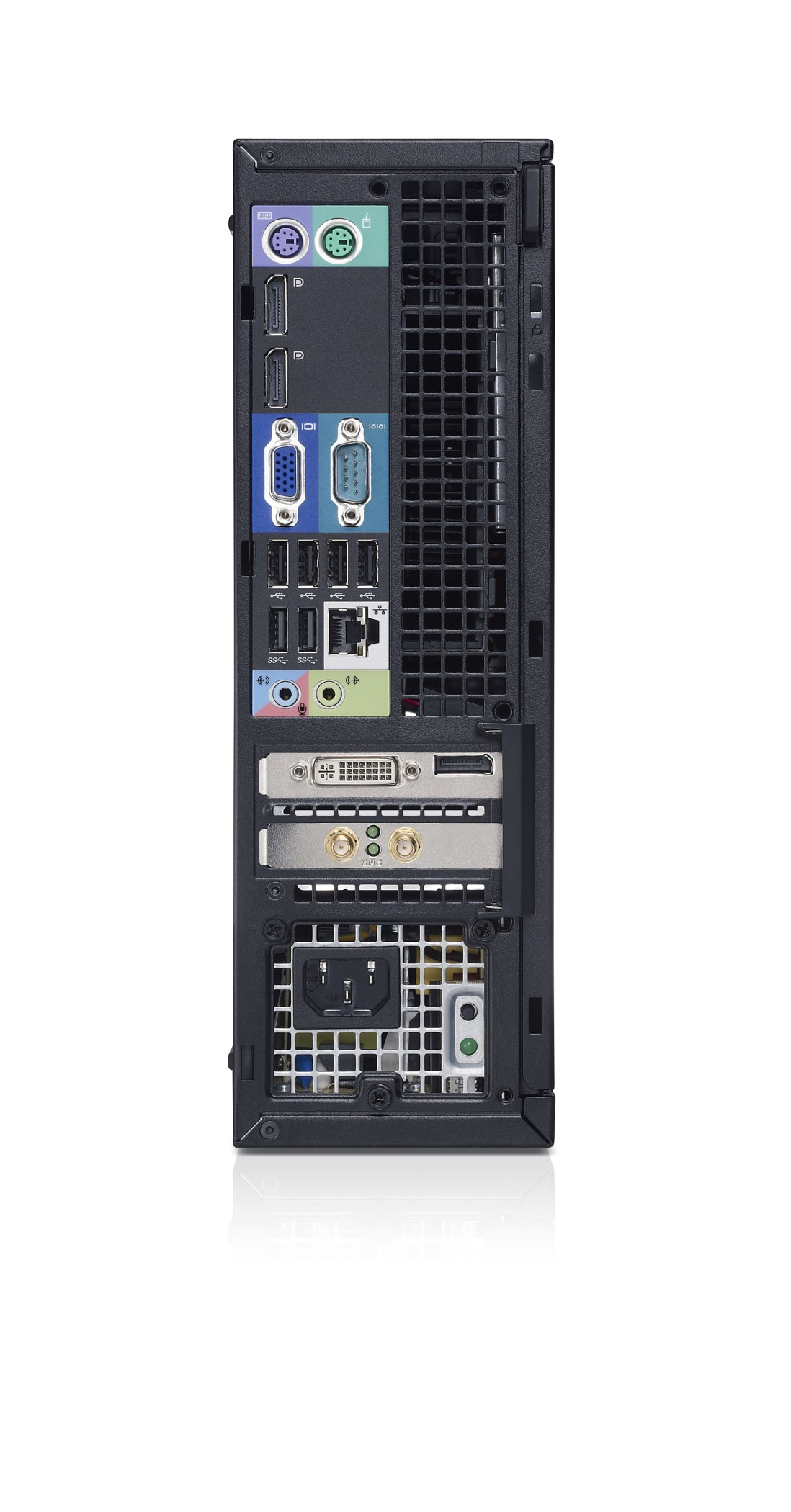

USB 2.0 ports quantity	6
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	4
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	0
Thunderbolt 3 ports quantity	0
DisplayPorts quantity	2
HDMI ports quantity	0
Ethernet LAN (RJ-45) ports	1
Headphone outputs	1
Line-out	Yes
Line-in	Yes
Microphone in	Yes
VGA (D-Sub) ports quantity	1
DVI port	No
PS/2 ports quantity	2
Serial ports quantity	1

Specification	Value
Number of 3.5" bays	1
PCI Express x16 slots	2

Specification	Value
Power supply	255 W
Power supply input voltage	100 - 240 V
Power supply input frequency	50 - 60 Hz

Specification	Value
Operating system installed	Windows 7 Professional
Operating system architecture	64-bit
Operating system language	Multilingual
Recovery operating system	Windows 8.1
Drivers included	Yes
Trial software	Microsoft Office

Specification	Value
Display included	No

Specification	Value
CPU configuration (max)	1
Embedded options available	No
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Graphics & IMC lithography	22 nm
Idle States	Yes
Intel 64	Yes
Intel Enhanced Halt State	Yes
Intel Secure Key Technology version	1.00
Intel Small Business Advantage (SBA) version	1.00
Intel Stable Image Platform Program (SIPP)	No
Intel Stable Image Platform Program (SIPP) version	0.00
Intel TSX-NI	No
Intel TSX-NI version	0.00
Intel Trusted Execution Technology	No
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	No
Intel® AES New Instructions (Intel® AES-NI)	Yes
Intel® Clear Video HD Technology (Intel® CVT HD)	Yes
Intel® InTru™ 3D Technology	Yes
Intel® Secure Key	Yes
Intel® Smart Cache	Yes
Intel® Wireless Display (Intel® WiDi)	Yes
Processor ARK ID	77488
Processor code	SR1PK
Processor package size	37.5 x 37.5 mm
Scalability	1S
Supported instruction sets	AVX 2.0, SSE4.1, SSE4.2
Thermal Monitoring Technologies	Yes
Thermal solution specification	PCG 2013C
Intel® Turbo Boost Technology	No
Intel® Hyper Threading Technology (Intel® HT Technology)	Yes
Intel® Quick Sync Video Technology	Yes
Conflict-Free processor	Yes
