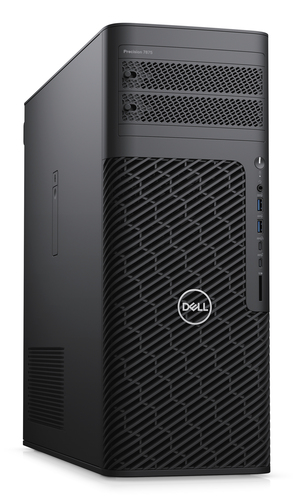

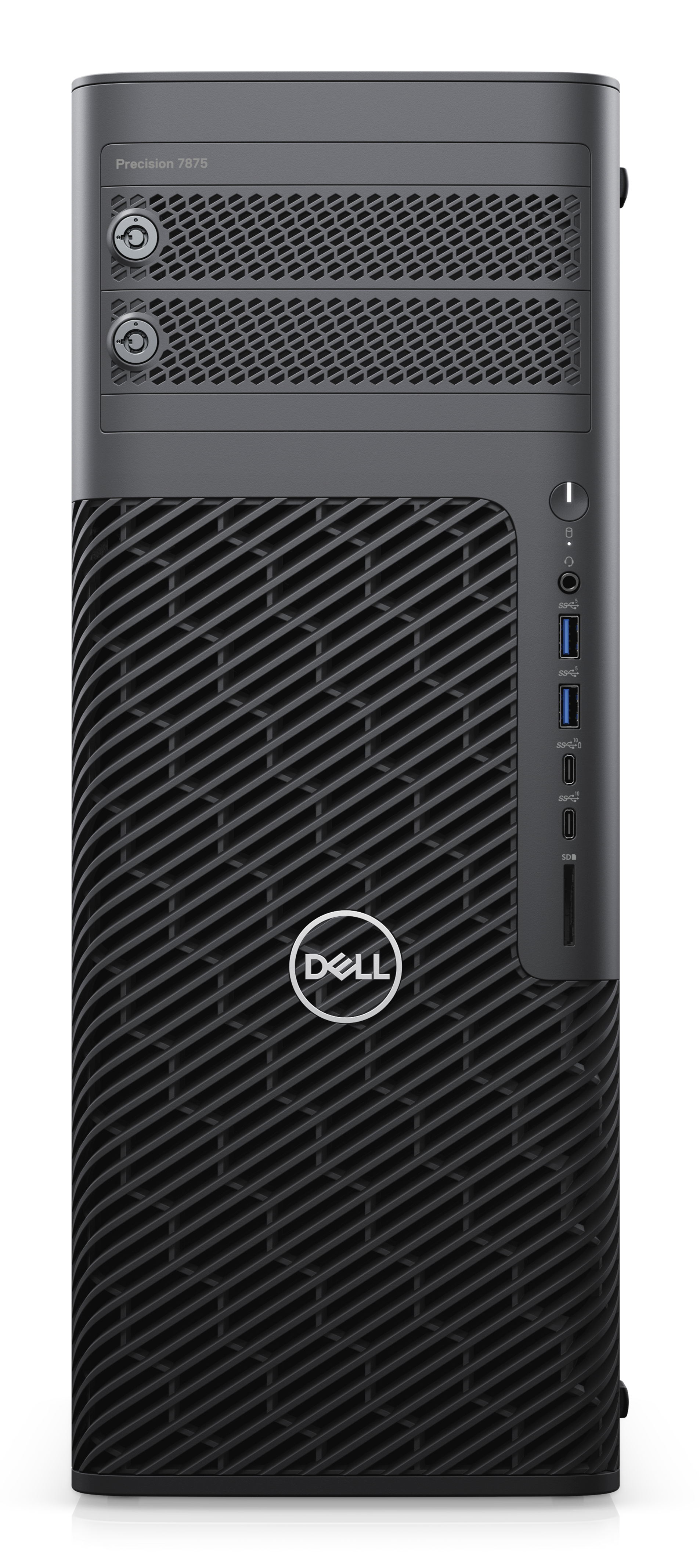

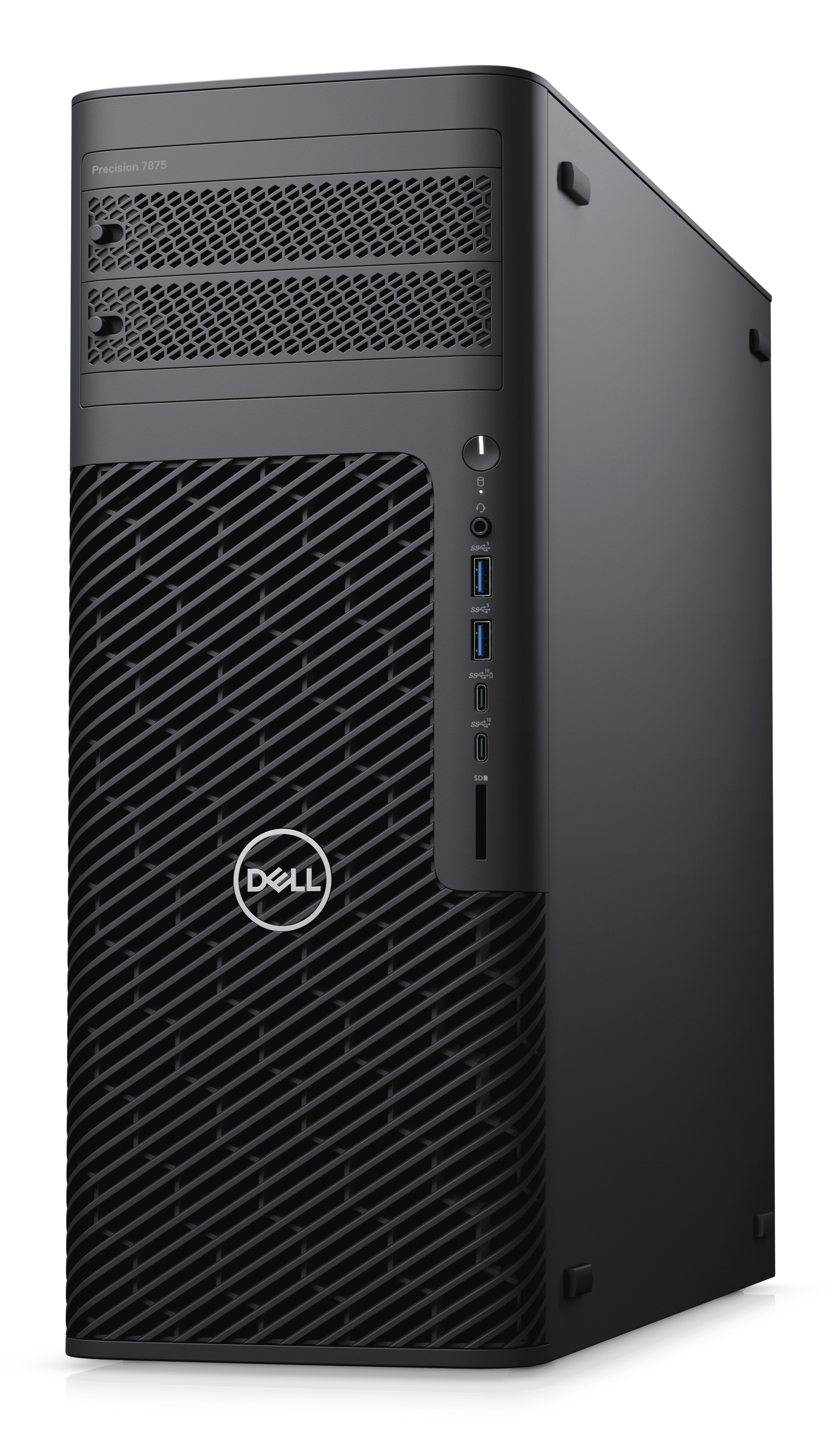

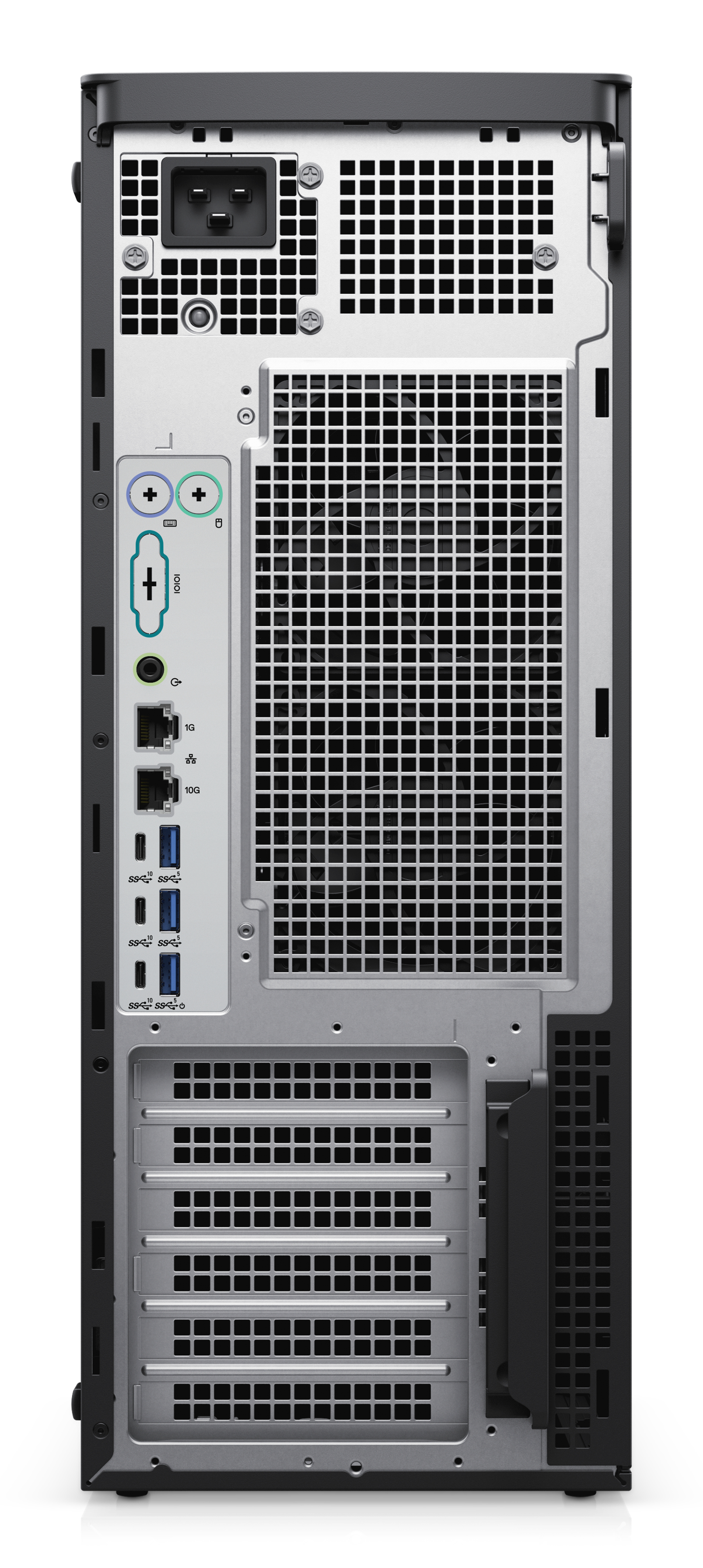

Precision 7875 AMD Ryzen Threadripper PRO PRO 7975WX
128 GB DDR5-SDRAM 2 TB SSD AMD Radeon Pro W6400 Red Hat Enterprise Linux Tower PC Black
Model 7875Part no. XCTOPT7875MTCAAI_VPEAN 5397184865033
86 specifications
- ProcessorAMD Ryzen Threadripper PRO
- Memory128 GB
- Storage2 TB
- GraphicsAMD Radeon Pro W6400
- TypePC
- OSRed Hat Enterprise Linux
Overview
- Processor
- AMD Ryzen Threadripper PRO
- Memory
- 128 GB
- Storage
- 2 TB
- Graphics
- AMD Radeon Pro W6400
- Type
- PC
- OS
- Red Hat Enterprise Linux
- Brand
- Dell
- Category
- PCs/Workstations
- Model
- 7875
- Part numbers
- XCTOPT7875MTCAAI_VP, XCTOPT7875EMEA_VP, AWF7875T_VP, XCTOPT7875MTCA_VP, XCTOPT7875MTUS_VP, NJW15 +1 more
- EAN / UPC
- 5397184865033
- Also known as
- DELL Precision 7875 AMD Ryzen Threadripper PRO PRO 7975WX 128 GB DDR5-SDRAM 2 TB SSD AMD Radeon Pro W6400 Red Hat Enterprise Linux Tower PC Black
Specifications
86 specifications in 17 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | AMD |
| Processor family | AMD Ryzen Threadripper PRO |
| Processor generation | AMD Ryzen Threadripper PRO 7000 WX-Series |
| Processor model | PRO 7975WX |
| Processor cores | 32 |
| Processor threads | 64 |
| Processor boost frequency | 5.3 GHz |
| Processor frequency | 4 GHz |
| Processor base power | 350 W |
Memory
| Specification | Value |
|---|---|
| Internal memory | 128 GB |
| Maximum internal memory | 2 TB |
| Internal memory type | DDR5-SDRAM |
| Memory layout (slots x size) | 8 x 16 GB |
| Memory slots | 8x DIMM |
| Buffered memory type | Registered (buffered) |
| ECC | Yes |
| Memory data transfer rate | 5200 MT/s |
Storage
| Specification | Value |
|---|---|
| Total storage capacity | 2 TB |
| Optical drive type | No |
| Storage media | SSD |
| Number of storage drives installed | 2 |
| Total SSDs capacity | 2 TB |
| Number of SSDs installed | 2 |
| SSD capacity | 1 TB |
| NVMe | Yes |
| SSD interface | PCI Express 4.0 |
| SSD form factor | M.2 |
| SSD performance class | 40 |
Graphics
| Specification | Value |
|---|---|
| Discrete graphics card | Yes |
| On-board graphics card | No |
| Discrete GPU manufacturer | AMD |
| Discrete graphics card model | AMD Radeon Pro W6400 |
| Discrete graphics card memory | 4 GB |
| Discrete graphics memory type | GDDR6 |
| Number of discrete graphics cards | 1 |
| On-board graphics card model | Not available |
| Graphics card DisplayPorts quantity | 2 |
Performance
| Specification | Value |
|---|---|
| Product type | PC |
| Market positioning | Business |
| Trusted Platform Module (TPM) | Yes |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100,1000,10000 Mbit/s |
| Wi-Fi | No |
Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 0 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 5 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 5 |
| PowerShare | Yes |
| Thunderbolt 3 ports quantity | 0 |
| HDMI ports quantity | 0 |
| Ethernet LAN (RJ-45) ports | 2 |
| Combo headphone/mic port | Yes |
| Line-out | Yes |
| Number of front USB ports | 4 |
| Number of front audio ports | 1 |
| Number of rear USB ports | 6 |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x8 (Gen 4.x) slots | 3 |
| PCI Express x16 (Gen 4.x) slots | 1 |
| PCI Express x16 (Gen 5.x) slots | 1 |
Power
| Specification | Value |
|---|---|
| Power supply | 1350 W |
| Power supply input voltage | 90 - 264 V |
| Power supply input frequency | 47/63 Hz |
| 80 PLUS certification | 80 PLUS Platinum |
Design
| Specification | Value |
|---|---|
| Chassis type | Tower |
| Placement supported | Vertical |
| Product colour | Black |
| Viewing window | No |
Software
| Specification | Value |
|---|---|
| Operating system installed | Red Hat Enterprise Linux |
Display
| Specification | Value |
|---|---|
| Display included | No |
Audio
| Specification | Value |
|---|---|
| Audio chip | Realtek ALC3246 |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 35 °C |
| Storage temperature (T-T) | -40 - 65 °C |
| Operating relative humidity (H-H) | 20 - 80% |
| Storage relative humidity (H-H) | 5 - 95% |
| Operating altitude | -15.2 - 3048 m |
| Non-operating altitude | -15.2 - 10668 m |
| Operating vibration | 0.52 G |
| Non-operating vibration | 2 G |
| Operating shock | 40 G |
| Non-operating shock | 105 G |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 172.6 mm |
| Depth | 465 mm |
| Height | 442.7 mm |
Packaging content
| Specification | Value |
|---|---|
| Cables included | AC |
Sustainability
| Specification | Value |
|---|---|
| Sustainability certificates | ENERGY STAR, EPEAT Gold |
