7070 UFF
Model 7070 UFFPart no. D53MWEAN 5397184334898
155 specifications
- ProcessorIntel® Core™ i3
- Memory8 GB
- Storage256 GB
- GraphicsNot available
- SpeedWi-Fi 6 (802.11ax)
- TypeMini PC
Overview
- Processor
- Intel® Core™ i3
- Memory
- 8 GB
- Storage
- 256 GB
- Graphics
- Not available
- Speed
- Wi-Fi 6 (802.11ax)
- Type
- Mini PC
- Brand
- Dell
- Category
- PCs/Workstations
- Model
- 7070 UFF
- Part numbers
- D53MW, S007O7070UFFMMCLAUS, S013O7070UFFMMCLAUS, S005O7070UFFUS, CTO01O7070UFFUS, S004O7070UFFUS +27 more
- EAN / UPC
- 5397184334898, 5397184334836, 5397184334799, 5397184334751 +5 more
- Also known as
- DELL OptiPlex 7070 UFF Intel® Core™ i3 i3-8145U 8 GB DDR4-SDRAM 256 GB SSD Windows 10 Pro Mini PC Black
Specifications
155 specifications in 17 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel® Core™ i3 |
| Processor generation | 8th gen Intel® Core™ i3 |
| Processor model | i3-8145U |
| Processor cores | 2 |
| Processor threads | 4 |
| Processor boost frequency | 3.9 GHz |
| Processor frequency | 2.1 GHz |
| Processor cache | 4 MB |
| Processor cache type | Smart Cache |
| Bus type | OPI |
| System bus rate | 4 GT/s |
| Processor lithography | 14 nm |
| Processor operating modes | 64-bit |
| Processor codename | Whiskey Lake |
| Thermal Design Power (TDP) | 15 W |
| Configurable TDP-up | 25 W |
| Configurable TDP-up frequency | 2.3 GHz |
| Configurable TDP-down | 10 W |
| Configurable TDP-down frequency | 0.8 GHz |
| Tjunction | 100 °C |
| Maximum number of PCI Express lanes | 16 |
| PCI Express configurations | 1x2+2x1, 1x4, 2x2, 4x1 |
| PCI Express slots version | 3.0 |
| Number of processors installed | 1 |
| Processor socket | BGA 1528 |
| Maximum internal memory supported by processor | 32 GB |
| Memory types supported by processor | DDR4-SDRAM, LPDDR3-SDRAM |
| Memory clock speeds supported by processor | 2133,2400 MHz |
| Memory bandwidth supported by processor (max) | 37.5 GB/s |
Memory
| Specification | Value |
|---|---|
| Internal memory | 8 GB |
| Maximum internal memory | 64 GB |
| Internal memory type | DDR4-SDRAM |
| Memory layout (slots x size) | 1 x 8 GB |
| Memory slots | 2x SO-DIMM |
| Memory clock speed | 2666 MHz |
Storage
| Specification | Value |
|---|---|
| Total storage capacity | 256 GB |
| Optical drive type | No |
| Storage media | SSD |
| Number of storage drives installed | 1 |
| Total SSDs capacity | 256 GB |
| Number of SSDs installed | 1 |
| SSD capacity | 256 GB |
| SSD interface | PCI Express |
| SSD form factor | M.2 |
| Card reader integrated | No |
Graphics
| Specification | Value |
|---|---|
| Discrete graphics card | No |
| On-board graphics card | Yes |
| Discrete graphics card model | Not available |
| On-board graphics card model | Intel® UHD Graphics |
| Maximum on-board graphics card memory | 32 GB |
| Number of displays supported (on-board graphics) | 3 |
| On-board graphics card base frequency | 300 MHz |
| On-board graphics card dynamic frequency (max) | 1000 MHz |
| On-board graphics card DirectX version | 12.0 |
| On-board graphics card ID | 0x3EA0 |
| On-board graphics card OpenGL version | 4.5 |
Performance
| Specification | Value |
|---|---|
| Product type | Mini PC |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Cabling technology | 10/100/1000Base-T(X) |
| Wi-Fi | Yes |
| Top Wi-Fi standard | Wi-Fi 6 (802.11ax) |
| Wi-Fi standards | Wi-Fi 6 (802.11ax) |
| WLAN controller model | Intel Wi-Fi 6 AX200 |
| Antenna type | 2x2 |
| Bluetooth | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 0 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 2 |
| Number of USB ports with PowerShare support | 1 |
| PowerShare | Yes |
| Thunderbolt 3 ports quantity | 0 |
| HDMI ports quantity | 0 |
| Ethernet LAN (RJ-45) ports | 1 |
| Combo headphone/mic port | Yes |
| Headphone outputs | 0 |
| Microphone in | No |
| VGA (D-Sub) ports quantity | 0 |
| DVI port | No |
| DC-in jack | Yes |
| On/off button | Yes |
Power
| Specification | Value |
|---|---|
| Power supply | 65 W |
| Power supply input voltage | 100 - 240 V |
| Power supply input frequency | 50 - 60 Hz |
Design
| Specification | Value |
|---|---|
| Chassis type | UFF |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| Product colour | Black |
Software
| Specification | Value |
|---|---|
| Operating system installed | Windows 10 Pro |
| Operating system architecture | 64-bit |
| Operating system language | Multilingual |
| Trial software | Microsoft Office |
Display
| Specification | Value |
|---|---|
| Display included | No |
Processor special features
| Specification | Value |
|---|---|
| CPU configuration (max) | 1 |
| Embedded options available | No |
| Enhanced Intel SpeedStep Technology | Yes |
| Execute Disable Bit | Yes |
| Idle States | Yes |
| Intel 64 | Yes |
| Intel Clear Video Technology | Yes |
| Intel Enhanced Halt State | Yes |
| Intel Flex Memory Access | Yes |
| Intel Identity Protection Technology version | 1.00 |
| Intel Secure Key Technology version | 1.00 |
| Intel Smart Response Technology version | 1.00 |
| Intel Software Guard Extensions (Intel SGX) | Yes |
| Intel TSX-NI | No |
| Intel TSX-NI version | 0.00 |
| Intel Trusted Execution Technology | No |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Intel® Clear Video HD Technology (Intel® CVT HD) | Yes |
| Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID) | Yes |
| Intel® OS Guard | Yes |
| Intel® Secure Key | Yes |
| Processor ARK ID | 149090 |
| Processor package size | 46x24 mm |
| Supported instruction sets | AVX 2.0, SSE4.1, SSE4.2 |
| Thermal Monitoring Technologies | Yes |
| Intel® Smart Response Technology | Yes |
| Intel® Turbo Boost Technology | 2.0 |
| Intel® Hyper Threading Technology (Intel® HT Technology) | Yes |
| Intel® Quick Sync Video Technology | Yes |
| Intel® My WiFi Technology (Intel® MWT) | Yes |
| Intel® Identity Protection Technology (Intel® IPT) | Yes |
Audio
| Specification | Value |
|---|---|
| Audio chip | Realtek ALC3204-CG |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 35 °C |
| Storage temperature (T-T) | -40 - 65 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 0 - 95% |
| Operating altitude | -15.2 - 3048 m |
| Non-operating altitude | -15.2 - 10668 m |
| Operating vibration | 0.66 G |
| Non-operating vibration | 1.3 G |
| Operating shock | 110 G |
| Non-operating shock | 160 G |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 96.1 mm |
| Depth | 27.7 mm |
| Height | 256.2 mm |
| Weight | 650 g |
Packaging data
| Specification | Value |
|---|---|
| Package width | 494 mm |
| Package depth | 297 mm |
| Package height | 213 mm |
| Package weight | 5.33 kg |
Packaging content
| Specification | Value |
|---|---|
| Mouse included on selected markets only | Yes |
| Keyboard included on selected markets only | Yes |

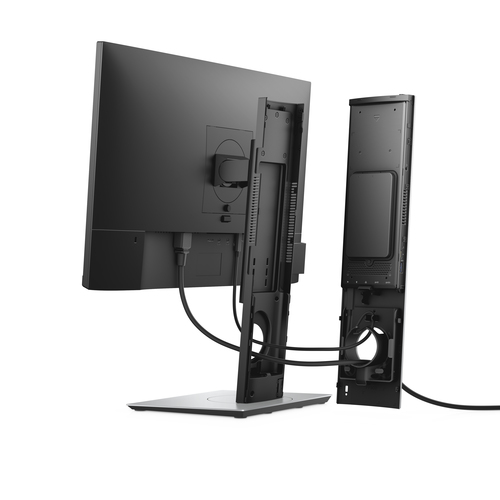

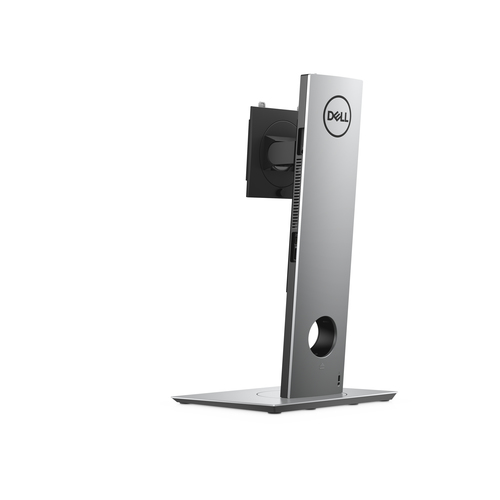

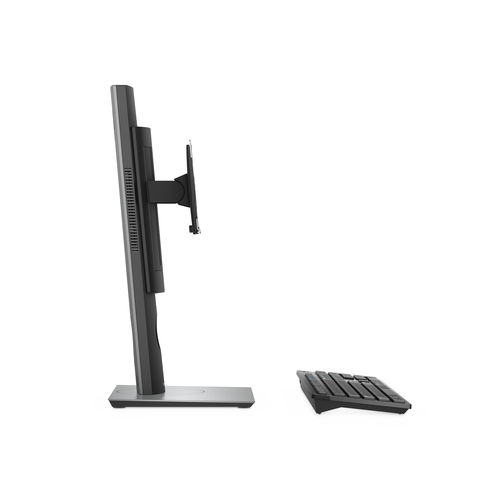

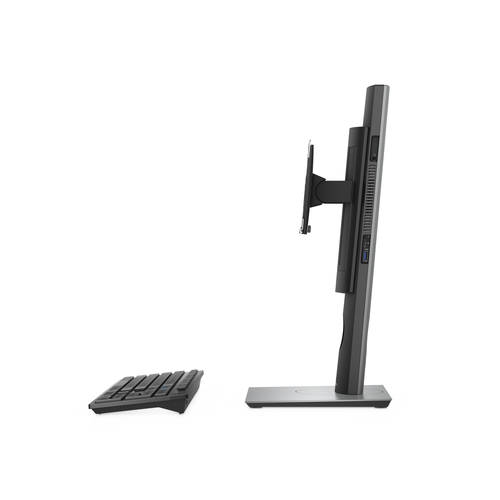

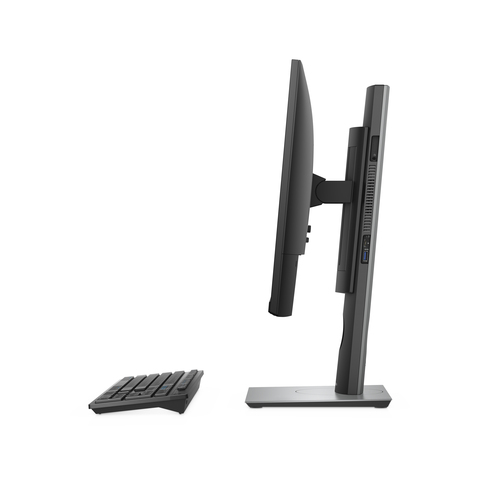

| Stand type | Height adjustable stand |
| AC adapter included | Yes |
| Manual | Yes |
| Power cord included | Yes |
