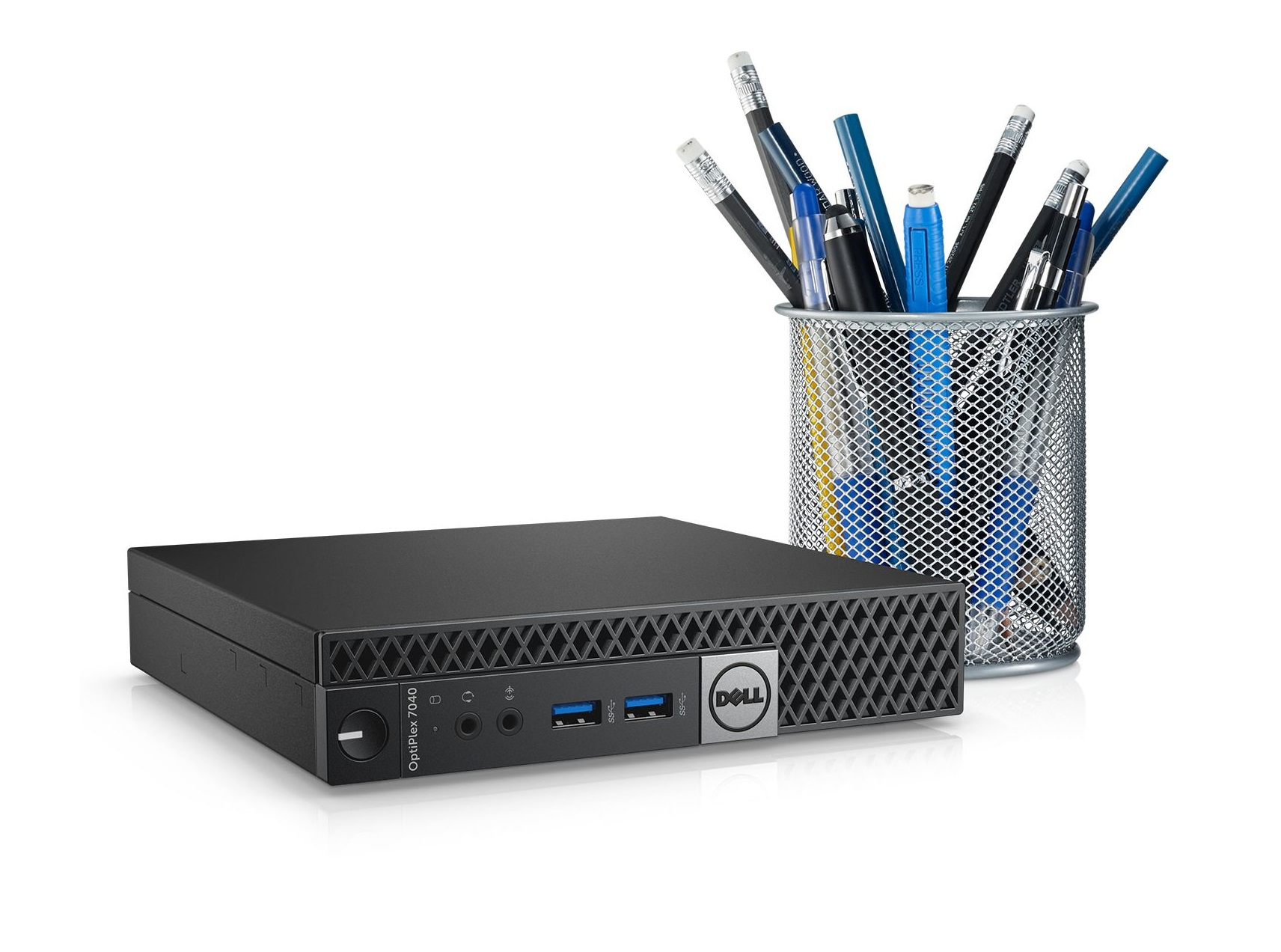

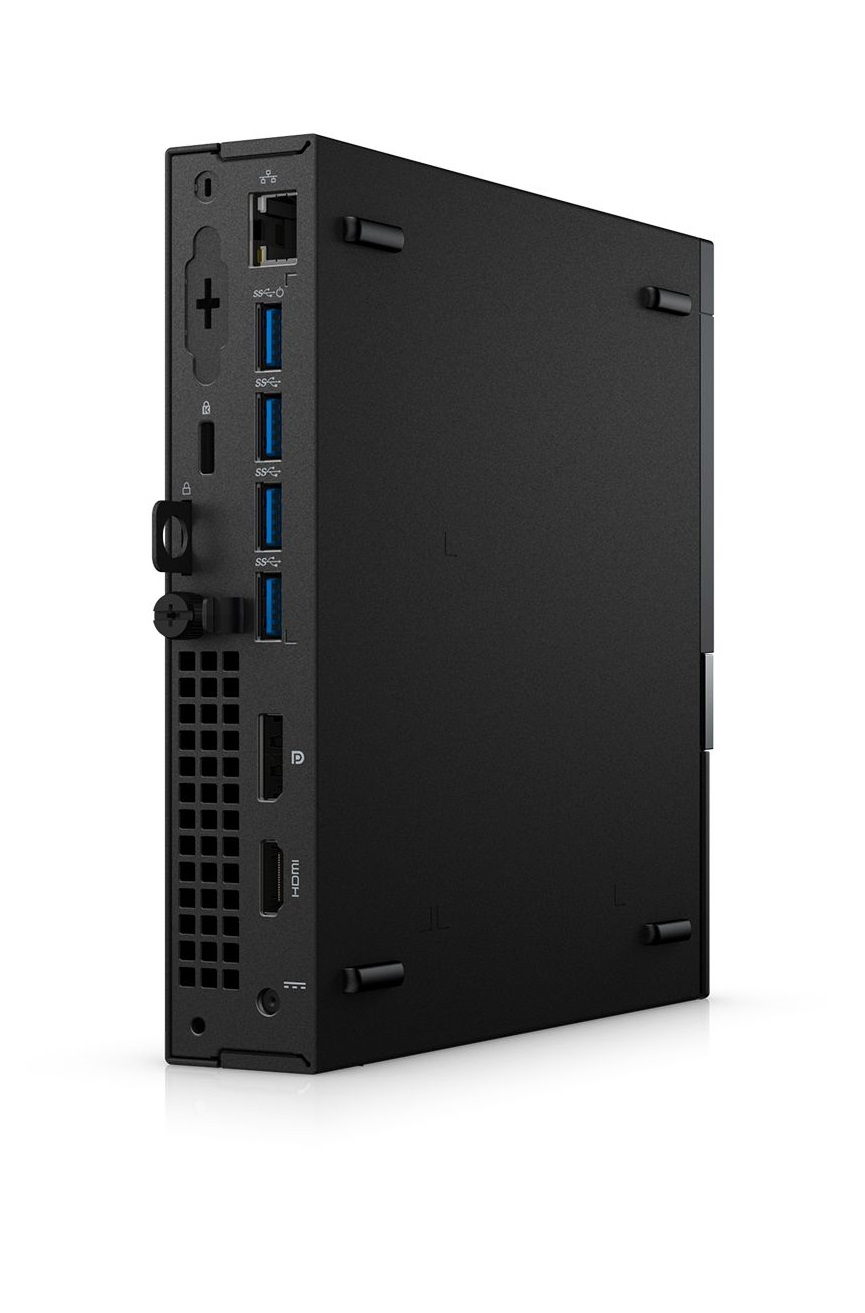

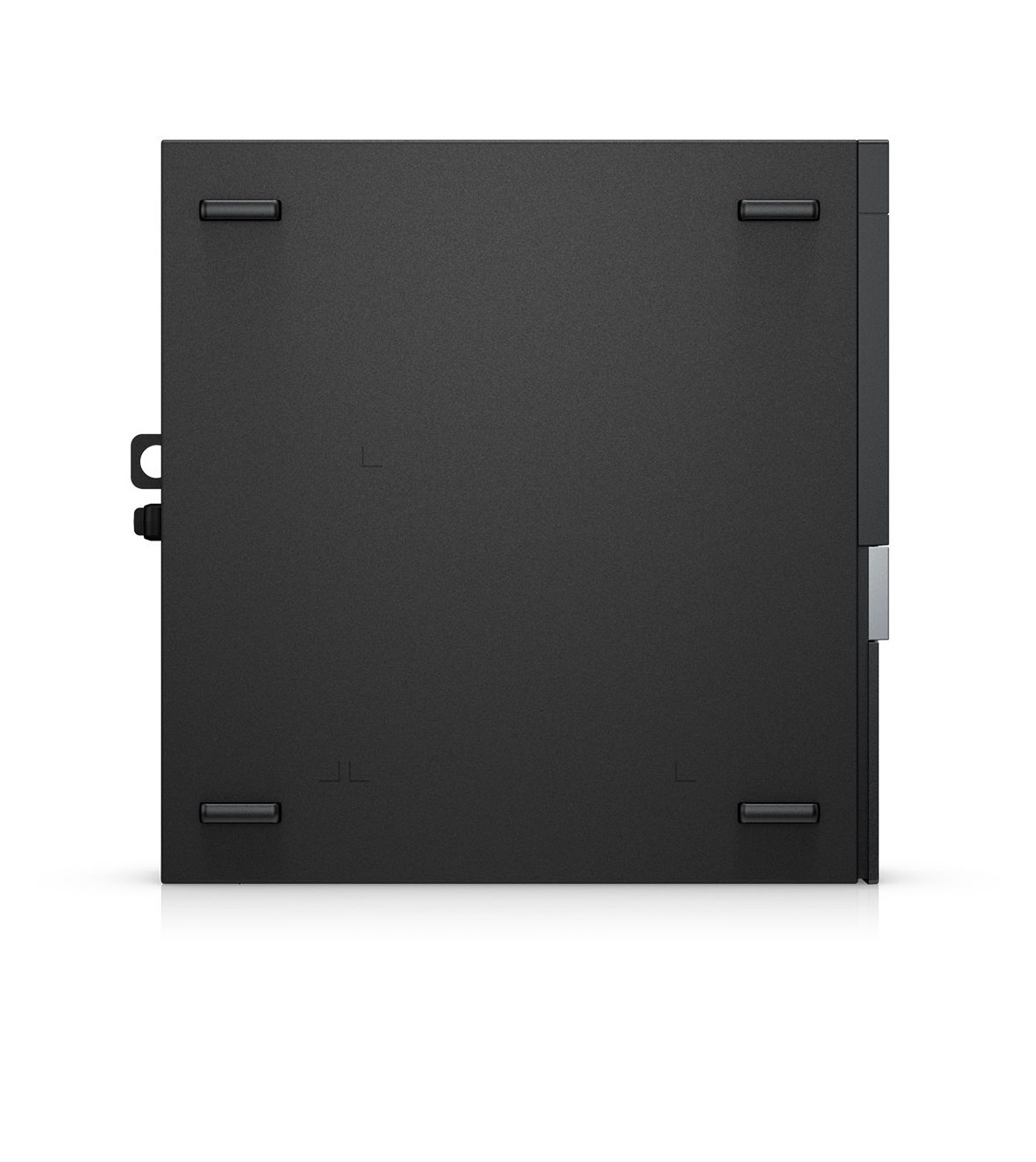

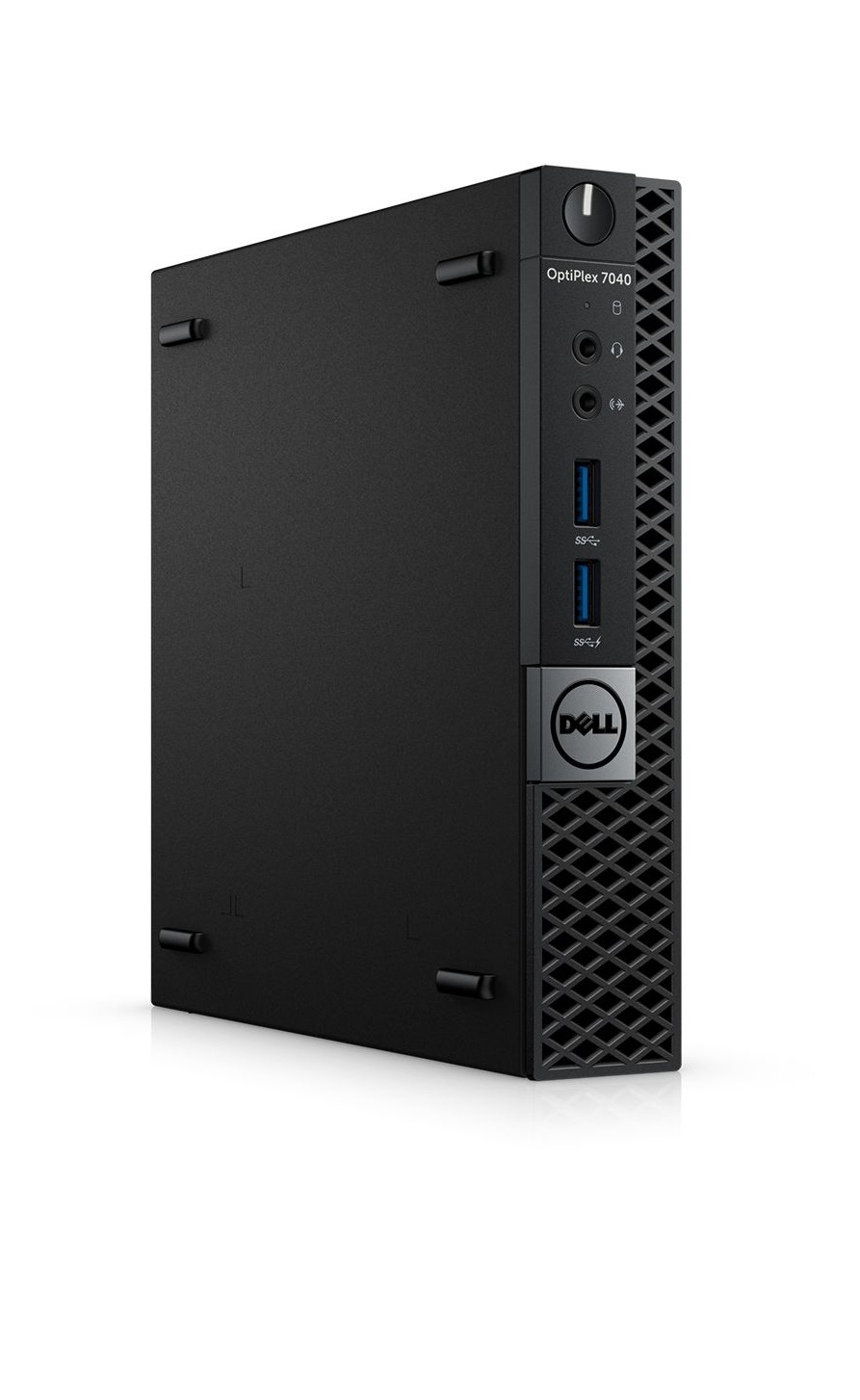

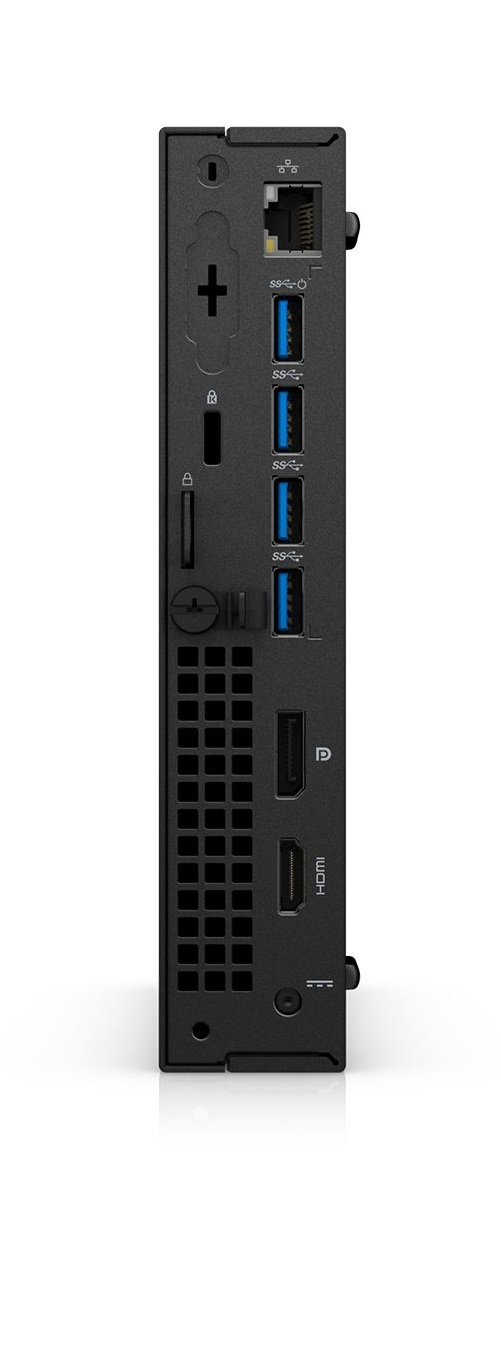

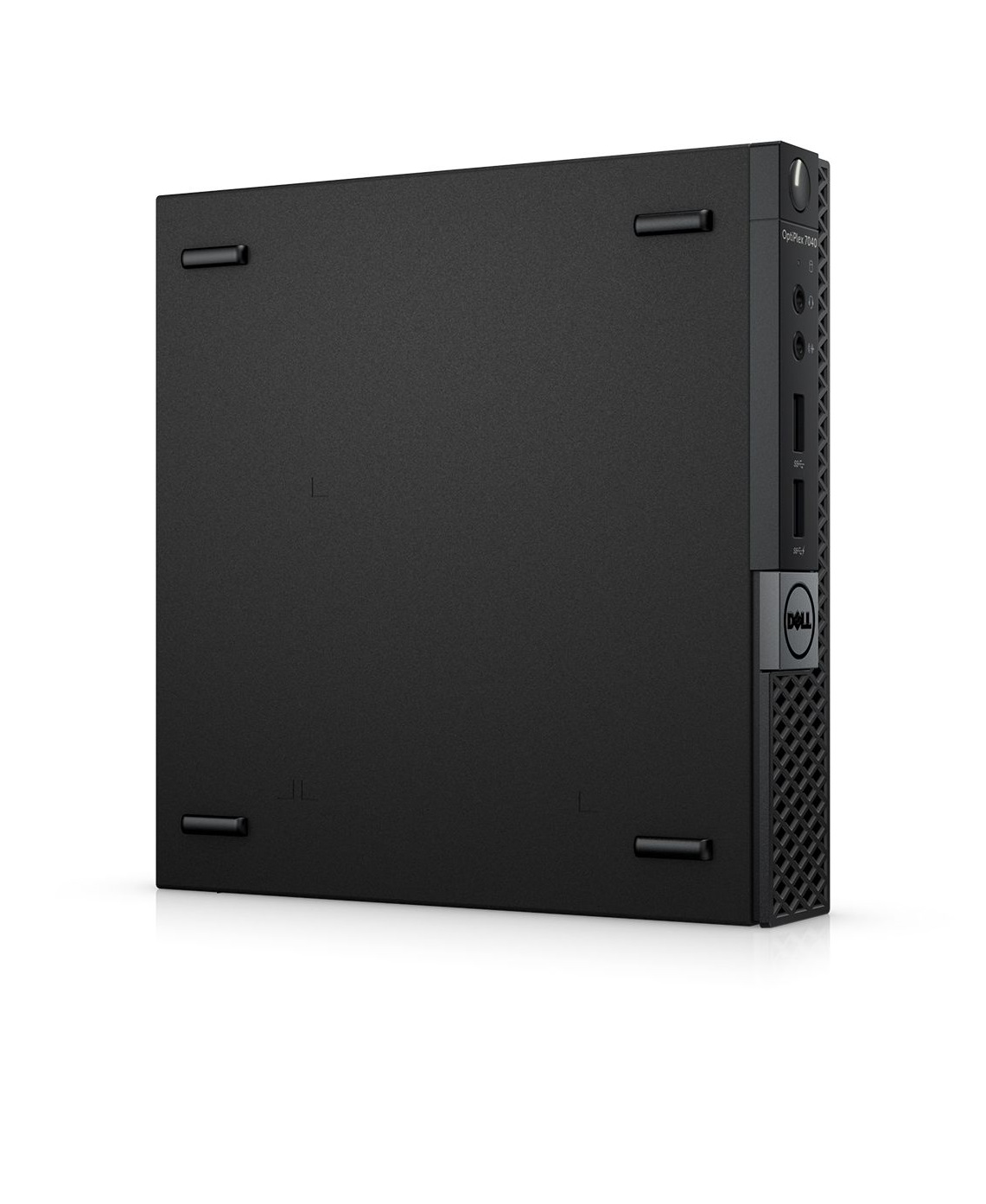

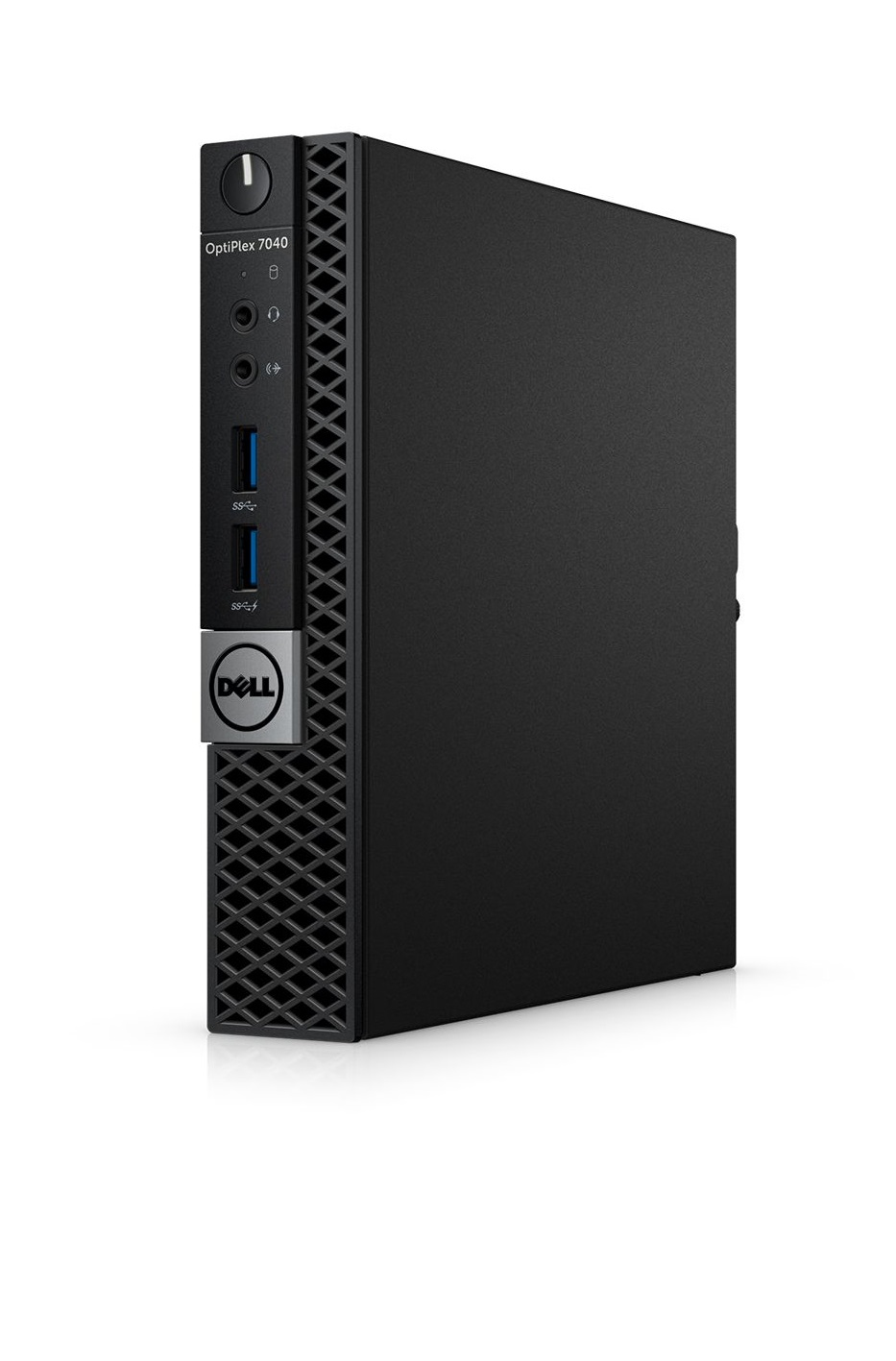

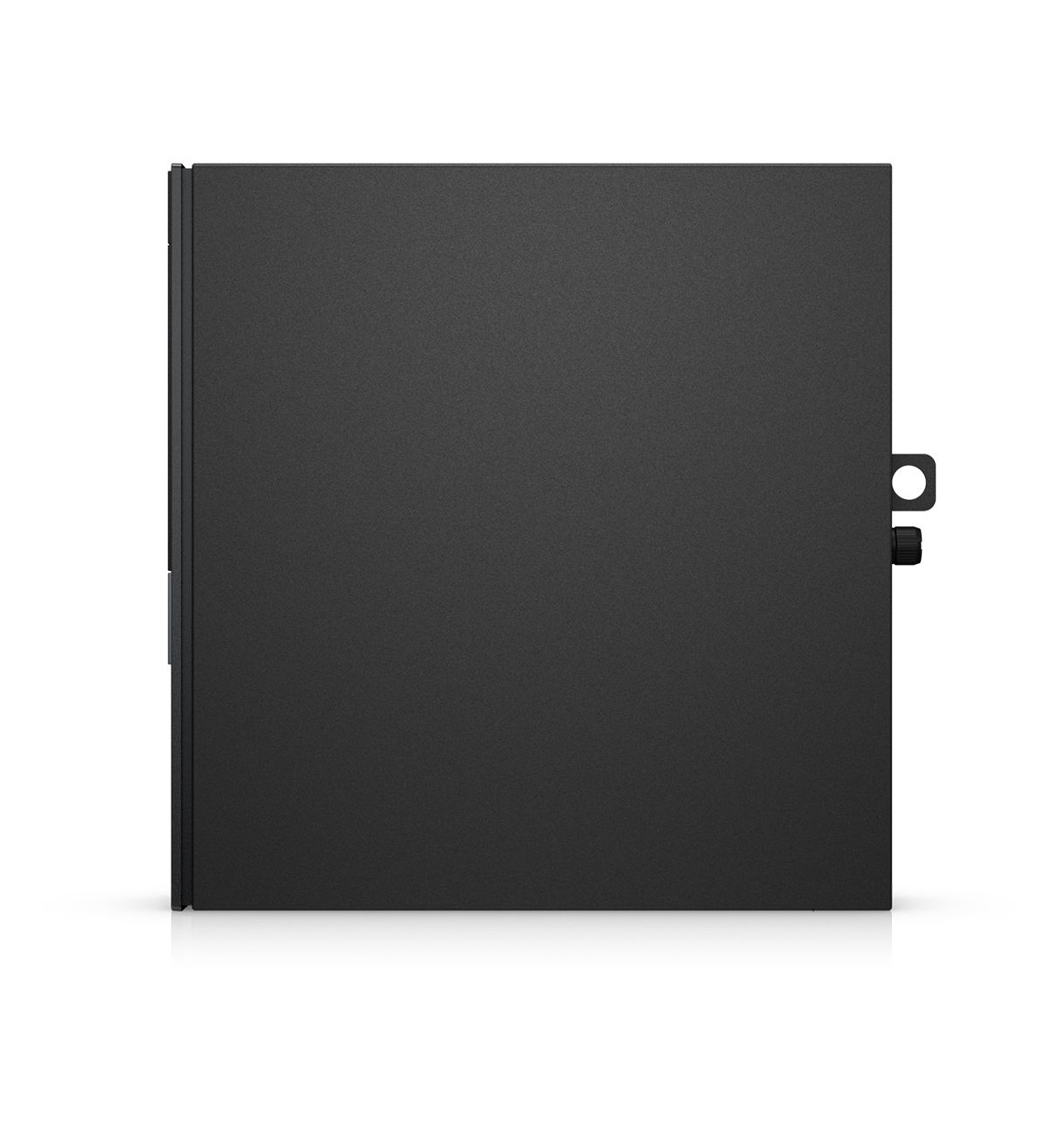

7040 MFF + Microsoft Office Home & Student 2016

Model 7040 MFF + Microsoft Office Home & Student 2016Part no. FGXK4+630-ABDL

157 specifications

ProcessorIntel® Core™ i7
Memory8 GB
Storage500 GB
TypeMini PC
OSWindows 10 Pro
Weight1.28 kg

See all specifications

Overview

Processor: Intel® Core™ i7
Memory: 8 GB
Storage: 500 GB
Type: Mini PC
OS: Windows 10 Pro
Weight: 1.28 kg

Brand: Dell
Category: PCs/Workstations
Model: 7040 MFF + Microsoft Office Home & Student 2016
Part number: FGXK4+630-ABDL
Also known as: DELL OptiPlex 7040 MFF + Microsoft Office Home & Student 2016 Intel® Core™ i7 i7-6700T 8 GB DDR4-SDRAM 500 GB HDD Windows 10 Pro Mini PC Black

Specifications

157 specifications in 18 groups

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Core™ i7
Processor generation	6th gen Intel® Core™ i7
Processor model	i7-6700T
Processor cores	4
Processor threads	8
Processor boost frequency	3.6 GHz
Processor frequency	2.8 GHz
Processor cache	8 MB
Processor cache type	Smart Cache
Bus type	DMI3
System bus rate	8 GT/s
Processor lithography	14 nm
Processor operating modes	64-bit
Processor series	Intel Core i7-6700 Desktop series
Processor codename	Skylake
Thermal Design Power (TDP)	35 W
Tcase	66 °C
Maximum number of PCI Express lanes	16
PCI Express configurations	1x16, 2x8, 1x8+2x4
PCI Express slots version	3.0
Number of processors installed	1
Processor socket	LGA 1151 (Socket H4)
Stepping	R0
Maximum internal memory supported by processor	64 GB
Memory types supported by processor	DDR3L-SDRAM, DDR4-SDRAM
Memory clock speeds supported by processor	2133,1333,1600,1866 MHz
Memory bandwidth supported by processor (max)	34.1 GB/s
ECC supported by processor	No
Memory voltage supported by processor	1.35 V

Memory

Specification	Value
Internal memory	8 GB
Maximum internal memory	16 GB
Internal memory type	DDR4-SDRAM
Memory layout (slots x size)	1 x 8 GB
Memory slots	2x SO-DIMM
Memory clock speed	2133 MHz
Memory channels	Dual-channel

Storage

Specification	Value
Total storage capacity	500 GB
Optical drive type	No
Storage media	HDD
Number of storage drives installed	1
Number of HDDs installed	1
HDD capacity	500 GB
HDD interface	SATA III
HDD speed	7200 RPM
HDD size	2.5"
Card reader integrated	No

Graphics

Specification	Value
Discrete graphics card	No
On-board graphics card	Yes
On-board graphics card model	Intel® HD Graphics 530
Maximum on-board graphics card memory	1.74 GB
Number of displays supported (on-board graphics)	3
On-board graphics card base frequency	350 MHz
On-board graphics card dynamic frequency (max)	1100 MHz
On-board graphics card DirectX version	12.0
On-board graphics card ID	1912
On-board graphics card OpenGL version	4.4

Performance

Specification	Value
Product type	Mini PC
Motherboard chipset	Intel® Q170
Password protection	Yes

Network

Specification	Value
Ethernet LAN	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Cabling technology	10/100Base-T(X)
Wi-Fi	Yes
Bluetooth	Yes

Ports & interfaces

Specification	Value
USB 2.0 ports quantity	0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	6
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	0
Thunderbolt 3 ports quantity	0
DisplayPorts quantity	1
HDMI ports quantity	1
Ethernet LAN (RJ-45) ports	1
Combo headphone/mic port	Yes
Headphone outputs	0
Line-out	Yes
Microphone in	No
VGA (D-Sub) ports quantity	0
DVI port	No
Mini HDMI ports quantity	1
DC-in jack	Yes

Power

Specification	Value
Power supply	65 W
Power supply input voltage	100 - 240 V
Power supply input frequency	50 - 60 Hz

Design

Specification	Value
Chassis type	Mini PC
Volume	1.2 L
Placement supported	Horizontal/Vertical
Number of 2.5" bays	1
Cable lock slot	Yes
Cable lock slot type	Kensington
Product colour	Black

Software

Specification	Value
Operating system installed	Windows 10 Pro
Operating system architecture	64-bit
Drivers included	Yes
Bundled software	Microsoft Office Home & Student 2016

Display

Specification	Value
Display included	No

Processor special features

Specification	Value
CPU configuration (max)	1
Embedded options available	No
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Graphics & IMC lithography	14 nm
Idle States	Yes
Intel 64	Yes
Intel Clear Video Technology	Yes
Intel Enhanced Halt State	Yes
Intel Identity Protection Technology version	1.00
Intel Secure Key Technology version	1.00
Intel Small Business Advantage (SBA) version	1.00
Intel Software Guard Extensions (Intel SGX)	Yes
Intel Stable Image Platform Program (SIPP)	Yes
Intel Stable Image Platform Program (SIPP) version	1.00
Intel TSX-NI	Yes
Intel TSX-NI version	1.00
Intel Trusted Execution Technology	Yes
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Intel® AES New Instructions (Intel® AES-NI)	Yes
Intel® Clear Video HD Technology (Intel® CVT HD)	Yes
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)	Yes
Intel® InTru™ 3D Technology	Yes
Intel® Insider™	Yes
Intel® OS Guard	Yes
Intel® Secure Key	Yes
Intel® Small Business Advantage (Intel® SBA)	Yes
Intel® Wireless Display (Intel® WiDi)	Yes
Processor ARK ID	88200
Processor code	SR2BU
Processor package size	37.5 x 37.5 mm
Scalability	1S
Supported instruction sets	SSE4.2, AVX 2.0, SSE4.1
Thermal Monitoring Technologies	Yes
Thermal solution specification	PCG 2015A
Intel® Turbo Boost Technology	2.0
Intel® Hyper Threading Technology (Intel® HT Technology)	Yes
Intel® Quick Sync Video Technology	Yes
Intel® Identity Protection Technology (Intel® IPT)	Yes
Conflict-Free processor	Yes

Operational conditions

Specification	Value
Operating temperature (T-T)	0 - 35 °C
Storage temperature (T-T)	-40 - 65 °C
Operating relative humidity (H-H)	20 - 80%
Storage relative humidity (H-H)	5 - 95%
Operating altitude	-15.2 - 3048 m
Non-operating altitude	-15.2 - 10668 m
