620 MT

Model 620 MTPart no. I62G63_450LBEAN 884116070856

113 specifications

Overview

Brand: Dell
Category: PCs/Workstations
Model: 620 MT
Part number: I62G63_450LB
EAN / UPC: 884116070856

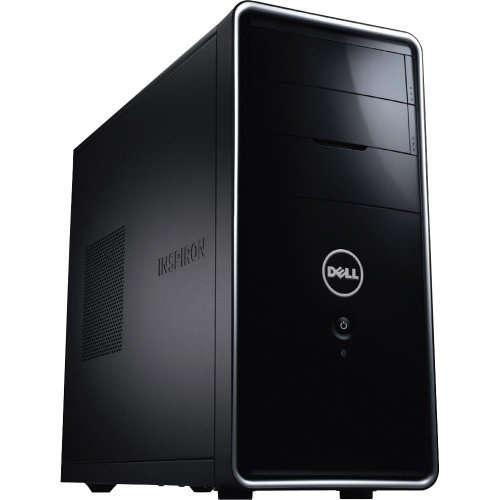

Also known as: DELL Inspiron 620 MT Intel Pentium G G630 4 GB DDR3-SDRAM 500 GB Windows 7 Home Basic Mini Tower PC Black

113 specifications in 15 groups

Specification	Value
Processor manufacturer	Intel
Processor family	Intel Pentium G
Processor model	G630
Processor cores	2
Processor threads	2
Processor frequency	2.7 GHz
Processor cache	3 MB
Processor cache type	Smart Cache
Bus type	DMI
System bus rate	5 GT/s
Processor lithography	32 nm
Processor operating modes	64-bit
Processor series	Intel Pentium G600 Series for Desktop
Processor codename	Sandy Bridge
Thermal Design Power (TDP)	65 W
Tcase	69.1 °C
PCI Express slots version	2.0
Number of processors installed	1
Processor socket	LGA 1155 (Socket H2)
CPU multiplier (bus/core ratio)	27
Platform	PC
Stepping	Q0
Maximum internal memory supported by processor	32 GB
Memory types supported by processor	DDR3-SDRAM
Memory clock speeds supported by processor	1066 MHz
Memory bandwidth supported by processor (max)	17 GB/s

Specification	Value
On-board graphics card	Yes
On-board graphics card family	Intel® HD Graphics
On-board graphics card model	Intel® HD Graphics
Number of displays supported (on-board graphics)	2
On-board graphics card base frequency	850 MHz
On-board graphics card dynamic frequency (max)	1100 MHz
Graphics card family	Intel

Specification	Value
Product type	PC
Audio output channels	5.1 channels

Specification	Value
Ethernet LAN	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Cabling technology	10/100/1000Base-T(X)
Wi-Fi	Yes
Top Wi-Fi standard	Wi-Fi 4 (802.11n)
Wi-Fi standards	Wi-Fi 4 (802.11n)
Copper ethernet cabling technology	1000BASE-T, 1000BASE-TX, 100BASE-T, 100BASE-TX, 10BASE-T
Ethernet interface type	Gigabit Ethernet
Networking features	Gigabit Ethernet
Wireless technology	Wi-Fi

Specification	Value
USB 2.0 ports quantity	8
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	0
HDMI ports quantity	1
Ethernet LAN (RJ-45) ports	1
Headphone outputs	1
Line-out	Yes
Line-in	Yes
Microphone in	Yes
VGA (D-Sub) ports quantity	1
DVI port	No
PS/2 ports quantity	0
Firewire (IEEE 1394) ports	0
Serial ports quantity	0
Parallel ports quantity	0

Specification	Value
PCI Express x1 slots	3
PCI Express x16 slots	1

Specification	Value
Power supply	300 W

Specification	Value
Chassis type	Mini Tower
Product colour	Black

Specification	Value
Operating system installed	Windows 7 Home Basic
Mac compatibility	No

Specification	Value
CPU configuration (max)	1
Embedded options available	No
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Idle States	Yes
Intel 64	Yes
Intel Dual Display Capable Technology	Yes
Intel Enhanced Halt State	Yes
Intel FDI Technology	Yes
Intel Fast Memory Access	Yes
Intel Flex Memory Access	Yes
Intel Trusted Execution Technology	No
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	No
Intel® AES New Instructions (Intel® AES-NI)	No
Intel® Clear Video HD Technology (Intel® CVT HD)	No
Intel® InTru™ 3D Technology	No
Intel® Insider™	No
Intel® Wireless Display (Intel® WiDi)	No
Processor ARK ID	53483
Processor code	SR05S
Processor package size	37.5 x 37.5 mm
Thermal Monitoring Technologies	Yes
Intel® Turbo Boost Technology	No
Intel® Hyper Threading Technology (Intel® HT Technology)	No
Intel® Quick Sync Video Technology	No
