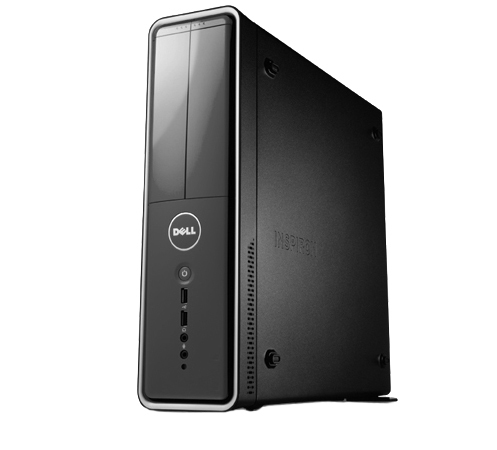

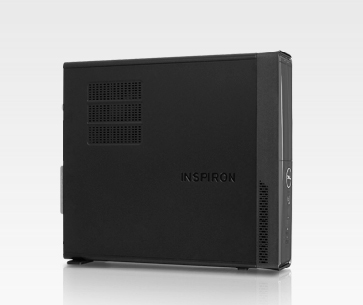

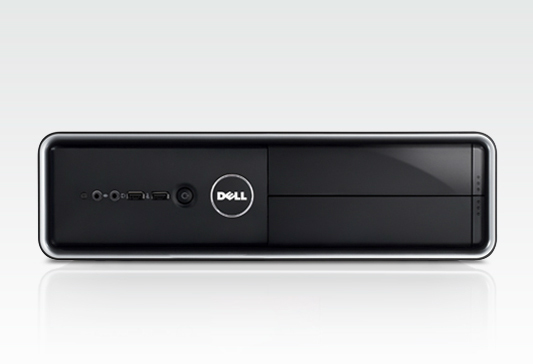

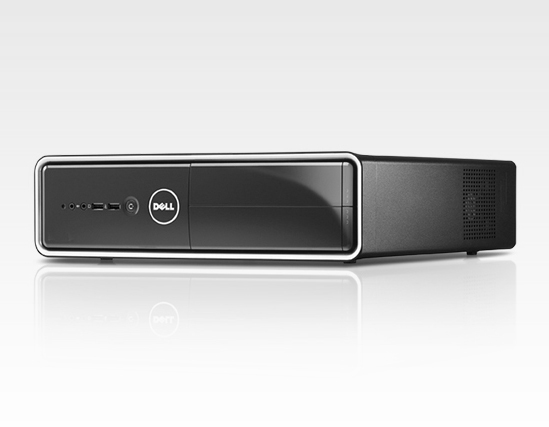

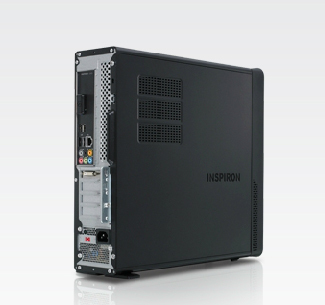

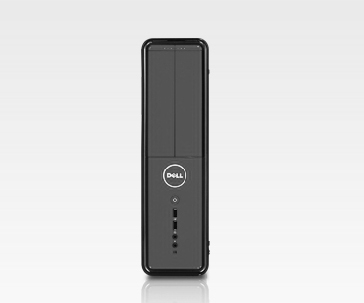

Dell Inspiron 560s Intel® Pentium® E5800

4 GB 1 TB NVIDIA® GeForce® G310M Windows 7 Home Premium Desktop PC Black

Model 560sPart no. 560S-0007

105 specifications

ProcessorIntel® Pentium®
Memory4 GB
Storage1 TB
GraphicsNVIDIA® GeForce® G310M
TypePC
OSWindows 7 Home Premium

See all specifications

Overview

Processor: Intel® Pentium®
Memory: 4 GB
Storage: 1 TB
Graphics: NVIDIA® GeForce® G310M
Type: PC
OS: Windows 7 Home Premium

Brand: Dell
Category: PCs/Workstations
Model: 560s
Part number: 560S-0007
Also known as: DELL Inspiron 560s Intel® Pentium® E5800 4 GB 1 TB NVIDIA® GeForce® G310M Windows 7 Home Premium Desktop PC Black

Specifications

105 specifications in 17 groups

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Pentium®
Processor model	E5800
Processor cores	2
Processor threads	2
Processor frequency	3.2 GHz
Processor cache	2 MB
Processor cache type	Smart Cache
Processor front side bus	800 MHz
Bus type	FSB
FSB Parity	No
Processor lithography	45 nm
Processor operating modes	64-bit
Processor series	Intel Pentium E5000 Series for Desktop
Processor codename	Wolfdale
Thermal Design Power (TDP)	65 W
Tcase	74.1 °C
Number of processors installed	1
Processor socket	LGA 775 (Socket T)
Number of Processing Die Transistors	228 M
Processing Die size	82 mm²
CPU multiplier (bus/core ratio)	16
Maximum number of SMP processors	1
Platform	PC
Stepping	R0
ECC supported by processor	No

Memory

Specification	Value
Internal memory	4 GB
Memory slots	2x DIMM

Storage

Specification	Value
Total storage capacity	1 TB
Optical drive type	DVD-RW

Graphics

Specification	Value
On-board graphics card	No
Discrete graphics card model	NVIDIA® GeForce® G310M
On-board graphics card model	Not available
Graphics card family	NVIDIA

Performance

Specification	Value
Product type	PC

Network

Specification	Value
Ethernet LAN	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Cabling technology	10/100/1000Base-T(X)
Networking features	Gigabit Ethernet

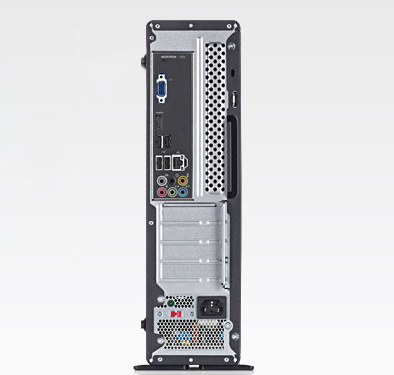

Ports & interfaces

Specification	Value
USB 2.0 ports quantity	6
Ethernet LAN (RJ-45) ports	1
Headphone outputs	1
Line-out	Yes
Line-in	Yes
Microphone in	Yes
VGA (D-Sub) ports quantity	1
DVI port	No
Firewire (IEEE 1394) ports	0

Expansion slots

Specification	Value
Number of 3.5" bays	2
PCI Express x1 slots	2
PCI Express x16 slots	1
PCI slots	1

Power

Specification	Value
Power supply	250 W

Design

Specification	Value
Chassis type	Desktop
Number of 5.25" bays	2
Product colour	Black

Software

Specification	Value
Operating system installed	Windows 7 Home Premium
Operating system architecture	64-bit
Compatible operating systems	Windows 7
Mac compatibility	No

Display

Specification	Value
Display included	No

Processor special features

Specification	Value
CPU configuration (max)	1
Embedded options available	No
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Idle States	Yes
Intel 64	Yes
Intel Clear Video Technology	No
Intel Demand Based Switching	No
Intel Dual Display Capable Technology	No
Intel Enhanced Halt State	Yes
Intel FDI Technology	No
Intel Fast Memory Access	No
Intel Flex Memory Access	No
Intel Rapid Storage Technology	No
Intel Trusted Execution Technology	No
Intel VT-x with Extended Page Tables (EPT)	No
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	No
Intel® AES New Instructions (Intel® AES-NI)	No
Intel® Clear Video HD Technology (Intel® CVT HD)	No
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)	No
Intel® InTru™ 3D Technology	No
Intel® Insider™	No
Intel® Wireless Display (Intel® WiDi)	No
Processor ARK ID	42802
Processor code	SLGTG
Processor package size	37.5 x 37.5 mm
Thermal Monitoring Technologies	Yes
Intel® Turbo Boost Technology	No
Intel® Hyper Threading Technology (Intel® HT Technology)	No
Intel® Quick Sync Video Technology	No
Intel® My WiFi Technology (Intel® MWT)	No
Intel® Anti-Theft Technology (Intel® AT)	No
Conflict-Free processor	No

Audio

Specification	Value
Audio system	HD
Built-in microphone	Yes
Speakers	Yes

Weight & dimensions

Specification	Value
Width	110 mm
Depth	430 mm
Height	380 mm
Weight	7.3 kg
Dimensions (WxDxH)	110 x 430 x 380 mm

Certificates

Specification	Value
Compliance industry standards	IEEE 802.3, IEEE 802.3u, IEEE 802.3ab

Other features

Specification	Value
TV tuner integrated	No
