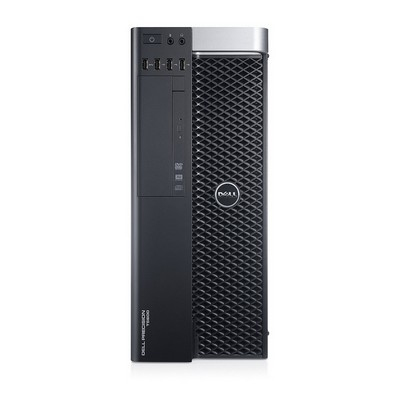

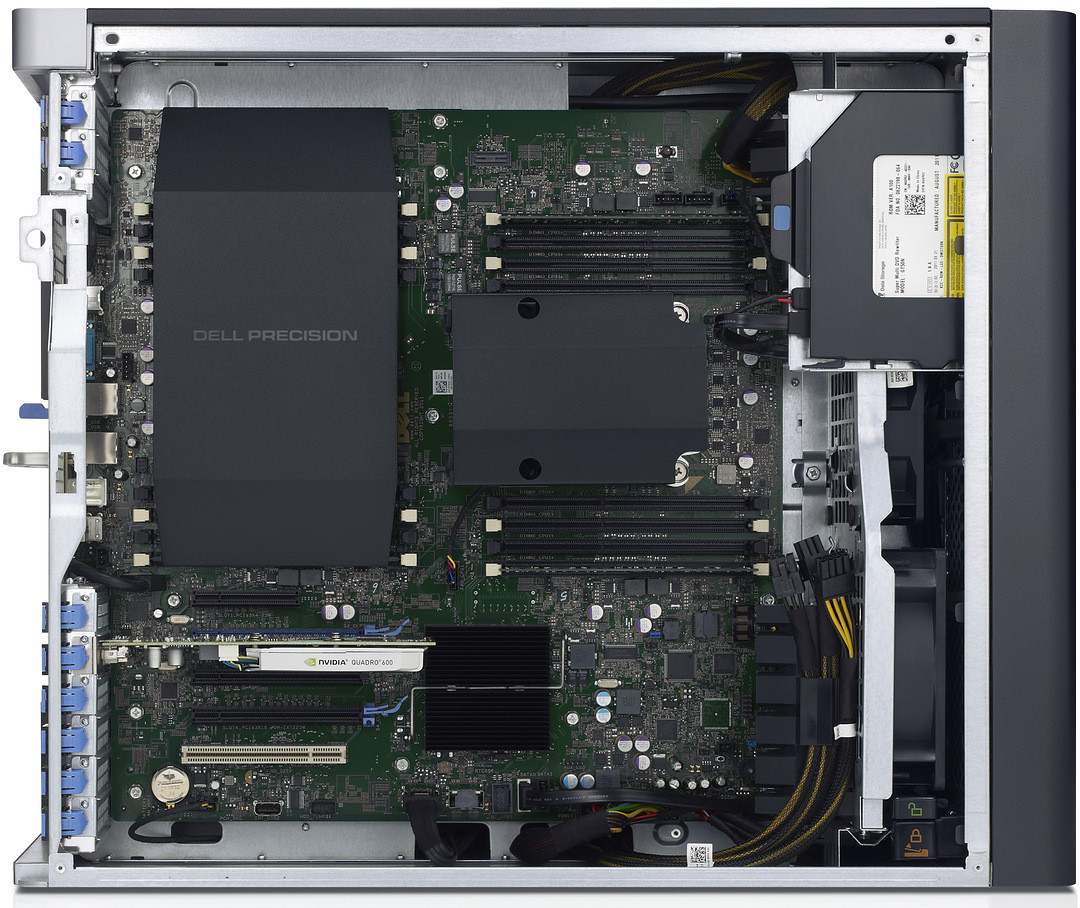

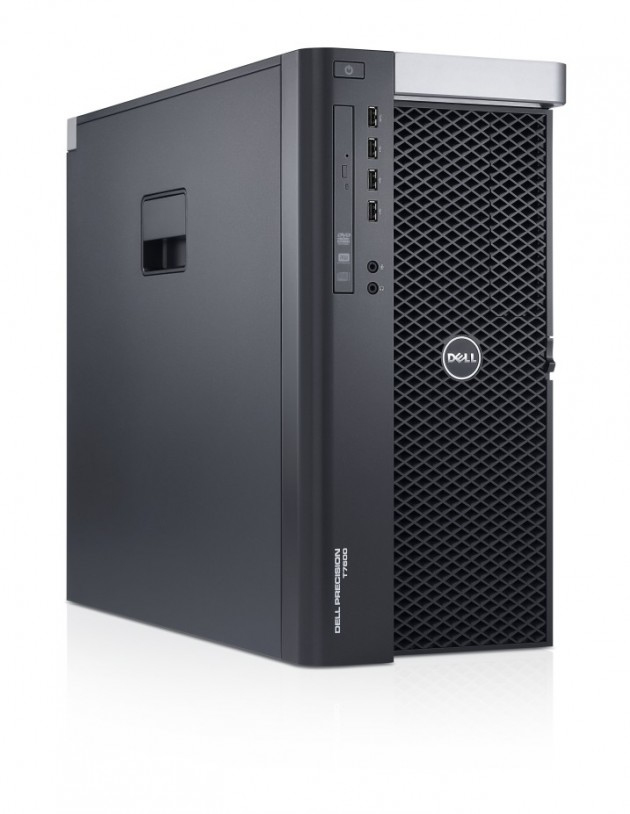

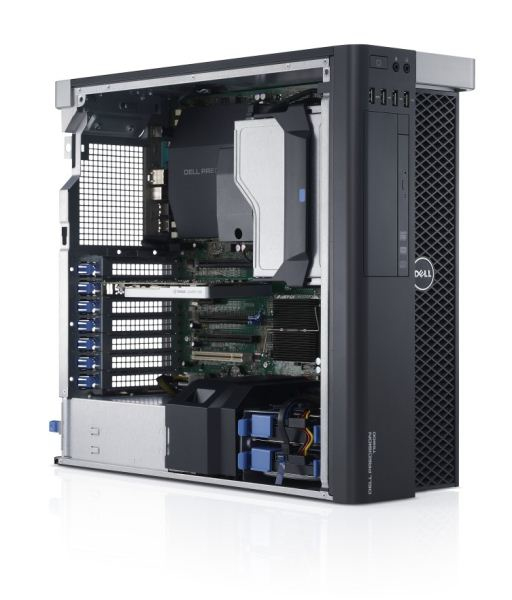

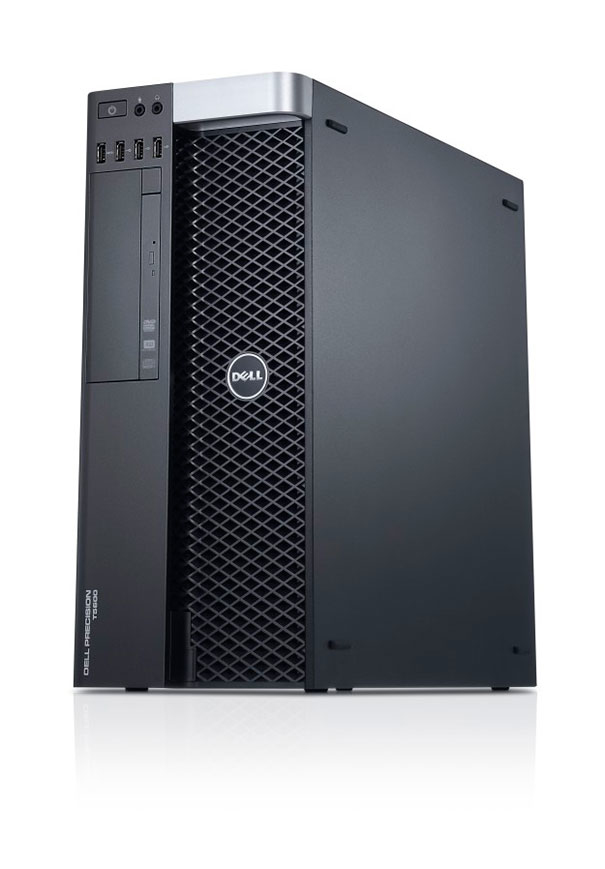

Dell Precision 5600 Intel® Xeon® E5 Family E5-2620

16 GB DDR3-SDRAM 1 TB HDD NVIDIA® Quadro® K4000 Windows 7 Professional Midi Tower Workstation Black

Model 5600Part no. 5600-6245

131 specifications

ProcessorIntel® Xeon® E5 Family
Memory16 GB
Storage1 TB
GraphicsNVIDIA® Quadro® K4000
TypeWorkstation
OSWindows 7 Professional

See all specifications

Overview

Processor: Intel® Xeon® E5 Family
Memory: 16 GB
Storage: 1 TB
Graphics: NVIDIA® Quadro® K4000
Type: Workstation
OS: Windows 7 Professional

Brand: Dell
Category: PCs/Workstations
Model: 5600
Part numbers: 5600-6245, 5600-6238, 5600-6221
Also known as: DELL Precision 5600 Intel® Xeon® E5 Family E5-2620 16 GB DDR3-SDRAM 1 TB HDD NVIDIA® Quadro® K4000 Windows 7 Professional Midi Tower Workstation Black

Specifications

131 specifications in 18 groups

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Xeon® E5 Family
Processor model	E5-2620
Processor cores	6
Processor threads	12
Processor boost frequency	2.5 GHz
Processor frequency	2 GHz
Processor cache	15 MB
Processor cache type	Smart Cache
Bus type	QPI
FSB Parity	No
System bus rate	7.2 GT/s
Processor lithography	32 nm
Processor operating modes	64-bit
Processor series	Intel Xeon E5-2600
Processor codename	Sandy Bridge EP
Thermal Design Power (TDP)	95 W
Tcase	77.4 °C
Maximum number of PCI Express lanes	40
PCI Express configurations	x4, x8, x16
PCI Express slots version	3.0
Number of QPI links	2
Number of processors installed	1
Processor socket	LGA 2011 (Socket R)
CPU multiplier (bus/core ratio)	25
Stepping	C2
Maximum internal memory supported by processor	750 GB
Memory types supported by processor	DDR3-SDRAM
Memory clock speeds supported by processor	800,1066,1333 MHz
Memory bandwidth supported by processor (max)	42.6 GB/s
ECC supported by processor	Yes

Memory

Specification	Value
Internal memory	16 GB
Internal memory type	DDR3-SDRAM
Memory layout (slots x size)	4 x 4 GB
Memory clock speed	1600 MHz
ECC	Yes
Memory channels	Quad-channel

Storage

Specification	Value
Total storage capacity	1 TB
Optical drive type	DVD±RW
Storage media	HDD
Number of HDDs installed	1
HDD capacity	1 TB
HDD interface	SATA
HDD speed	7200 RPM
HDD size	3.5"

Graphics

Specification	Value
On-board graphics card	No
Discrete graphics card model	NVIDIA® Quadro® K4000
Discrete graphics card memory	3 GB
Number of discrete graphics cards	1
On-board graphics card model	Not available

Performance

Specification	Value
Product type	Workstation

Optical drive

Specification	Value
Optical drives quantity	1

Network

Specification	Value
Ethernet LAN	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Cabling technology	10/100/1000Base-T(X)
Wi-Fi	No

Ports & interfaces

Specification	Value
USB 2.0 ports quantity	11
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
HDMI ports quantity	0
Ethernet LAN (RJ-45) ports	1
Headphone outputs	1
Microphone in	Yes
VGA (D-Sub) ports quantity	0
DVI port	No
PS/2 ports quantity	2
Serial ports quantity	1

Expansion slots

Specification	Value
Number of 3.5" bays	2
PCI Express x1 slots	1
PCI Express x16 slots	4
PCI slots	1

Power

Specification	Value
Power supply	825 W

Design

Specification	Value
Chassis type	Midi Tower
Placement supported	Vertical
Number of 5.25" bays	1
Cable lock slot	Yes
Cable lock slot type	Kensington
Product colour	Black
Cooling type	Active

Software

Specification	Value
Operating system installed	Windows 7 Professional
Operating system architecture	64-bit
Recovery operating system	Windows 7 Professional

Display

Specification	Value
Display included	No

Processor special features

Specification	Value
CPU configuration (max)	2
Embedded options available	Yes
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Graphics & IMC lithography	32 nm
Idle States	Yes
Intel 64	Yes
Intel Clear Video Technology	No
Intel Demand Based Switching	Yes
Intel Dual Display Capable Technology	No
Intel Enhanced Halt State	Yes
Intel FDI Technology	No
Intel Fast Memory Access	No
Intel Flex Memory Access	No
Intel Identity Protection Technology version	0.00
Intel Rapid Storage Technology	No
Intel Secure Key Technology version	1.00
Intel TSX-NI version	0.00
Intel Trusted Execution Technology	Yes
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Intel® AES New Instructions (Intel® AES-NI)	Yes
Intel® Clear Video HD Technology (Intel® CVT HD)	No
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)	No
Intel® InTru™ 3D Technology	No
Intel® Insider™	No
Intel® Secure Key	Yes
Intel® Wireless Display (Intel® WiDi)	No
Physical Address Extension (PAE)	46 bit
Processor ARK ID	64594
Processor package size	52.5 x 45.0 mm
Scalability	2S
Supported instruction sets	AVX
Thermal Monitoring Technologies	Yes
Intel® Turbo Boost Technology	1.0
Intel® Hyper Threading Technology (Intel® HT Technology)	Yes
Intel® Quick Sync Video Technology	No
Intel® My WiFi Technology (Intel® MWT)	No
Intel® Identity Protection Technology (Intel® IPT)	No
Intel® Anti-Theft Technology (Intel® AT)	No
Conflict-Free processor	No

Audio

Specification	Value
Audio system	Realtek ALC269Q

Weight & dimensions

Specification	Value
Width	172.6 mm
Depth	471 mm
Height	414 mm

Packaging content

Specification	Value
Mouse included	Yes
Keyboard included	Yes

Certificates

Specification	Value
Certification	CECP, GS Mark
