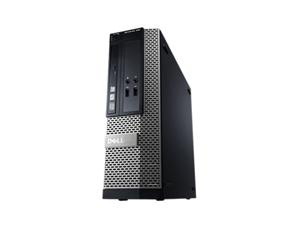

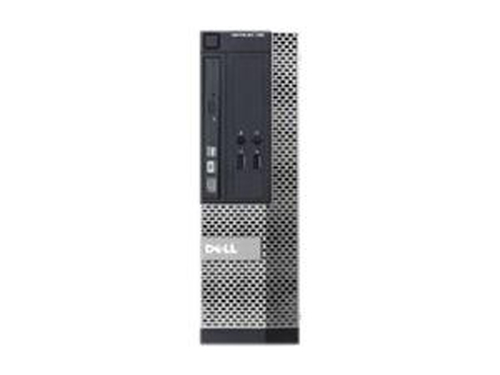

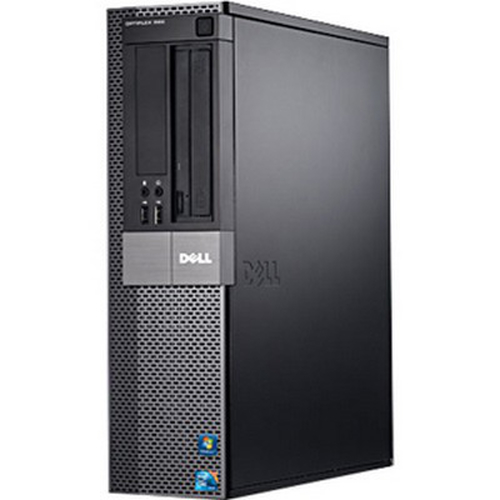

Dell 390 SFF

Model 390 SFFPart no. P390-7196EAN 884116073918

131 specifications

ProcessorIntel® Core™ i3
Memory2 GB
Storage250 GB
GraphicsNot available
TypePC
OSWindows 7 Professional

See all specifications

Overview

Processor: Intel® Core™ i3
Memory: 2 GB
Storage: 250 GB
Graphics: Not available
Type: PC
OS: Windows 7 Professional

Brand: Dell
Category: PCs/Workstations
Model: 390 SFF
Part numbers: P390-7196, P390-3588, X103900106R, X043900110R, 469-1604, 469-1605 +7 more
EAN / UPC: 884116073918, 5742220719885, 5742220598220, 5742220712176 +6 more
Also known as: DELL OptiPlex 390 SFF Intel® Core™ i3 i3-2120 2 GB DDR3-SDRAM 250 GB Windows 7 Professional PC Black, Silver

Specifications

131 specifications in 20 groups

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Core™ i3
Processor generation	2nd gen Intel® Core™ i3
Processor model	i3-2120
Processor cores	2
Processor threads	4
Processor frequency	3.3 GHz
Processor cache	3 MB
Processor cache type	Smart Cache
Bus type	DMI
FSB Parity	No
System bus rate	5 GT/s
Processor lithography	32 nm
Processor operating modes	64-bit
Processor series	Intel Core i3-2100 Desktop Series
Processor codename	Sandy Bridge
Thermal Design Power (TDP)	65 W
Tcase	69.1 °C
Maximum number of PCI Express lanes	16
PCI Express slots version	2.0
Number of processors installed	1
Processor socket	LGA 1155 (Socket H2)
CPU multiplier (bus/core ratio)	33
Maximum number of SMP processors	1
Maximum internal memory supported by processor	32 GB
Memory types supported by processor	DDR3 1066/1333
Memory bandwidth supported by processor (max)	21 GB/s
ECC supported by processor	No

Memory

Specification	Value
Internal memory	2 GB
Maximum internal memory	8 GB
Internal memory type	DDR3-SDRAM
Memory layout (slots x size)	1 x 2 GB
Memory slots	2x DIMM
Memory clock speed	1333 MHz
Memory channels	Dual-channel

Storage

Specification	Value
Total storage capacity	250 GB
Optical drive type	DVD±RW
Number of HDDs installed	1
HDD capacity	250 GB
HDD interface	SATA
HDD speed	7200 RPM
Floppy drive installed	No

Graphics

Specification	Value
On-board graphics card	Yes
Discrete graphics card model	Not available
On-board graphics card family	Intel® HD Graphics
On-board graphics card model	Intel® HD Graphics 2000
Number of displays supported (on-board graphics)	2
On-board graphics card base frequency	850 MHz
On-board graphics card dynamic frequency (max)	1100 MHz
On-board graphics card ID	0x102
Graphics card family	Intel

Performance

Specification	Value
Product type	PC
Motherboard chipset	Intel® H61
Password protection type	BIOS

Network

Specification	Value
Ethernet LAN	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Cabling technology	10/100/1000Base-T(X)
Ethernet interface type	Gigabit Ethernet

Ports & interfaces

Specification	Value
USB 2.0 ports quantity	8
HDMI ports quantity	1
Ethernet LAN (RJ-45) ports	1
Headphone outputs	3
Microphone in	Yes
VGA (D-Sub) ports quantity	1
HDMI	Yes
Headphone connectivity	3.5 mm
Microphone connectivity	3.5 mm

Expansion slots

Specification	Value
Number of 3.5" bays	1
PCI Express x4 slots	1
PCI Express x16 slots	1

Power

Specification	Value
Power supply	240 W

Design

Specification	Value
Chassis type	SFF
Placement supported	Horizontal/Vertical
Number of 5.25" bays	1
Product colour	Black, Silver

Software

Specification	Value
Operating system installed	Windows 7 Professional
Operating system architecture	32-bit
Mac compatibility	No

Display

Specification	Value
Display included	No

Processor special features

Specification	Value
CPU configuration (max)	1
Embedded options available	Yes
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Idle States	Yes
Intel 64	Yes
Intel Clear Video Technology	No
Intel Demand Based Switching	No
Intel Dual Display Capable Technology	Yes
Intel Enhanced Halt State	Yes
Intel FDI Technology	Yes
Intel Fast Memory Access	Yes
Intel Flex Memory Access	Yes
Intel Identity Protection Technology version	1.00
Intel Rapid Storage Technology	No
Intel Trusted Execution Technology	No
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	No
Intel® AES New Instructions (Intel® AES-NI)	No
Intel® Clear Video HD Technology (Intel® CVT HD)	Yes
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)	No
Intel® InTru™ 3D Technology	Yes
Intel® Insider™	Yes
Intel® Wireless Display (Intel® WiDi)	No
Processor ARK ID	53426
Processor package size	37.5 x 37.5 mm
Supported instruction sets	AVX
Thermal Monitoring Technologies	Yes
Intel® Turbo Boost Technology	No
Intel® Hyper Threading Technology (Intel® HT Technology)	Yes
Intel® Quick Sync Video Technology	Yes
Intel® My WiFi Technology (Intel® MWT)	No
Intel® Identity Protection Technology (Intel® IPT)	Yes
Intel® Anti-Theft Technology (Intel® AT)	No
Conflict-Free processor	No

Audio

Specification	Value
Audio system	HDA

Operational conditions

Specification	Value
Operating temperature (T-T)	10 - 35 °C
Storage temperature (T-T)	-40 - 60 °C
Relative humidity	20 - 80%
Non-operating altitude	-15.2 - 10668 m

Weight & dimensions

Specification	Value
Width	92.6 mm
Depth	312 mm
Height	290 mm
Weight	5.7 kg

Packaging data

Specification	Value
Package dimensions (WxDxH)	401.6 x 258.8 x 489 mm
Package weight	6.89 kg

Packaging content

Specification	Value
Mouse included	Yes
Keyboard included	Yes

Certificates

Specification	Value
Compliance certificates	RoHS
Certification	CECP, TCO 3, WEEE, Japan Energy Law, Japan Green PC, South Korea Eco-label, EU RoHS, China RoHS, Blue Angel

Sustainability

Specification	Value
Sustainability certificates	EPEAT Gold, ENERGY STAR
