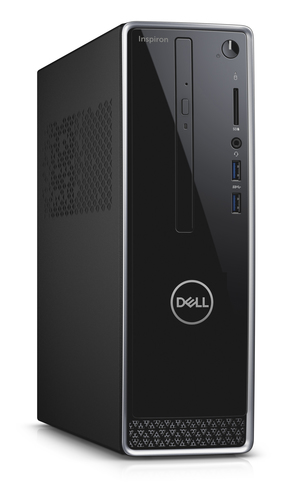

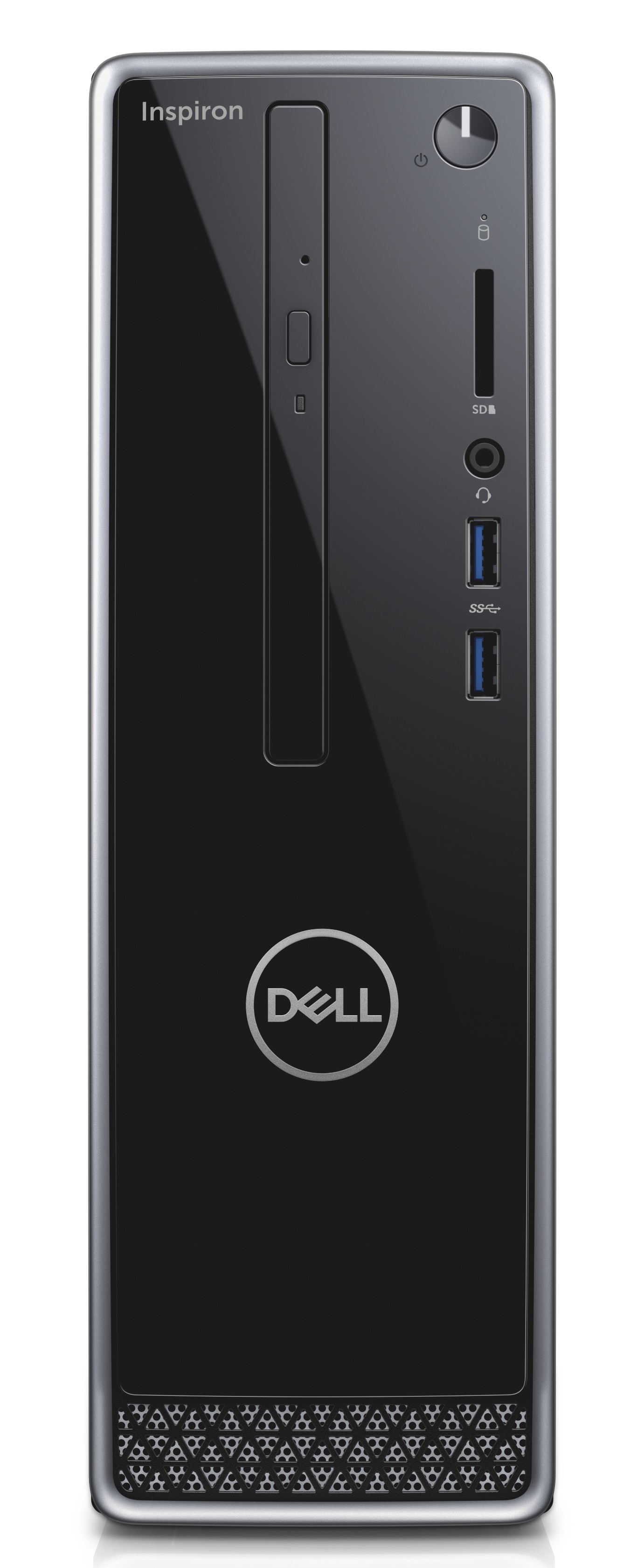

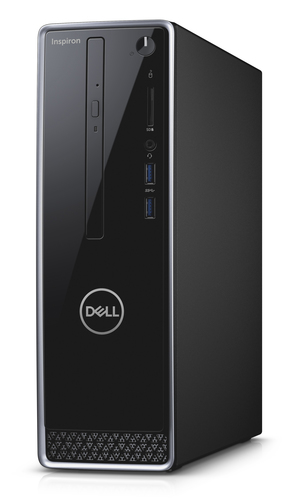

Inspiron 3472 Intel® Pentium® Silver J5005
8 GB DDR4-SDRAM 1 TB HDD Windows 10 SFF PC Black
Model 3472Part no. 3472-0101EAN 5397184192115
154 specifications
- ProcessorIntel® Pentium® Silver
- Memory8 GB
- Storage1 TB
- GraphicsNot available
- SpeedWi-Fi 4 (802.11n)
- TypePC
Overview
- Processor
- Intel® Pentium® Silver
- Memory
- 8 GB
- Storage
- 1 TB
- Graphics
- Not available
- Speed
- Wi-Fi 4 (802.11n)
- Type
- PC
- Brand
- Dell
- Category
- PCs/Workstations
- Model
- 3472
- Part numbers
- 3472-0101, NDGMBSCR315S, NDGMBSCH341RS, NDGMBSCR313S, 3472-2115
- EAN / UPC
- 5397184192115, 5397184120101
- Also known as
- DELL Inspiron 3472 Intel® Pentium® Silver J5005 8 GB DDR4-SDRAM 1 TB HDD Windows 10 SFF PC Black
Specifications
154 specifications in 20 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel® Pentium® Silver |
| Processor model | J5005 |
| Processor cores | 4 |
| Processor threads | 4 |
| Processor boost frequency | 2.8 GHz |
| Processor frequency | 1.5 GHz |
| Processor cache | 4 MB |
| Processor cache type | L3 |
| Processor lithography | 14 nm |
| Processor operating modes | 32-bit, 64-bit |
| Processor codename | Gemini Lake |
| Thermal Design Power (TDP) | 10 W |
| Tjunction | 105 °C |
| Maximum number of PCI Express lanes | 6 |
| PCI Express configurations | 1x4+1x2, 2x1+1x2+1x2, 4x1 |
| PCI Express slots version | 2.0 |
| Number of processors installed | 1 |
| Processor socket | BGA 1090 |
| Stepping | B0 |
| Maximum internal memory supported by processor | 8 GB |
| Memory types supported by processor | DDR4-SDRAM, LPDDR4-SDRAM |
| Memory clock speeds supported by processor | 2400 MHz |
| ECC supported by processor | No |
Memory
| Specification | Value |
|---|---|
| Internal memory | 8 GB |
| Maximum internal memory | 8 GB |
| Internal memory type | DDR4-SDRAM |
| Memory layout (slots x size) | 1 x 8 GB |
| Memory slots | 1x SO-DIMM |
| Memory clock speed | 2400 MHz |
| Memory channels | Dual-channel |
Storage
| Specification | Value |
|---|---|
| Total storage capacity | 1 TB |
| Optical drive type | DVD±RW |
| Storage media | HDD |
| Number of storage drives installed | 1 |
| Number of HDDs installed | 1 |
| HDD capacity | 1 TB |
| Card reader integrated | Yes |
| Compatible memory cards | SD |
Graphics
| Specification | Value |
|---|---|
| Discrete graphics card | No |
| On-board graphics card | Yes |
| Discrete graphics card model | Not available |
| On-board graphics card family | Intel® UHD Graphics |
| On-board graphics card model | Intel® UHD Graphics 605 |
| Maximum on-board graphics card memory | 8 GB |
| Number of displays supported (on-board graphics) | 3 |
| On-board graphics card base frequency | 250 MHz |
| On-board graphics card burst frequency | 800 MHz |
| On-board graphics card dynamic frequency (max) | 800 MHz |
| On-board graphics card DirectX version | 12.0 |
| On-board graphics card ID | 0x3184 |
| Number of execution units | 18 |
Performance
| Specification | Value |
|---|---|
| Product type | PC |
| Password protection | Yes |
| Password protection type | BIOS, User |
Optical drive
| Specification | Value |
|---|---|
| Optical drives quantity | 1 |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Cabling technology | 10/100/1000Base-T(X) |
| Wi-Fi | Yes |
| Top Wi-Fi standard | Wi-Fi 4 (802.11n) |
| Wi-Fi standards | 802.11b, 802.11g, Wi-Fi 4 (802.11n) |
| Bluetooth | Yes |
| Bluetooth version | 4.0 |
Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 0 |
| Thunderbolt 3 ports quantity | 0 |
| HDMI ports quantity | 1 |
| HDMI version | 1.4 |
| Ethernet LAN (RJ-45) ports | 1 |
| Headphone outputs | 1 |
| Line-out | Yes |
| Line-in | Yes |
| Microphone in | Yes |
| VGA (D-Sub) ports quantity | 0 |
| DVI port | No |
| On/off button | Yes |
Power
| Specification | Value |
|---|---|
| Power supply | 65 W |
| Power supply input voltage | 100 - 240 V |
| Power supply input frequency | 50 - 60 Hz |
Design
| Specification | Value |
|---|---|
| Chassis type | SFF |
| Product colour | Black |
Software
| Specification | Value |
|---|---|
| Operating system installed | Windows 10 |
| Operating system architecture | 64-bit |
| Drivers included | Yes |
| Trial software | McAfee LiveSafe (30 days Trial), Microsoft Office (30 days Trial) |
| Bundled software | McAfee LiveSafe (version d’essai de 30 jours), Microsoft Office (version d’essai de 30 jours) |
Display
| Specification | Value |
|---|---|
| Display included | No |
Processor special features
| Specification | Value |
|---|---|
| CPU configuration (max) | 1 |
| Embedded options available | No |
| Enhanced Intel SpeedStep Technology | Yes |
| Execute Disable Bit | Yes |
| Idle States | Yes |
| Intel 64 | Yes |
| Intel Enhanced Halt State | Yes |
| Intel Identity Protection Technology version | 1.00 |
| Intel Secure Key Technology version | 1.00 |
| Intel Smart Response Technology version | 0.00 |
| Intel Software Guard Extensions (Intel SGX) | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Intel® OS Guard | Yes |
| Intel® Secure Key | Yes |
| Processor ARK ID | 128984 |
| Processor code | SR3S3 |
| Processor package size | 25 x 24 mm |
| Thermal Monitoring Technologies | Yes |
| UART | Yes |
| Intel® Smart Response Technology | No |
| Intel® Turbo Boost Technology | No |
| Intel® Hyper Threading Technology (Intel® HT Technology) | No |
| Intel® Quick Sync Video Technology | Yes |
| Intel® Identity Protection Technology (Intel® IPT) | Yes |
| Intel® Anti-Theft Technology (Intel® AT) | No |
| Conflict-Free processor | Yes |
Audio
| Specification | Value |
|---|---|
| Audio chip | Realtek ALC3820 |
| Audio system | High Definition Audio |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 92.6 mm |
| Depth | 292 mm |
| Height | 290 mm |
| Weight | 3.4 kg |
Packaging data
| Specification | Value |
|---|---|
| Package material | Corrugated cardboard, Low-density polyethylene (LDPE), Paper molded pulp |
Packaging content
| Specification | Value |
|---|---|
| Cables included | AC |
| AC adapter included | Yes |
| Manual | Yes |
| Power cord included | Yes |
Recycling data
| Specification | Value |
|---|---|
| Paper molded pulp content per package | 360 g |
| Corrugated cardboard content per package | 910 g |
| Corrugated cardboard content per shipping (inner) case | 710 g |
| Corrugated cardboard content per box for accessories | 200 g |
| Low-density polyethylene (LDPE) content per package | 20 g |
Sustainability
| Specification | Value |
|---|---|
| EPEAT rating | 98.61% |
| Sustainability certificates | ENERGY STAR |
Logistics data
| Specification | Value |
|---|---|
| Products per intermodal container (20ft) | 420 pc(s) |
| Products per intermodal container (40ft, HC) | 1008 pc(s) |
| Pallet gross width | 100 cm |
| Pallet gross length | 120 cm |
| Pallet gross height | 119.6 cm |
| Pallet gross weight | 139.2 kg |
| Pallet volume weight | 239.2 kg |
| Shipping (inner) case width | 39.4 cm |
| Maximum number of stacking cartons | 8 pc(s) |
| Shipping (inner) case length | 48.7 cm |
| Shipping (inner) case height | 26.4 cm |
| Shipping (inner) case gross weight | 5.2 kg |
| Shipping (inner) case volume weight | 8.44 kg |
| Products per pallet layer | 6 pc(s) |
| Layers per pallet | 4 pc(s) |
| Products per pallet | 24 pc(s) |
