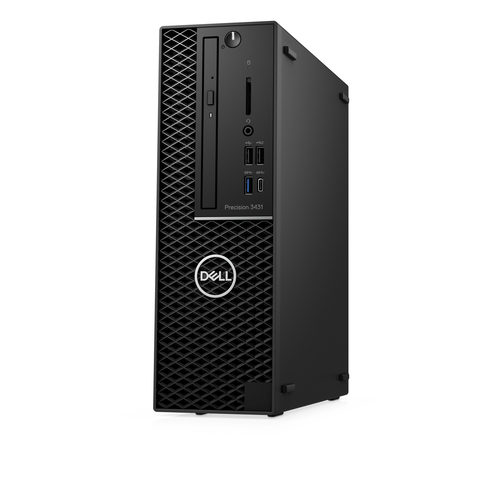

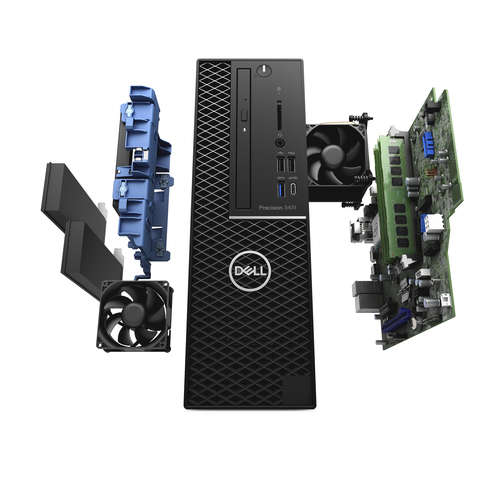

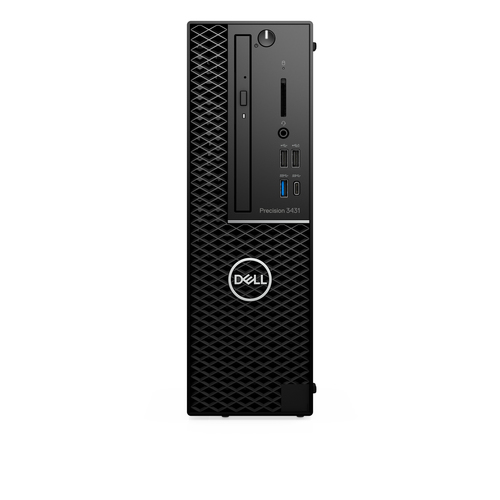

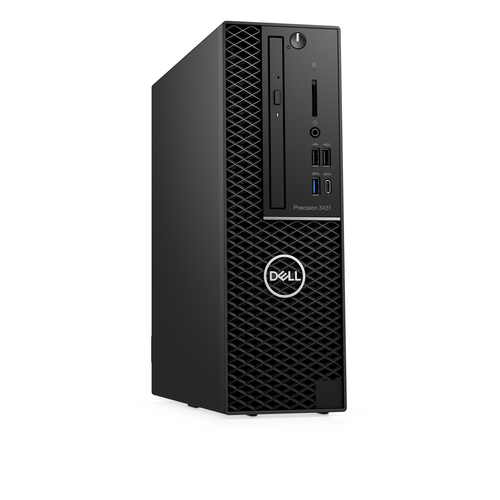

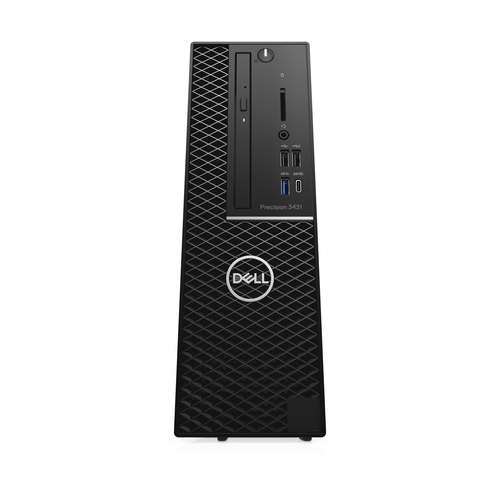

Precision 3431 Intel® Core™ i3 i3-9100
4 GB DDR4-SDRAM 500 GB HDD Windows 10 Pro SFF Workstation Black
Model 3431Part no. ON3431WT02AUEAN 5397184295670
127 specifications
- ProcessorIntel® Core™ i3
- Memory4 GB
- Storage500 GB
- GraphicsNot available
- TypeWorkstation
- OSWindows 10 Pro
Overview
- Processor
- Intel® Core™ i3
- Memory
- 4 GB
- Storage
- 500 GB
- Graphics
- Not available
- Type
- Workstation
- OS
- Windows 10 Pro
- Brand
- Dell
- Category
- PCs/Workstations
- Model
- 3431
- Part numbers
- ON3431WT02AU, ON3431WT04AU, ON3431WT01AU, ON3431WT03AU, 470W5, WRC4J +34 more
- EAN / UPC
- 5397184295670, 5397184295694, 884116341529, 884116342281 +22 more
- Also known as
- DELL Precision 3431 Intel® Core™ i3 i3-9100 4 GB DDR4-SDRAM 500 GB HDD Windows 10 Pro SFF Workstation Black
Specifications
127 specifications in 16 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel® Core™ i3 |
| Processor generation | 9th gen Intel® Core™ i3 |
| Processor model | i3-9100 |
| Processor cores | 4 |
| Processor threads | 4 |
| Processor boost frequency | 4.2 GHz |
| Processor frequency | 3.6 GHz |
| Processor cache | 6 MB |
| Processor cache type | Smart Cache |
| System bus rate | 8 GT/s |
| Processor lithography | 14 nm |
| Processor operating modes | 64-bit |
| Thermal Design Power (TDP) | 65 W |
| Tjunction | 100 °C |
| Maximum number of PCI Express lanes | 16 |
| PCI Express configurations | 1x8+2x4, 1x16, 2x8 |
| PCI Express slots version | 3.0 |
| Number of processors installed | 1 |
| Processor socket | LGA 1151 (Socket H4) |
| Maximum internal memory supported by processor | 64 GB |
| Memory types supported by processor | DDR4-SDRAM |
| Memory clock speeds supported by processor | 2400 MHz |
| Memory bandwidth supported by processor (max) | 37.5 GB/s |
Memory
| Specification | Value |
|---|---|
| Internal memory | 4 GB |
| Maximum internal memory | 64 GB |
| Internal memory type | DDR4-SDRAM |
| Memory layout (slots x size) | 1 x 4 GB |
| Memory slots | 4x DIMM |
| Non-ECC | Yes |
Storage
| Specification | Value |
|---|---|
| Total storage capacity | 500 GB |
| Optical drive type | No |
| Storage media | HDD |
| Number of storage drives installed | 1 |
| Total HDDs capacity | 500 GB |
| Number of HDDs installed | 1 |
| HDD capacity | 500 GB |
| HDD speed | 7200 RPM |
| HDD size | 3.5" |
| Card reader integrated | No |
Graphics
| Specification | Value |
|---|---|
| Discrete graphics card | No |
| On-board graphics card | Yes |
| Discrete graphics card model | Not available |
| On-board graphics card model | Intel® UHD Graphics 630 |
| On-board graphics card memory | 64 GB |
| Number of displays supported (on-board graphics) | 3 |
| On-board graphics card base frequency | 350 MHz |
| On-board graphics card dynamic frequency (max) | 1100 MHz |
| On-board graphics card DirectX version | 12.0 |
| On-board graphics card ID | 0x3E91 |
| On-board graphics card OpenGL version | 4.5 |
Performance
| Specification | Value |
|---|---|
| Product type | Workstation |
| Password protection | Yes |
| Trusted Platform Module (TPM) | Yes |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Cabling technology | 10/100/1000Base-T(X) |
| Wi-Fi | No |
Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 5 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| Number of USB ports with PowerShare support | 2 |
| PowerShare | Yes |
| Thunderbolt 3 ports quantity | 0 |
| DisplayPorts quantity | 2 |
| HDMI ports quantity | 0 |
| Ethernet LAN (RJ-45) ports | 1 |
| Combo headphone/mic port | Yes |
| Headphone outputs | 0 |
| Line-out | Yes |
| Microphone in | No |
| VGA (D-Sub) ports quantity | 0 |
| DVI port | No |
| PS/2 ports quantity | 2 |
| On/off button | Yes |
Power
| Specification | Value |
|---|---|
| Power supply | 200 W |
| Power supply input voltage | 100 - 240 V |
| Power supply input frequency | 50 - 60 Hz |
| 80 PLUS certification | 80 PLUS Gold |
Design
| Specification | Value |
|---|---|
| Chassis type | SFF |
| Volume | 7.8 L |
| Placement supported | Horizontal/Vertical |
| Cable lock slot | Yes |
| Product colour | Black |
Software
| Specification | Value |
|---|---|
| Operating system installed | Windows 10 Pro |
| Operating system architecture | 64-bit |
Display
| Specification | Value |
|---|---|
| Display included | No |
Processor special features
| Specification | Value |
|---|---|
| CPU configuration (max) | 1 |
| Embedded options available | No |
| Enhanced Intel SpeedStep Technology | Yes |
| Execute Disable Bit | Yes |
| Idle States | Yes |
| Intel 64 | Yes |
| Intel Clear Video Technology | Yes |
| Intel Software Guard Extensions (Intel SGX) | Yes |
| Intel Stable Image Platform Program (SIPP) | No |
| Intel TSX-NI | No |
| Intel Trusted Execution Technology | No |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Intel® Clear Video HD Technology (Intel® CVT HD) | Yes |
| Intel® InTru™ 3D Technology | Yes |
| Intel® OS Guard | Yes |
| Intel® Secure Key | Yes |
| Processor ARK ID | 134870 |
| Processor package size | 37.5 x 37.5 mm |
| Scalability | 1S |
| Supported instruction sets | AVX 2.0, SSE4.1, SSE4.2 |
| Thermal Monitoring Technologies | Yes |
| Thermal solution specification | PCG 2015C |
| Intel® Turbo Boost Technology | 2.0 |
| Intel® Hyper Threading Technology (Intel® HT Technology) | No |
| Intel® Quick Sync Video Technology | Yes |
| Intel® Identity Protection Technology (Intel® IPT) | Yes |
Audio
| Specification | Value |
|---|---|
| Audio chip | Realtek ALC3234 |
| Audio system | High Definition Audio |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 92.6 mm |
| Depth | 292 mm |
| Height | 290 mm |
| Weight | 5.26 kg |
Packaging data
| Specification | Value |
|---|---|
| Package weight | 6.86 kg |
Packaging content
| Specification | Value |
|---|---|
| Manual | Yes |
| Power cord included | Yes |
