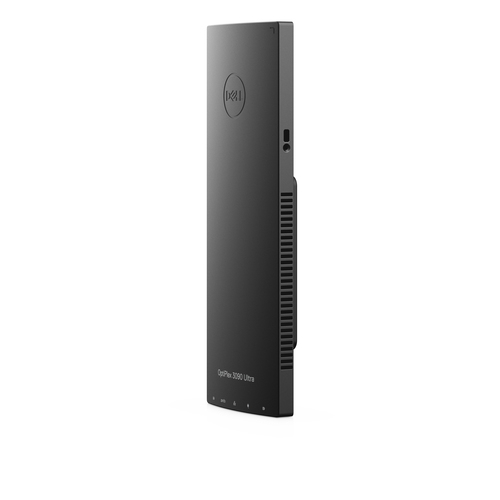

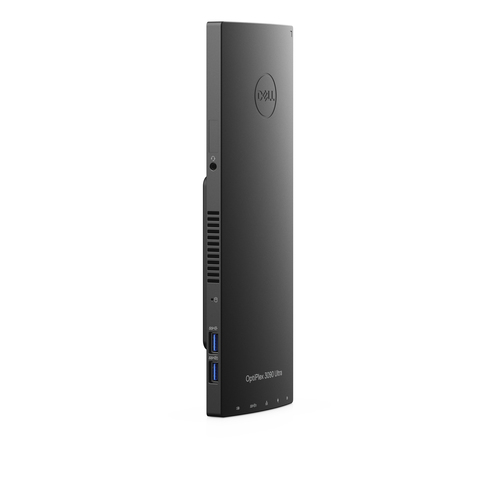

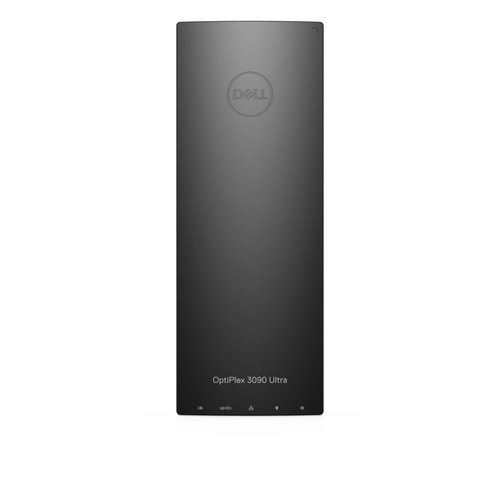

OptiPlex 3090 Intel® Core™ i3 i3-1115G4
8 GB DDR4-SDRAM 256 GB SSD Windows 11 Pro UFF Mini PC Black
Model 3090Part no. 6F7JGEAN 5902002155250
92 specifications
- ProcessorIntel® Core™ i3
- Memory8 GB
- Storage256 GB
- GraphicsNot available
- SpeedWi-Fi 5 (802.11ac)
- TypeMini PC
Overview
- Processor
- Intel® Core™ i3
- Memory
- 8 GB
- Storage
- 256 GB
- Graphics
- Not available
- Speed
- Wi-Fi 5 (802.11ac)
- Type
- Mini PC
- Brand
- Dell
- Category
- PCs/Workstations
- Model
- 3090
- Part numbers
- 6F7JG, 2N5C8, 4R1WX, 2XHDP, 8XRMD, H5WTX +34 more
- EAN / UPC
- 5902002155250, 884116445050, 884116445067, 5397184548059 +50 more
- Also known as
- DELL OptiPlex 3090 Intel® Core™ i3 i3-1115G4 8 GB DDR4-SDRAM 256 GB SSD Windows 11 Pro UFF Mini PC Black
Specifications
92 specifications in 15 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel® Core™ i3 |
| Processor generation | 11th gen Intel® Core™ i3 |
| Processor model | i3-1115G4 |
| Processor cores | 2 |
| Processor threads | 4 |
| Processor boost frequency | 4.1 GHz |
| Processor cache | 6 MB |
| Processor cache type | Smart Cache |
| Number of processors installed | 1 |
| Processor socket | BGA 1449 |
Memory
| Specification | Value |
|---|---|
| Internal memory | 8 GB |
| Maximum internal memory | 64 GB |
| Internal memory type | DDR4-SDRAM |
| Memory layout (slots x size) | 1 x 8 GB |
| Memory slots | 2x SO-DIMM |
| Memory clock speed | 3200 MHz |
| Memory channels | Dual-channel |
Storage
| Specification | Value |
|---|---|
| Total storage capacity | 256 GB |
| Optical drive type | No |
| Storage media | SSD |
| Number of storage drives installed | 1 |
| Total SSDs capacity | 256 GB |
| Number of SSDs installed | 1 |
| SSD capacity | 256 GB |
| NVMe | Yes |
| SSD interface | PCI Express |
| SSD form factor | M.2 |
| SSD performance class | 35 |
Graphics
| Specification | Value |
|---|---|
| Discrete graphics card | No |
| On-board graphics card | Yes |
| Discrete graphics card model | Not available |
| On-board GPU manufacturer | Intel |
| On-board graphics card family | Intel® UHD Graphics |
| On-board graphics card model | Intel® UHD Graphics |
Performance
| Specification | Value |
|---|---|
| Product type | Mini PC |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Cabling technology | 10/100/1000Base-T(X) |
| LAN controller | Realtek RTL8111HS |
| Wi-Fi | Yes |
| Top Wi-Fi standard | Wi-Fi 5 (802.11ac) |
| WLAN controller manufacturer | Qualcomm |
| Wi-Fi standards | Wi-Fi 5 (802.11ac) |
| WLAN controller model | Qualcomm QCA61x4A |
| Antenna type | 2x2 |
| Bluetooth | Yes |
| MU-MIMO | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 0 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 0 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 4 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| Number of USB ports with PowerShare support | 1 |
| USB Type-C DisplayPort Alternate Mode | Yes |
| Thunderbolt 3 ports quantity | 0 |
| DisplayPorts quantity | 1 |
| DisplayPort version | 1.4 |
| HDMI ports quantity | 0 |
| Ethernet LAN (RJ-45) ports | 1 |
| Combo headphone/mic port | Yes |
| Headphone outputs | 0 |
| Microphone in | No |
| DVI port | No |
Power
| Specification | Value |
|---|---|
| Power supply | 65 W |
| Power supply input voltage | 100 - 240 V |
| Power supply input frequency | 50 - 60 Hz |
Design
| Specification | Value |
|---|---|
| Chassis type | UFF |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| Product colour | Black |
Software
| Specification | Value |
|---|---|
| Operating system installed | Windows 11 Pro |
| Operating system architecture | 64-bit |
| Operating system language | English, Spanish, French |
Display
| Specification | Value |
|---|---|
| Display included | No |
Audio
| Specification | Value |
|---|---|
| Audio chip | Realtek ALC3204-CG |
| Audio system | High Definition Audio |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 35 °C |
| Storage temperature (T-T) | -40 - 65 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 0 - 95% |
| Operating altitude | -15.2 - 3048 m |
| Non-operating altitude | -15.2 - 10668 m |
| Operating vibration | 0.66 G |
| Non-operating vibration | 1.3 G |
| Operating shock | 110 G |
| Non-operating shock | 160 G |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 96.1 mm |
| Depth | 19.7 mm |
| Height | 256.2 mm |
| Weight | 650 g |
Packaging content
| Specification | Value |
|---|---|
| Box contents | Cable Bundle - DisplayPort to DisplayPort, USB-C to USB-C, and USB-A to USB-B 3.0, 0.6 meter |
