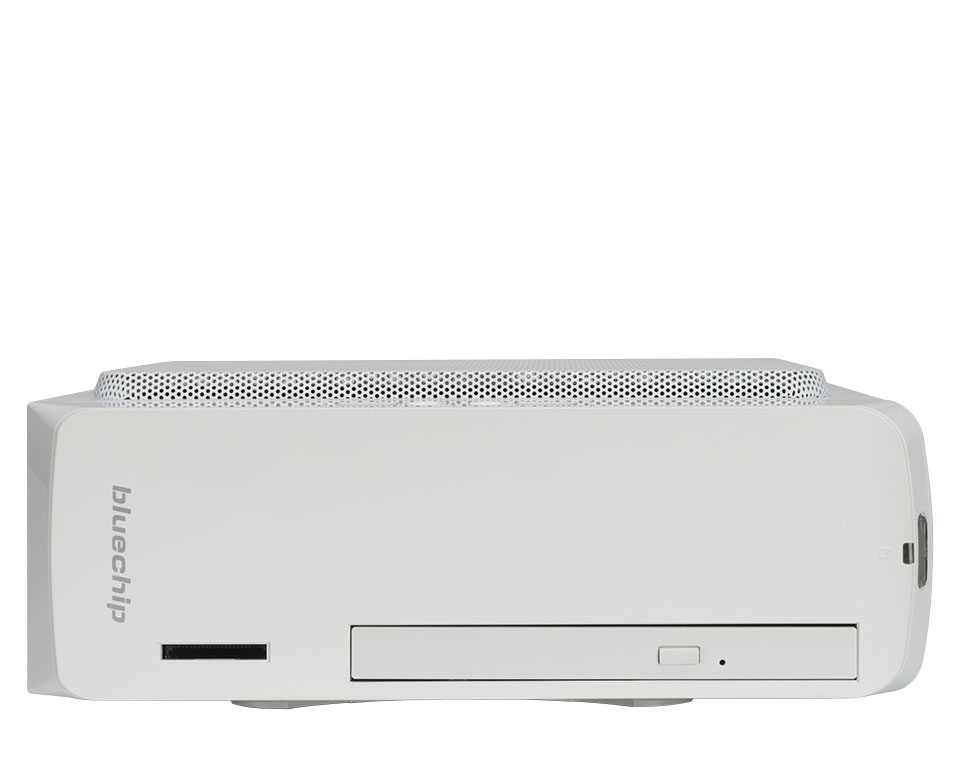

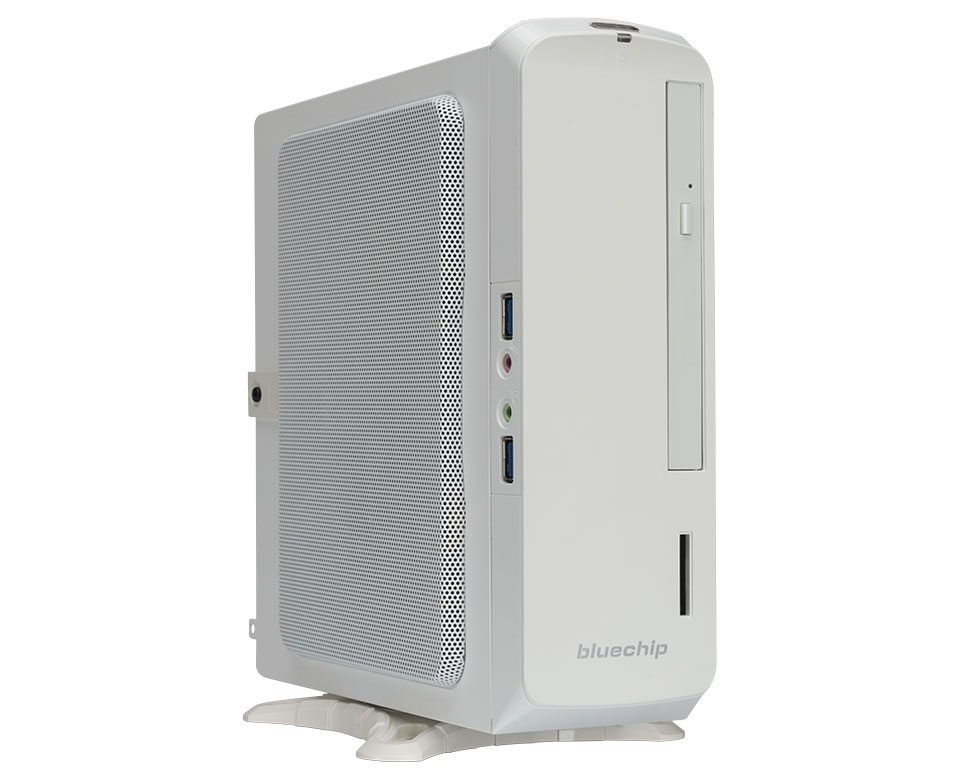

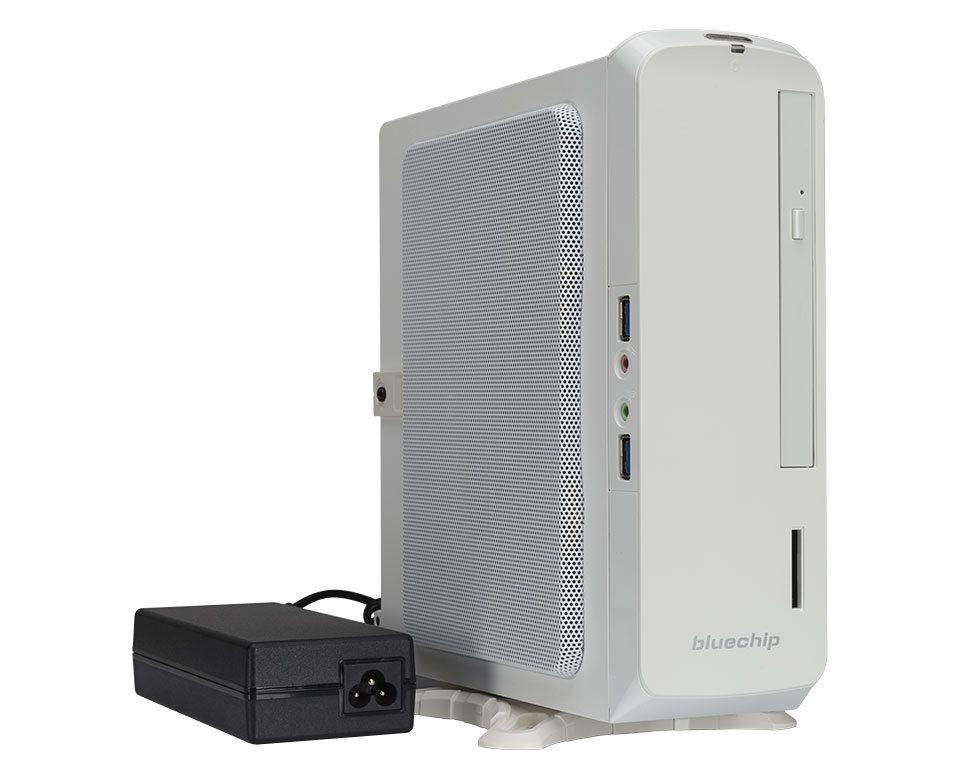

MEDICAL S3100
Model MEDICAL S3100Part no. 556271EAN 4250749703342
81 specifications
- ProcessorIntel® Core™ i3
- Memory4 GB
- Storage250 GB
- GraphicsNot available
- TypeMini PC
- OSWindows 10 Pro
Overview
- Processor
- Intel® Core™ i3
- Memory
- 4 GB
- Storage
- 250 GB
- Graphics
- Not available
- Type
- Mini PC
- OS
- Windows 10 Pro
- Brand
- bluechip
- Category
- PCs/Workstations
- Model
- MEDICAL S3100
- Part numbers
- 556271, 556399
- EAN / UPC
- 4250749703342, 4250749706107
- Also known as
- bluechip MEDICAL S3100
Specifications
81 specifications in 16 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel® Core™ i3 |
| Processor generation | 10th gen Intel® Core™ i3 |
| Processor model | i3-10105 |
| Processor cores | 4 |
| Processor boost frequency | 4.4 GHz |
| Processor frequency | 3.7 GHz |
| Processor cache | 6 MB |
| Processor cache type | Smart Cache |
| Processor socket | LGA 1200 (Socket H5) |
Memory
| Specification | Value |
|---|---|
| Internal memory | 4 GB |
| Maximum internal memory | 64 GB |
| Internal memory type | DDR4-SDRAM |
| Memory layout (slots x size) | 1 x 4 GB |
| Memory slots | 2x DIMM |
| Memory clock speed | 2666 MHz |
Storage
| Specification | Value |
|---|---|
| Total storage capacity | 250 GB |
| Optical drive type | DVD±RW |
| Storage media | SSD |
| Number of storage drives installed | 1 |
| Total SSDs capacity | 250 GB |
| Number of SSDs installed | 1 |
| SSD capacity | 250 GB |
| NVMe | Yes |
| SSD interface | PCI Express 3.0 |
| RAID support | Yes |
| RAID levels | 0, 1, 5, 10 |
Graphics
| Specification | Value |
|---|---|
| Discrete graphics card | No |
| On-board graphics card | Yes |
| Discrete graphics card model | Not available |
| On-board GPU manufacturer | Intel |
| On-board graphics card model | Intel® UHD Graphics 630 |
Performance
| Specification | Value |
|---|---|
| Product type | Mini PC |
| Market positioning | Medical |
| Powered by | ASUS |
| Motherboard chipset | Intel Q470 |
| Audio output channels | 7.1 channels |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Cabling technology | 10/100/1000Base-T(X) |
| LAN controller | Intel® I210-AT, Intel® I219-LM |
| Wi-Fi | No |
Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 3 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 2 |
| DisplayPorts quantity | 2 |
| Ethernet LAN (RJ-45) ports | 2 |
| Headphone outputs | 1 |
| Microphone in | Yes |
| DVI port | Yes |
| PS/2 ports quantity | 2 |
| Serial ports quantity | 1 |
| Number of SATA III connectors | 3 |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x16 (Gen 3.x) slots | 1 |
Power
| Specification | Value |
|---|---|
| Power supply | 135 W |
Design
| Specification | Value |
|---|---|
| Chassis type | Mini PC |
| VESA mounting | Yes |
| Number of 5.25" bays | 1 |
| Product colour | White |
Software
| Specification | Value |
|---|---|
| Operating system installed | Windows 10 Pro |
| Operating system architecture | 64-bit |
| Windows 11 free upgrade | Yes |
Display
| Specification | Value |
|---|---|
| Display included | No |
Processor special features
| Specification | Value |
|---|---|
| CPU configuration (max) | 1 |
| Embedded options available | No |
| Enhanced Intel SpeedStep Technology | Yes |
| Execute Disable Bit | Yes |
| Idle States | Yes |
| Intel 64 | Yes |
| Intel Clear Video Technology | Yes |
| Intel Software Guard Extensions (Intel SGX) | Yes |
| Intel Stable Image Platform Program (SIPP) | No |
| Intel Trusted Execution Technology | No |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
Audio
| Specification | Value |
|---|---|
| Audio chip | Realtek ALC897 |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 76 mm |
| Depth | 220 mm |
| Height | 240 mm |
Certificates
| Specification | Value |
|---|---|
| Certification | CE |
