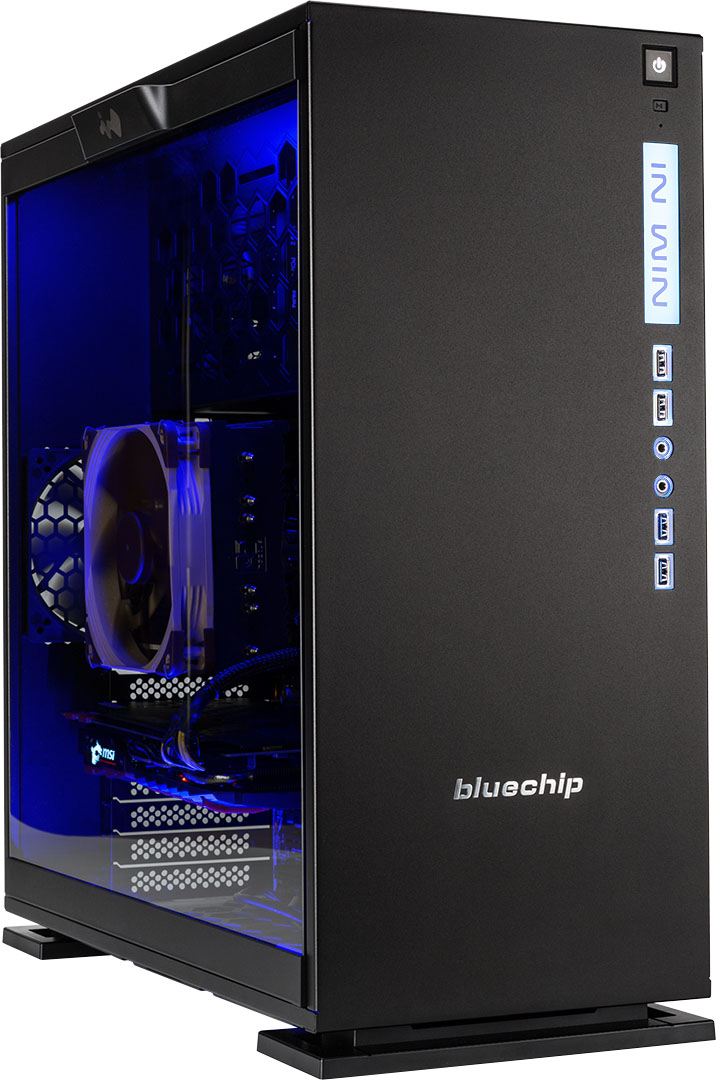

bluechip GAMINGline T9700 Xtreme
Model GAMINGline T9700 XtremePart no. 556113
98 specifications
- ProcessorIntel® Core™ i7 X-series
- Memory16 GB
- Storage500 GB
- TypePC
- OSWindows 10 Home
- ColourBlack
Overview
- Processor
- Intel® Core™ i7 X-series
- Memory
- 16 GB
- Storage
- 500 GB
- Type
- PC
- OS
- Windows 10 Home
- Colour
- Black
- Brand
- bluechip
- Category
- PCs/Workstations
- Model
- GAMINGline T9700 Xtreme
- Part number
- 556113
- Also known as
- bluechip GAMINGline T9700 Xtreme
Specifications
98 specifications in 16 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel® Core™ i7 X-series |
| Processor generation | 7th gen Intel® Core™ i7 |
| Processor model | i7-7820X |
| Processor cores | 8 |
| Processor threads | 16 |
| Processor boost frequency | 4.3 GHz |
| Processor frequency | 3.6 GHz |
| Processor cache | 11 MB |
| Processor cache type | L3 |
| Bus type | DMI3 |
| System bus rate | 8 GT/s |
| Processor lithography | 14 nm |
| Processor operating modes | 64-bit |
| Processor codename | Skylake |
| Thermal Design Power (TDP) | 140 W |
| Tjunction | 99 °C |
| Maximum number of PCI Express lanes | 28 |
| PCI Express slots version | 3.0 |
| Number of QPI links | 0 |
| Number of processors installed | 1 |
| Processor socket | LGA 2066 (Socket R4) |
| Stepping | U0 |
| Maximum internal memory supported by processor | 128 GB |
| Memory types supported by processor | DDR4-SDRAM |
| Memory clock speeds supported by processor | 2666 MHz |
| ECC supported by processor | No |
Memory
| Specification | Value |
|---|---|
| Internal memory | 16 GB |
| Maximum internal memory | 128 GB |
| Internal memory type | DDR4-SDRAM |
| Memory layout (slots x size) | 4 x 4 GB |
| Memory slots | 8x DIMM |
| Memory clock speed | 2400 MHz |
| Memory channels | Quad-channel |
Storage
| Specification | Value |
|---|---|
| Total storage capacity | 500 GB |
| Optical drive type | No |
| Storage media | SSD |
| Number of storage drives installed | 1 |
| Number of SSDs installed | 1 |
| SSD capacity | 500 GB |
| SSD interface | M.2 |
| Card reader integrated | No |
| RAID support | Yes |
| RAID levels | 0, 1, 5, 10 |
Graphics
| Specification | Value |
|---|---|
| Discrete graphics card | Yes |
| Maximum graphics card memory | 8 GB |
| Graphics card DVI-D ports quantity | 1 |
| Graphics card DisplayPorts quantity | 3 |
| Graphics card HDMI ports quantity | 1 |
Performance
| Specification | Value |
|---|---|
| Product type | PC |
| Market positioning | Gaming |
| Motherboard chipset | Intel X299 Express |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Cabling technology | 10/100/1000Base-T(X) |
Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 6 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| Thunderbolt 3 ports quantity | 0 |
| Ethernet LAN (RJ-45) ports | 1 |
| Combo headphone/mic port | Yes |
| Headphone outputs | 1 |
| Microphone in | Yes |
| VGA (D-Sub) ports quantity | 0 |
| DVI port | Yes |
| Number of SATA III connectors | 8 |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x1 (Gen 3.x) slots | 1 |
| PCI Express x4 (Gen 3.x) slots | 2 |
| PCI Express x16 (Gen 3.x) slots | 3 |
Power
| Specification | Value |
|---|---|
| Power supply | 700 W |
Design
| Specification | Value |
|---|---|
| Chassis type | Midi Tower |
| Placement supported | Vertical |
| Product colour | Black |
Software
| Specification | Value |
|---|---|
| Operating system installed | Windows 10 Home |
Display
| Specification | Value |
|---|---|
| Display included | No |
Processor special features
| Specification | Value |
|---|---|
| CPU configuration (max) | 1 |
| Embedded options available | No |
| Enhanced Intel SpeedStep Technology | Yes |
| Execute Disable Bit | Yes |
| Intel 64 | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Processor ARK ID | 123767 |
| Processor code | SR3L5 |
| Scalability | 1S |
| Supported instruction sets | AVX 2.0, AVX-512, SSE4.1, SSE4.2 |
| Thermal solution specification | PCG 2017X |
| Intel® Turbo Boost Technology | 2.0 |
| Intel® Hyper Threading Technology (Intel® HT Technology) | Yes |
| Conflict-Free processor | Yes |
Audio
| Specification | Value |
|---|---|
| Audio chip | Realtek ALC S1220A |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 215 mm |
| Depth | 480 mm |
| Height | 500 mm |
Certificates
| Specification | Value |
|---|---|
| Certification | CE |
