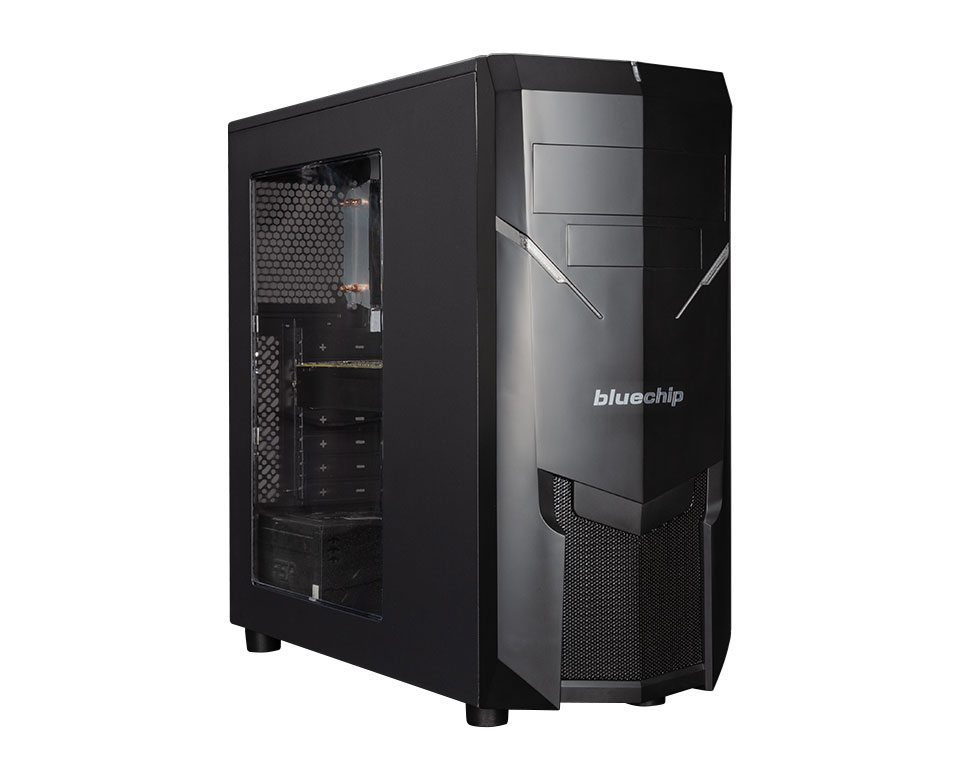

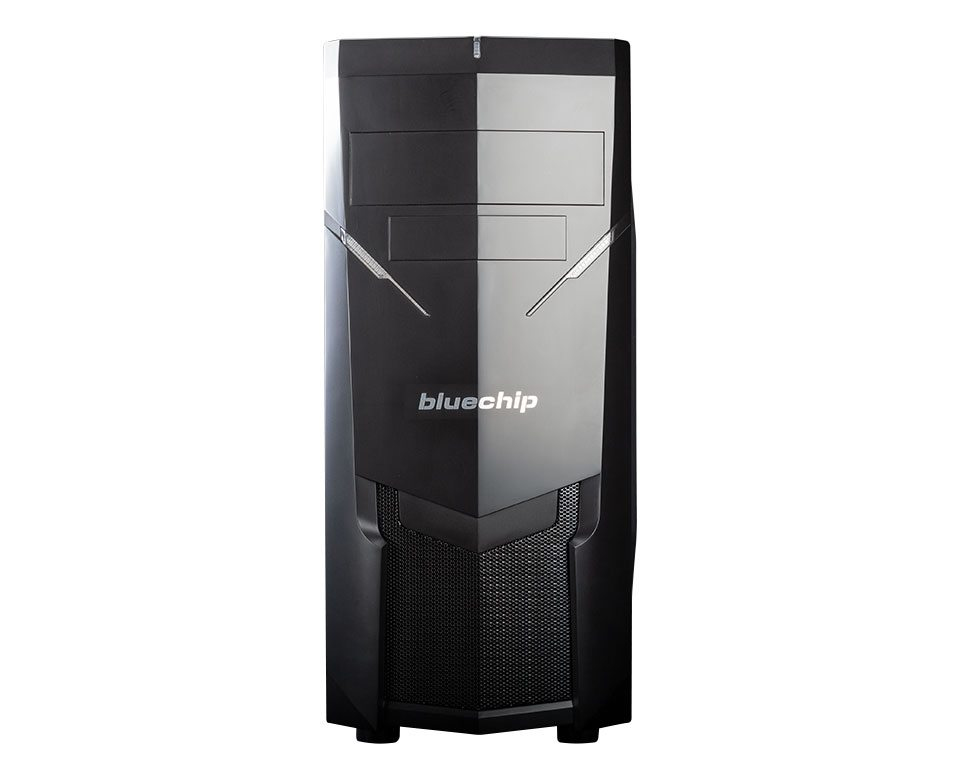

GAMINGline T9700
Model GAMINGline T9700Part no. 556192EAN 4250749701904
65 specifications
- ProcessorIntel® Core™ i9 X-series
- Memory16 GB
- Storage512 GB
- GraphicsNVIDIA GeForce RTX 2080 SUPER
- TypePC
- OSWindows 10 Home
Overview
- Processor
- Intel® Core™ i9 X-series
- Memory
- 16 GB
- Storage
- 512 GB
- Graphics
- NVIDIA GeForce RTX 2080 SUPER
- Type
- PC
- OS
- Windows 10 Home
- Brand
- bluechip
- Category
- PCs/Workstations
- Model
- GAMINGline T9700
- Part numbers
- 556192, 556206, 556220
- EAN / UPC
- 4250749701904, 4250749702369
- Also known as
- bluechip GAMINGline T9700
Specifications
65 specifications in 16 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel® Core™ i9 X-series |
| Processor generation | 9th gen Intel® Core™ i9 |
| Processor model | i9-9820X |
| Processor cores | 10 |
| Processor boost frequency | 4.1 GHz |
| Processor frequency | 3.3 GHz |
| Processor cache | 16.5 MB |
| Bus type | DMI3 |
| Number of processors installed | 1 |
| Processor socket | LGA 2066 (Socket R4) |
Memory
| Specification | Value |
|---|---|
| Internal memory | 16 GB |
| Maximum internal memory | 128 GB |
| Internal memory type | DDR4-SDRAM |
| Memory layout (slots x size) | 2 x 8 GB |
| Memory slots | 8x DIMM |
| Memory clock speed | 2666 MHz |
Storage
| Specification | Value |
|---|---|
| Total storage capacity | 512 GB |
| Storage media | SSD |
| Total SSDs capacity | 512 GB |
| SSD interface | PCI Express 3.0 |
| Hot-swap drive bays | Yes |
| RAID support | Yes |
| RAID levels | 0, 1, 5, 10 |
Graphics
| Specification | Value |
|---|---|
| Discrete graphics card | Yes |
| Discrete graphics card model | NVIDIA GeForce RTX 2080 SUPER |
| Discrete graphics card memory | 8 GB |
| Discrete graphics memory type | GDDR6 |
Performance
| Specification | Value |
|---|---|
| Product type | PC |
| Motherboard chipset | Intel® X299 |
| Audio output channels | 7.1 channels |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Wi-Fi | No |
Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 6 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| DisplayPorts quantity | 3 |
| HDMI ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| Line-out | Yes |
| Microphone in | Yes |
| Number of SATA III connectors | 8 |
Expansion slots
| Specification | Value |
|---|---|
| Number of 3.5" bays | 1 |
| PCI Express x1 (Gen 3.x) slots | 2 |
| PCI Express x16 (Gen 3.x) slots | 3 |
Power
| Specification | Value |
|---|---|
| Power supply | 700 W |
Design
| Specification | Value |
|---|---|
| Chassis type | Midi Tower |
| Number of 5.25" bays | 7 |
| Product colour | Black |
Software
| Specification | Value |
|---|---|
| Operating system installed | Windows 10 Home |
| Operating system architecture | 64-bit |
Display
| Specification | Value |
|---|---|
| Display included | No |
Processor special features
| Specification | Value |
|---|---|
| CPU configuration (max) | 1 |
| Embedded options available | No |
| Enhanced Intel SpeedStep Technology | Yes |
| Execute Disable Bit | Yes |
| Intel 64 | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
Audio
| Specification | Value |
|---|---|
| Audio chip | Realtek ALC S1220A |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 185 mm |
| Depth | 410 mm |
| Height | 412 mm |
Certificates
| Specification | Value |
|---|---|
| Certification | CE |
