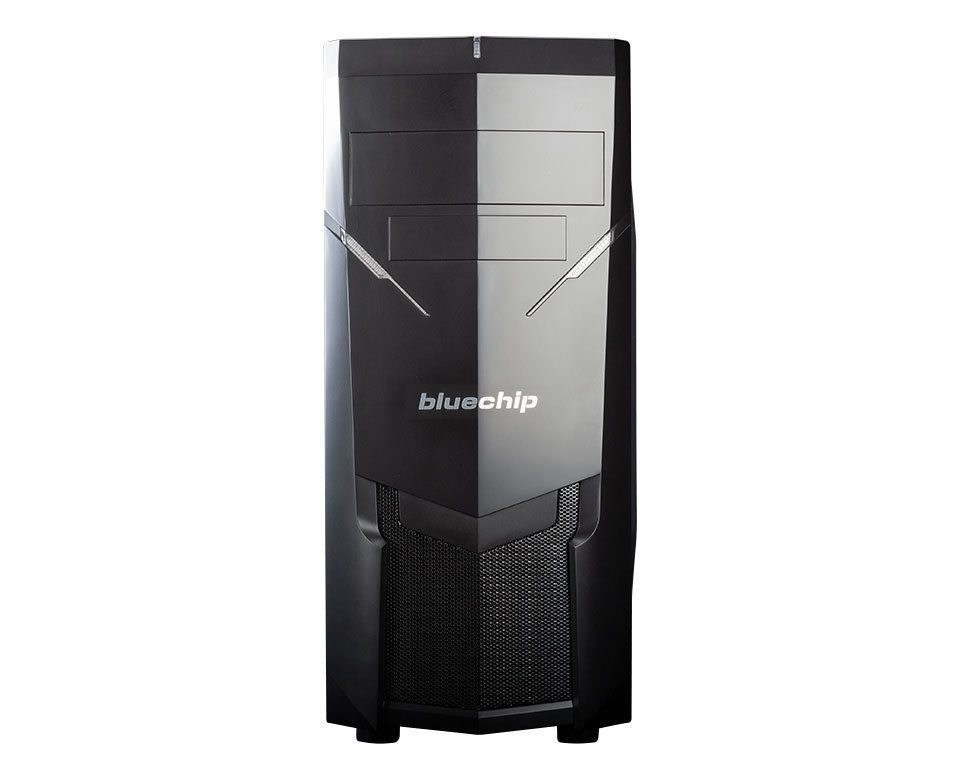

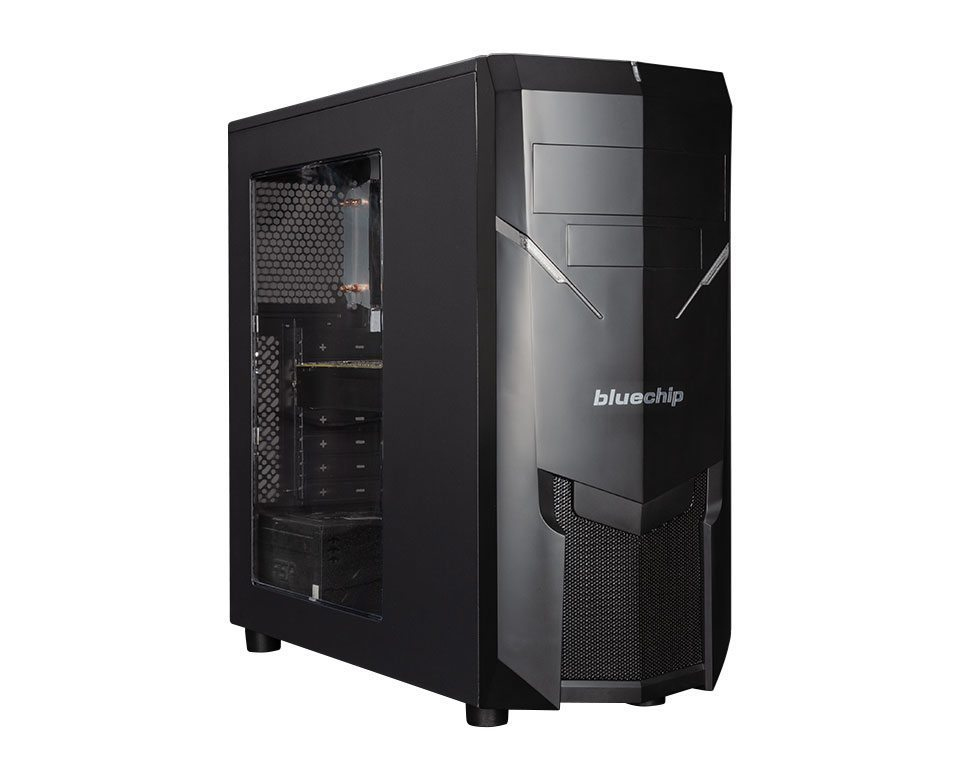

GAMINGline T7701
Model GAMINGline T7701Part no. 556301EAN 4250749703953
87 specifications
- ProcessorIntel® Core™ i7
- Memory16 GB
- Storage500 GB
- GraphicsNVIDIA GeForce RTX 3060
- TypePC
- OSWindows 10 Pro
Overview
- Processor
- Intel® Core™ i7
- Memory
- 16 GB
- Storage
- 500 GB
- Graphics
- NVIDIA GeForce RTX 3060
- Type
- PC
- OS
- Windows 10 Pro
- Brand
- bluechip
- Category
- PCs/Workstations
- Model
- GAMINGline T7701
- Part numbers
- 556301, 556397
- EAN / UPC
- 4250749703953, 4250749706039
- Also known as
- bluechip GAMINGline T7701
Specifications
87 specifications in 16 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel® Core™ i7 |
| Processor generation | 12th gen Intel® Core™ i7 |
| Processor model | i7-12700KF |
| Processor cores | 12 |
| Processor threads | 20 |
| Processor boost frequency | 5 GHz |
| Processor cache | 25 MB |
| Processor cache type | Smart Cache |
| Bus type | DMI4 |
| Number of processors installed | 1 |
| Processor socket | LGA 1700 |
Memory
| Specification | Value |
|---|---|
| Internal memory | 16 GB |
| Maximum internal memory | 128 GB |
| Internal memory type | DDR4-SDRAM |
| Memory layout (slots x size) | 2 x 8 GB |
| Memory slots | 4x DIMM |
| Memory clock speed | 3200 MHz |
Storage
| Specification | Value |
|---|---|
| Total storage capacity | 500 GB |
| Storage media | SSD |
| Number of storage drives installed | 1 |
| Total SSDs capacity | 500 GB |
| Number of SSDs installed | 1 |
| SSD capacity | 500 GB |
| NVMe | Yes |
| SSD interface | NVMe, PCI Express 4.0 |
| RAID support | Yes |
| RAID levels | 0, 1, 5, 10 |
Graphics
| Specification | Value |
|---|---|
| Discrete graphics card | Yes |
| On-board graphics card | No |
| Discrete GPU manufacturer | NVIDIA |
| Discrete graphics card model | NVIDIA GeForce RTX 3060 |
| Discrete graphics card memory | 12 GB |
| Discrete graphics memory type | GDDR6 |
| Number of discrete graphics cards | 1 |
| On-board graphics card model | Not available |
| Graphics card DisplayPorts quantity | 3 |
| Graphics card HDMI ports quantity | 1 |
| Graphics card interface | PCI Express 4.0 x 16 |
Performance
| Specification | Value |
|---|---|
| Product type | PC |
| Market positioning | Gaming |
| Powered by | ASUS |
| Motherboard chipset | Intel Z690 |
| Audio output channels | 7.1 channels |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100,1000,2500 Mbit/s |
| LAN controller | Realtek RTL8125 |
| Wi-Fi | No |
Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 1 |
| USB 3.2 Gen 2x2 Type-C ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| Headphone outputs | 1 |
| Line-out | Yes |
| Microphone in | Yes |
| PS/2 ports quantity | 1 |
| S/PDIF out port | Yes |
| Number of SATA III connectors | 4 |
Expansion slots
| Specification | Value |
|---|---|
| Number of 3.5" bays | 1 |
| PCI Express x1 (Gen 3.x) slots | 1 |
| PCI Express x4 (Gen 3.x) slots | 2 |
| PCI Express x4 (Gen 4.x) slots | 1 |
Power
| Specification | Value |
|---|---|
| Power supply | 750 W |
| 80 PLUS certification | 80 PLUS Gold |
Design
| Specification | Value |
|---|---|
| Chassis type | Midi Tower |
| Placement supported | Vertical |
| Number of 5.25" bays | 1 |
| Product colour | Black |
Software
| Specification | Value |
|---|---|
| Operating system installed | Windows 10 Pro |
| Operating system architecture | 64-bit |
| Windows 11 free upgrade | Yes |
Display
| Specification | Value |
|---|---|
| Display included | No |
Processor special features
| Specification | Value |
|---|---|
| CPU configuration (max) | 1 |
| Embedded options available | No |
| Enhanced Intel SpeedStep Technology | Yes |
| Execute Disable Bit | Yes |
| Idle States | Yes |
| Intel 64 | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
Audio
| Specification | Value |
|---|---|
| Audio chip | Realtek ALC897 |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 185 mm |
| Depth | 410 mm |
| Height | 412 mm |
Certificates
| Specification | Value |
|---|---|
| Certification | CE |
